3 5 layers double extruder air bubble bag wrap machine air bubble film making automatic air bubble film packing machine
- Category: Plastic Extruders >>>
- Supplier: Guangdong,Zhongrui,Plastic,Machinery,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
5 Layers PE Air Bubble Film Machinery (Twin-Screw Design)
To produce two layers（Bubble Layer + PE Layer ) or three layers air bubble film(PE Layer + Bubble Layer + PE Layer )
Each three layers can be separately controlled and with different material and different formula and color
In-line Lamination bubble film with PE coated material (PE coated Aluminum Foil, PE coated Kraft Paper, EPE Foam, PE Film etc.)
FEATURES AT A GLANCE
5 Layers PE Air Bubble Film Machinery
(Twin-Screw Design)
(Twin-Screw Design)
Maximum Line Speed 40 meters/minute
Special machine Maximum Line Speed 50 meters/minute
five layers bubble film type
Product
flow chart
PRODUCT SPECIFICATIONS
Item | 5 layers bubble film machine |
Raw Material | Low density polyethylene / linear low density polyethylene / recycled material |
Maximum width (mm) | 2030 |
Effective width (mm) | 2000 |
Speed (m/hr) | 800m/hr-1800m/hr |
Production Capacity (kg) | 158kg/hr-248kg/hr |
Range of film thickness (g/m2) | 2 layers: 25g/sm-300g/sm 3 layers: 45g/sm-400g/sm |
Main screw diameter (mm) | Φ80mm+Φ75mm |
Secondary screw diameter (mm) | Φ65mm |
Screw length diameter ratio | 32 : 1 |
Temperature Control Region | 32 |
Power of main motor (kW) | 30KW+22KW |
Power of secondary motor (kW) | 18.5KW |
Power of vacuum pump | 3.0KW |
Maximum rewinding diameter | 1000mm (Can be customized upon requested) |
Power supply (volt) | 380V,50HZ,3 PHASES (Can be customized for different countries) |
Total Power (KW) | 212 |
Heating Power (KW) | 122 |
Effective Power (KW) | 63 |
Weight(kg) | 10700 |
PRODUCT CONFIGURATION

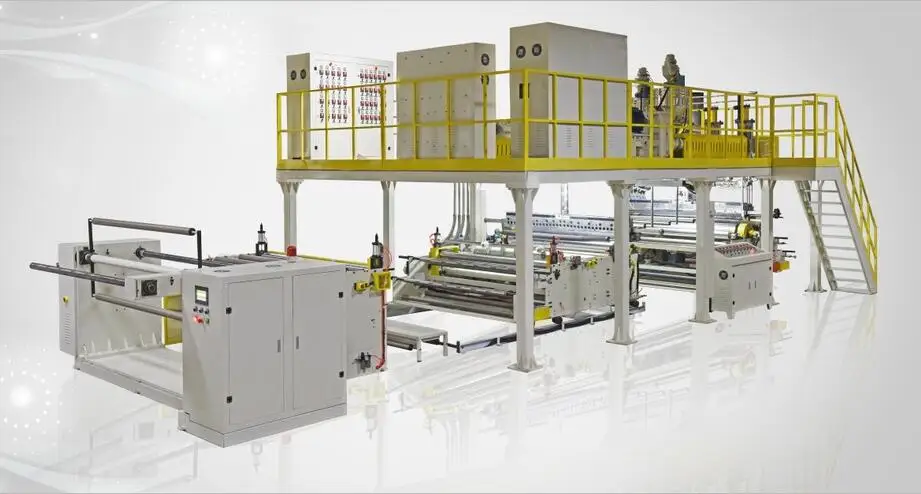

overview
Control panel

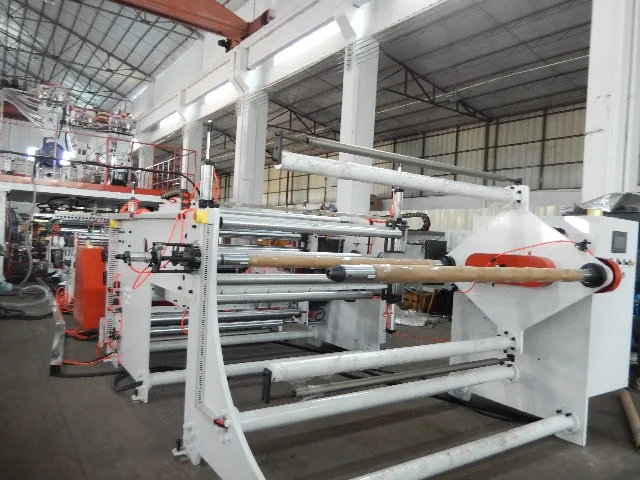

Winding part
SALES AND SERVICE NETWORK
Successful Project
Project in USA
Project in UK
Project in Australia
SIMILAR PRODUCTS
FAQ
Q1: Are you trading company or manufacturer
We are the best air bubble film making machine factory at Guangdong China for more than 10years experiences,
machines have been sold out all over the world, and have ship out more than 50 machines to USA
machines have been sold out all over the world, and have ship out more than 50 machines to USA
Q2：How do you guarantee machine quality
Quality is our first priority, all our workers are well trained and many of them are have more than 10years experience
in the bubble film factory,and we strictly follow the production procedures, all machine will be having a throughout
test,then can ship out to the customer
Q3：Why choose your company as supplier
Ztech have more than 10years experiences in making high standard and high quality bubble wrap film machines
Stronger structure and high speed machine max speed 40merter per minutes and special machine max. speed
50meter per minutes, more output
Machines have been sold out all over the world, and have ship out more than 50 machines to US
· Many our customer bought our first machine, then second on,then third one.... we grew up with each other and
that's the best partnership
Q4: How about installation, training and after service
Rich experienced engineers available to provide oversea service at your factory
Installing, testing and training service
Lifelong technical support
1 year warranty
Q5: How to contact you
Whatsapp/wechat:+86 13790060625
Email:[email protected]
