CJK750 32HP 12V Rocker Arm Comp. Valve Rocker L/R With Shaft 2pcs/set Rocker arm adjustment screw Motorcycle Engine Parts
- Category: Motorcycle Valve Train >>>
- Supplier: Yiwu,Zhensheng,Motorcycle,Spare,Parts,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification
Product Name | Rocker Arm Comp. |
Sku | SCL-2019110007 |
Fitting Model | CJK750 32HP 12V |
OEM | L:75F101003,R:75F101004 |
Color | Black |
MOQ | 10 Sets |
WEIGHT | 0.7 kg/set |
Fit for | Motorcycle Engine Parts |
Quality | 100% Tested |
Deliery Time | 15-25days |
Packing | Standard Packing |
Payment | T/T, L/C, Credit Card, PayPal, Western Union, etc |
Shipping | DHL, UPS, FedEx, TNT, By Air, By Sea |
Delivery Time | 3 to 7 working days for sample order, 15 to 45 working days for bulk order |

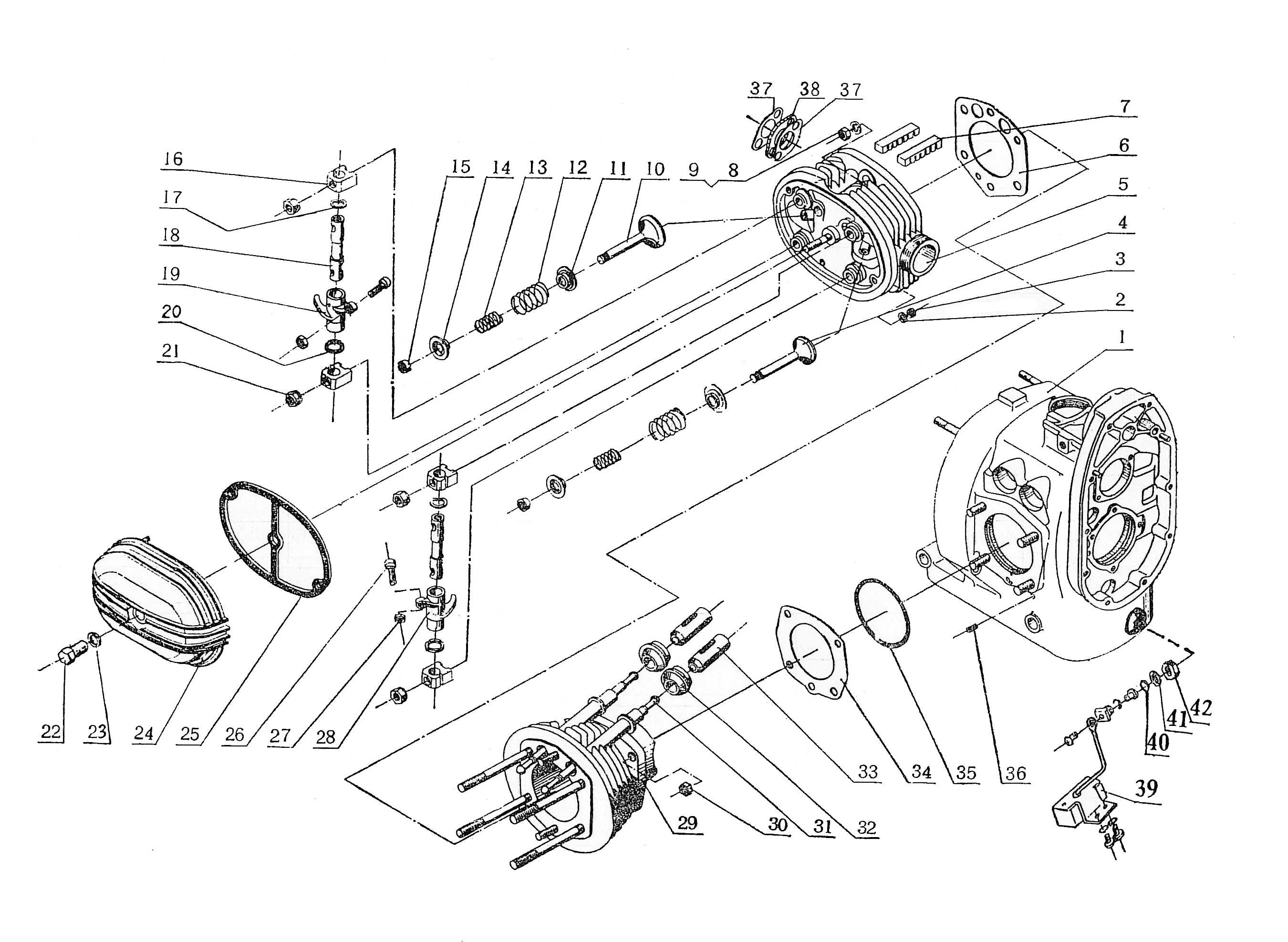

CYLINDER ASSEMBLY
Rocker Arm Comp. is No.19, From no.26 to 28 part in the image
You can make order or inquiry according to Manual Parts Number as following:
No. | Description | QTY | Remarks |
1 | Crank Case | 1 | / |
2 | Nut | 1 | / |
3 | Washer | 1 | / |
4 | Exhaust valve | 1 | / |
5 | Cylinder head | 1 | / |
6 | Cylinder head gasket | 1 | / |
7 | Rubber damper | 2 | / |
8 | Washer | 1 | / |
9 | Nut | 1 | / |
10 | Intake valve | 1 | / |
11 | Spring plate bottom | 2 | / |
12 | Outer valve spring | 2 | / |
13 | Inner valve spring | 2 | / |
14 | Upper spring retainer | 2 | / |
15 | Valve wedge | 2 | / |
16 | Bearing bracket | 2 | / |
17 | Washer | 1 | / |
18 | Rocker arm shaft | 1 | / |
19 | Rocker arm EV right and AV left | 1 | / |
20 | Washer | 2 | / |
21 | Nut | 2 | / |
22 | Bolt | 1 | / |
23 | Washer | 1 | / |
24 | Valve cover | 1 | / |
25 | Valve cover gasket | 1 | / |
26 | Adjusting screw | 1 | / |
27 | Adjusting Nut | 1 | / |
28 | Rocker arm AV right and EV left | 1 | / |
29 | Cylinder | 1 | / |
30 | Nut | 1 | / |
31 | Pushrod | 1 | / |
32 | Pushrod rubber | 1 | / |
33 | Plunger | 1 | / |
34 | Foot seal | 1 | / |
35 | Clinder sealing ring | 1 | / |
36 | Bolt | 1 | / |
4,10 | Ex/In Valve | 1 | No.4, No.10 |
19,26-28 | Rocker Arm Comp. | 4 | No.19, From no.26 to 28 |
