complete automatic olive oil extraction machine press refinery plant olive oil production line
- Category: >>>
- Supplier: Henan Yuede Mechanical Equipment Co. Ltd.
Share on (1600685965367):
Product Overview
Description
Product Description

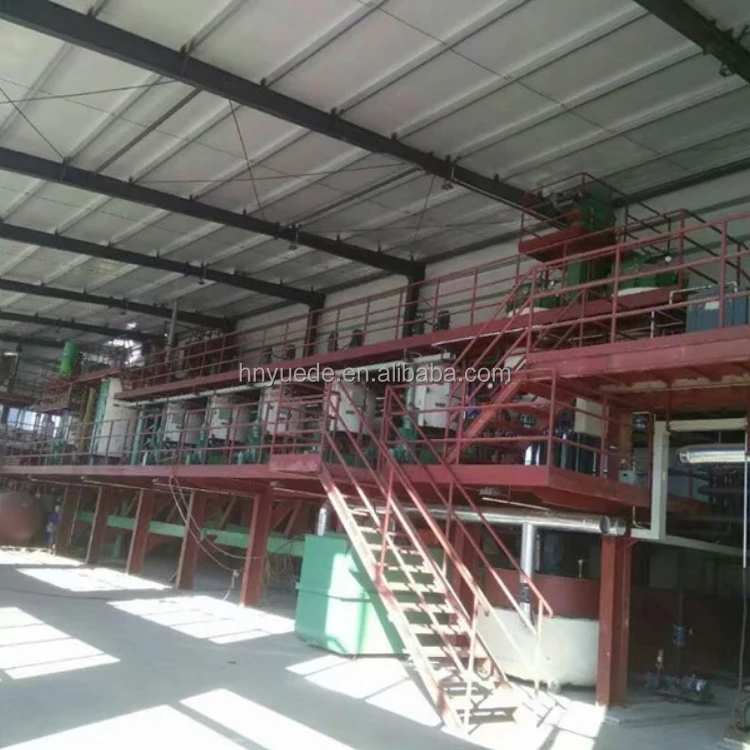

Complete cooking oil production line

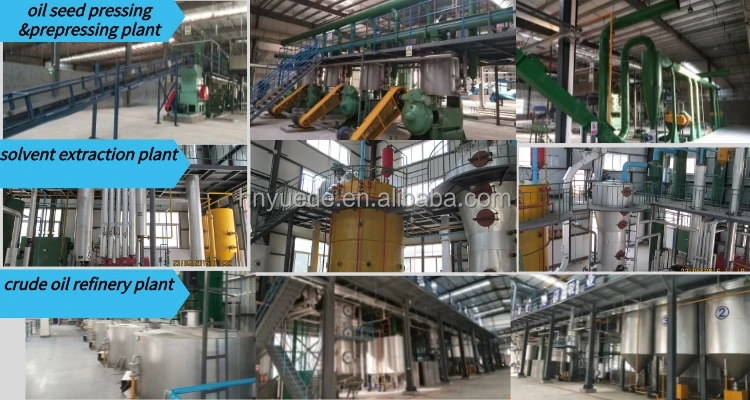

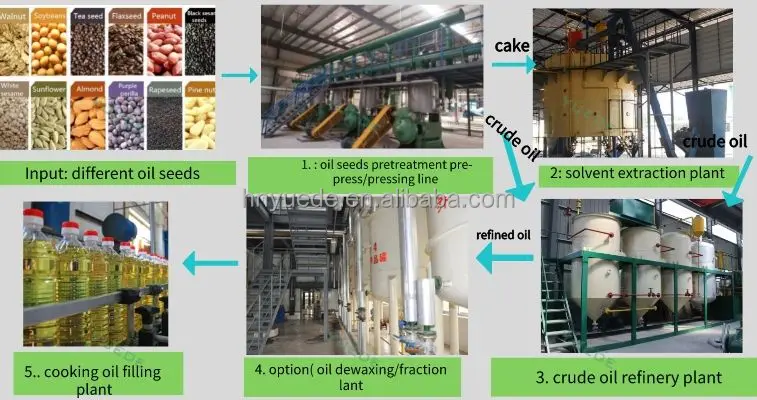

complete cooking oil production line mainly include three part. Oil seeds pretreatment pressing line, solvent extraction plant, crude oil refinery plant

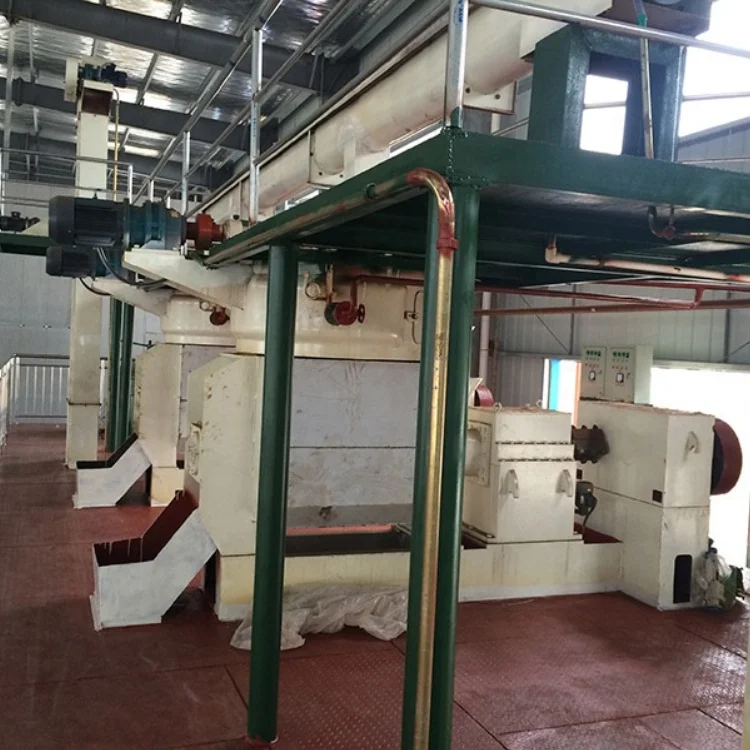

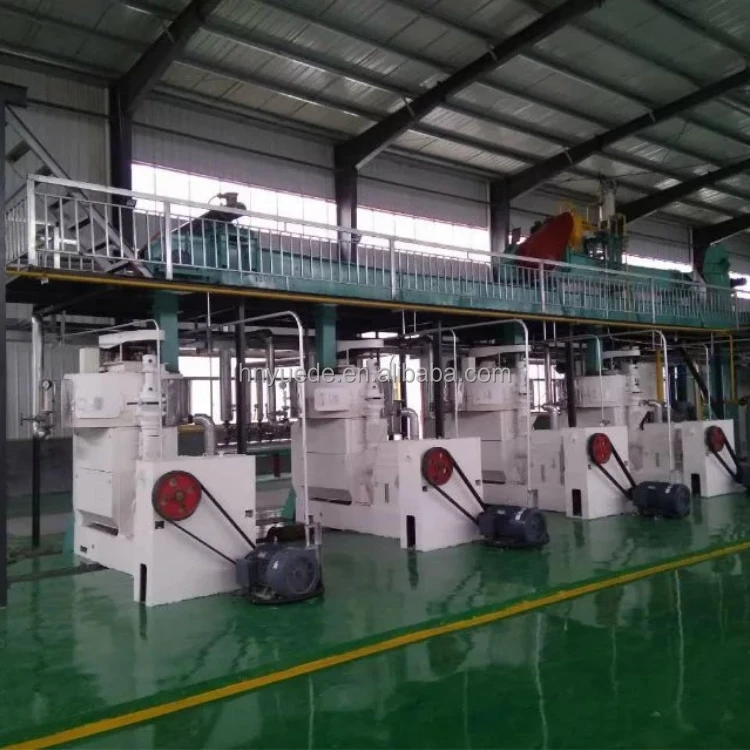

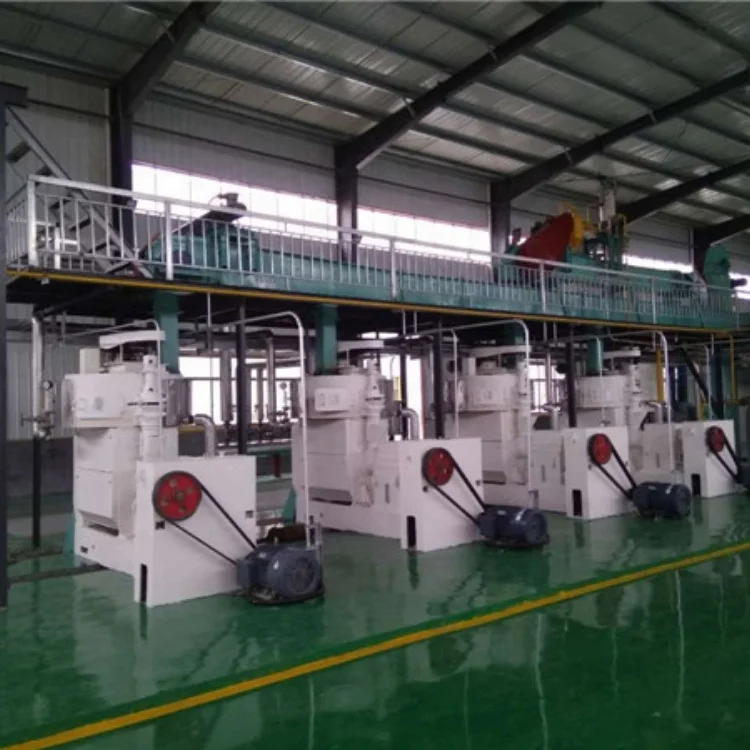

Project 1: oil seeds pretreatment pressing/pre-pressing line
Complete oil pressing plant is used to press various oil seeds(sunflower, cotton seed, peanut, soybean, rice bran, corn germ, mustard, rapeseed, coconut/copra,olive, sesame, castor bean,palm kernel and so on). the output is crude oil and cake. crude oil will be sent to oil refinery workshop, cake will be sent solvent extraction workshop or sell .
The mainly process : Input Raw material(oil seeds)--cleaning machine--crushing--flaking--cooking--pressing/pre-press--filter--Output(crude oil &cake )

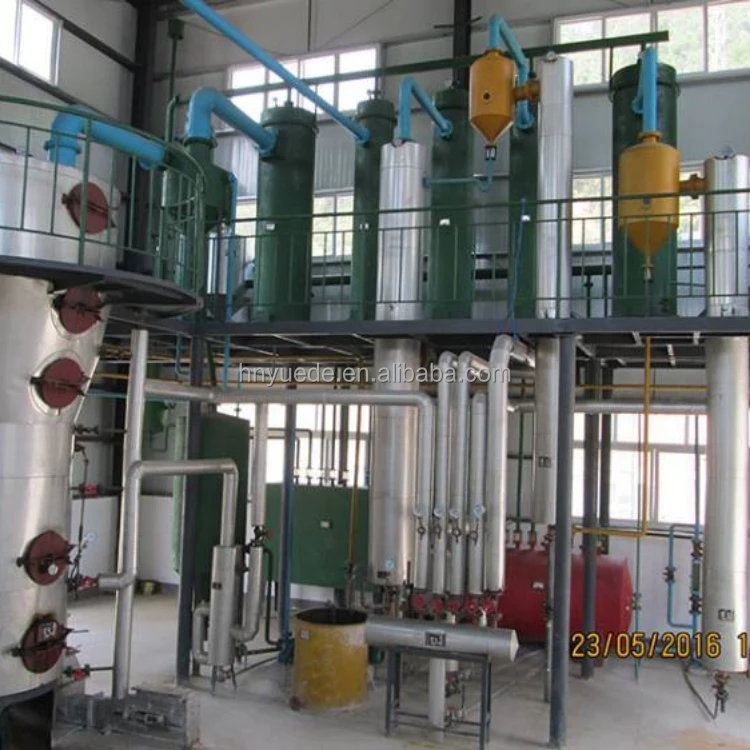

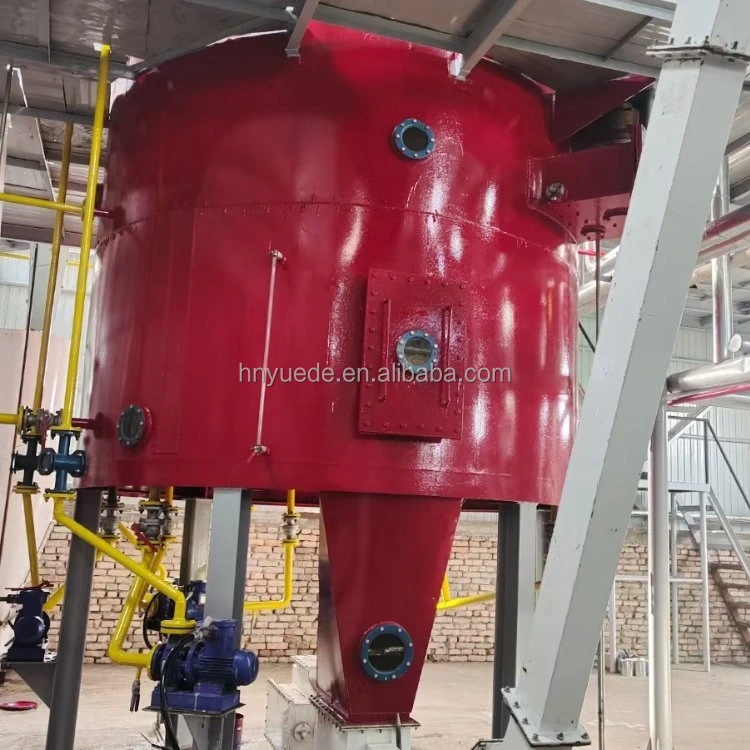

Project 2: solvent extraction plant
By taking advantage of oil and the organic solvents can dissolve with each other .use n-hexane oil react with pretreatment low oil content oil seeds( rice bran, soybean,corn germ) or pressed oil cake getting from oil pressing workshop(sunflower, groundnut, cottonseed,rapeseed and so on) , extract crude oil,crude oil will be sent to another oil refinery plant for further refining. oil residue will be lower than 1% . and meal is more suitable for animal feed.
Main process of solvent extraction plant :Input Raw material ( cake& processed oil seeds) --Solvent extraction system--D.T.D.C system --Condenser system--recovery system-Output( crude oil & meal )

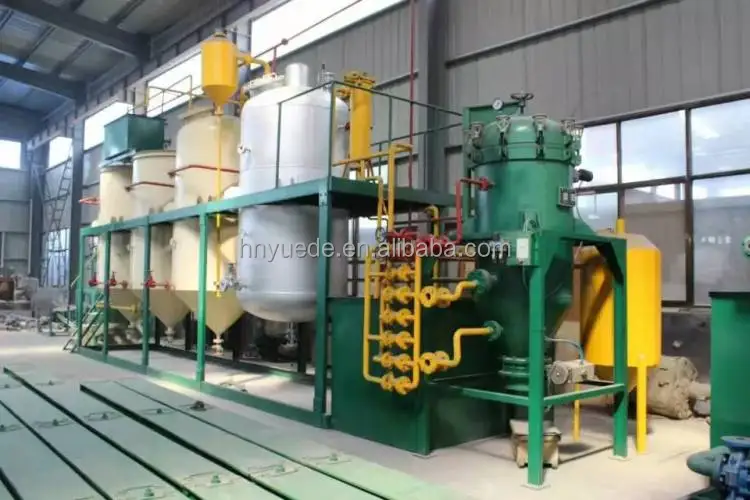

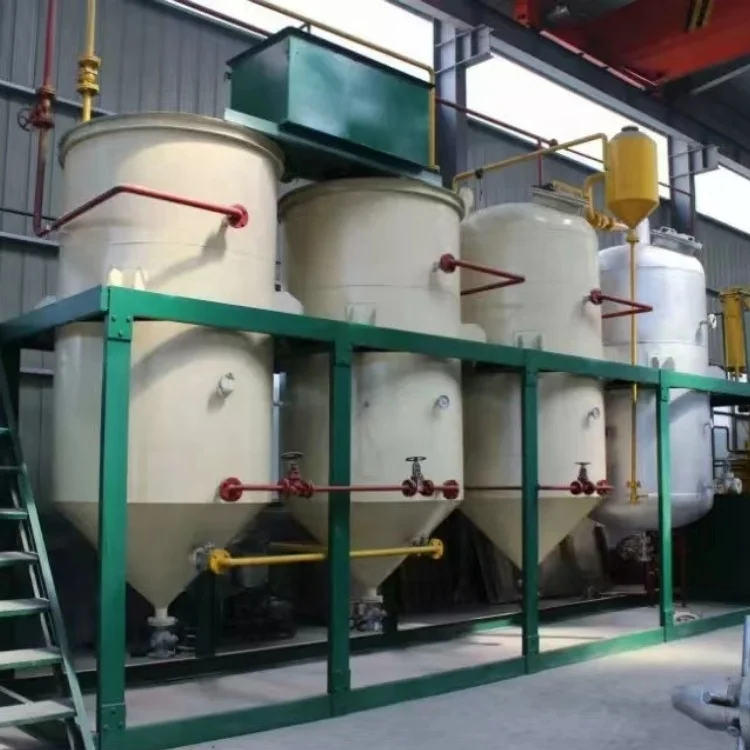

Project 3: crude oil refinery plant
It is used to refine crude oil from oil pressing plant/solvent extraction plant into edible oil/cooking oil. we have three method oil refining plant: batch oil refinery plant(chemical type), semi-continuous oil refinery plant and full continuous oil refinery plant(full continuous), we will design suitable machine according to your capacity and requirement
the main process of oil refinery plant: Input raw material(crude oil)--degumming--deacidification--bleaching/decolorization--deodorization --refined oil(edible oil )
Project 4: oil fractiontion plant/oil dewaxing plant/oil winterization plant
After refining, some oil will directly be sent to oil filling machine. some oil need further process.
1. palm oil fractionation plant: After refining, RBD palm oil will be sent to palm oil fractionation plant for further processing, finally will get palm olein and palm stearin

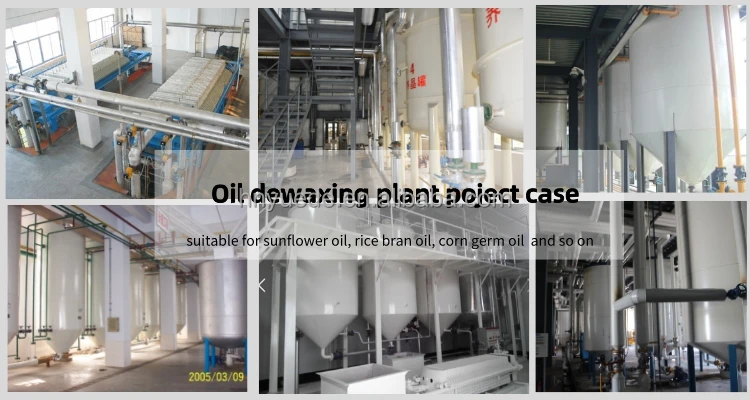

2. oil dewaxing plant/oil winterization : like sunflower oil, corn germ oil, rice bran oil, after refining, there are still have wax in the oil, thus need another oil dewaxing plant to remove wax in the oil. Like cottonseed oil, it need further oil winterization plant for getting 1 grade edible oil .
Specification
Oil seeds pretreatment pressing line | 1-10t/d small simple pressing line 20-50T/D, 50-100T/D medium scale pressing line above 100T/D pressing line |
solvent extraction plant | 20T/D small solvent extraction plant 30-50T/D.50-100T/D medium scale solvent extraction plant above 100T/D solvent extraction plant |
Crude oil refinery plant | 1-10T/D small scale oil refinery plant 20-50T/D,50-100T/D medium scale oil refining plant Above 100T/D full continuous oil refinery |
Oil fractionation /dewaxing plant | 1-10T/D smll scale capacity 20-50T/D.50-100T/D medium scale Above 100T/D |
Company Profile
Henan YueDe Mechanical Equipment Co.,ltd is one of the professional machinery suppliers in China . We are specialized in selling and exporting machinery field, include oil press machine&complete edible/cooking oil production line, agricultural machine, We not only have professional mechanical design technicians and engineers,but also have experienced foreign trade service group in machinery industry. Our target customers are all customers from all over world( Asia,Europe,North America, America, Africa and Oceania) who need our products, We focus on customer focus--Identify customers’ needs with sincere and professional communication; Design, product and customized product with professional technology; Strictly control the production process to provide customers with high-quality products;Professional technology and after-sales service to provide customers with the best-sales service and guarantee.
For the healthy and sustainable development of the machinery trade industry, for a win-win,mutual respect, trust and healthy long-term cooperative relationship ,we will keep moving forward .
For the healthy and sustainable development of the machinery trade industry, for a win-win,mutual respect, trust and healthy long-term cooperative relationship ,we will keep moving forward .
Packing & Delivery
FAQ
1. How do I choose suitable machine ?
Answer: Please tell me your raw material, capacity and final finished product requirement, so that we design suitable technical process and produce suitable machine for you
2.Will engineer guide installation machine ?
Yes, after you receive goods, our engineer will guide installation&commissioning machine, train your worker operate machine
