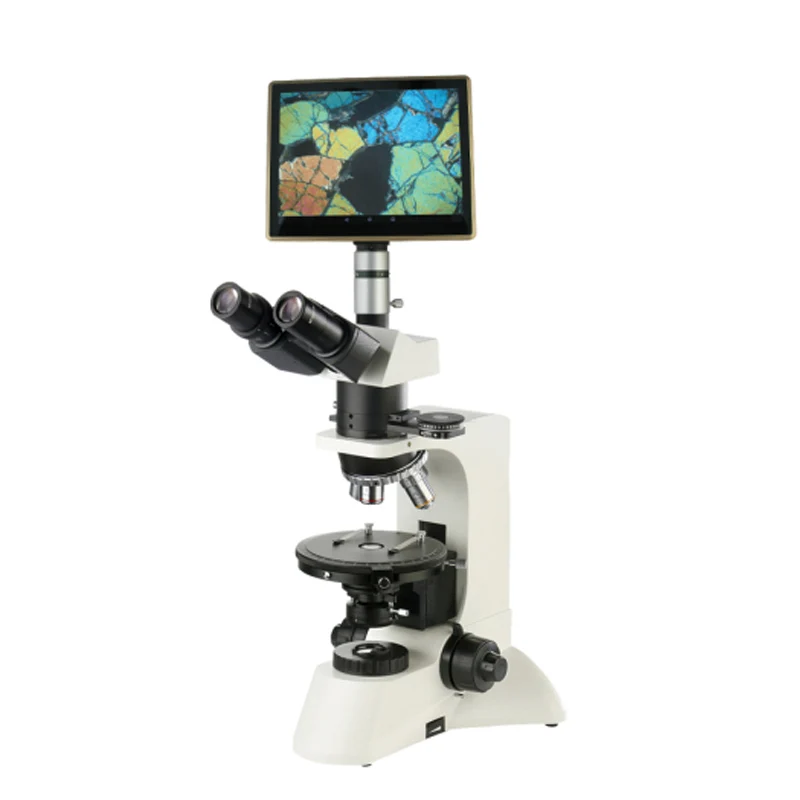

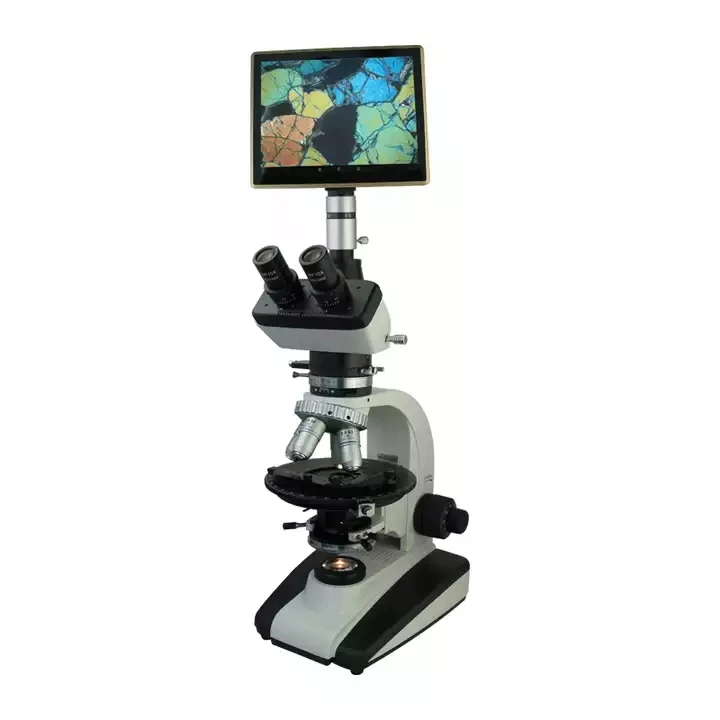

Polarizing microscope BM 60XCP (tablet computer Transreflection)
- Category: >>>
- Supplier: Ningbo Movel Scientific Instrument CO. LTD
Share on (1600685993281):
Product Overview
Description
1、 Purpose
The BM-60XCP tablet computer transmission and reflection polarizing microscope is one of the professional experimental instruments commonly used by geological, mineral, metallurgical and other departments and relevant colleges and universities. In recent years, with the continuous progress of optical technology, the application of the polarizing microscope as an optical instrument has become more and more extensive. The BM-60XCD computer transmission and reflection polarizing microscope is a very applicable product, which can be used by users for single polarized observation and orthogonal polarized observation, Conical observation and microscope photography, equipped with gypsum λ The accessories, such as mica 1/4 test piece, quartz wedge and movable ruler, are a group of new products with relatively complete functions and good quality.
This instrument uses an electric light source. The illumination can continuously adjust the brightness. The hinged binocular tube can tilt 30 ° and rotate 360 ° freely.
This instrument uses an electric light source. The illumination can continuously adjust the brightness. The hinged binocular tube can tilt 30 ° and rotate 360 ° freely.
2 Technical specifications
Item | magnification | Focal length (mm) |
Flat field eyepiece | 10X | Φ20mm |
Grid eyepiece | 10X | Φ20mm |
Cross eyepiece | 10X | Φ20mm |
Reticle eyepiece | 10X | Φ20mm |
magnification | numerical aperture(NA) | Cover glass thickness | |
Infinite flat field achromatic stress free objective | 4X | 0.10 | - |
10X | 0.25 | - | |
20X | 0.40 | - | |
40X | 0.65 | 0.17mm | |
60X | 0.85 | 0.17mm |
objective | eyepiece | Tube coefficient | Total magnification |
4X | 10X | 1X | 40X |
10X | 100X | ||
20X | 200X | ||
40X | 400X | ||
60X | 600X |
4. Observation tube: three eye observation tube
5. Mechanical tube length: infinite system (∞)
6. Pupil distance: 55-75mm
7. Converter: five hole center adjustable
8. Rotary table: diameter Ф 172mm, moving range: 360 ° equal division, vernier accuracy 6 '
9. Moving ruler: moving stroke 30 × 40mm
10. Focusing range: 22mm, coaxial common rail coarse and micro focusing, micro grid value 0.002mm
11. Color filter: blue
12. Complementer: gypsum λ Sheet, mica 1/4 λ Flake, quartz wedge
13. Condenser: N.A=1.30 swing Abbe condenser with variable light bar.
14. Collector: high brightness fixed lighting
15. Light source: upper lighting: halogen lamp 12V30W, AC85V-230V, brightness adjustable; Lower lighting: halogen lamp 12V30W, AC85V-230V, brightness adjustable
16. Imaging system: 9.7-inch large screen Android system tablet, MCL-Z adaptive lens
5. Mechanical tube length: infinite system (∞)
6. Pupil distance: 55-75mm
7. Converter: five hole center adjustable
8. Rotary table: diameter Ф 172mm, moving range: 360 ° equal division, vernier accuracy 6 '
9. Moving ruler: moving stroke 30 × 40mm
10. Focusing range: 22mm, coaxial common rail coarse and micro focusing, micro grid value 0.002mm
11. Color filter: blue
12. Complementer: gypsum λ Sheet, mica 1/4 λ Flake, quartz wedge
13. Condenser: N.A=1.30 swing Abbe condenser with variable light bar.
14. Collector: high brightness fixed lighting
15. Light source: upper lighting: halogen lamp 12V30W, AC85V-230V, brightness adjustable; Lower lighting: halogen lamp 12V30W, AC85V-230V, brightness adjustable
16. Imaging system: 9.7-inch large screen Android system tablet, MCL-Z adaptive lens
3 Complete set of instruments
Serial number | Name | unit | Quantity |
1 | Body of microscope | set | 1 |
2 | trinocular tube | pcs | 1 |
3 | eyepiece: 10X/ Φ 22㎜ | pcs | 2 |
4 | 10X cross eyepiece, 10X reticle eyepiece, 10X grid eyepiece | pcs | 1each |
5 | Infinite stress free flat field achromatic objective lens: 4 ×/ 0.1（∞/ - ）、10 ×/ 0.25（∞/ - ） | pcs | 1each |
20×/0.40（∞/ - ）、 40×/0.65（∞/0.17）、60×/0.85（∞/0.17 | pcs | 1each | |
6 | Gypsum 1 λ Test piece, mica 1/4 λ Test piece, quartz wedge test piece | pcs | 1each |
7 | 0.01 Micrometer (C1) | pcs | 1 |
8 | Falling (reflecting) illuminator | pcs | 1 |
9 | Falling (reflecting) illuminator light box | pcs | 1 |
10 | Transmitted light blue circular filter | pcs | 1 |
11 | Reflected light filter plate: ND25, LBD-2, IF550 | pcs | 1each |
12 | Φ 17mm light passing plate | pcs | 1 |
13 | 2.5 mm Aperture Light Bar Centering Hexagon Wrench | pcs | 2 |
14 | 2mm locking (fixing) screw hexagon wrench | pcs | 1 |
15 | Moving ruler | pcs | 1 |
16 | Adjusting handle | pcs | 2 |
17 | Transmission joint | pcs | 1 |
18 | Spare bulb 12V 30W | pcs | 2 |
19 | dust cover | pcs | 1 |
20 | 9.7-inch large screen Android tablet | set | 1 |
21 | MCL-Z adapter lens | pcs | 1 |
22 | product instruction | pcs | 1 |
23 | qualification certificate of products | pcs | 1 |
24 | Product warranty card | pcs | 1 |
