European Standard Electric Hook Bolt Lock For Sliding Door YSD 230NO/NC
- Category: Locks >>>
- Supplier: Shenzhen Yli Electric Lock Co. Ltd.
Share on (1600686269692):
Product Overview
Description
Product Description
Product Application

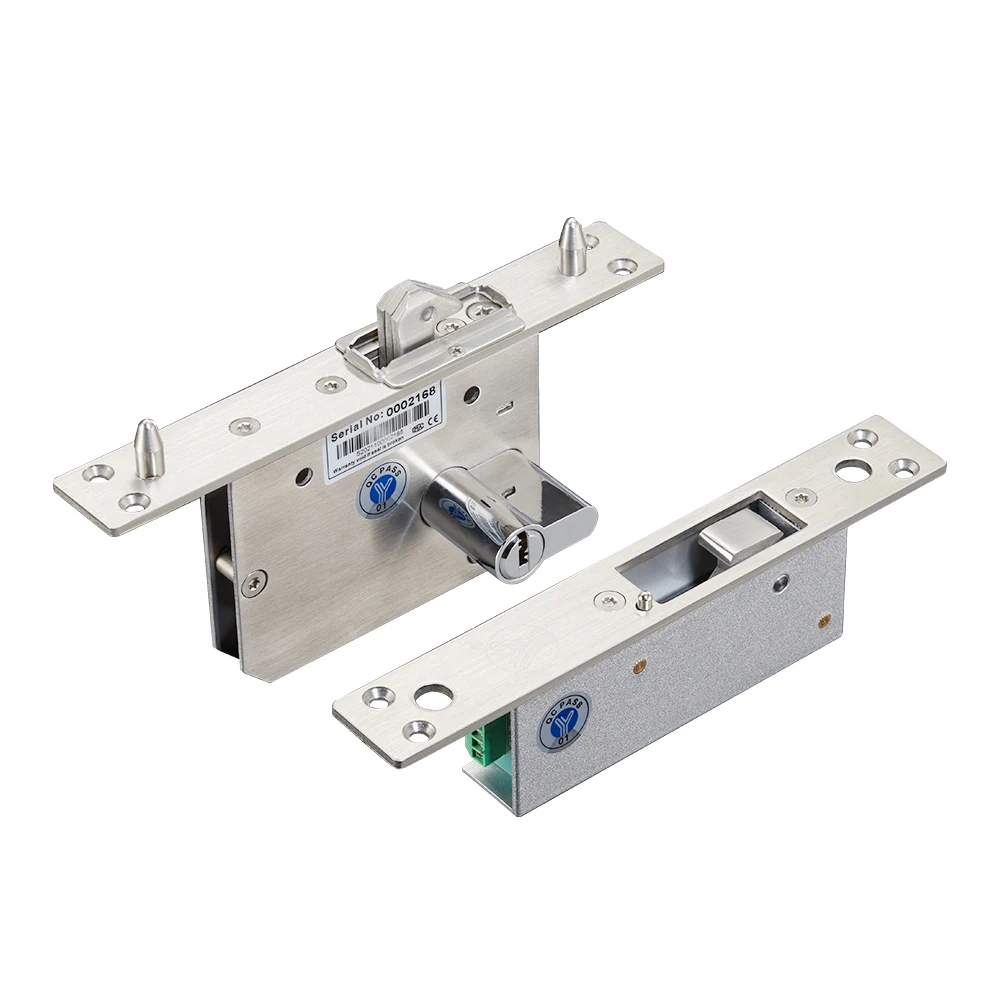

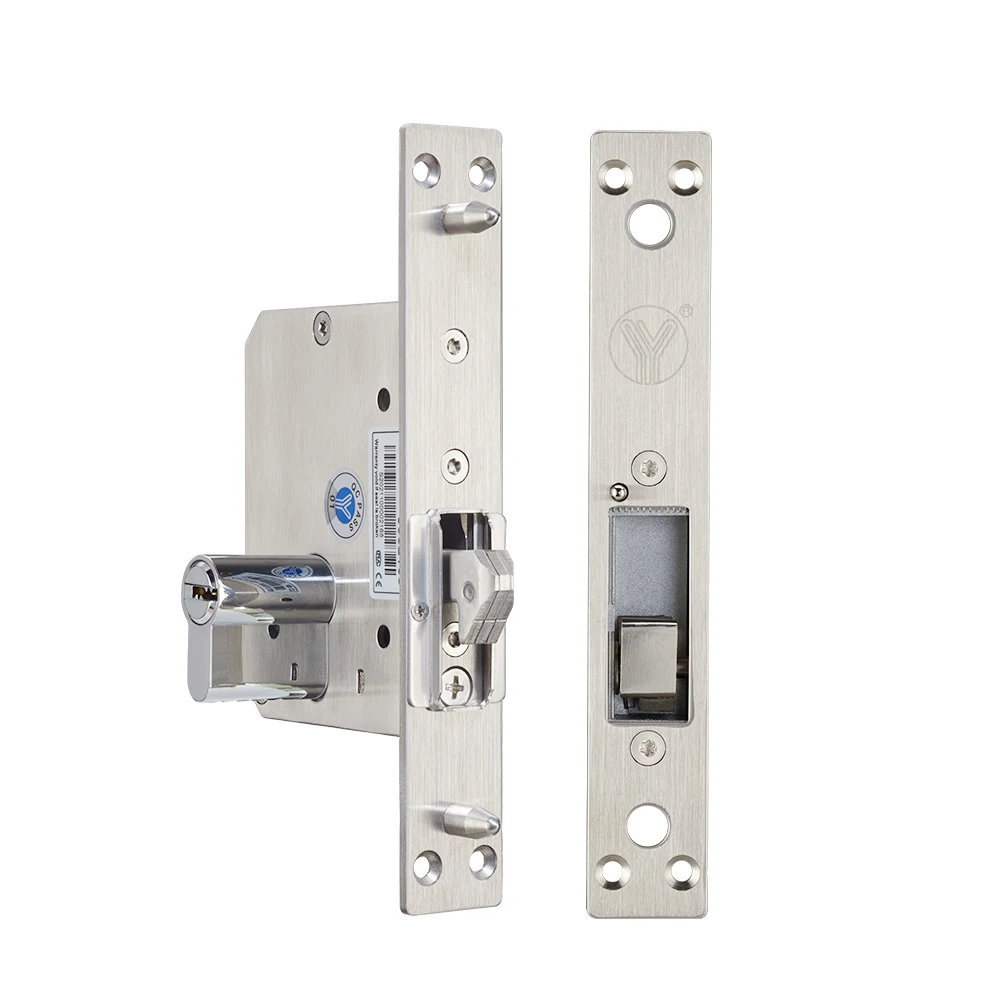

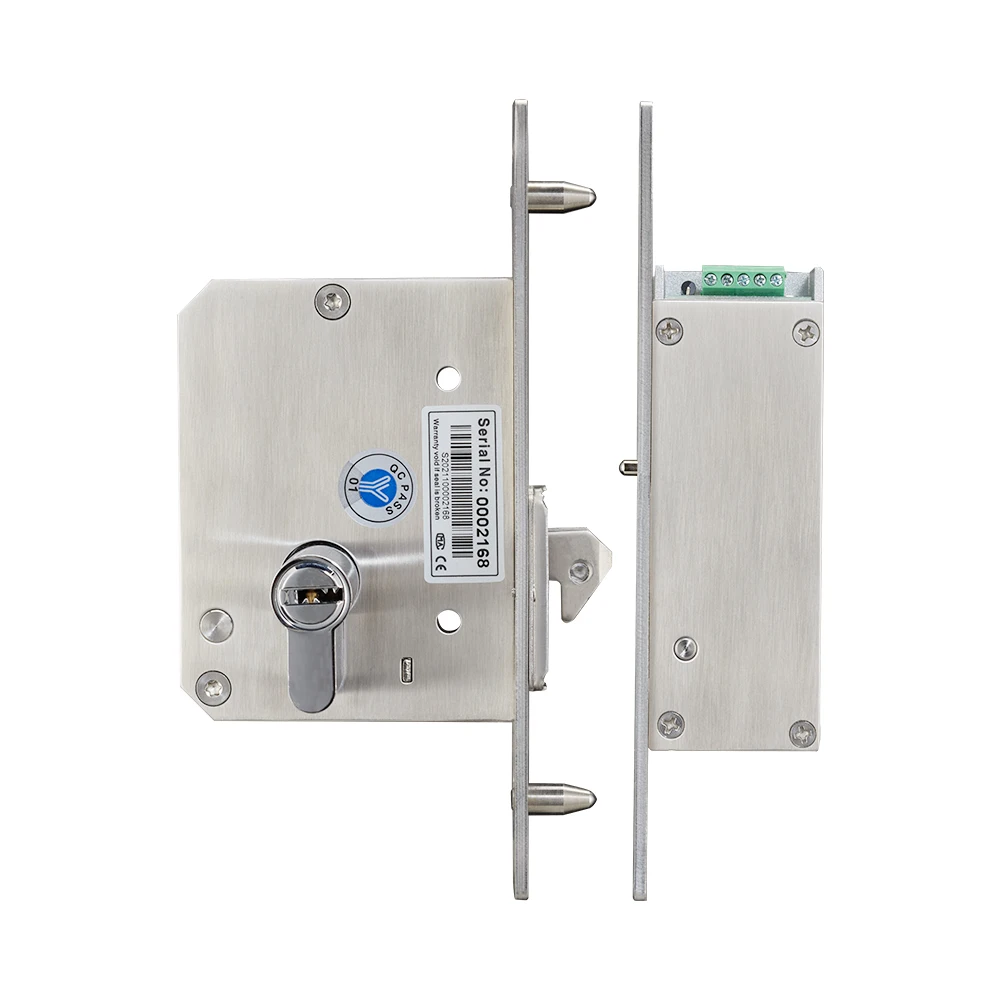

YLI electric lock for sliding door is all-metal structure, specially designed for slidingdoor, equipped with European standard
lock cylinder, it can achieve the dual purposeof electric control at ordinary times and manual operation in emergency. The bolt ismade of solid steel, processed by CNC lathe, and can withstand 400kg push/pull force,special high security design of anti-prying function after locking, and all the linkageparts are made of metal structure, can be used normally from -40 degree to 60degree. Professional durable solenoid valve, excellent performance, safe and durable,is the first choice for engineering
Electric Strike Size | 170Lx26Wx39.5H(mm) | ||||
Mechanical Hook Bolt Size | 17OLx26Wx93H(mm) | ||||
Voltage | DC12V Holding Force | ||||
Current | NO:240mA ±10%;NC:200mA ±10% | ||||
Holding Force | About 40Okg | ||||
Signal Output | Door Status Signal Output(NO/NC/COM) | ||||
Feature | Fail Secure(NO);Fail Safe(NC) | ||||
Operating Temp | -40°℃~+60°℃ | ||||
Operating Humidity | 0~95%(non-condensing) | ||||
Mechanical Hook Material | sU 304 Stainless Steel | ||||
Application | Public security organs,Procuratorate ,Prison etc | ||||
Weight | 1.5Kg | ||||
