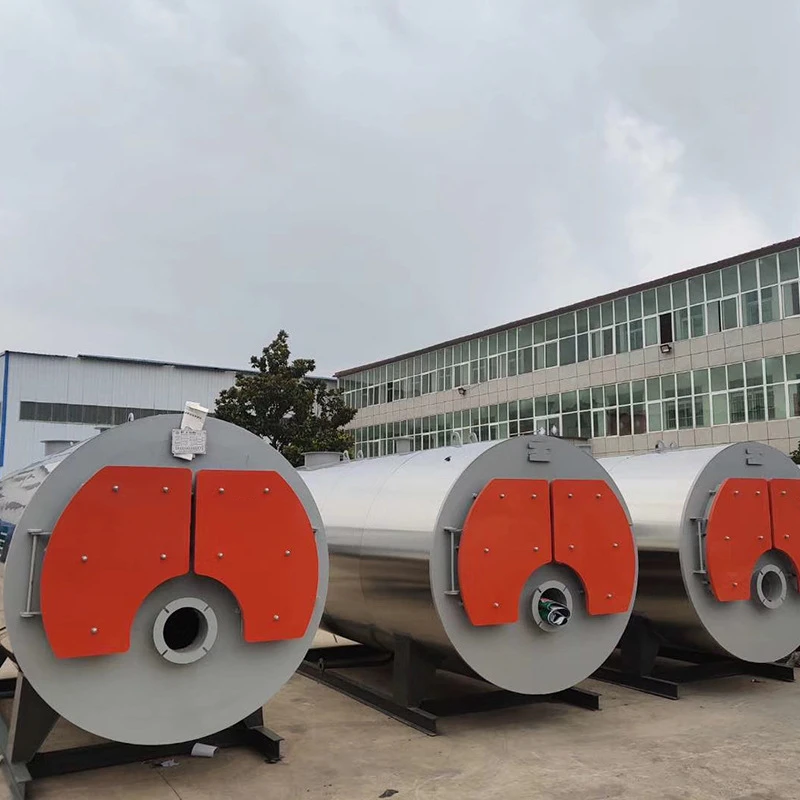

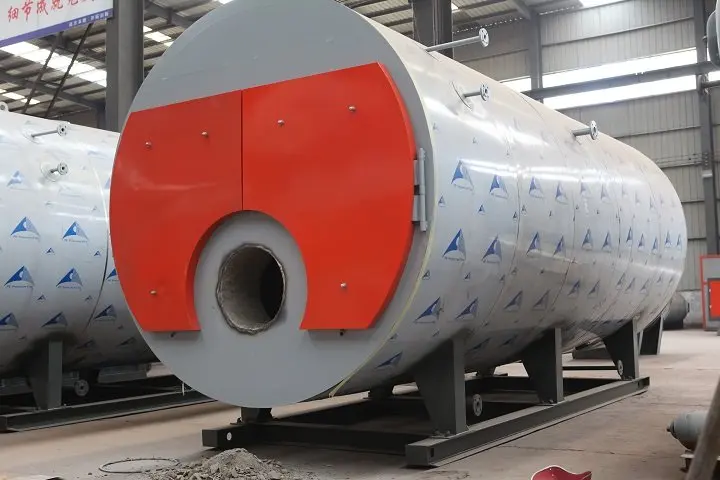

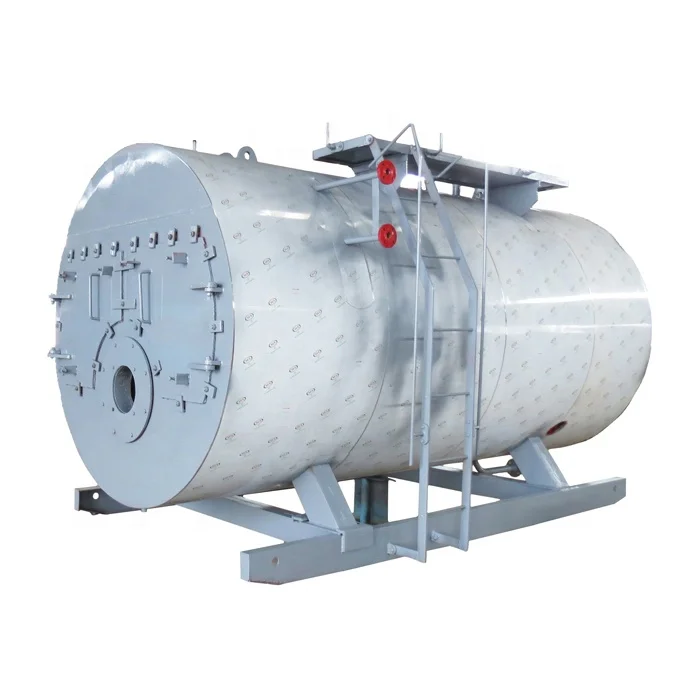

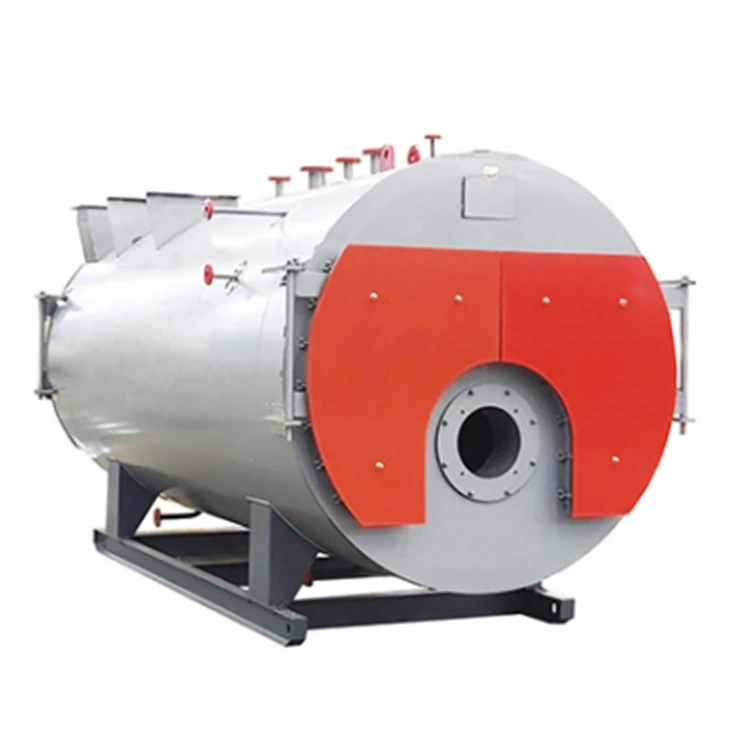

1 2 3 4 6 8 10 12 15 20 Ton Industrial Gas Fired Steam Boiler With corrugated furnace three passes and web back structure
- Category: >>>
- Supplier: Xinxiang Xinda Boiler Container Co. Ltd.
Share on (1600686283476):
Product Overview
Description
Products Description
1 2 3 4 6 8 10 12 15 20 Ton Industrial Gas Fired Steam Boiler With corrugated furnace three passes and web back structure
Product description:

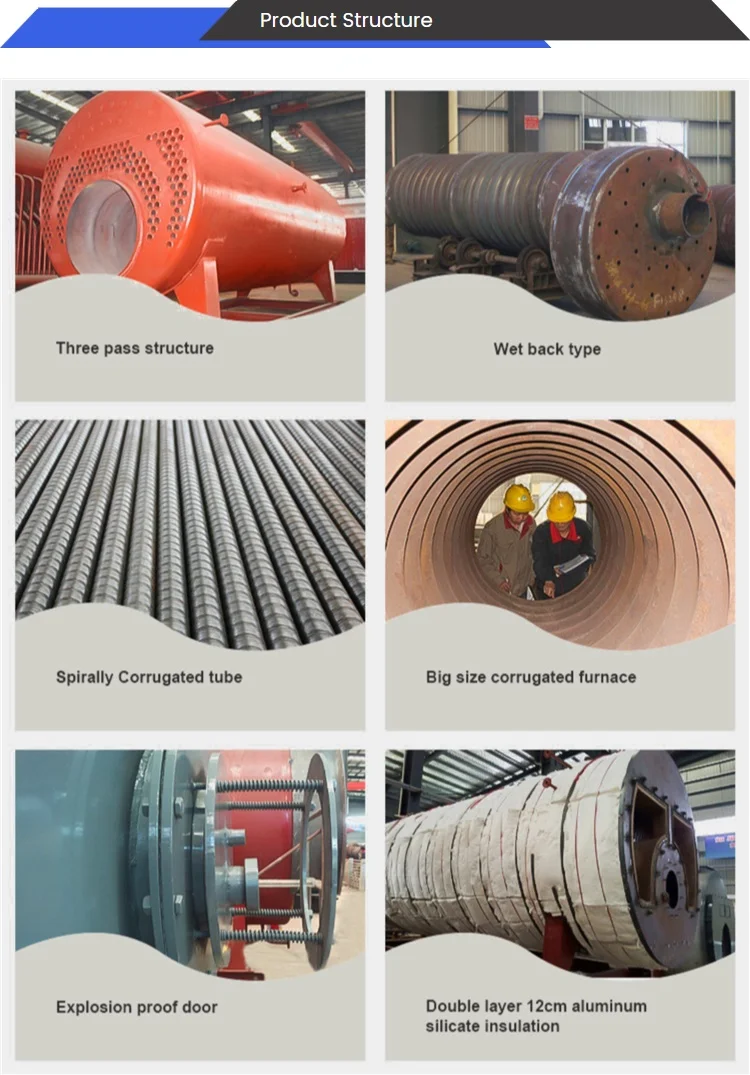

WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.
Available Fuel: Natural gas, LPG, CNG, LNG, hydrogen, biogas, city gas, diesel oil, heavy oil, dual fuel, etc.
Rated Steam Capacity: 0.5t/h~20t/h (Skid-Mounted Type Steam Boiler)
Rated Steam Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar);
Rated Steam Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar);
Our Advantage
Technical Parameters
Model | Rated | Rated | Rated | Thermal | Fuel Consumption | ||
Capacity (t/h) | Pressure (Mpa) | Temp. (C) | Efficiency (%) | Light oil (Kg/h) | Natural gas (Nm³/h) | ||
WNS1 | 1 | 0.7/1.0/1.25 | 170/184/194 | >96 | 45-100 | 18-100 | |
WNS1.5 | 1.5 | >96.2 | 101.73 | 123.47 | |||
WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | >96.2 | 137.09 | 165.97 | |
WNS3 | 3 | >96 | 205.75 | 249.6 | |||
WNS4 | 4 | >96 | 272.3 | 329.5 | |||
WNS5 | 5 | >96 | 134-402 | 80-500 | |||
WNS6 | 6 | >96 | 134-402 | 80-500 | |||
WN8 | 8 | 1.25/1.6/2.5 | 194/204/225 | >96 | 523.4 | 631.5 | |
WNS10 | 10 | >96 | 212-890 | 150-1085 | |||
WNS12 | 12 | >96 | 915.5 | 1090 | |||
WNS15 | 15 | >96 | 931.5 | 1094.4 | |||
WNS20 | 20 | >96 | 1380.33 | 1598.44 | |||
Accessories
Product Processing
Product packaging
Company Profile
Our Service
FAQ
Q1: Are you a trading company or manufacturer?We are a trading company, meanwhile, we are the exclusive export agent and marketing & sales representatives for our core cooperating manufacturers, with an even better price than that of a regular factory.
Q2: How long is your delivery time?
Generally, it is 10-15 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock and need production, also it is according to the required quantity.
Q3. Can you provide OEM service?
Yes, we do but need to meet below conditions 1). the brand not being registered in China. 2). Your brand registration certificate.
3). Order amount USD 10000 or more.
Q4: What is the warranty period?
During the warranty period, if there is a problem caused by a quality problem, we will repair or replace the damaged parts free of charge. If the problem is caused by the customer, we will provide spare parts at the lowest cost.
Q2: How long is your delivery time?
Generally, it is 10-15 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock and need production, also it is according to the required quantity.
Q3. Can you provide OEM service?
Yes, we do but need to meet below conditions 1). the brand not being registered in China. 2). Your brand registration certificate.
3). Order amount USD 10000 or more.
Q4: What is the warranty period?
During the warranty period, if there is a problem caused by a quality problem, we will repair or replace the damaged parts free of charge. If the problem is caused by the customer, we will provide spare parts at the lowest cost.
