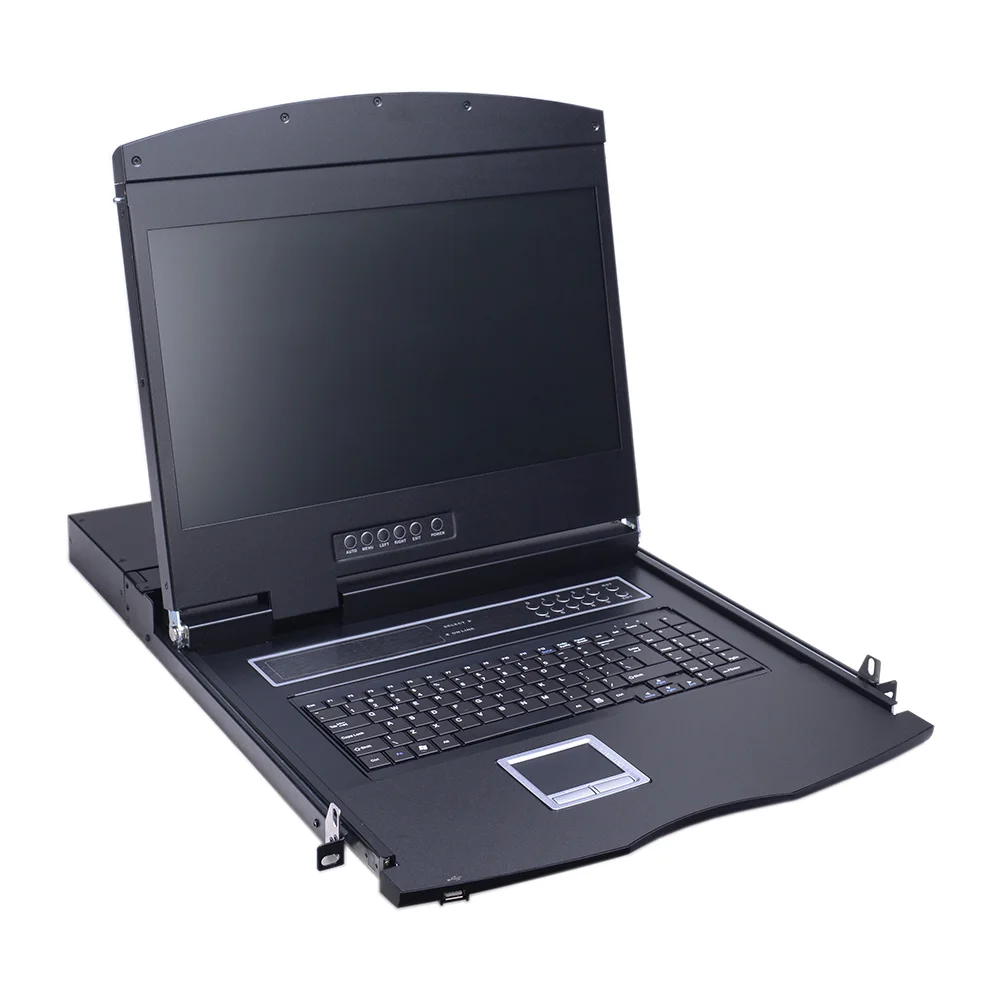

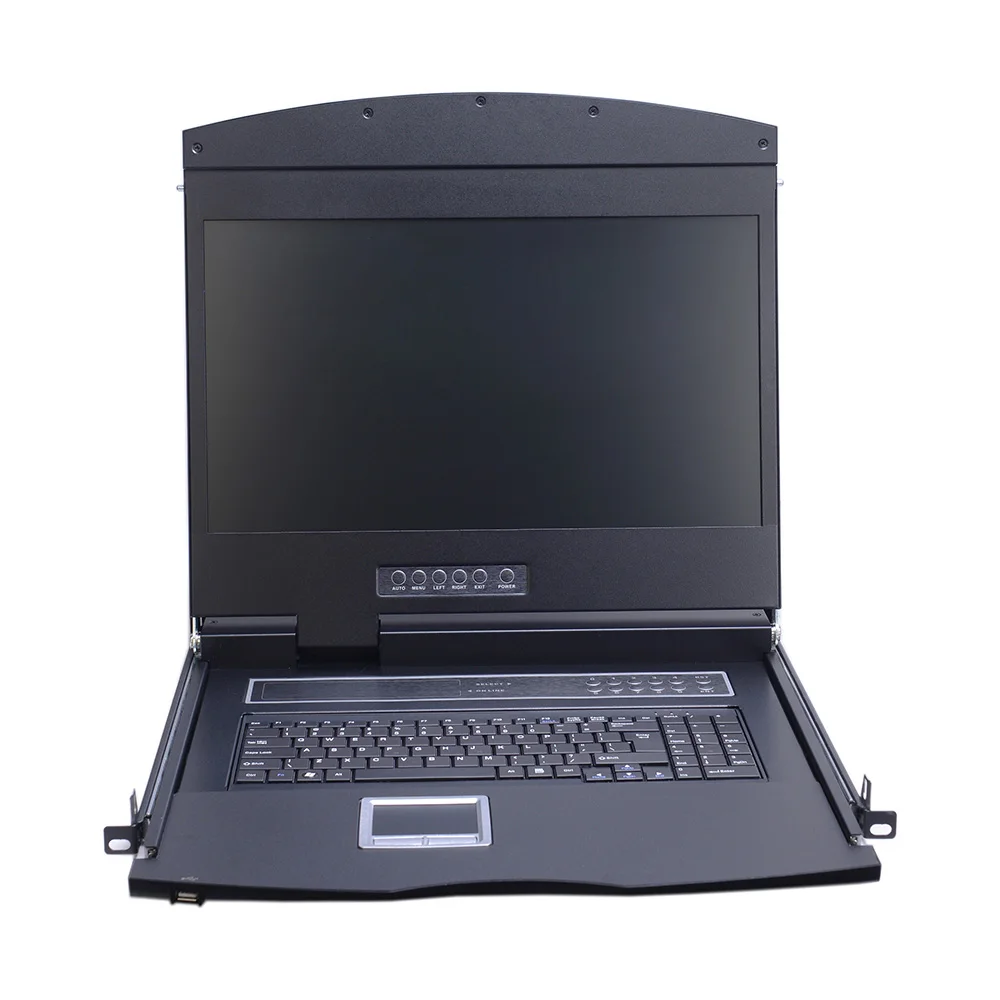

Front USB Design Singlerial 19 Inch 8ports LCD KVM Console With HDMI DVI Dongle
- Category: >>>
- Supplier: Suzhou Switek Electronics&Technology Co. Ltd.
Share on (1600686308352):
Product Overview
Description
*Front LCD Console (keyboard, mouse, monitor 19” ) + 8ports CAT5 KVM Module design;
*It’s very flexible and convenient for combination
*IP optional ( IP card could be installed inside KVM module)
*The front USB design
*Cascade function support
*Total length: 611mm, fit for 800-1200mm cabinet

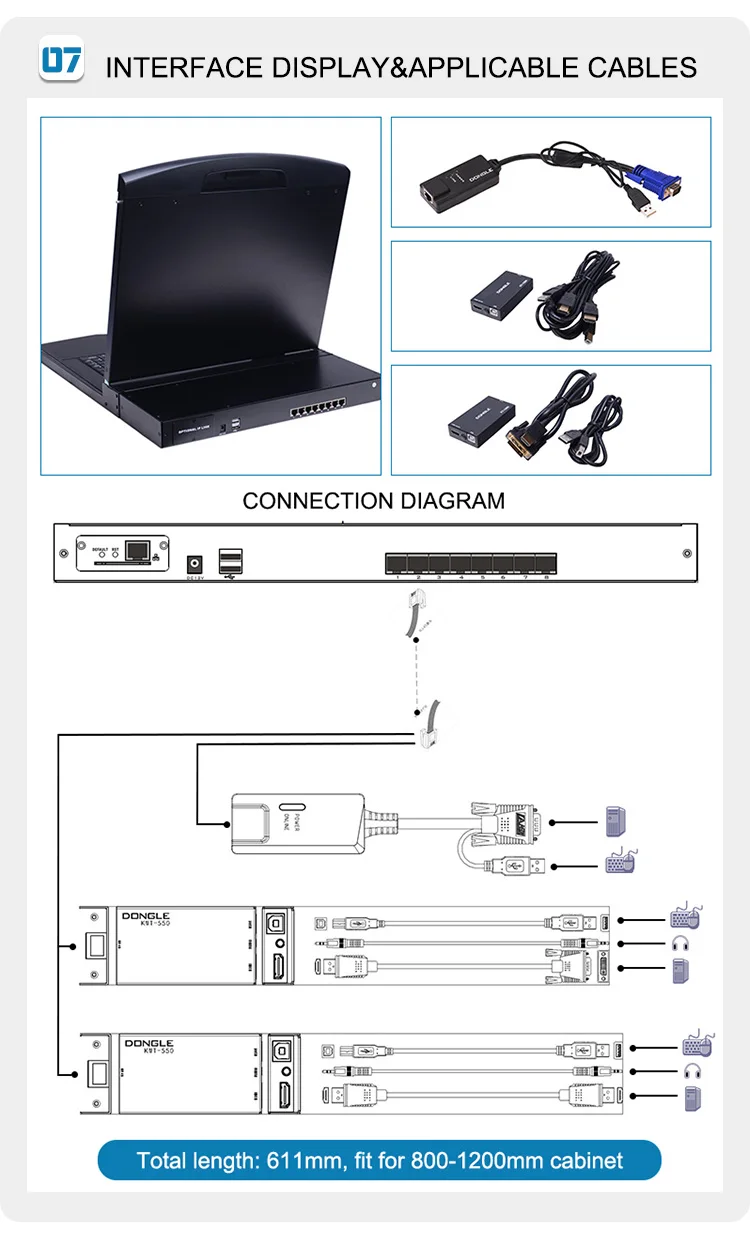

*With VGA/DVI/HDMI different interface dongles
*IP optional ( IP card could be installed inside KVM module)
*The front USB design
*Cascade function support
*Total length: 611mm, fit for 800-1200mm cabinet
*With VGA/DVI/HDMI different interface dongles
LCD CONSOLE
Type | 18.51” Wide-Screen LCD Console-AS9100TLS(F) | ||
LCD Monitor | Ratio | 18.51” Screen, 16:9 | |
Video | Wide AHVA TFT-LCD | ||
Visible Square | 409.8(H) x 230.4(V) | ||
Resolution | 1366*768 @60HZ(Optimum)/1920*1200@60HZ(Max) | ||
Support Color | 16.7M, True 8 bit | ||
Contrast | 1000 : 1 (Typ) | ||
Back light | LED | ||
Pixel Pitch | 300*300um | ||
LED MTBF | 100,000 hours | ||
Input power | 12V | ||
Keyboard (demountable design) | Keyboard | 100Keys, detachable (9 different languages for choose) | |
Compatible IBM/AT | Microsoft Windows9, Me/NT/2000/XP, WIN7, Server2003, WIN8, WIN10 | ||
Port | Standard PS/2; USB | ||
Using life | >1,000,000 Times | ||
Mouse | Type | Touch Screen | |
Port | Standard PS/2 | ||
X/Y Resolution | >1000dots/inch, (40x40/mm) | ||
Using life | >1,000,000 Times | ||
Installation Dimension | 407*445*45mm | ||
Weight | 6.07kg | ||

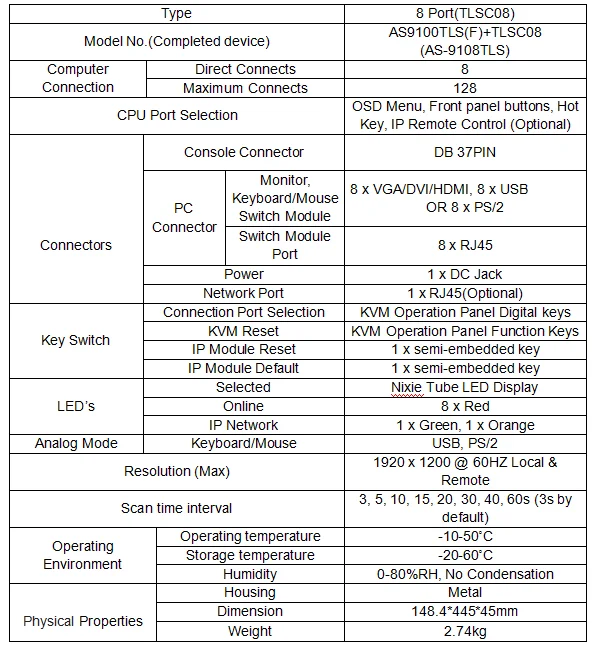

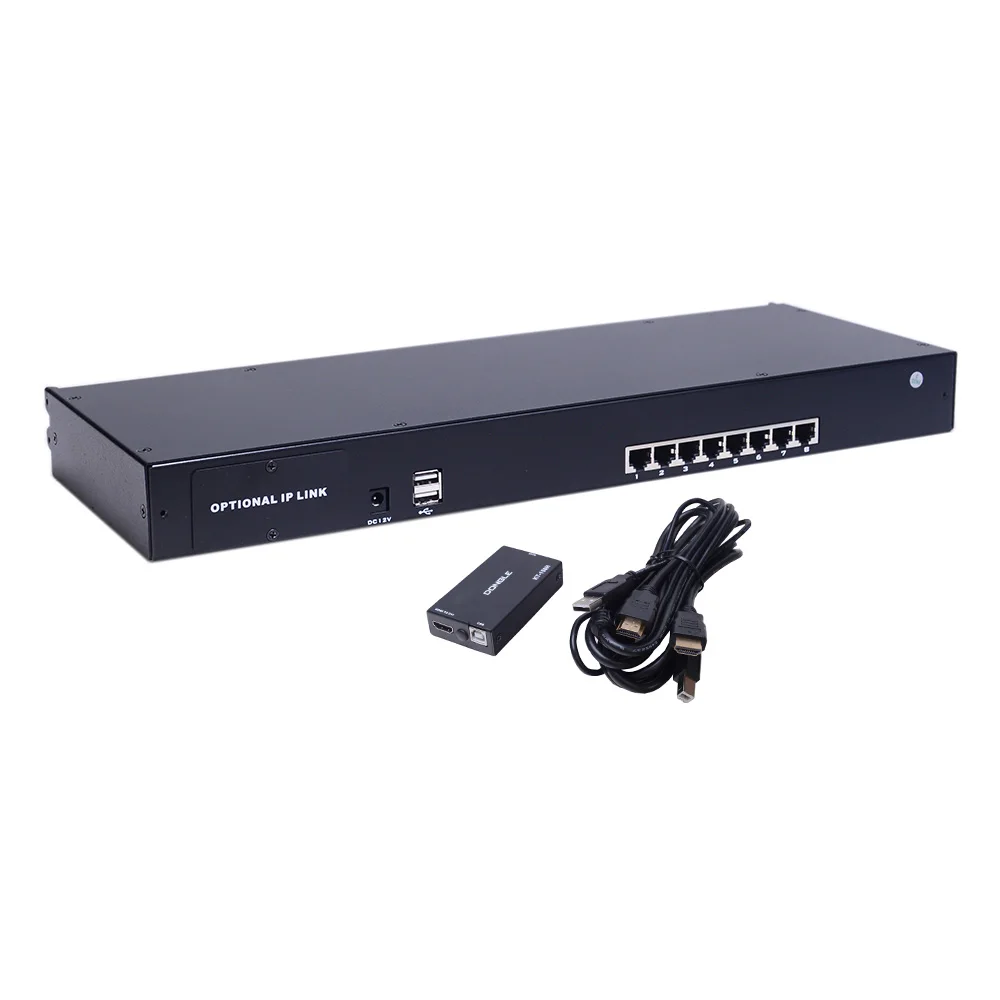

KVM Module
