1000T 1500 т 5000 10000Ton кукуруза зерно стальной бункер для хранения зерна стальной силос для продажи

Share on:

Price:7 000,00 $ - 7 500,00 $
Price in USD:Details


Product Overview


1000T 1500T 5000T 10000Ton corn maize grain steel silo storage grain steel silo for sale

Product Description

Galvanized steel silos(also called grain storage bins, grain bins) are the steel silos with a cone bottom.Assembly galvanized grain steel silos are erected on the supporting structure to make the delicate products unloading easily through gravity. Grain silos have a smooth wall hopper transition with no steps or flanges to offer the cleanest product discharge from the silo. The stored products inside the silo are isolated from the ground, thereby preventing humidity and allowing the interconnection of silos through tapes, facilitating perfect extraction or dosage.
The hopper, rings and support steel are made of hot-dip galvanized steel sheet. All TSE Grain Silos in hot-dip galvanized hopper cone for grain storage are designed in accordance D-4097 or ASTM D-3299 standards for elevated cone heads. According to the stored grain products and storing situations, the hopper or cone angles are commonly designed at 45º and 60º. The structure of hopper silo depends on the type of products to be stored. In generally, free flowing products pellet products like corn, wheat, soybean and feed pellets require the hopper bottom silo with a 45° angle while powder or other material which is hard to flow fits 60° cone bottom silo storage.

Main Components of Grain Storage Silos

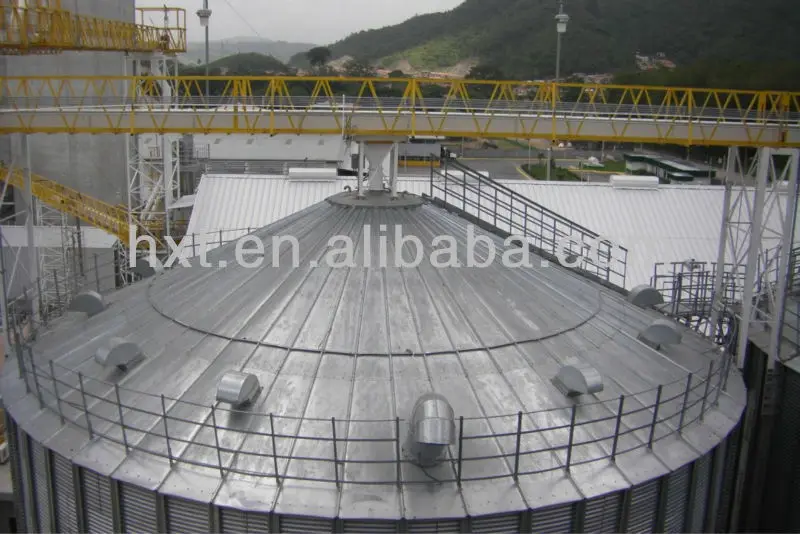

25º Sealed Roof
The special trapezoidal geometry of roof gives high strength and stiffness. The professional sealed technology enables tight connection of roof with the sidewall and keeps stored products from moisture.
Cylindrical Body
Shelley Brand hopper bottom silos are made with body sheets and stiffeners, manufactured with structural galvanized steel S350GD
of high elastic tolerance and the coating equivalent to 600 g/m2 of zinc.

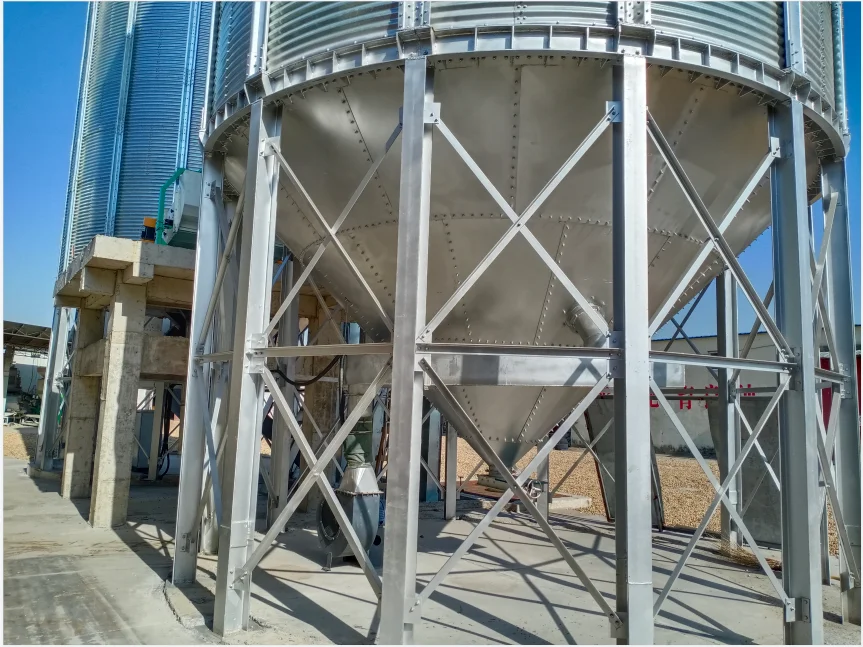

Galvanized Bottom
The cone bottom made with galvanized steel provides strength to support the silo and keep longer life span up to 28 years. 45º hopper is easy to unload delicate materials like feed pellets and other products.


Specifications of TSE Assembly Galvanized Steel Silos hopper cone(45° TCZK Series )
The volume of Shelley Brand hopper Bottom Storage Silo ranges from 20m³ to 1,875m³. The following is part of the specifications.

Eave Height(m)
Total Height(M)

Applications and Advantage for Grain silos

 Applications for Steel silos
Assembly galvanized Silos are widely applied for the storage of grains,wood pellet ,granular material, etc and feed pellets for animal, poultry and fish that require special storage conditions. If for grain or feed storage,they can also provide temporary storage of wet grain as part of a grain drying plant and other buffer bin applications in silo plants. Galvanized Grain steel hopper bottom Silos are widely used in poultry farm, rice mill, flour mill, soybean-oil mill, animal feed mill plant and brewery plant.

Advantages for assembly silo

*Assembly, easy to ship and save freight.
*Vertical steel silo can save land space.
*Hot-dip galvanized plates (275g/m2-600g/m2), very WATERPROOF & RUST-PROOF.
*Hopper bottom has low cost price.
*Silos can store grain safely and save labor cost and space.
Scientifically speaking, the silo capacity should be measured with volume (m3).

Even in the same silo, the storage tons will be different for different grains with different densities.
The following table is calculated based on a grain density of 0.75kg/m3, and surely TSE customizes silo systems unique for you.

Installation Instructions

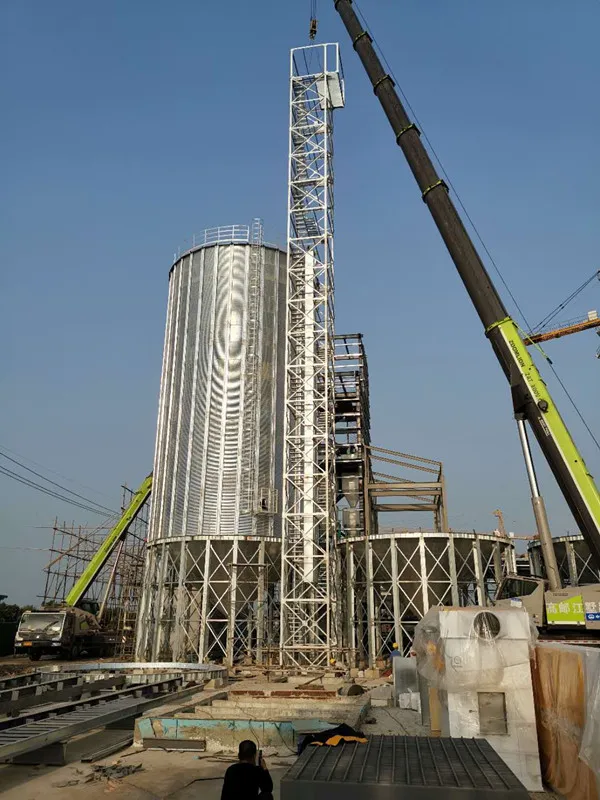

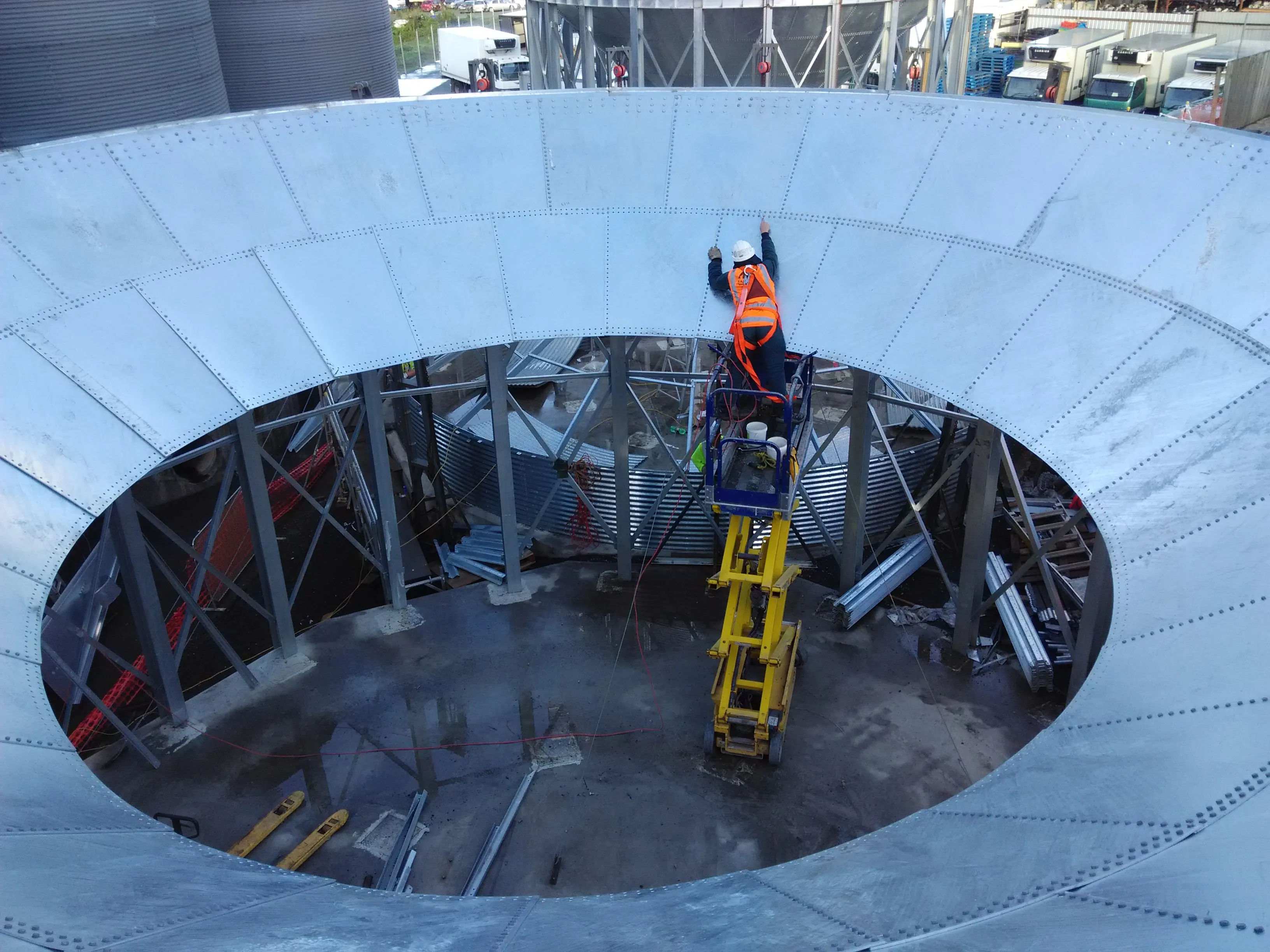

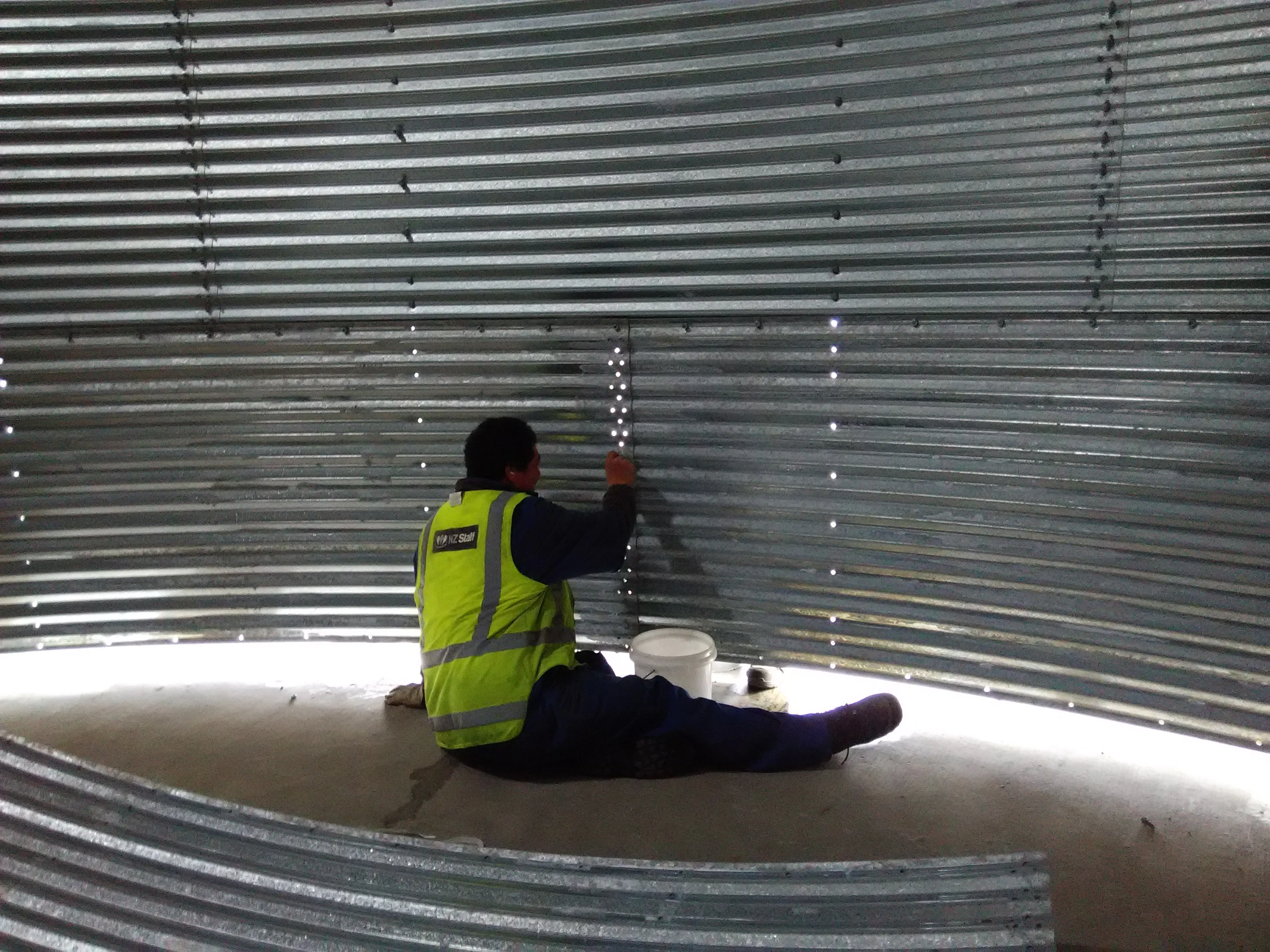

TSE Steel Silos Installation
TSE have professional installation teams,and can supply TURN-KEY silo solution for you!

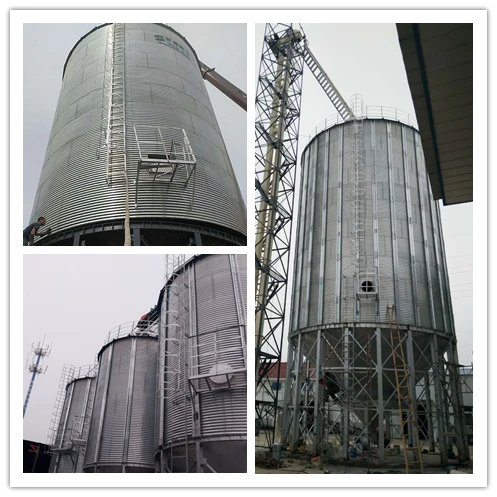

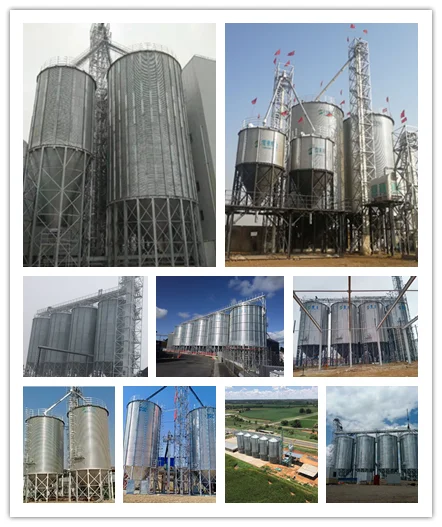

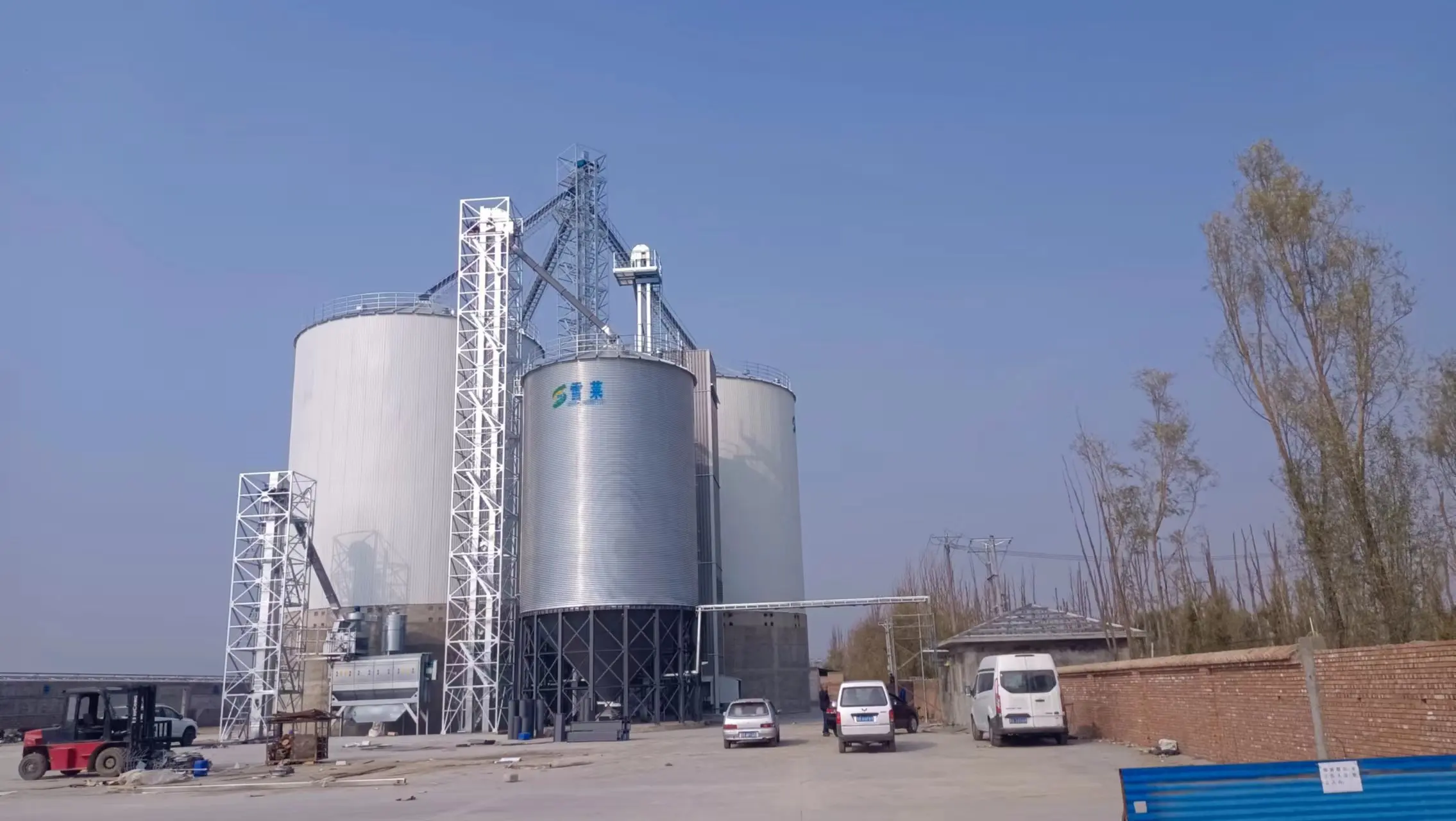

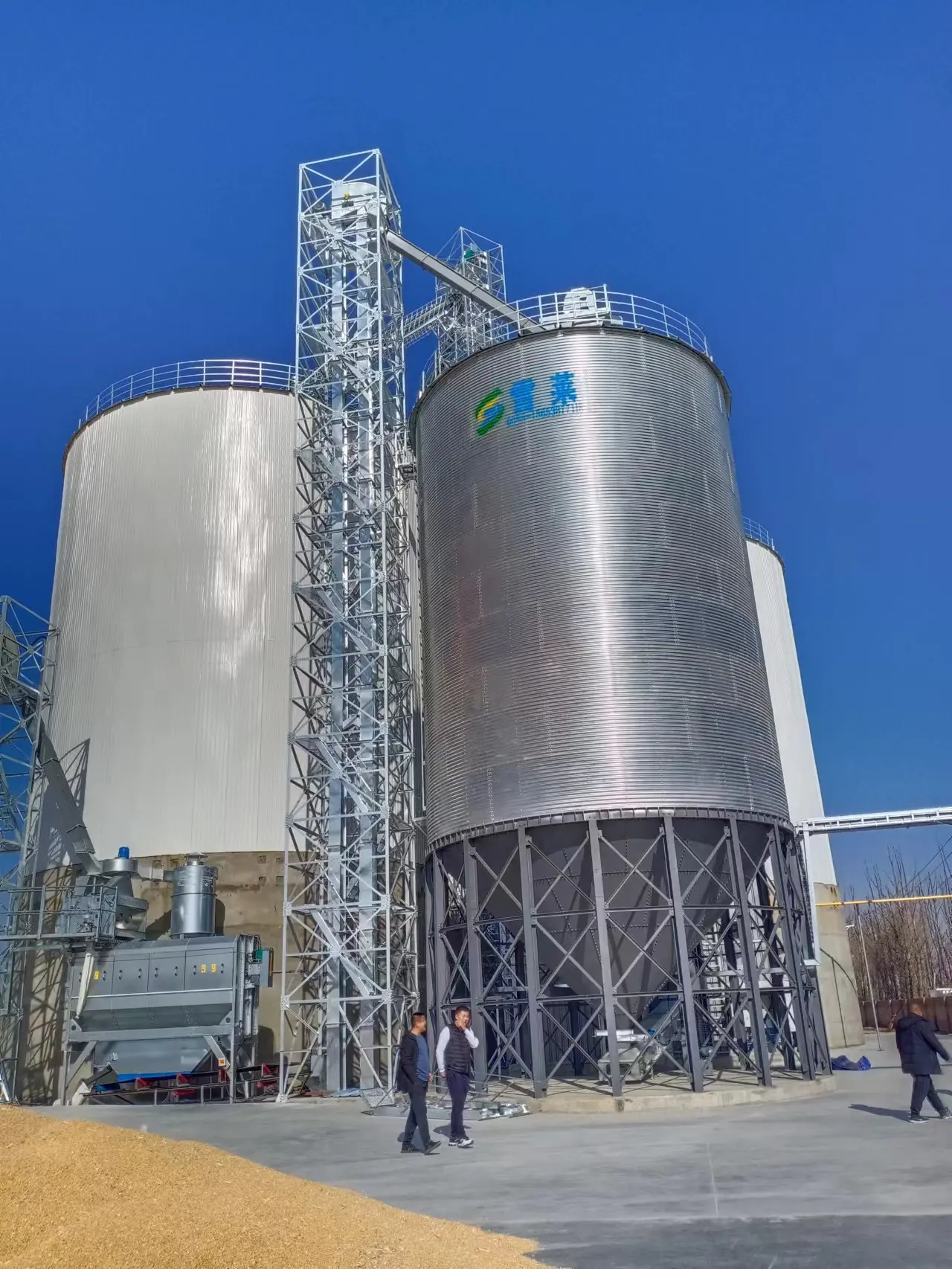

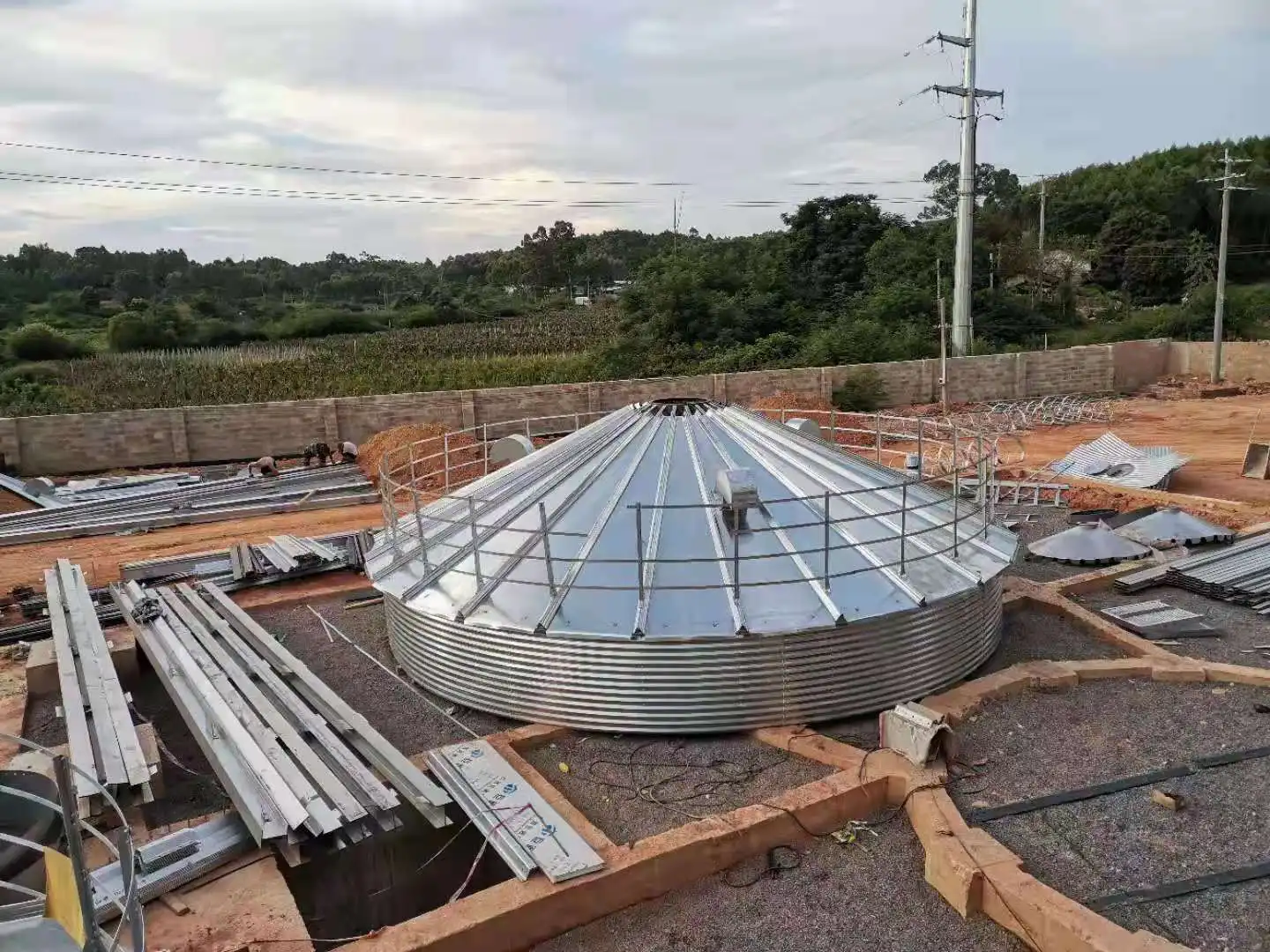

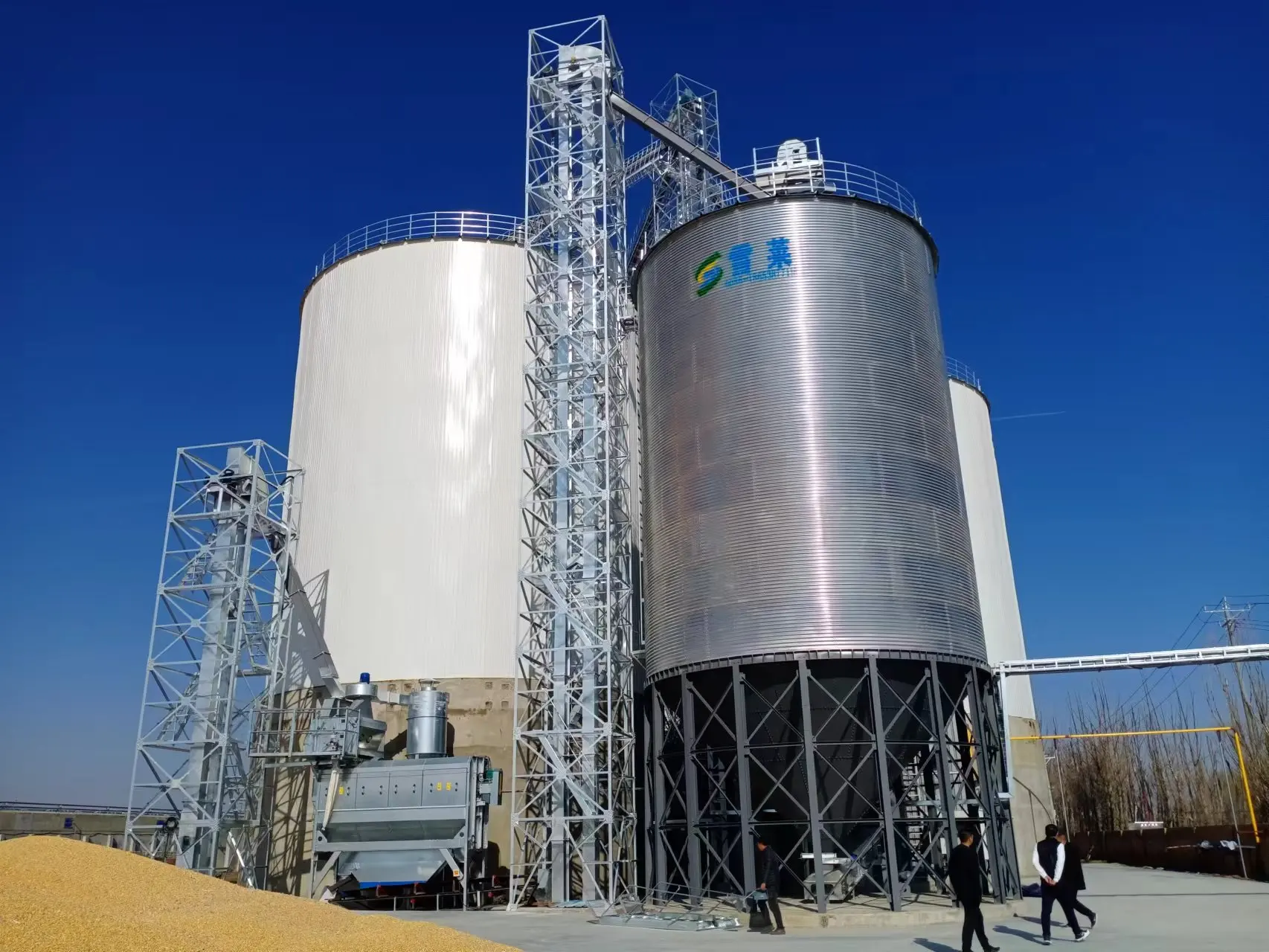

TSE successful cases of hopper bottom silos for your reference

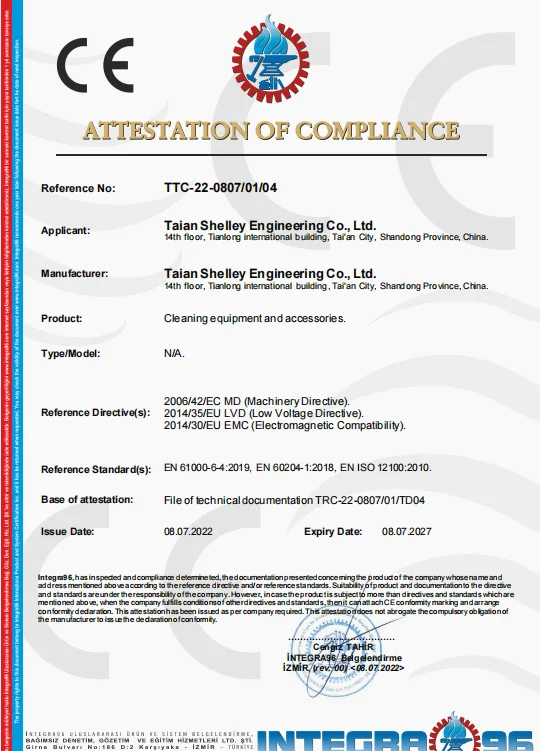

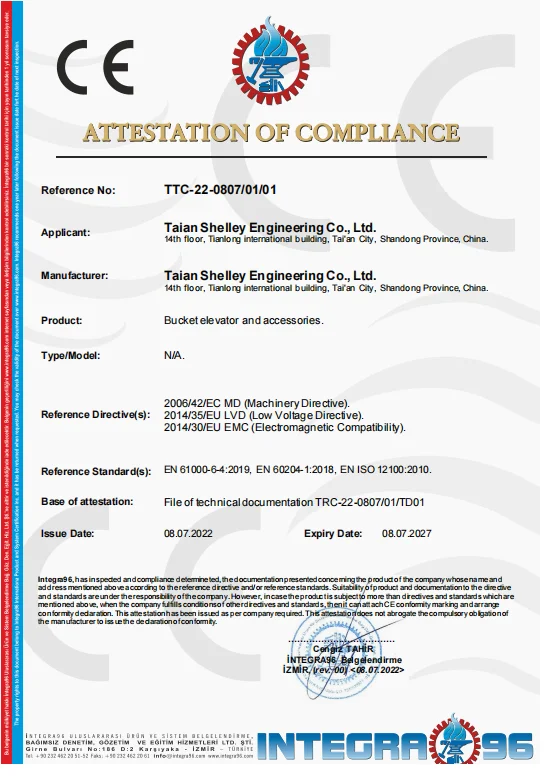

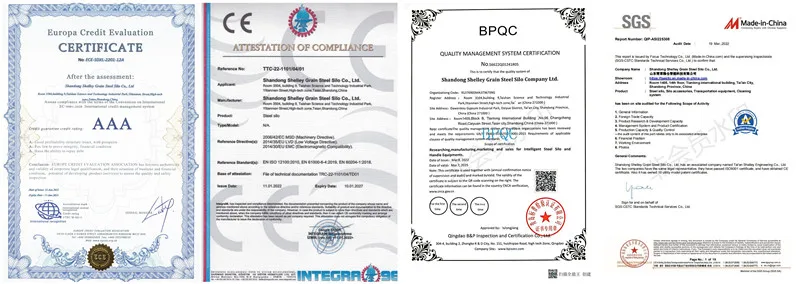

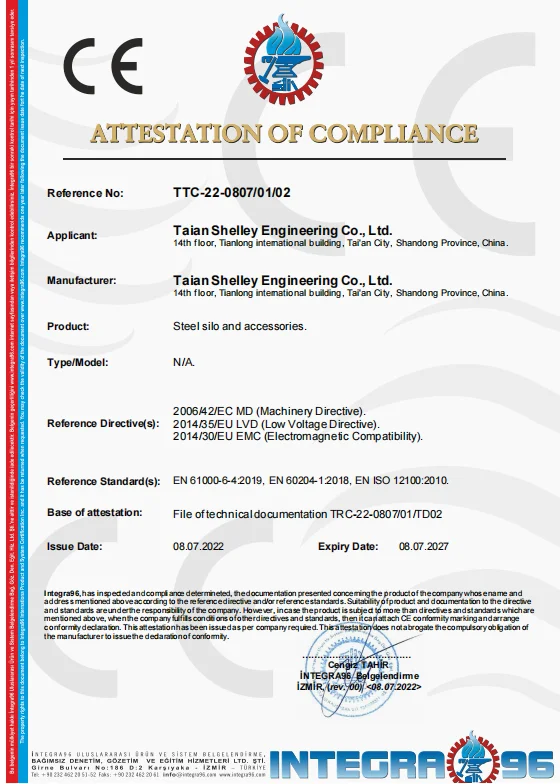

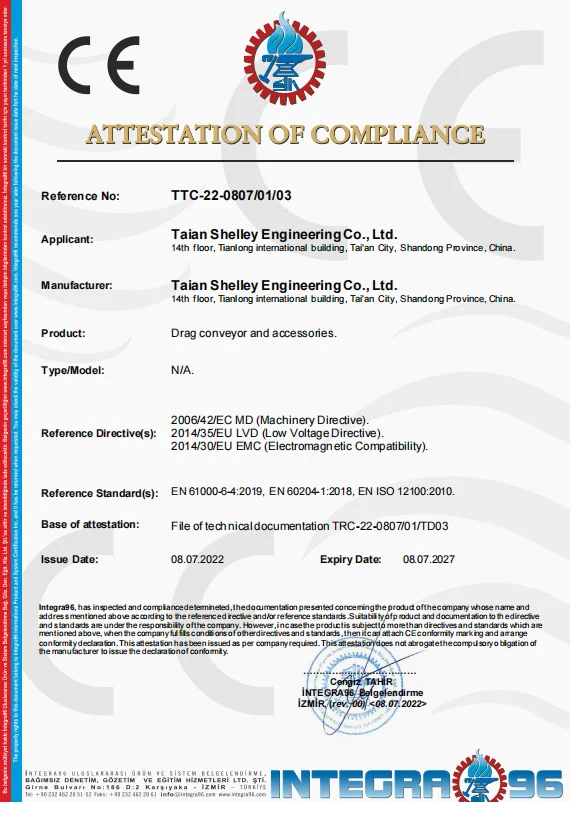

TSE Shelley Grain Silos Certifications
TSE has got ISO certification, Patents for TSE Silo products,and Report of Agricultural Machinery

Company Profile

Grain Silos in hot-dip galvanized hopper cone (also called grain storage bins) are the efficient and economical facilities to handle your grains, which offer protection from outside insects and other affects as well as provide handling management conveniently. Shelley Engineering is the professional steel grain silos designer and manufacturer dedicated in supplying turn key grain storage and handling solutions to worldwide customers. We have more than 30 talented grain storage solutions experts and 9,000 square meters state-of-the-art factory. Our innovative, high-quality flat bottom silos, hopper bottom silos, powder silos, feed silos, bucket elevators, dust collectors and grain storage control system are integrated as a system to satisfy your grain storage requirements.
All of our steel silos can be designed and installed with heat retaining layer to meet your special insulated grain storage demands. Product innovation, quality assurance and customer satisfaction are our long term commitment to worldwide customers. We had been provided grain storage silos, solutions and services for over 50 countries since our foundation by Shelley Jin in 2007.
Hope to become your partners.

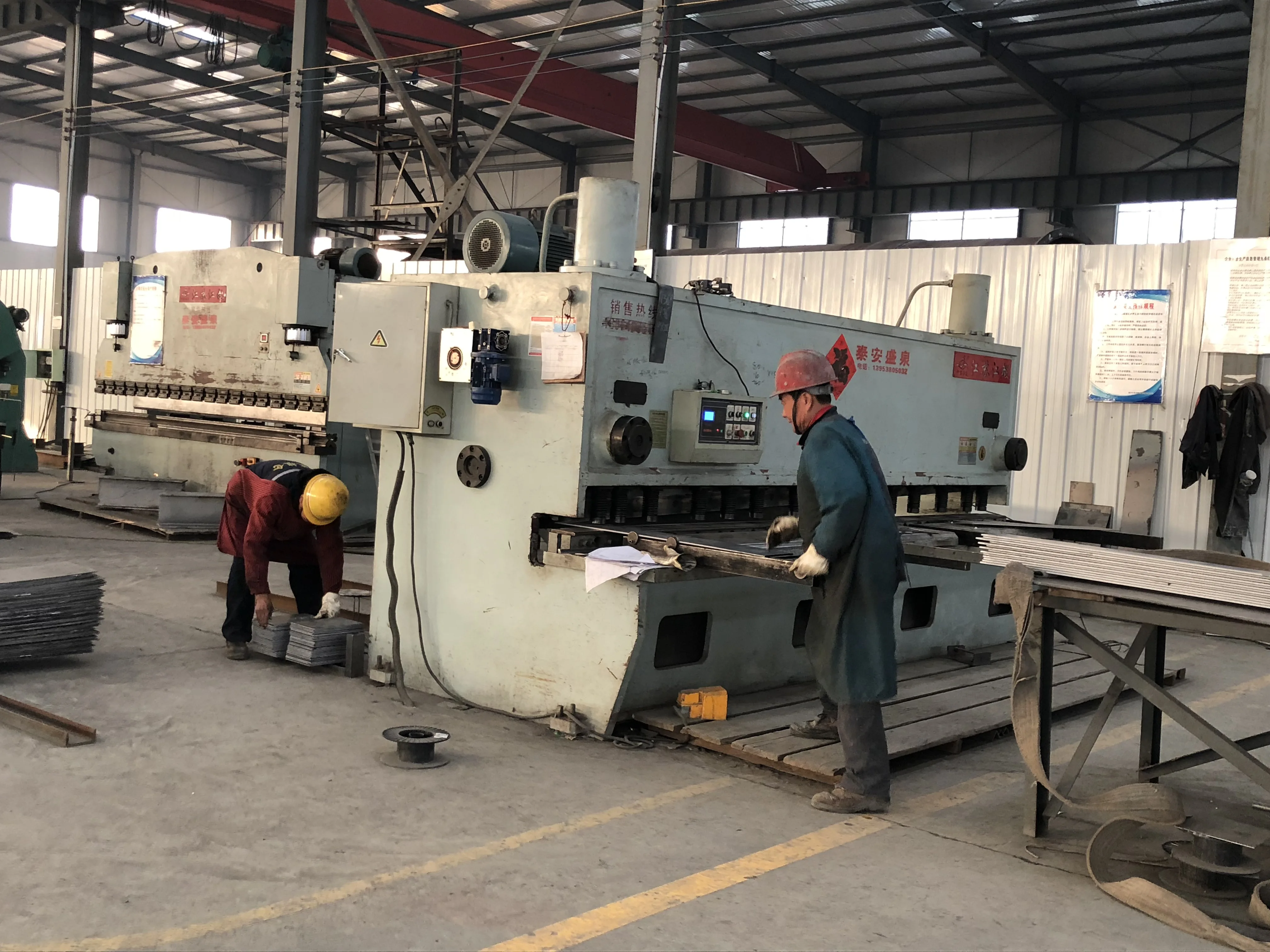

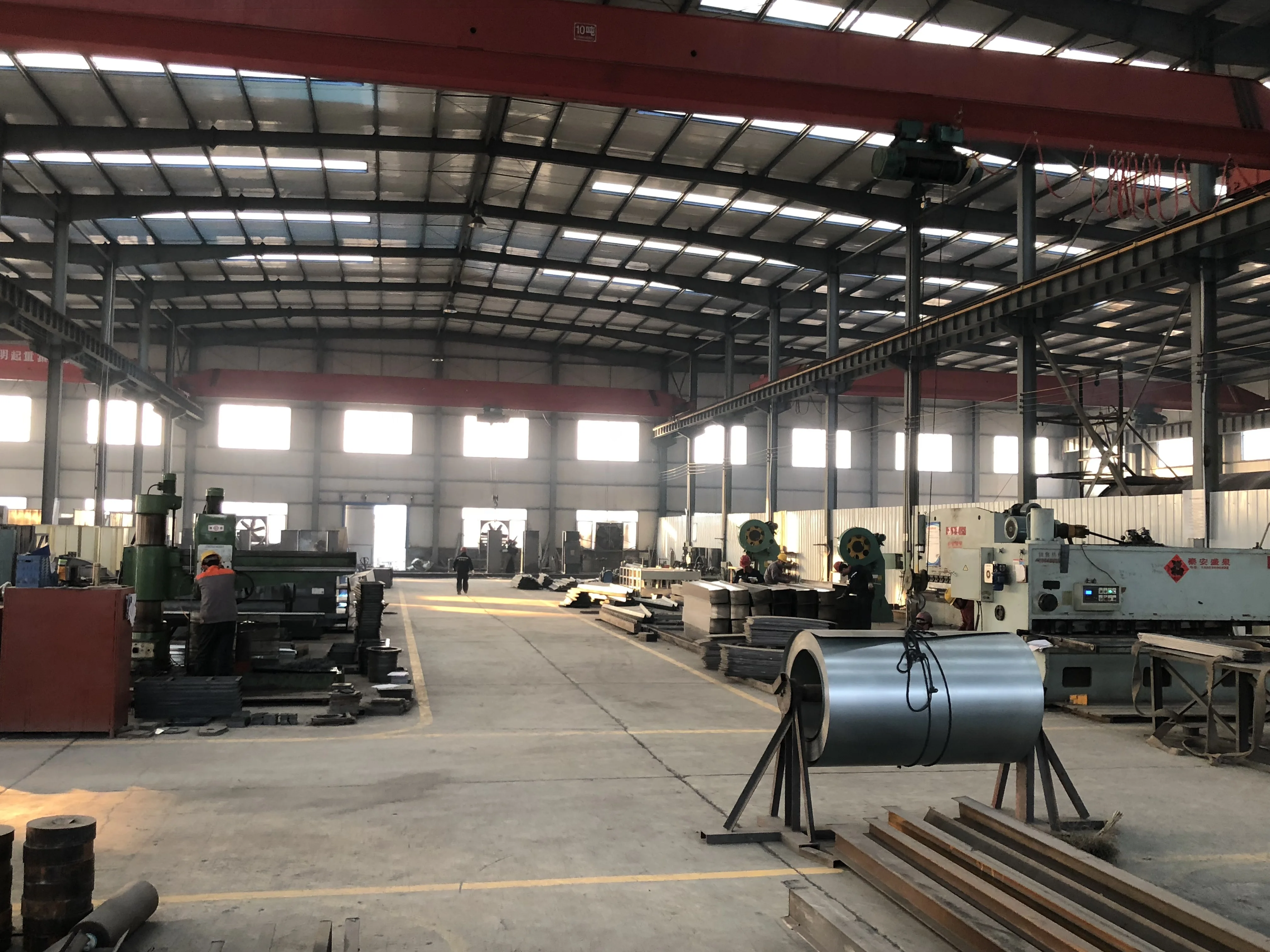

TSE Workshop
TSE has own real factory,and trained workers, so we can guarantee quality and lead time for our customers.Welcome to your visiting.

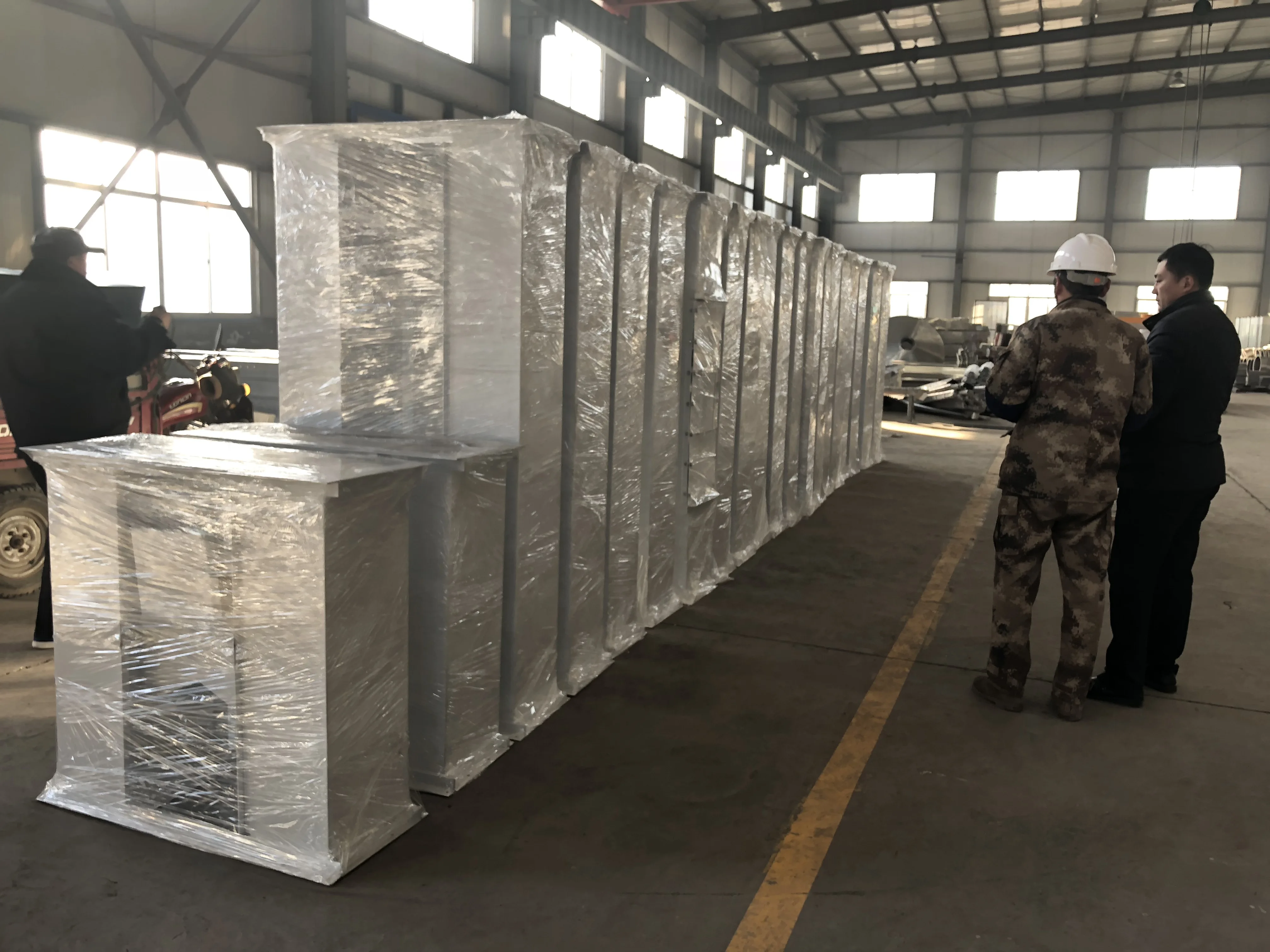

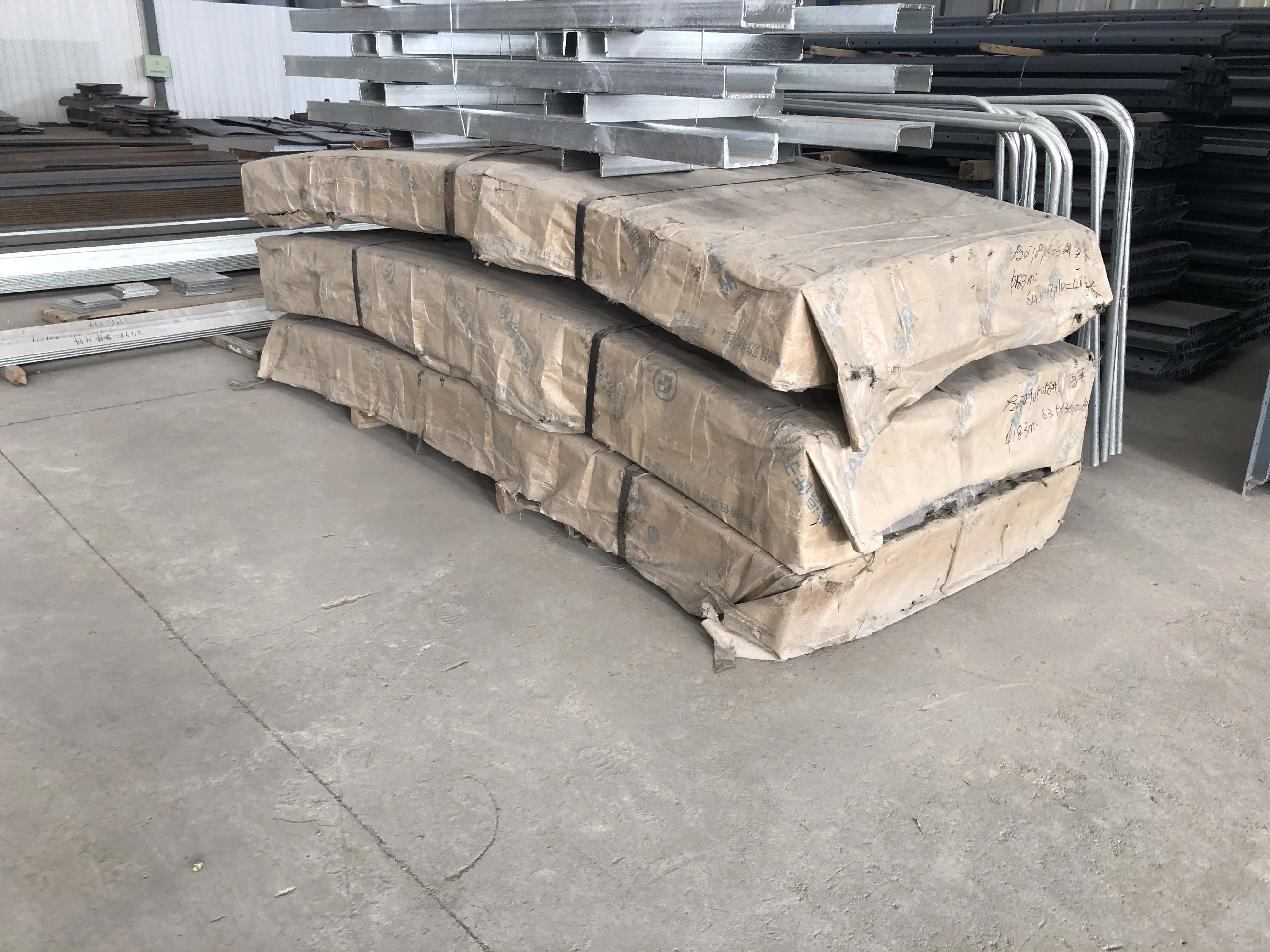

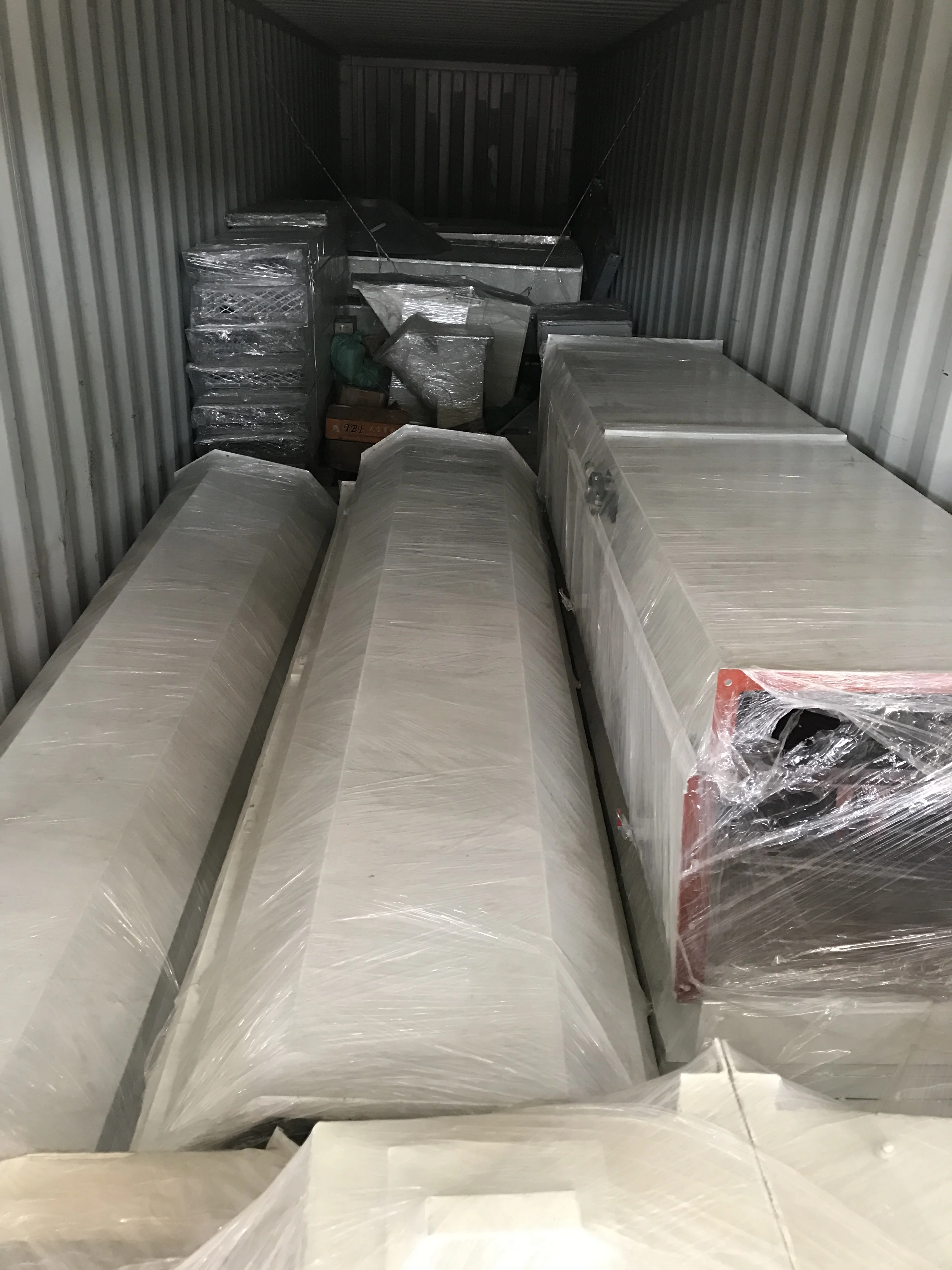

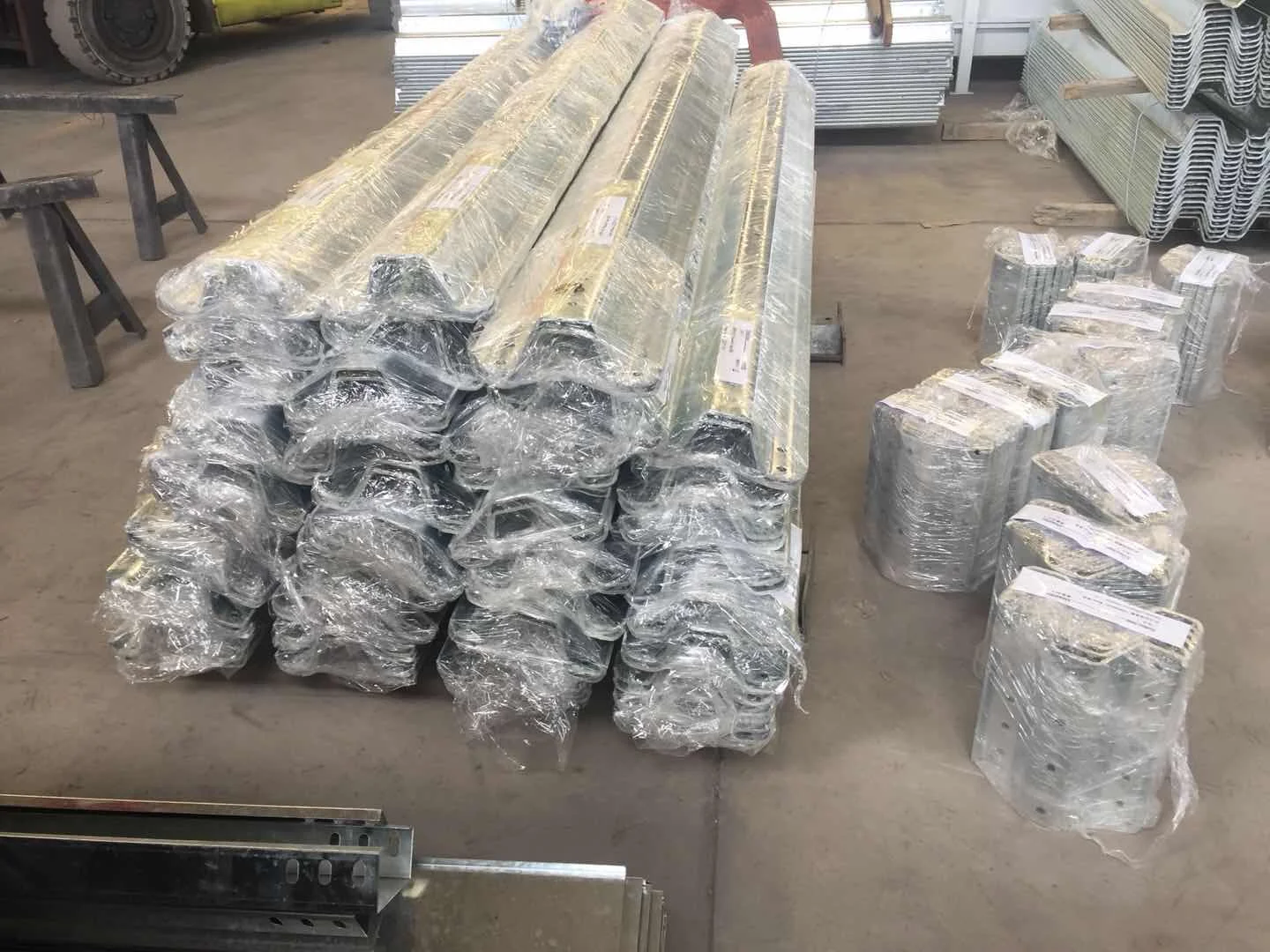

TSE Package Area
PE film will be used widely,some accessories will be packaged by carton box or wooden box,according to the products or customers' requirements.

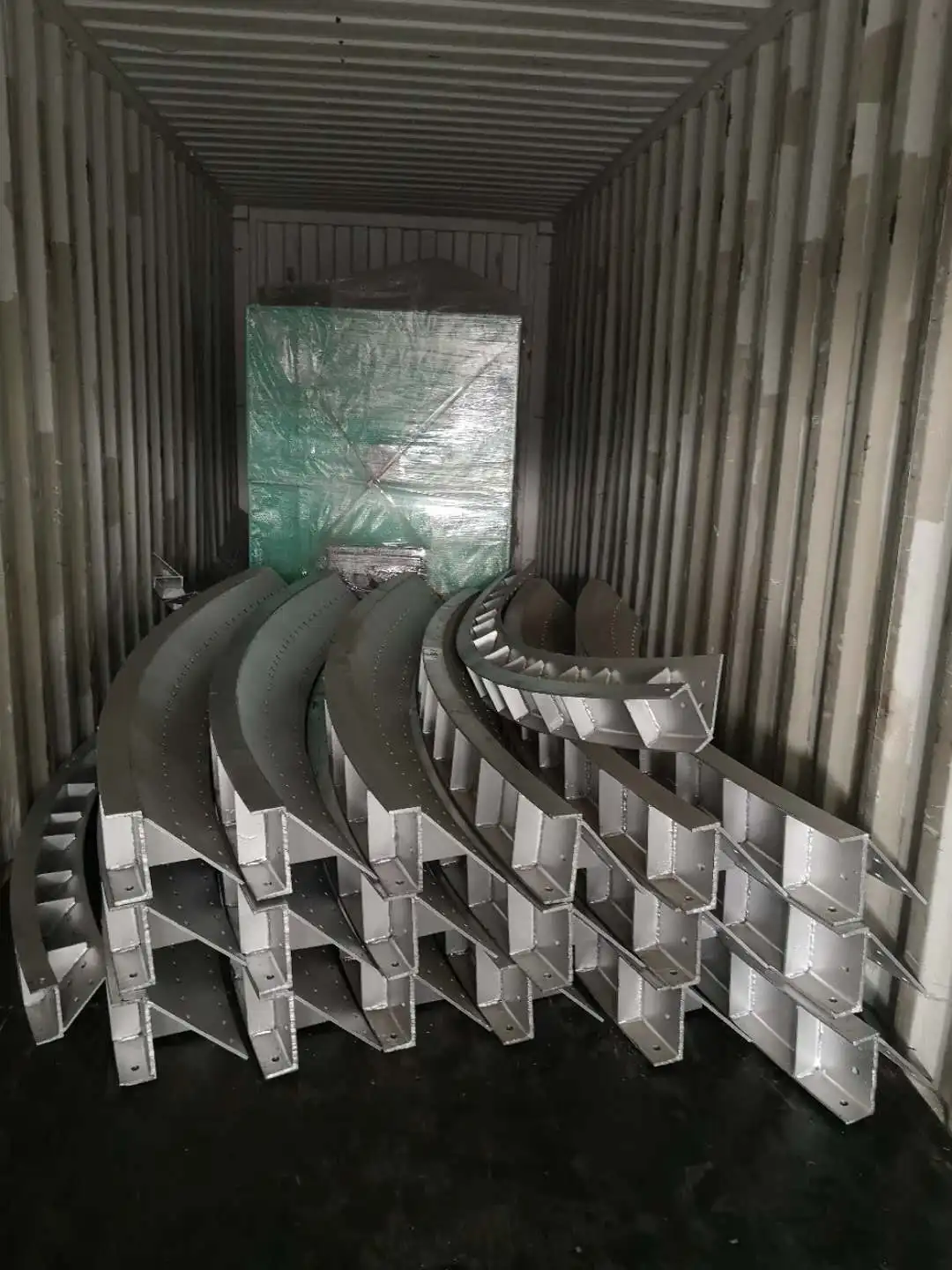

TSE is also very professional in reloading containers
Truck or Container or Railway can be choosen by you!

Why Choose Us

Why choose us?
1. More than 15 years in silo &accessories field.
2.A real manufacturer with own factory,Technical team and Domestic and foreign sales team.
3.Factory price and perfect after-sales service.
4. Alibaba Assessed Gold Supplier.
5. 100% QC inspection Before Shipping.
6. Cases in many countries.
7. Foreign 48 hours to provide solutions.
8. From grain cleaning, drying to storage, we can creates one-stop service for you.

If you are interested in our Silos,welcome to your inquiry at anytime.
