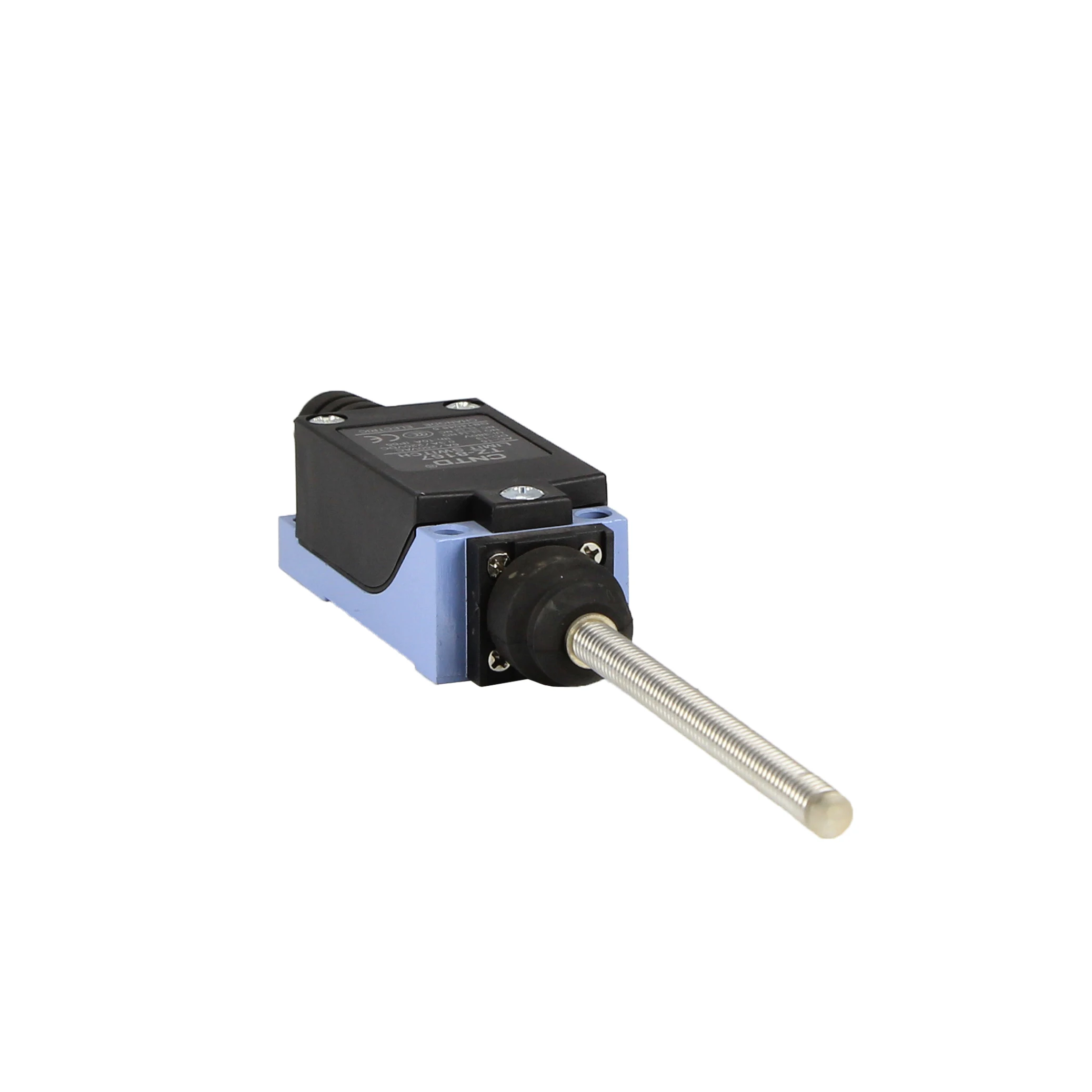

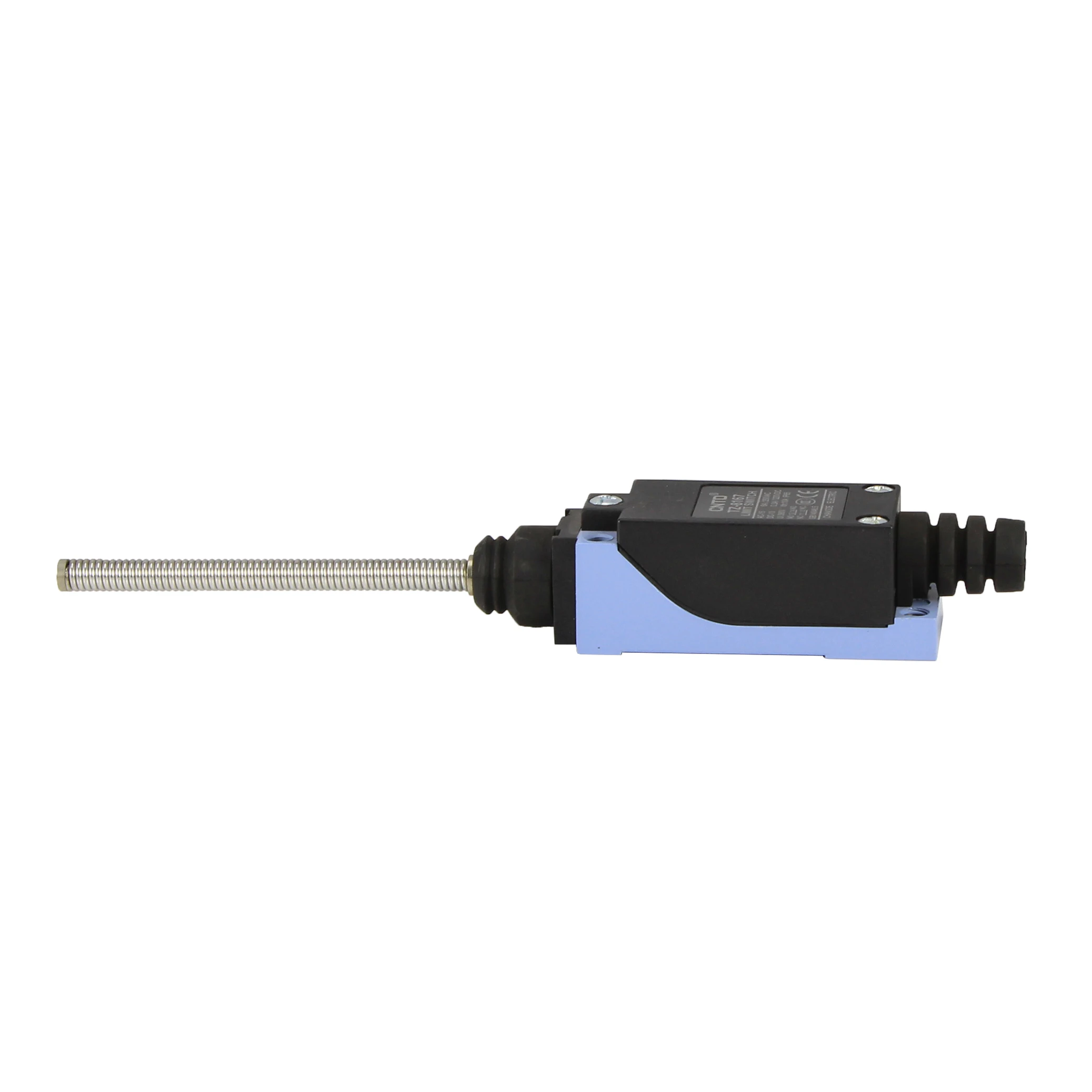

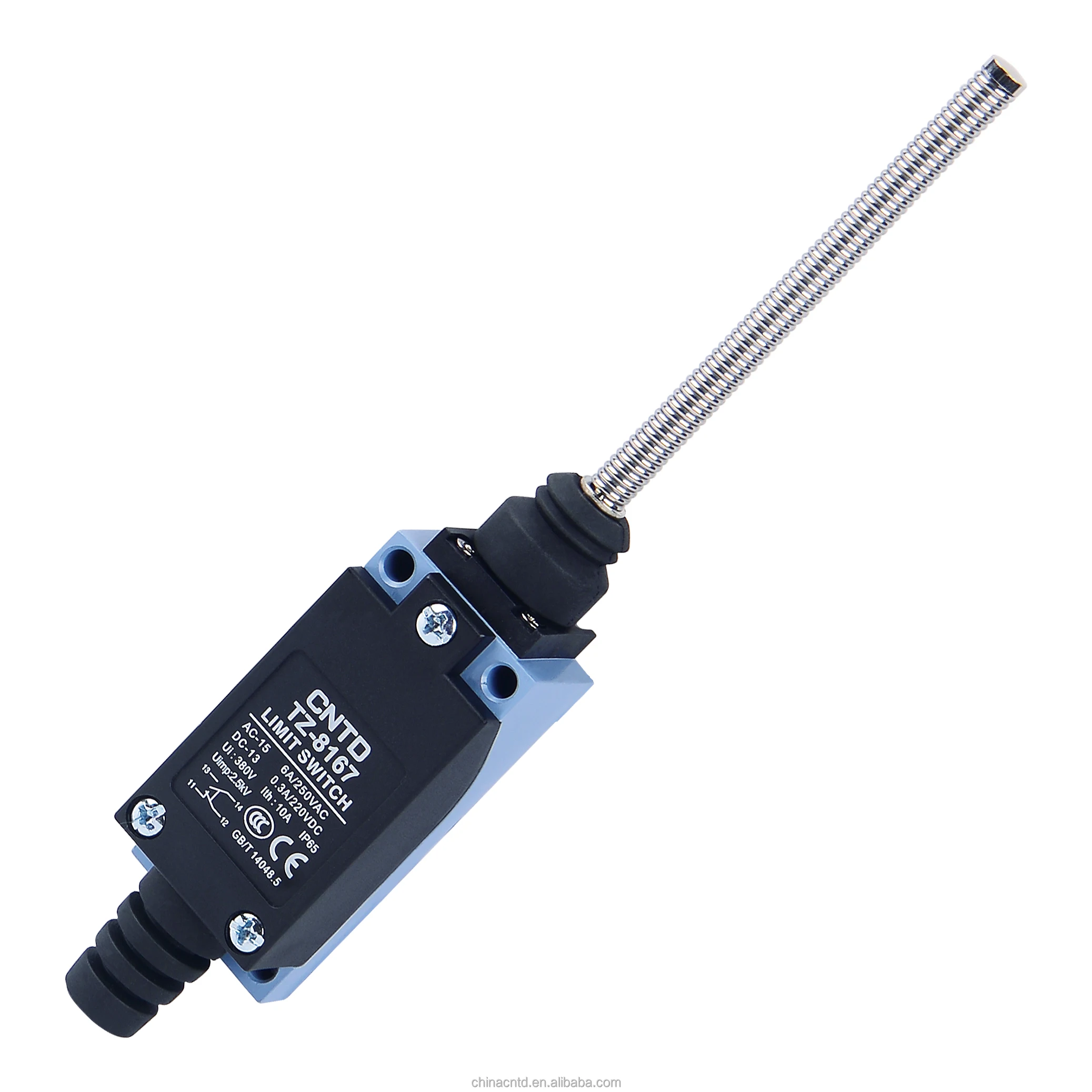

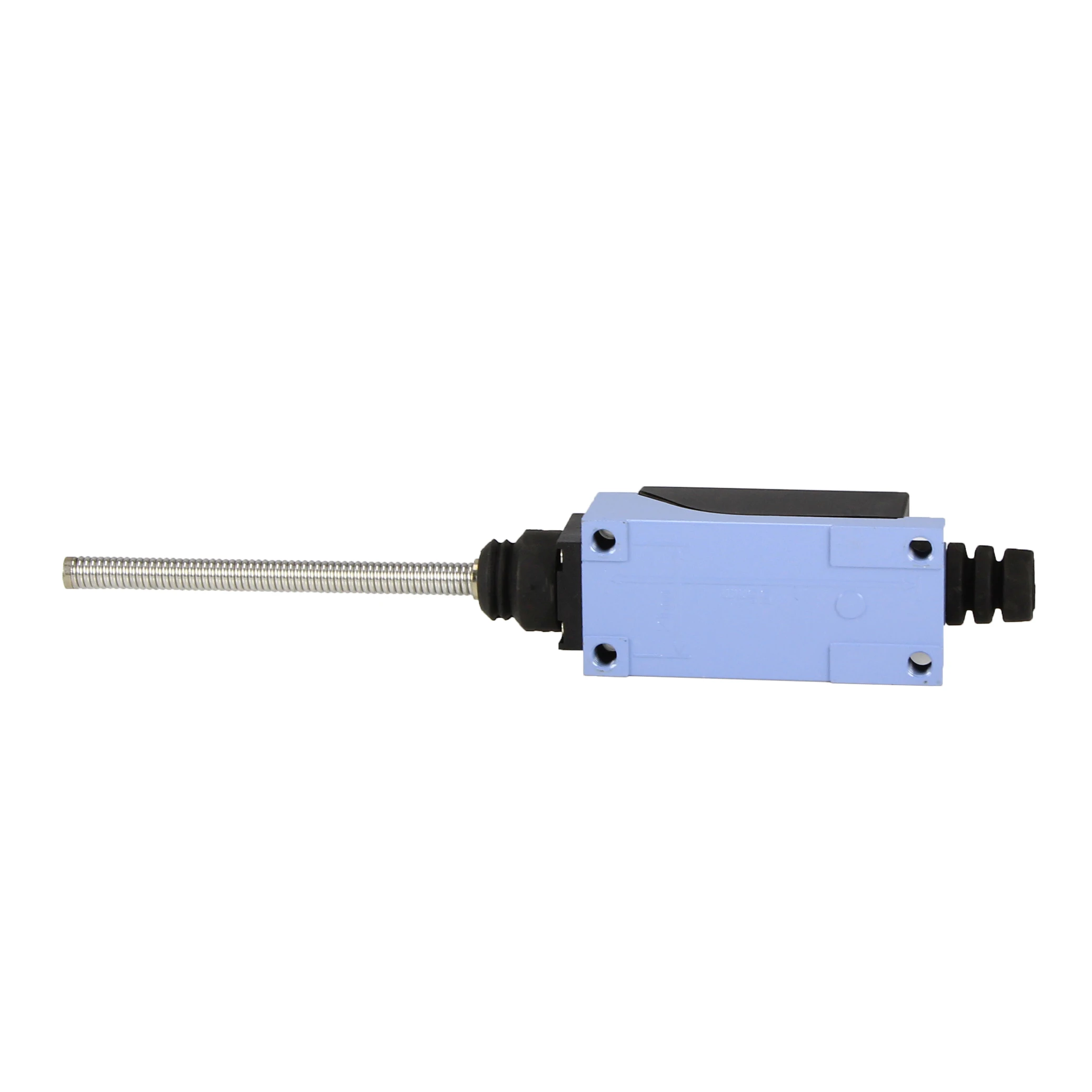

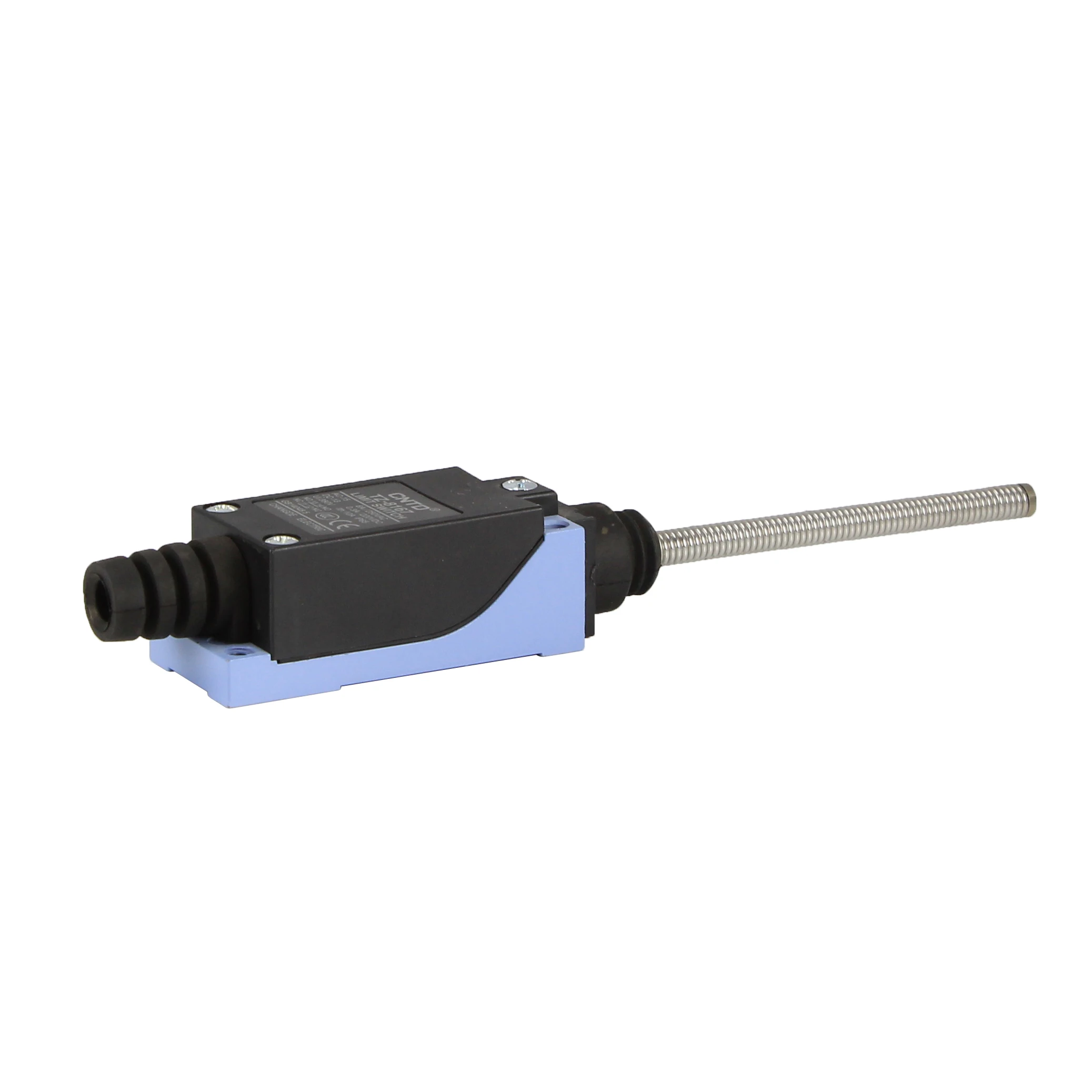

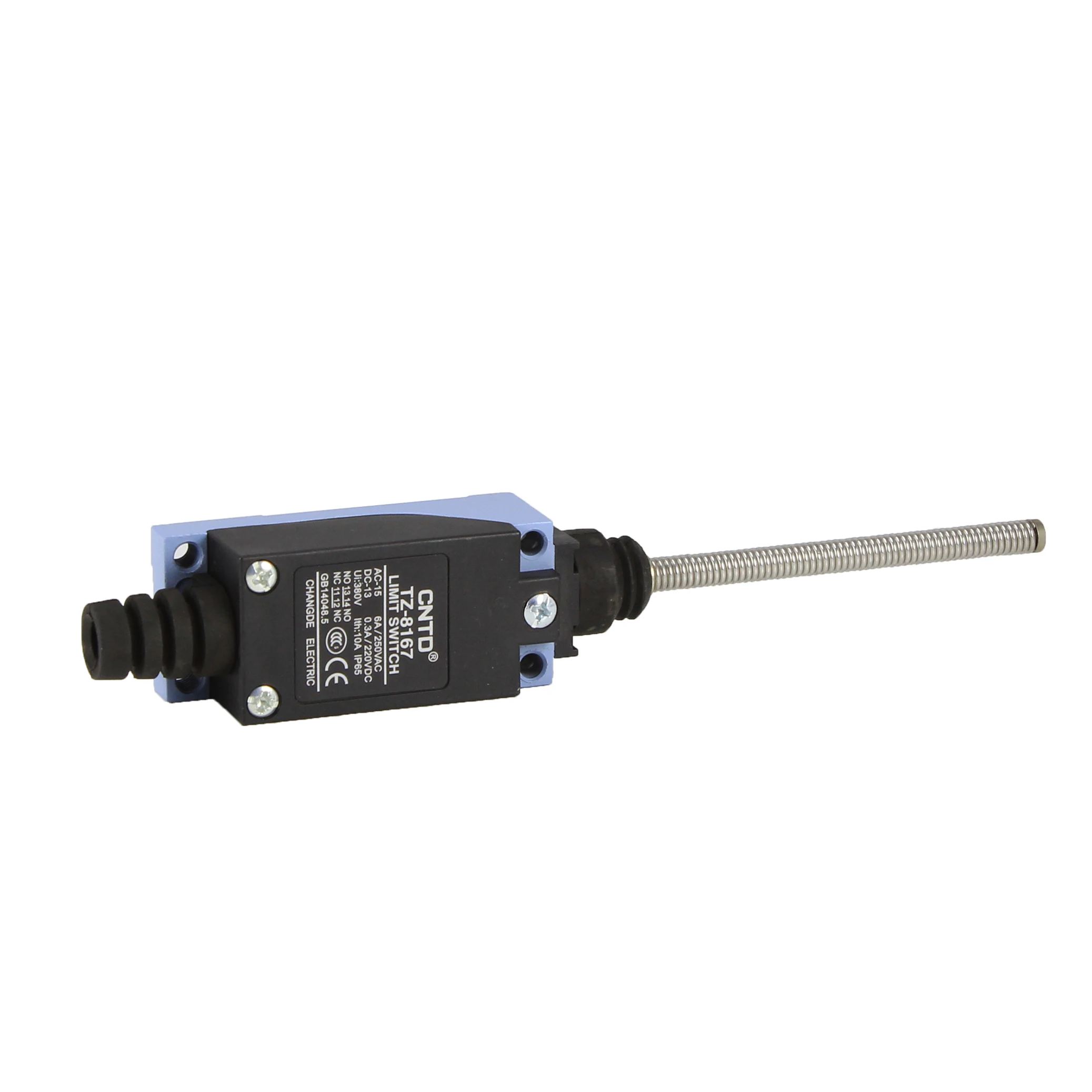

CNTD 10A 380V TZ 8167 гибкий пружинный рычаг мини концевой выключатель микропереключатель
- Category: >>>
- Supplier: Cntd Electric Technology Co. Ltd.
Share on (1600686374029):
Product Overview
Description
Features:
Double circuit type of limit switch
High mechanical strength, consists of intensive plastic and aluminum cast
small size, water-proof and oil-proof construction
built-in contact box has double-spring and long mechanical life
smooth operation with larger over travel distance
conduit design for convenient cabling
Various actuators for convenient applications
High mechanical strength, consists of intensive plastic and aluminum cast
small size, water-proof and oil-proof construction
built-in contact box has double-spring and long mechanical life
smooth operation with larger over travel distance
conduit design for convenient cabling
Various actuators for convenient applications
Specifications
Operation Speed | 5mm-0.5m/s |
Operating Frequency | Electrical: 30 operations/min |
Contact Resistance | 25mΩ max. (initial value) |
Insulation Resistance | 100mΩ min. (below 500VDC) |
1000VAC,50/60Hz for 1 minute between terminals of the same polarity | |
1500VAC,50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
1500VAC,50/60Hz for 1 minute between each terminal and ground | |
Vibration | 10-55Hz, 1.5mm double ampliude |
Shock | Mechanical durable: 1,000m/Sec² (about 100G'S) Malfunction: 300m/Sec² (about 30G'S) |
Ambient Temperature | Using: -20~+70℃ (With no icing) |
Humidity | <95% RH |
Electrical Life | 500,000 operations above |
Degree of Protection | IP65 |
Ratings:
Rated Voltage | Noninductive Load (A) | Inductive Load (A) | |||||||||||||
Resistance Load | Lamp Load | Inductice Load | Motor Load | ||||||||||||
NC | NO | NC | NO | NC | NO | NC | NO | ||||||||
125VAC | 5 | 5 | 1.5 | 0.7 | 3 | 3 | 2 | 1 | |||||||
250VAC | 5 | 5 | 1 | 0.5 | 3 | 3 | 1.5 | 0.8 | |||||||
8VDC | 5 | 5 | 3 | 3 | 5 | 4 | 3 | 3 | |||||||
14VDC | 5 | 5 | 3 | 3 | 4 | 4 | 3 | 3 | |||||||
30VDC | 5 | 5 | 3 | 3 | 4 | 4 | 3 | 3 | |||||||
125VDC | 0.4 | 0.4 | |||||||||||||
250VDC | 0.2 | 0.2 | |||||||||||||
Inrush Current | N.C: below 24A, N.O: below 12A | ||||||||||||||
NOTES:
1. Inductive load has a power factor of 0.4 min. (AC) and a time constant of 7 msec. max. (DC).
2. Lamp load has an inrush current of 10 times the steady-state current, while motor load has an inrush current of 6 times the steady-state current.
3. Product with spring, its usable range of operating part is within one third of whole spring length from the front end of spring.
