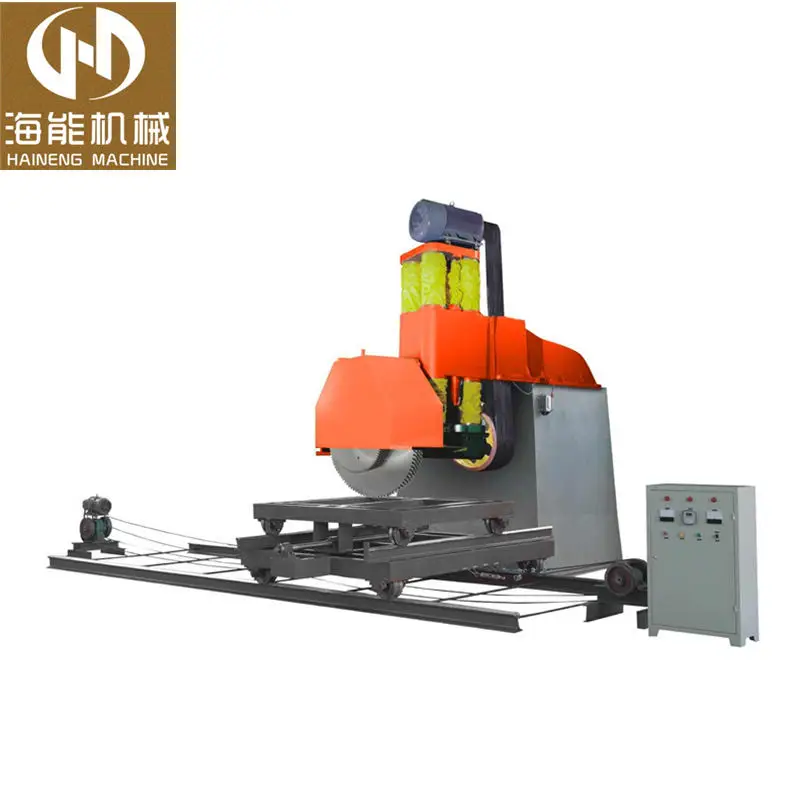

High performance single arm hydraulic multi blade stone cutting disc granite cutter machine stone machinery
High performance single arm hydraulic multi blade stone cutting disc granite cutter machine stone machinery
High performance single arm hydraulic multi blade stone cutting disc granite cutter machine stone machinery
High performance single arm hydraulic multi blade stone cutting disc granite cutter machine stone machinery

High performance single arm hydraulic multi blade stone cutting disc granite cutter machine stone machinery

Share on (1600686377308):


Price:$21,000.00 - $23,400.00

Quantity:


Product Overview

Description



Product Description


The machine uses large span of four guide column structure,host rigidity, high cutting efficiency , greatly improved blade life
and lower power consumption,meanwhile guide column using oil lubrication, with better lubrication, more convenient maintenance;
especially according to the stone worse environment to design the multi-layer modular sealing device,with waterproof , dust-proof and anti-spill , improve the using life of the machine;quarry table using bilateral gear drive, effectively avoiding the skip deviation of the phenomenon,better slicing precision; the machine with compact structure , easy operation,adopts high-quality materials , especially suitable for cutting domestic granite blocks.


Product type
Unit
DBQ-8
DBQ-12
DBQ-14
DBQ-16
DBQ-18
DBQ-22
Saw blade diameter
mm
1600-2500
1600-2500
1600-2500
1600-2200
1600-2200
1600-2200
Saw blade number
pcs
8
12
14
16
18
22
Blade stroke
mm
1000(1150)
1000(1150)
1000(1150)
1000
1000
1000(1150)
Cut block size
mm
3500×1500×950(1100)
3500×1500×950(1100)
3500×1500×950(1100)
3500×1500×950(1100)
3500×1500×950(1100)
3500×1500×950
Main motor power
kw
45
55
65
75
90
110
The total power
kw
50.5
60.5
70.5
82.2
97.5
117.2
Water consumption
m³/h
15
20
24
30
35
42
Weight
kg
8000
8500
9000
9250
9500
12000


Processing

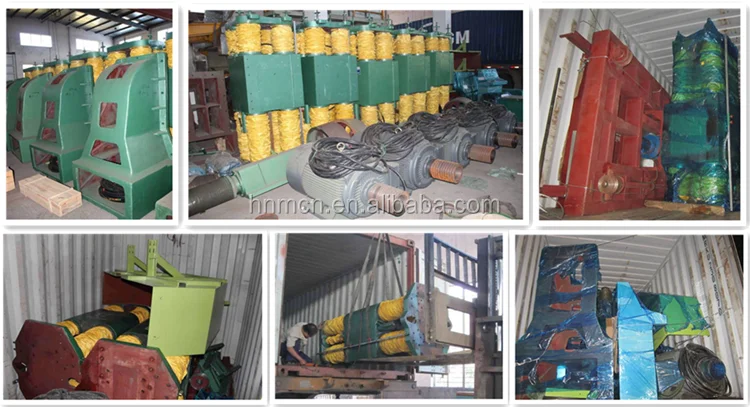

Product Packaging & Loading
