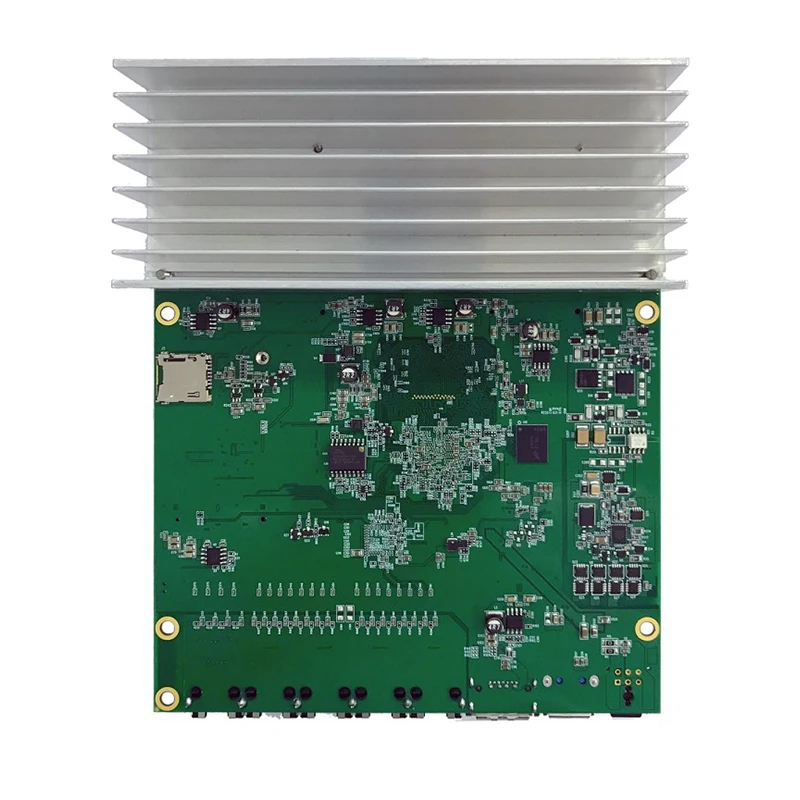

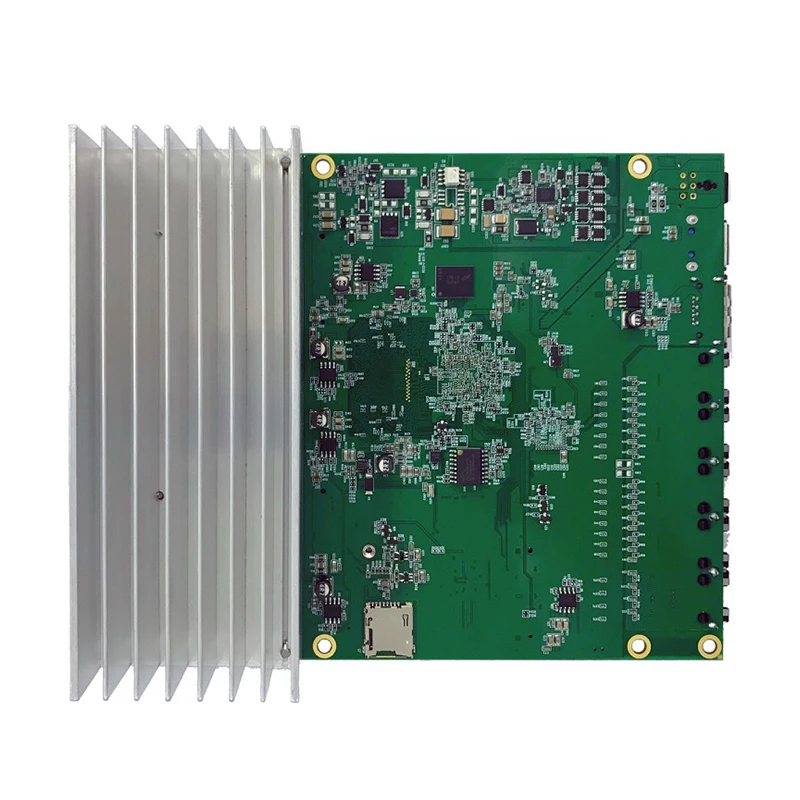

COMPEX WPQ865 1.7GHz CPU Embedded Board with 802.11ac Wave 2 Support
- Category: >>>
- Supplier: Huizhou Oleading Technology Co. Limited
Share on (1600686551341):
Product Overview
Description
Product Description
Product Paramenters
Features:
• Qualcomm Atheros IPQ8065 ARM Dual Core CPU
• 1GB DDR3 System Memory
• 5x Gigabit LAN RJ45 with Auto MDI-X
• 3x MiniPCIe Slots with 802.11ac Wave 2 Support
• 1x USB 3.0 Port
• 2x SIM Card Slot
• Integrated 48-57V IEEE 802.3af/at Power Over Ethernet
• Qualcomm Atheros IPQ8065 ARM Dual Core CPU
• 1GB DDR3 System Memory
• 5x Gigabit LAN RJ45 with Auto MDI-X
• 3x MiniPCIe Slots with 802.11ac Wave 2 Support
• 1x USB 3.0 Port
• 2x SIM Card Slot
• Integrated 48-57V IEEE 802.3af/at Power Over Ethernet
Chipset | Qualcomm Atheros IPQ8065 Dual Core Krait ARMv7 CPU 1.7GHz processor ‘Akronite’ Series |
Reference Design | Qualcomm Atheros AP161 |
System Memory | 1GB (2x 512MB) DDR3 |
NAND Flash | 256MB |
NOR Flash | 32MB |
NGFF Slot | 1x M.2 (NGFF) B Key Socket with USB 3.0 |
MiniPCIe Slot | 2x MiniPCIe Slots with PCIe 2.0 1x MiniPCIe Slot with PCIe 2.0 and USB 2.0 |

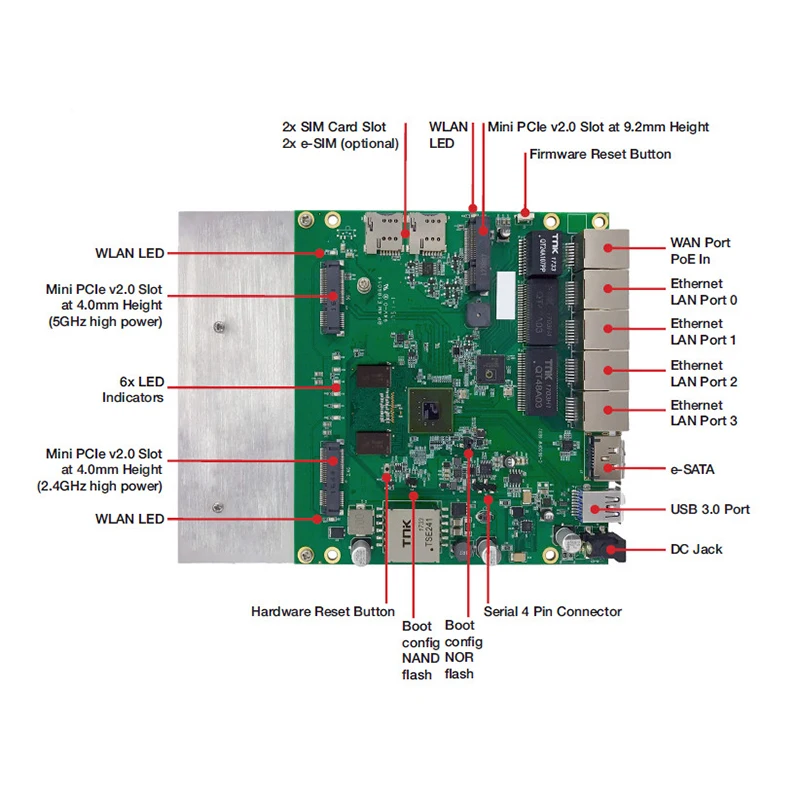

Interface | 5x 1Gbps Ethernet Ports LAN RJ45 (Auto MDI-X) 1x eSATA Port 1x USB 3.0 Port 2x SIM Card Slots (Optional 2x e-SIM) 1x MicroSD Card Slot 1x Serial Port 4 Pin Connector |
Reset Button | 1x F/W Reset Button, 1x H/W Reset Button |
LED | 9x LED Indicators |
Power over Ethernet (PoE) | 1x IEEE 802.3af/at POE, 36~57V, up to 70W (4-pair power feed) on WAN Port |
DC Power | 1x DC Jack Connector: 12V |
Power Consumption (Board Only) | 4.5W |
Certification | REACH and RoHS Compliance |
Environmental Temperature | Operating: -20°C to 70°C, Storage: -40°C to 90°C |
Environmental Humidity, Non-Condensing | Operating: 5% to 95%, Storage: Max. 90% |
Dimensions (W x H x D) in mm | PCBA 137 x 148 x 17.5, Heatsink 60 x 148 x 30 |
