X1 Us Warehouse Cheap Adult 36V 250W Electric Bike Electric Bicycle / Moped With Pedal Drop Shipping Magnesium Alloy Ebike
- Category: >>>
- Supplier: Changzhou Naicisports Technology Co. Ltd.
Share on (1600686583385):
Product Overview
Description
Customer Feedback
Product Description
1.Sadle
2.Charging port
3.Seatpost battery
4.Seatpost clamp
5.Rear Shock
6.Rear disc break
7.Rear wheel
8.Free Wheel
9.Derailleur
10.Chain
11.Gear Crank
12.Pedal
13.Folding box
14.Controller
15.Handle post
16.Handle post pin
17.Folding handle post
18.Handle post fixing lever
19.Headlight
20.Front fork
21.Front wheel
22.Front disc break
23.Handle Grip
24.LCD display
25.Derailleur lever
26.Dreak lever
27.Handlebar

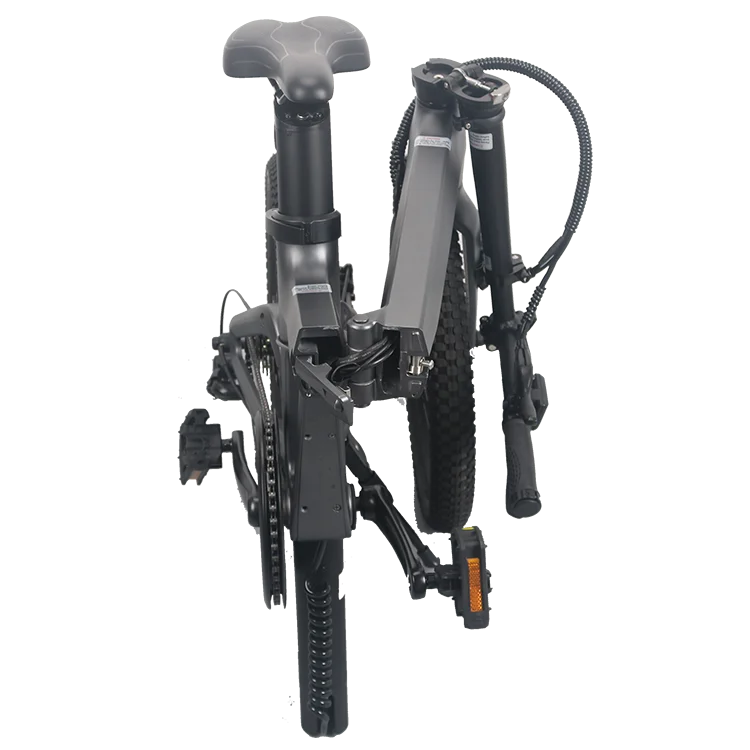

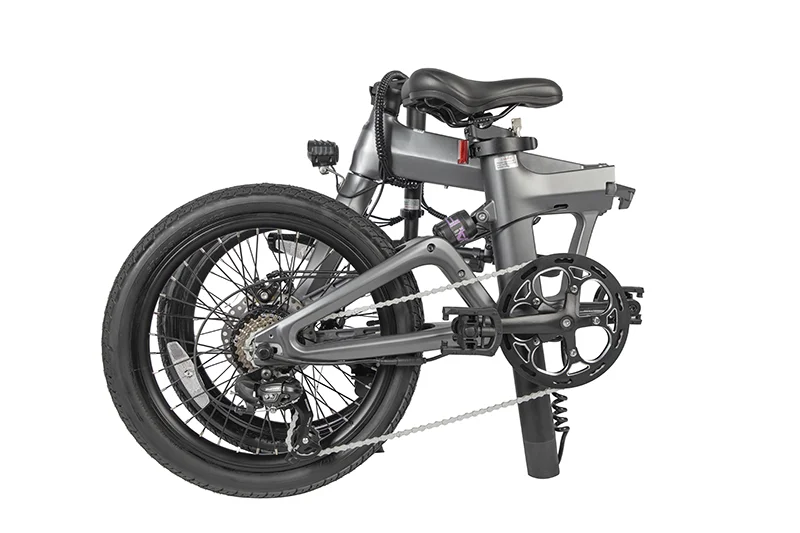

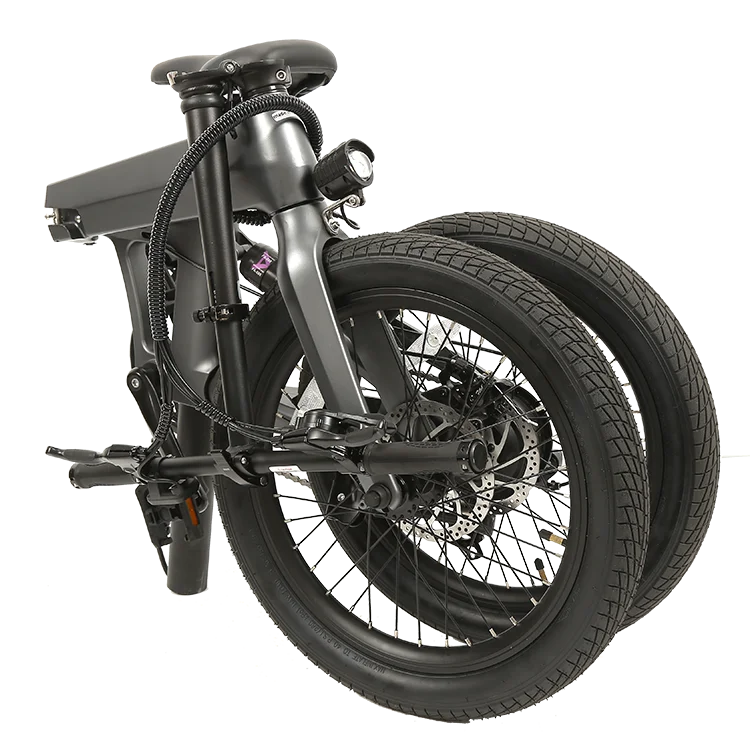

1. grab the seat post(important). loose the clampe.
2. Push the seatpost till the ground slowly,tight the
3.loose the handle bar clamp
4.turn the handlebar clockwise till vertical ,tight seatpost clamp
5. release the lock clamp,fold the head tube.
6. fold the pedal by pushing it level.
7. release the safety cap.
8. pull the lock bar ,fold the main tube
Turn on-off：
Long press M for 2second，for on or off.
On the main screen， long press the UP to turn on the light。
Boosting functionn：
On the main screen，long press”down button” ，If the bike is stop，Go into the bosster ,If the bike is riding，going to the cruise function(The later function depends on the controller support or not)
Pas level change：
On the main screen，short press ”UP” , ”DOWN” to change the level .
Speed display mode change
On the main screen，long presspr ”M ”+”UP” , go into the speed display mode change，long press will shift change one by one：Current speed(CUR)、max speed(MAX)、average speed(AVG)。
Range/riding time/voltage display change
Short press”M ”, display one by one：current mileage（DST）、whole mileage（ODO）、current riding time（TIME）、current battery voltage（VOL）。
Long press M for 2second，for on or off.
On the main screen， long press the UP to turn on the light。
Boosting functionn：
On the main screen，long press”down button” ，If the bike is stop，Go into the bosster ,If the bike is riding，going to the cruise function(The later function depends on the controller support or not)
Pas level change：
On the main screen，short press ”UP” , ”DOWN” to change the level .
Speed display mode change
On the main screen，long presspr ”M ”+”UP” , go into the speed display mode change，long press will shift change one by one：Current speed(CUR)、max speed(MAX)、average speed(AVG)。
Range/riding time/voltage display change
Short press”M ”, display one by one：current mileage（DST）、whole mileage（ODO）、current riding time（TIME）、current battery voltage（VOL）。
1. Charging port is right beneth the saddle,covered by a rubber dust-free cover,uncover it,plug the charger into the port;cover the port again when charged.
2. The light is red during charging and turns green when fully charged.
If you want to charge your battery separately,roll out the power port ,release the seatpost clamp,pull out the seatpost
battery,then repat the steps above.
Specification
Product name: Ebike\t
Model name: X1
Size: 1600*590*1150mm
Folded size: 850*520*720mm
Wheel base: 1100 mm
Net weight: 20.5kg
Range: PAS>100KM
Standard load: 100KG
Top speed: <25KM/H
Charge time: 3-4 Hs
Battery type: Lithium-ion
Battery capacity: 36V10.5-15Ah
Noise : ≤62db(A)
Naici 250W motor
Rated output power: 250W
Motor efficiency: ≥80%
Rated RPM: 300r/min
Rated voltage: 36V
Max torque: 40N.m
Overcurrent protection: 12±1A
Low-voltage protection：30±1V
Kwh：≤1.2Kw.h
Ride system: 5 classes Torque sensing
Tire diameter: 20inch
Frame: 20 inch magnesium alloy
Front fork: 20 inch magnesium alloy
Break: 160mm disc break
Rim: 20 inch Al-Alloy 13G36H
Tire: Kenda 20*2.125
Chain wheel: Prowheel 52T
Fly wheel: 14-28T
Rear hub: Sigma Al-Alloy
Chian: KMC
Handle bar:PE+Metal ring
Display:Naici LCD
Controller: Naici sine wave FOC
Break lever: hydraulic brake lever
Saddle:Justek
Pedal: foldabel pedal

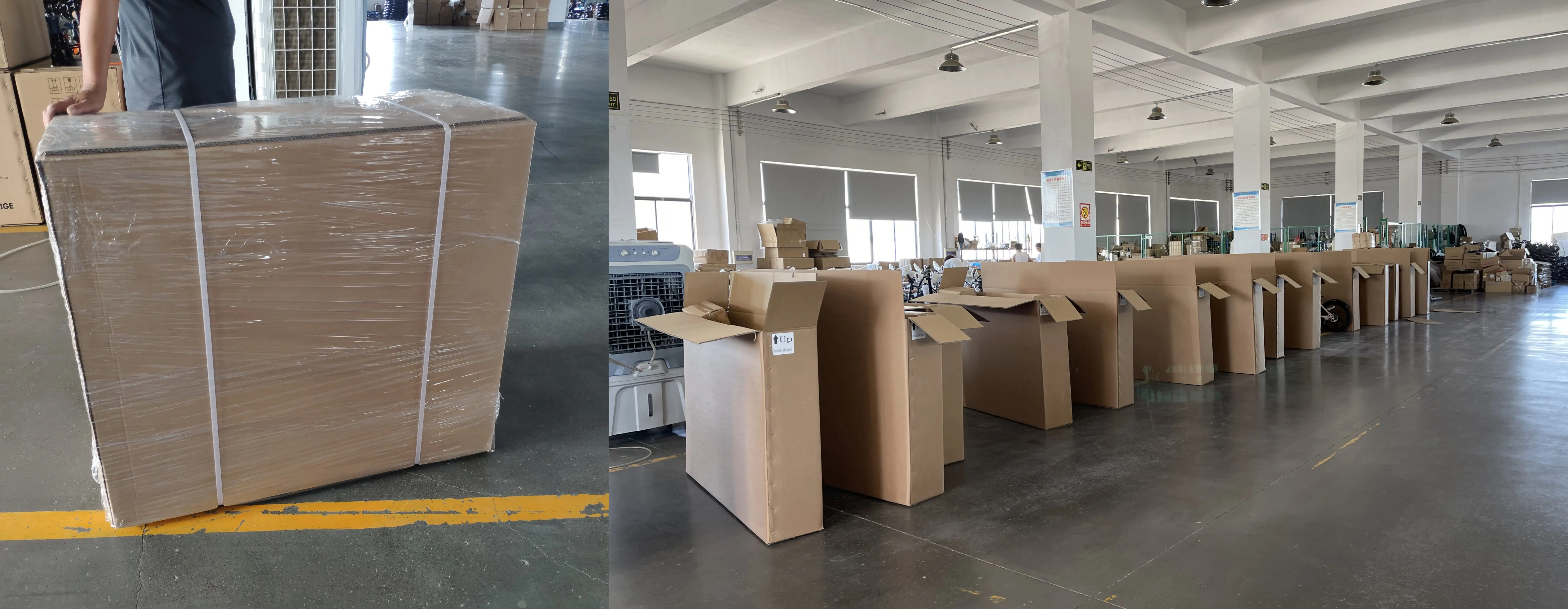

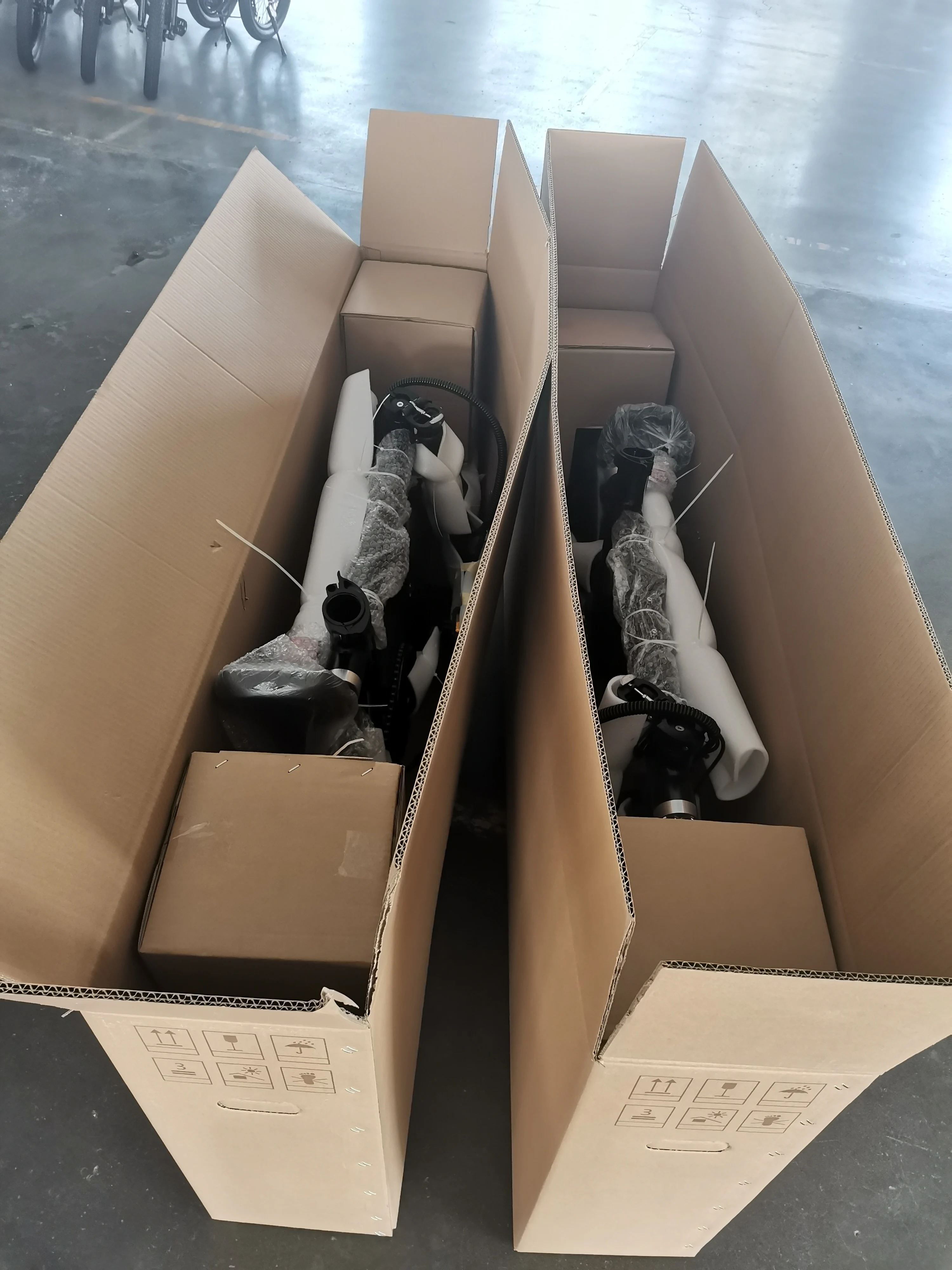

Packing & Delivery
