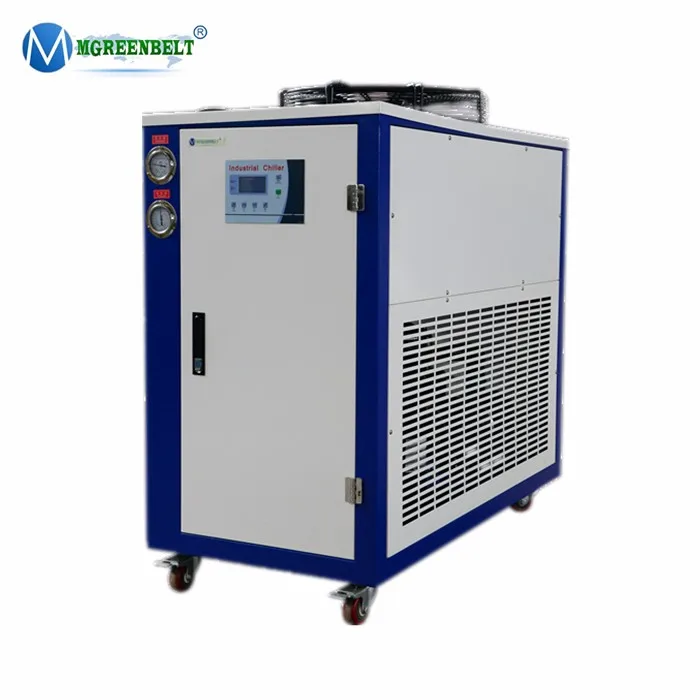

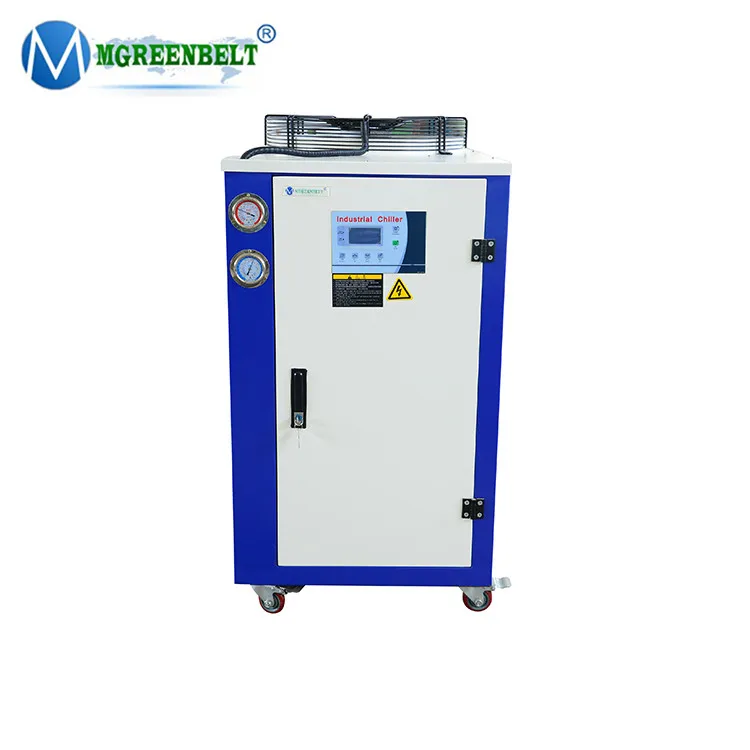

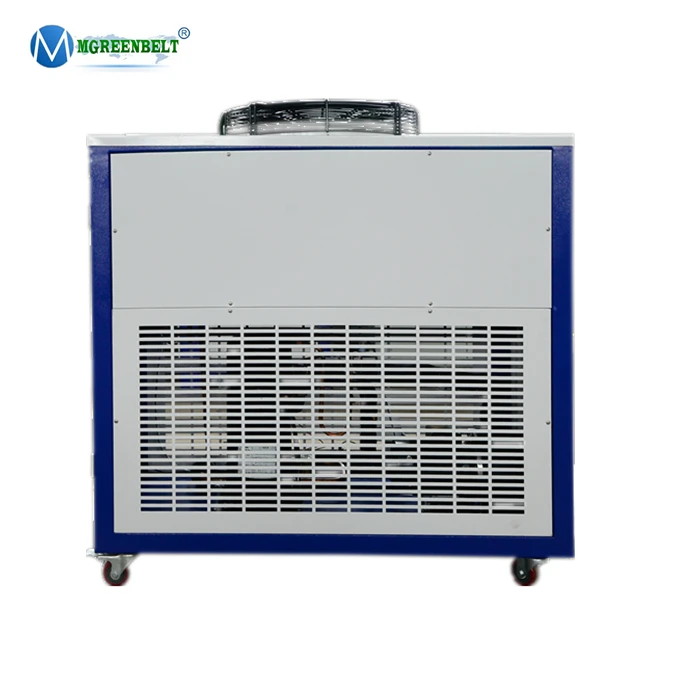

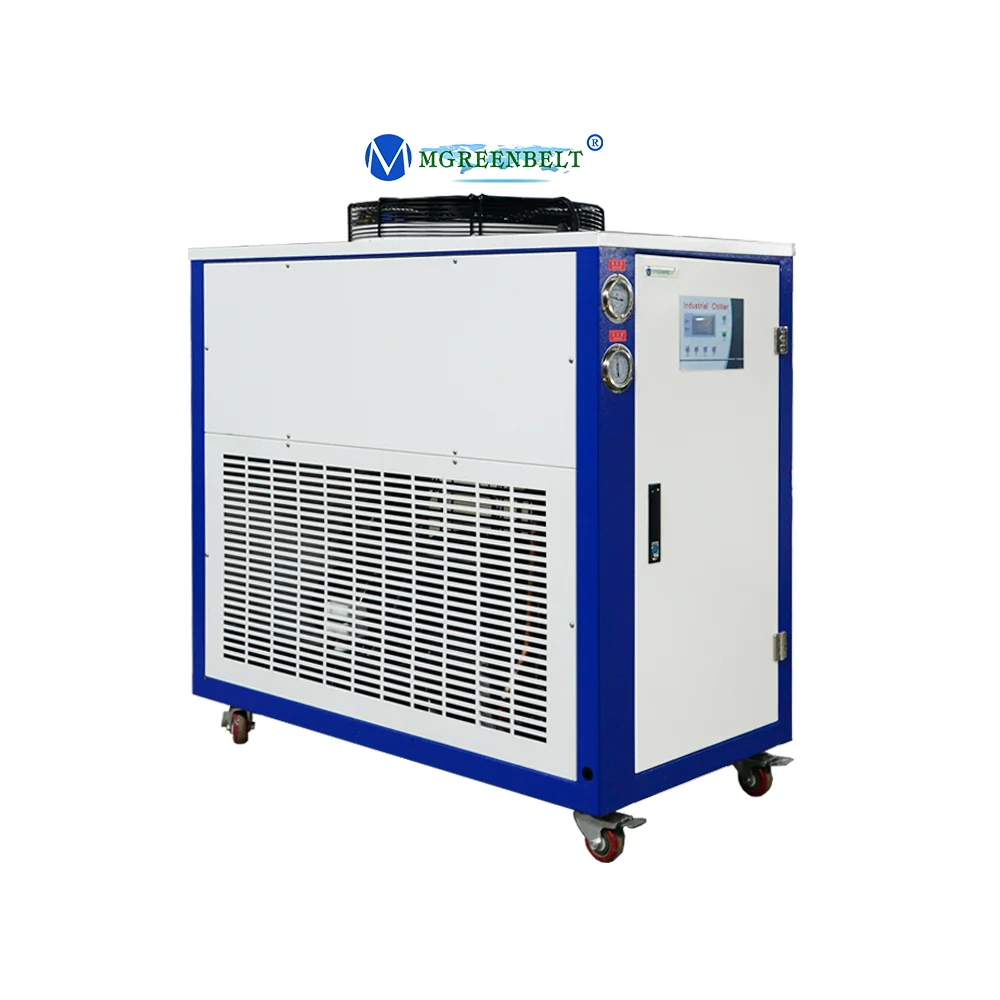

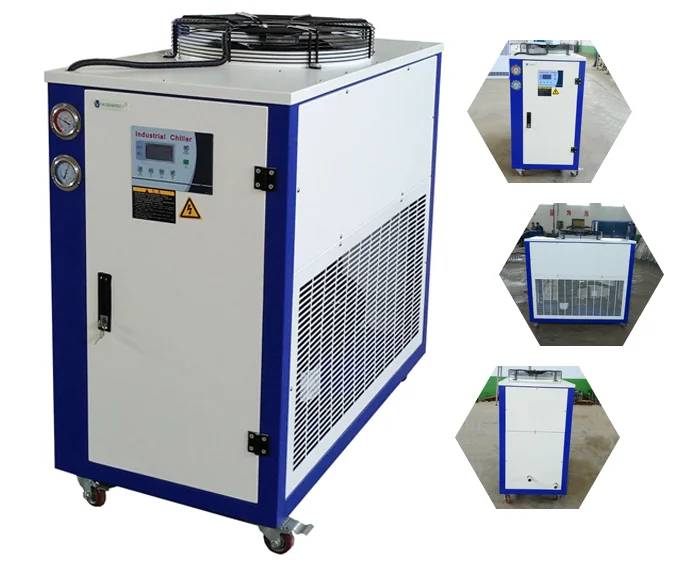

Micro chiller r407c water cooled ice bath chiller
- Category: >>>
- Supplier: Jinan Mgreenbelt Machinery Co. Ltd.
Share on (1600686597008):
Product Overview
Description
Product Description
5HP- 50HP Industrial Glycol Water Cooling Chiller
Outlet temp control from -10C to +30C, which suitable for brewery, winery, food, beverage, chemical, ice rink, and other industry such as plastic industry, rubber industry, anodizing, etc.
Technical Parameter Of China Top Quality 20 HP 30HP Industrial Air Cooled Glycol Chiller
1. Temp outlet: Mgreenbelt can provide different temperature chiller model based on customer different working need.
(1). Brewery/ beverage/food and etc which is required -10C, -5 deg C, 0 Deg C, please choose the glycol chiller series, and tell us your working need.
(2).Chemical Reaction kettle/Pharmaceutical and etc which is required ultra low temperature, please send email to use directly, the right proposal and model will be sent with prompt.
Model | Unit | MG-30CL | MG-20CL | ||
Temp Outlet | deg C | -5 | |||
Cooling capacity | Kw | 56.8 | 37.6 | ||
Kcal /h | 48848 | 32336 | |||
Input power | Kw | 31.81 | 20.51 | ||
Power supply | 3 Ph-220V/380V/460V/480V-50HZ/60HZ | ||||
Refrigerant | R22 / R407c / R134a / R410a / R404a | ||||
Compressor | Type | Hermetic scroll type | |||
Power | 8.7*3 | 8.7*2 | |||
Evaporator | Flow rate (m3/h) | 11.68 | 7.73 | ||
Tank Volume(L) | 450 | 350 | |||
Inlet/ outlet | DN65 | DN40 | |||
Pump | Kw | 2.2 | 1.5 | ||
Condenser | Type | Finned copper tube with low noise axial fan | |||
Power (kw) | 0.75*3 | 0.75*2 | |||
Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||
Machine Size | mm | 2200*1160*1900 | 2100*1000*1700 | ||
Weight | kg | 1150 | 850 | ||
Detailed Images
Evaporator type 1
Stainless steel tank with copper coil; this is a open loop, if user side is a closed type, you can choose this.
Tank volume: 200L, 350L, 450L, 700L for diff model
Evaporator type 2.
Shell and tube, this is a closed loop, if user side is a open system, you can choose this.
Evaporator type 3.
Stainless steel Plate heat exchanger

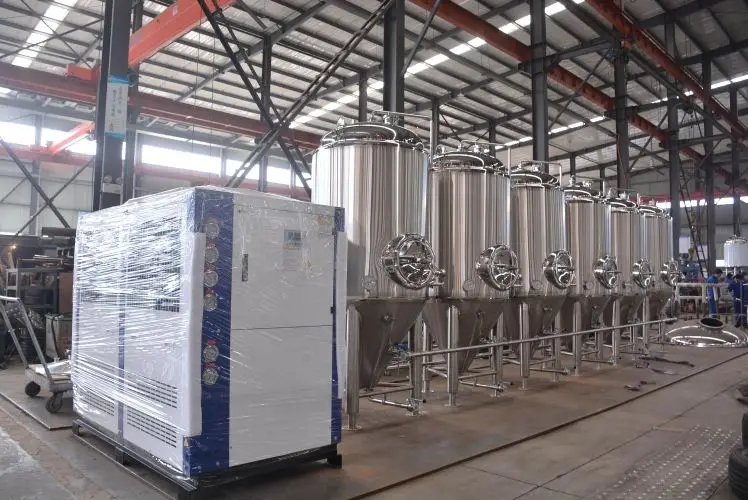

Widely used for brewery, food, beverage, dairy industry.
Powerful Pump.
Different requirements about the flow rate and pressure, we can make based on your need.
Brand: NanFang, VILO, Grundfos

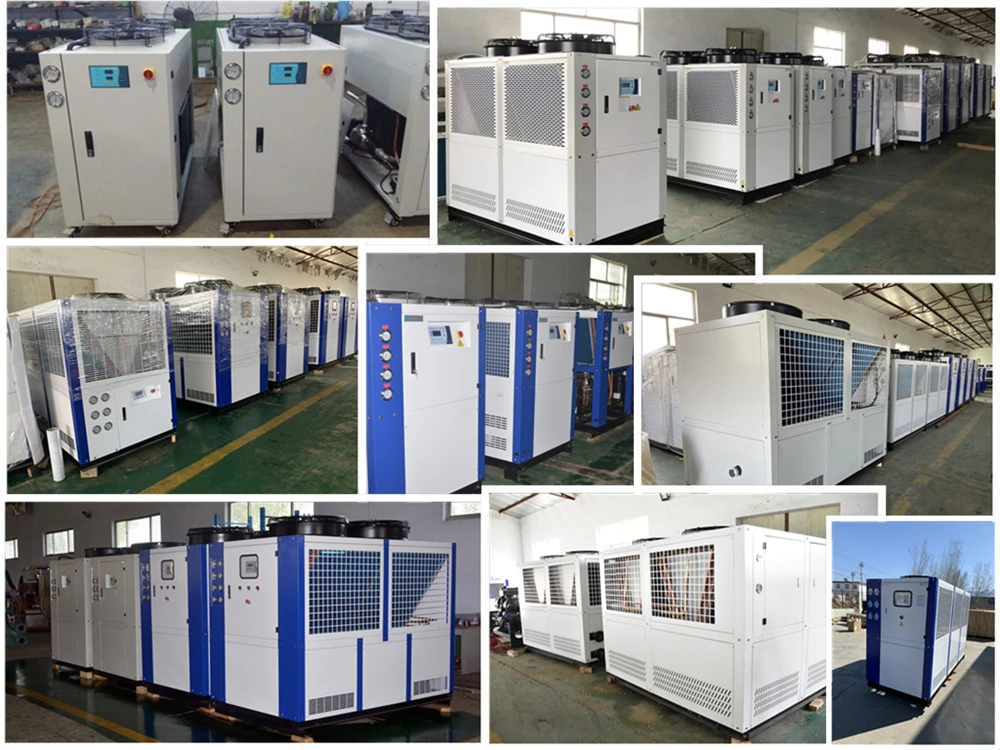

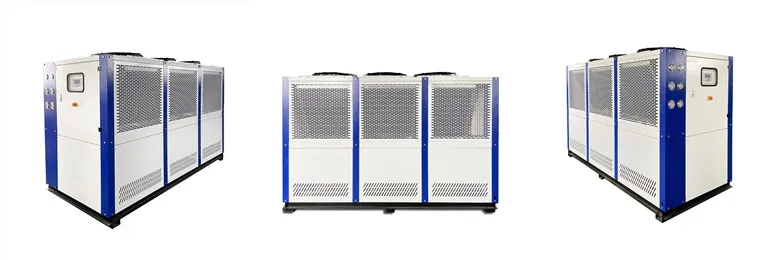

More different glycol chillers

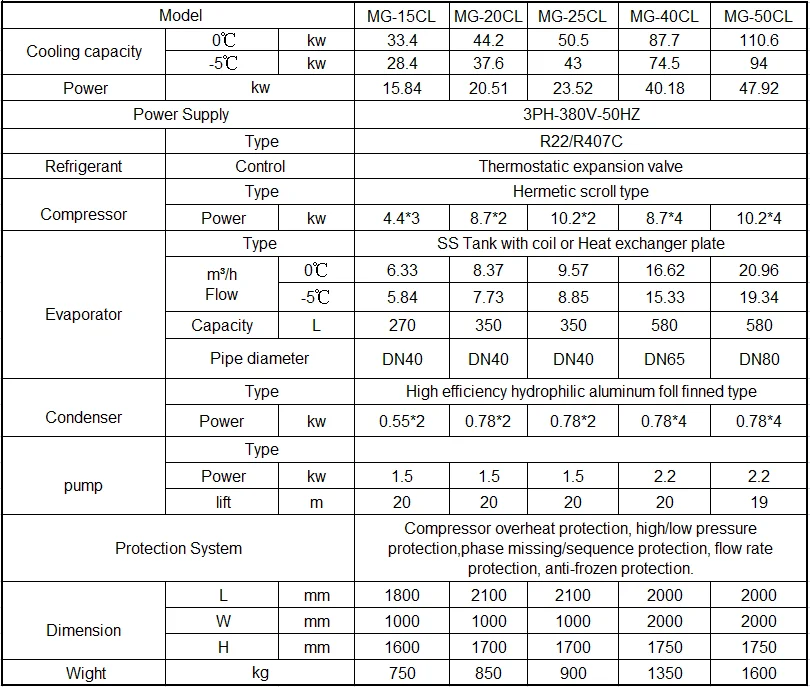

(1). if the two model above is not you need, see the below specifications for more cooling capacity from 5.7 kw to 121 kw based on -5C outlet temp, lower temp -10C, -15C is also available.
(2). Electric power avaialale 208~240V, 380~420V, 440~480V, 3phase,
(3). Refrigerant workable most popualr abroad is R404A, R407C, R507
Certifications
Certificate
(1). All product with CE certificate.
(2). Special UL certified for north America market.
(3). Provide different certificate for customer import country, C/O, FORM A. FORM E, SASO, CSA
Our honor.
We are the member of China refrigeration industry alliance, which is the Top honor in China.
Our honor.
We got the Top 10 Service Brand from China government.
Packing & Delivery
Delivery
1. Delivery time: normally equipment will be delivery within 15 working days after we get your order.
2. Delivery place: We can accept any place:
(1). if you have container in China, any city we can send.
(2). If you have own forwarder, we can send to any loading port.
(3). Of course, we can arrange the shipment to any discharge port in your country, or Door to door is allowable.

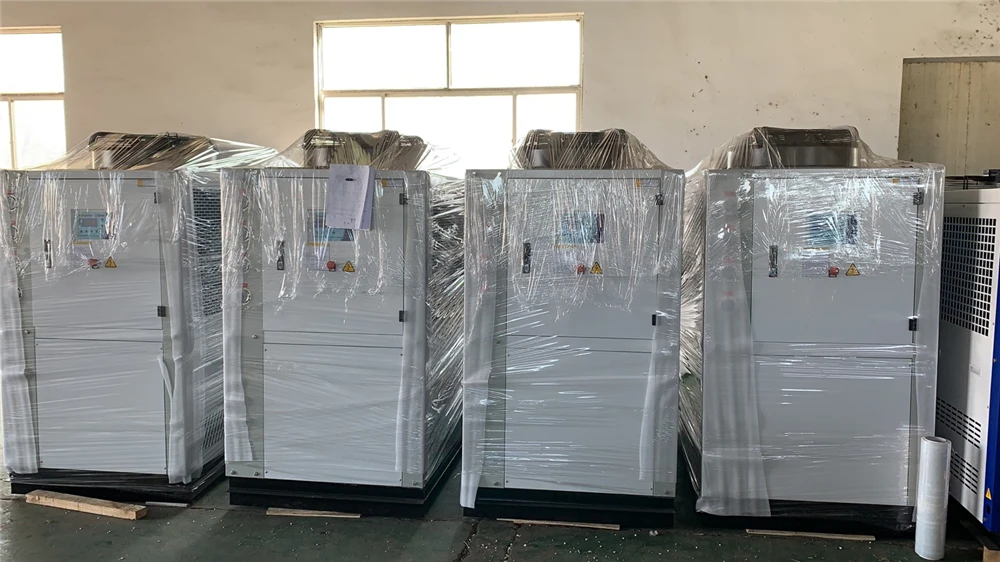

Packing
1. Firstly, adopt the thick film and Plastic foam make protect for chiller;
2. Secondly, adopt the plywood case package, fumigation-free.
Our Company

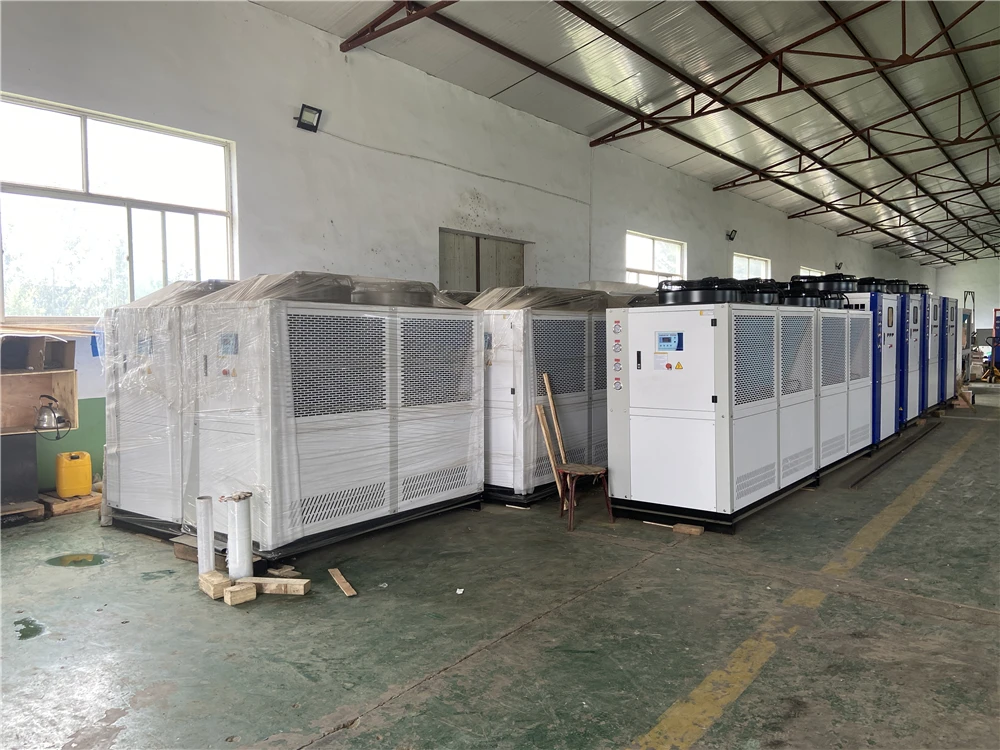

Factory.
We have 2 workshop, with total area is 34,000 square meter.
Located in Dezhou, 1 hours from Jinan city if driving.
Head office.
Our head office located in Jinan city,
Shanghai: 4 hours by train.
Guangzhou: 3 hours by fly.
Beijing: 1 hours by train.
Team.
We ahve more than 50 employee in heat office, which to insure give you an best support.
