Electric power concrete pump:
Concrete pump is a kind of equipment that uses pressure to continuously transport concrete along the pipeline. It is used in construction. After years of research and development experience, our company has designed and manufactured a small S-pipe valve concrete pump according to the characteristics of building ground construction.
Model | HBT15-13SD | ||
Conveying capacity（m³/h） | High | 7 | |
Low | 15 | ||
Delivery pressure（MPa） | High | 13 | |
Low | 6 | ||
Maximum conveying distance（m） | Level | 300 | |
Vertical | 110 | ||
Maximum aggregate size（mm） | Φ76mm | 25 | |
Main motor power（KW） | 30 | ||
Hopper volume（m³） | 0.34 | ||
Feeding height（mm） | 950 | ||
Hydraulic oil tank volume（L） | 120 | ||
Main distribution valve type | S | ||
Host Weight（kg） | 1480 | ||
Overall dimensions（L*W*H）（mm） | 3380*1270*1450 | ||
Details Images
Features of Concrete Pump：
1. The advanced S pipe valve is used for reversing, which is mature and reliable in structure and can meet the requirements of concrete transportation;
2. The spectacle plate and cutting ring are made of high hard wear-resistant alloy materials, with longer service life;
3. The outlet pressure is high, which can meet the transmission requirements of high-rise buildings and long-distance construction;
4. The hydraulic oil is cooled by an advanced air cooling and heat dissipation system, without water supply, which is easy to use;
5. It has reverse pump function to minimize pipe blockage;
6. Equipped with automatic centralized lubrication system to ensure the service life of rotating parts
7. The electrical part is controlled by PLC, with the best control characteristics;
2. The spectacle plate and cutting ring are made of high hard wear-resistant alloy materials, with longer service life;
3. The outlet pressure is high, which can meet the transmission requirements of high-rise buildings and long-distance construction;
4. The hydraulic oil is cooled by an advanced air cooling and heat dissipation system, without water supply, which is easy to use;
5. It has reverse pump function to minimize pipe blockage;
6. Equipped with automatic centralized lubrication system to ensure the service life of rotating parts
7. The electrical part is controlled by PLC, with the best control characteristics;
8. The electrical box is equipped with a remote control handle for easy operation

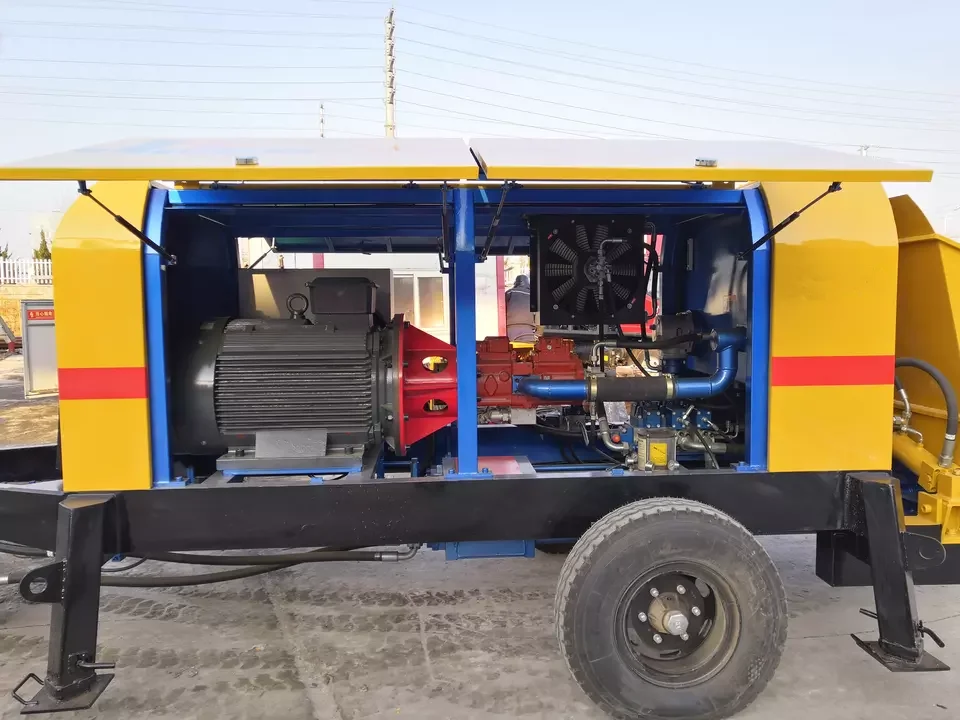

Diesel Concrete Pump View A
a: Hydraulic Hose
b: Cooling System
c: Constant Pressure Pump
d: Hydraulic Pump
e: Electric Cabinet
f: Diesel Engine
Diesel Concrete Pump View B
a: Hydraulic Hose
b: Cooling System
c: Constant Pressure Pump
d: Hydraulic Pump
f: Diesel Engine

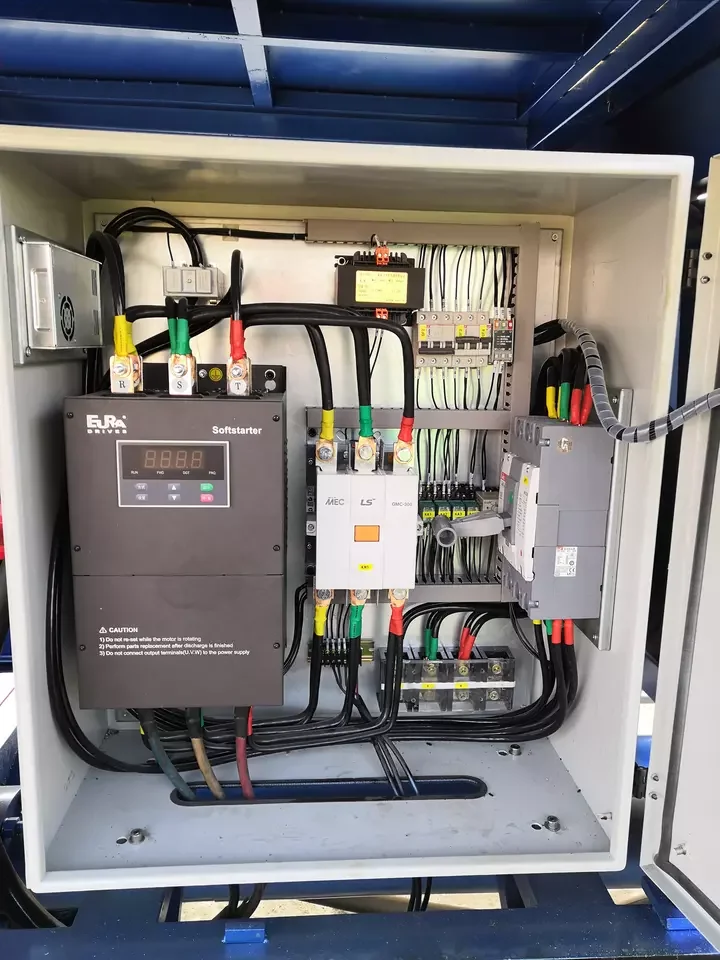

Control
All accessories from well-known brands and remote controller.
Farme
Thick material reasonable structure long life.
Shield
Hydraulic support easy maintenace comprehensive protection.
Hydraulic Cylinder
Quenching Chrome-plating more duradle.
Applications
Scope of application:
This machine is suitable for large area and high efficiency construction of fine aggregate concrete or mortar filling layer in building ground construction, as well as transportation of fine aggregate concrete or mortar in construction projects, tunnels, mines and other projects. After pretending to spray accessories, it can be used as a shotcrete pump for spraying and sprinkling concrete, mortar, refractory materials and green soil.
Packaging&Shipping
About LICHMACH
About US
Henan Lich intelligent equipment Co.,Ltd was born in 2002, which supply comprehensive solution and engineering construction machinery products. We have good partnership with a number of international well-known brands involved in the field of engieering machinery, and have accumulated know-how and talents reserve of this field for many years. More important for our company is to establish strategic partnership with SINOMACH,which is central goverment enterprise and ranked TOP500 in the world, for the purpose of developing overseas market. We, LICHMACH company, are authorized by SINOMACH to develop overseas market and SINOMACH gives full support as our manufacturing base.
Philosophy of our LICHMACH is forever to supply affordable with best quality products, to supply one-stop solution for our customers, and to make efforts for those who wants to develop their own brand locally.
Looking forward to work with you and creat more value for you.
Philosophy of our LICHMACH is forever to supply affordable with best quality products, to supply one-stop solution for our customers, and to make efforts for those who wants to develop their own brand locally.
Looking forward to work with you and creat more value for you.

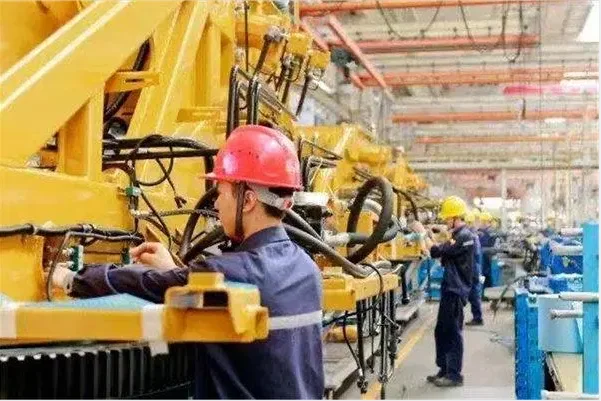

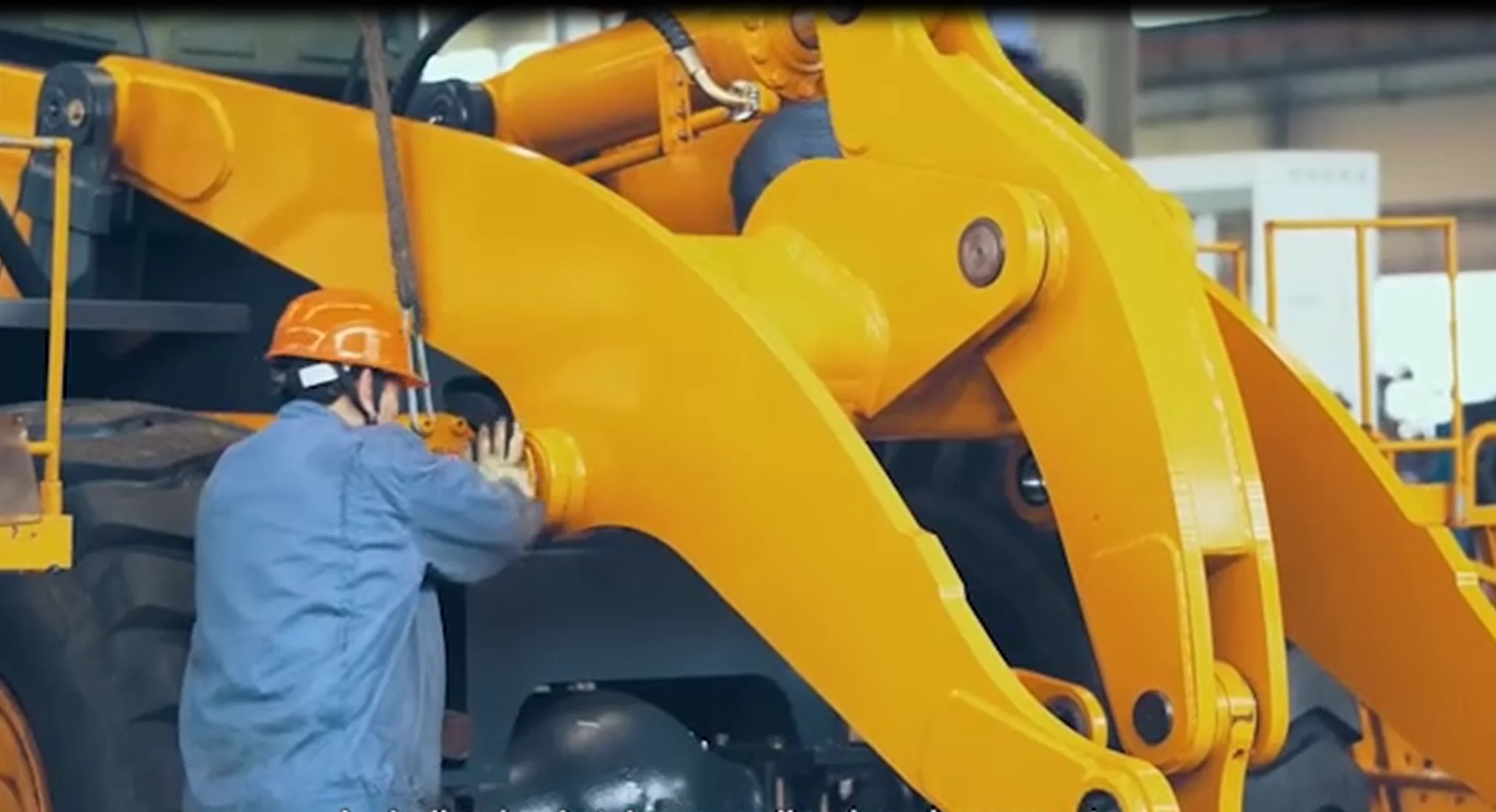

Factory Tour
SINOMACH is already involved in engineering machinery field for dozens of years, which R&D centers and factories are spreading all over our country. It has established joint venture partnership with several well-known brands in the workd such as Hyundai, komatsu, TEREX,etc., and supply many products based on OEM fabrication service. All these guarantee us to be capable for providing best products and service with rich technology accumulation and fabrication experience.
We Promise
1. The raw materials of each component are the most suitable;
2. Each machine is delivered to the buyer after inspection;
3. Adhere to the business philosophy of "honesty is the foundation, quality is the essence, mechanism is the soul, and appropriateness is far-reaching".
2. Each machine is delivered to the buyer after inspection;
3. Adhere to the business philosophy of "honesty is the foundation, quality is the essence, mechanism is the soul, and appropriateness is far-reaching".
Why Choose Us
Our Service:
1 . As a manufacturer , we can tailor our products to ourcustomers'needs.
2 . 24 Hours free Online Consulting Service , we will analysis forcustomers needs , provide right machine for customers.
3 . 12 Months warranty for the whole this machine , except theartificial damage and consumable accessories.
4 . Free operation training in our factory.
5 . Engineers are available to service the machinery overseas .
6 . Our engineer solve the problems on line if the customers need
We Recommend

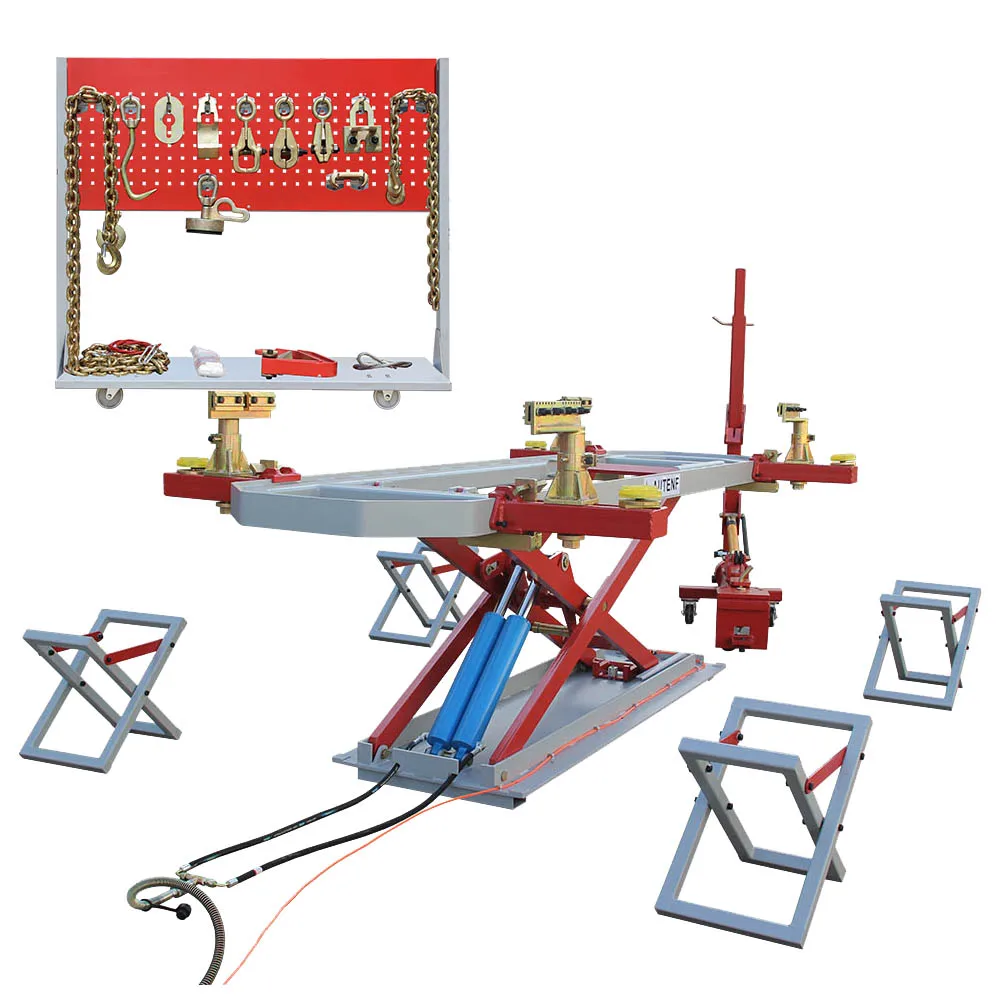

car body collision repair equipment frame bench with CE approved
$6,588.00 - $6,680.00

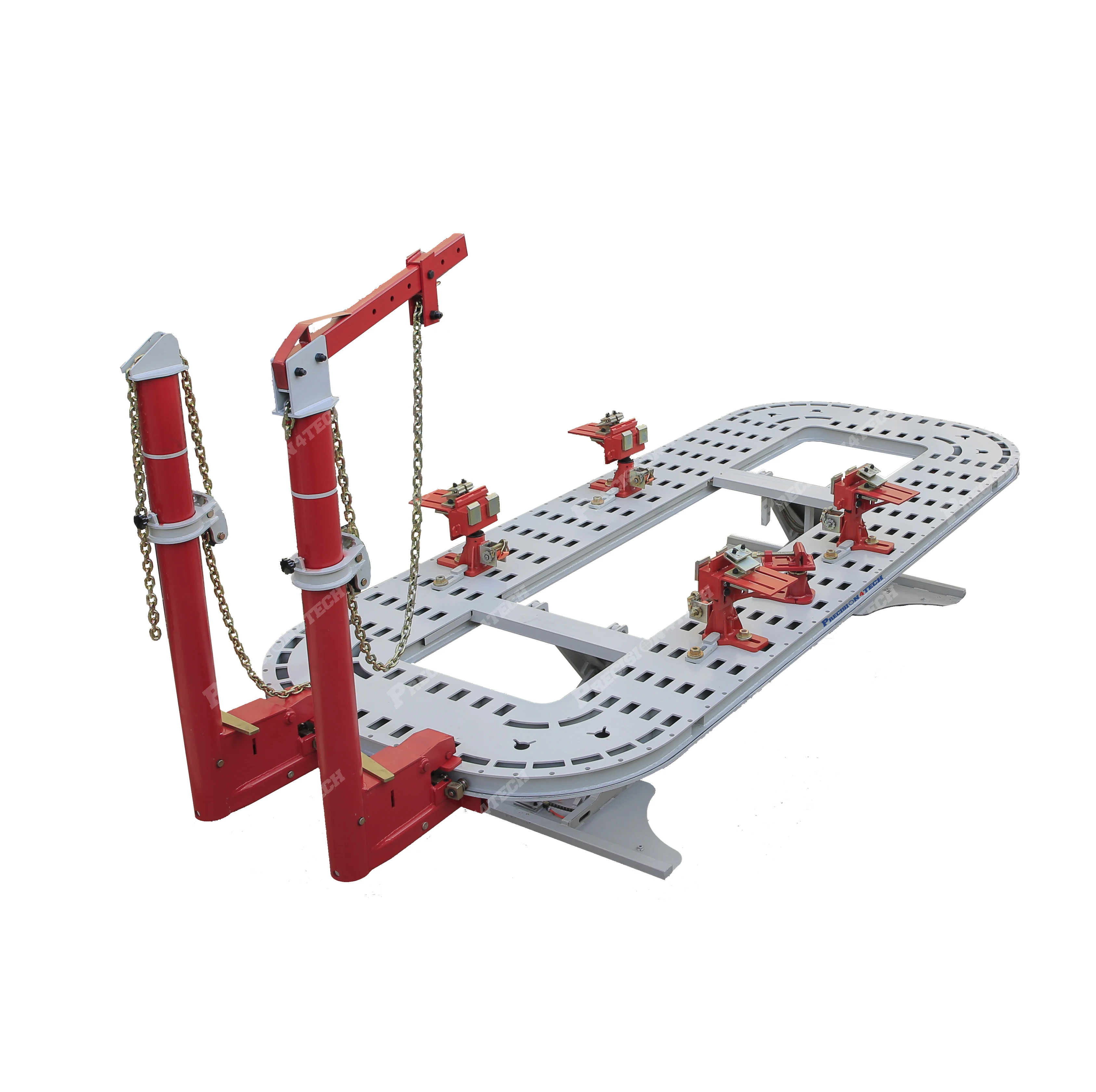

direct factory price for portable car pulling machine /car bench / car repair tools
