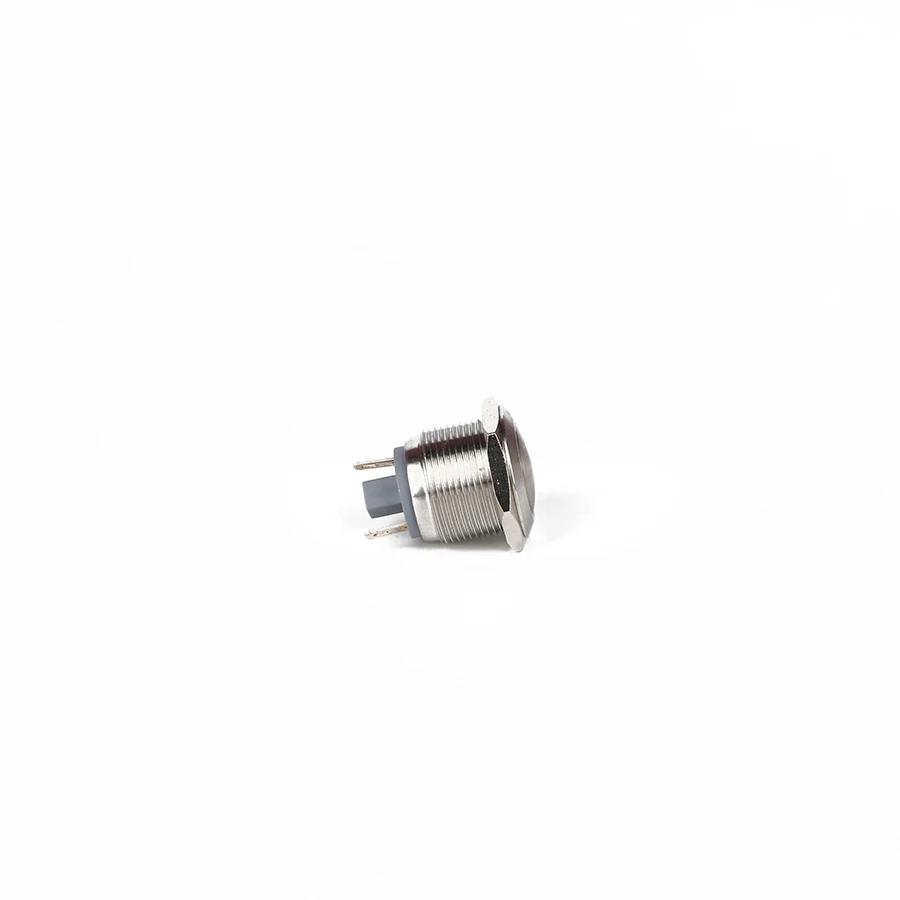

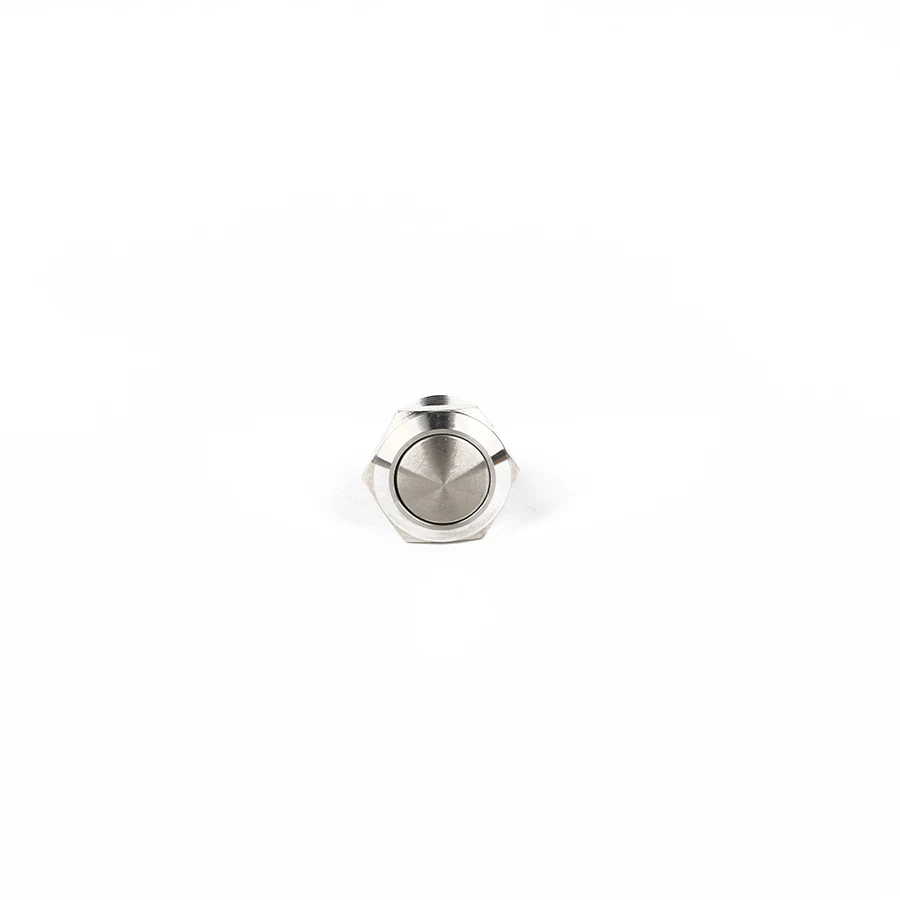

19MM Dome Button 2Pin Screw Terminal Momentary Metal Waterproof Bell Push Button Switch
- Category: >>>
- Supplier: Yueqing Haifei Electronics Co. Ltd.
Share on (1600686615249):
Product Overview
Description
Product Description
8mm 10mm 12mm 16mm 19mm 22mm 25mm 28mm 30mm push button switch latching momentary illuminated waterproof buttons switches
| The Product Parameters | |||
| Project | Parameter | Project | Parameter |
| Contact type | Slow moving single contact | Operation Schedule | Connected:1.8mm,Total:3.5mm |
| Contact Resistance | ≤50mΩ | Actuating Force | about 8N |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤4mm or customised the others |
| Dielectric Strength | 1500VAC min | Nut torque | 5~14N.m |
| Ambient Temperature | -25℃~+55℃ | Outshell/Press Key | Stainless Steel/copper plated/aluminum oxide |
| Electrical Life | 50000 cycles | Base material | PA66 |
| Mechanical Life | Latching-200,000 cycles Momentary-1000,000 cycles | Transmissive cover | PC |
| Protection Level | IK10 | Pins Contact | Copper palted sliver |
| Waterproof Level | IP67 | Spring | Steel wire |
| Led Lamp Parameters | |
| Project | Parameter |
| Led Symbol | Ring/Power Symbol/Dot/Ring+Power Symbol/Customized  |
| Led Color | Red,Green,Blue,Yellow,Orange,White,Purple,Pink |
| Rated Voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V |
| Rated Current | ≤20mA |
| Reference Life | 40,000hours |
Product Show
Product details
Company Profile
OEM/ODM Service
FAQ
Q1: Are you a factory or trading company?
We are factory and produce all the products by our self. Welcome to our company for factory inspection.
Q2: What products does your factory mainly manufacture?
Our factory mainly produces rocker switch, push button switch, micro switch, tact switch, toggle switch, coding switch, self locking&unlocked switch, ac&dc socket and etc.
Q3: How to guarantee our products?
we solemnly promise If there are any quality problems we will be 100% responsible for rectification.
Q4: Is it possible to customize the product according to our requirements?
You can provide us with your specific product requirements, we will manufacture the products you need individually for you.
Q5: Can you provide samples ? Are the samples free?
Yes, we can provide samples. Normally, we provide free samples for test or quality checking.
Q6: About the sample what is the cost of transportation?
The freight depends on weight, packing size and your country or province region, etc.
You can confirm goods by photo and video to save this money, If you become our old customer.
Q7: How to order?
Please contact us.
