Хорошая цена, титановая подложка MMO RuO2 IrO2 Ta2O5 с покрытием, нерастворимый анод в сборе, электролиз, обработка воды

Share on:

Price:125,00 $ - 180,00 $
Price in USD:Details


Product Overview


Product Description

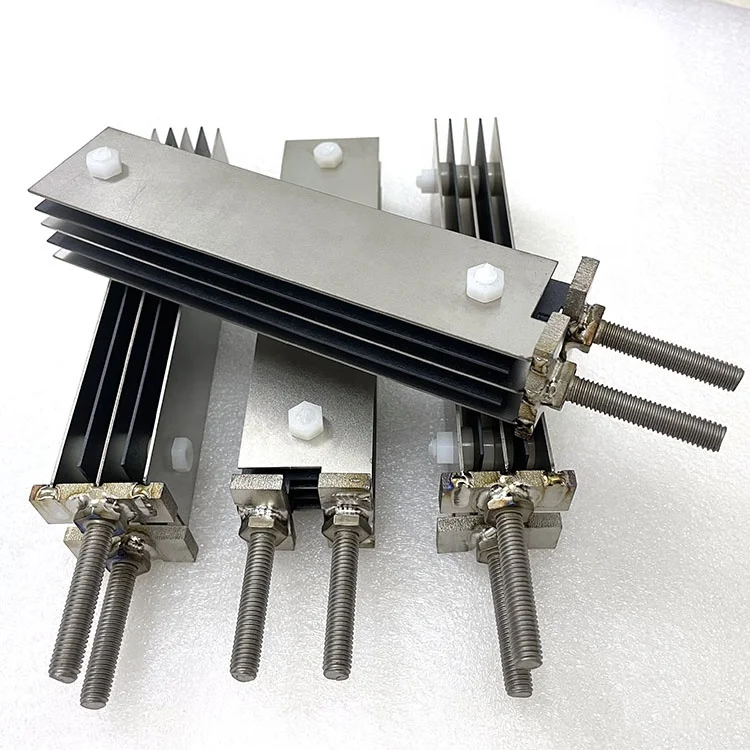

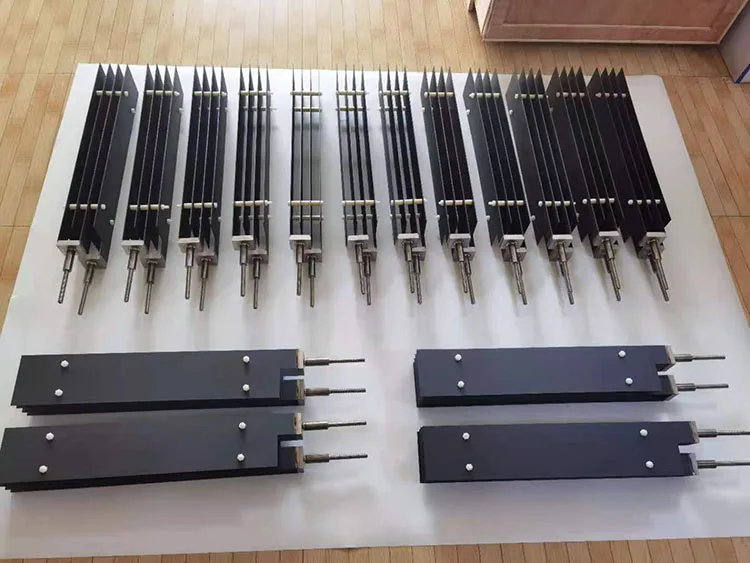

MMO coated titanium anode and cathode for 5% sodium hypochlorite generator
Place of Origin
Shaanxi China
Model Number
JM-Titanium Anode
Electroplating, water electrolysis
sanding blasting, acid washing, brush coating
Powder Or Not
Not Powder
Ti Content (%)
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Primary colors
about 4.51g/cm3
Gr1 titanium as substrate
ASTM and Other related standards
Mesh, sheet/plate, rod/wire, pipe/tube
Pickling, machining, abrasive blasting
Custom-made sizes available

Production Method:
Production Method:Titanium anode is a kind of electro-catalysis electrode in electro-chemistry, which is composed by substrate that is pure titanium
and coated that is precious metal oxide.
Three Procedures:
1. Substrate treatment: it needs to be treated by roughing, cleaning and removing oil, which can increase the compactness of
2. Brushing
After substrate treatment, it will be proceeded brush coated. The main coated content is platinum group metal, which is a kind of
mixed solution.
Then, heat treatment will be going on after drying.
The whole procedure need to be repeated many times. This method is better to form thin oxide catalytic that is lamellar adhere to
substrate surface.

1, chloride type includes: ruthenium titanium, ruthenium iridium titanium, ruthenium iridium tin titanium and other ruthenium
formula coating
Oxygen evolution types include iridium, titanium, high iridium (multiple) and other iridium formulations
Coating thickness: in the range of about 8-12μm
2, special coating: platinum-plated titanium anode, platinum-iridium titanium anode, titanium based lead titanium dioxide anode,
tin oxide titanium anode
General coating: ruthenium iridium titanium anode, iridium tantalum titanium anode, ruthenium iridium tin titanium anode,
ruthenium titanium anode
3, the number of coating: brush coating process.
4, test piece size: 1mm*100mm*100mm mesh or plate, sample specifications can be customized according to your drawings of plate,
mesh, tubular, mesh, components, basket, etc
5, if you have not used titanium anode before, do not know how the effect, or do not know what kind of coating effect is good
Our company can provide a sample of this specification. After a small test, you can choose whether to continue using it or not and
which coating to use according to the effect. If any problem is found during the experiment, we will communicate with you to solve

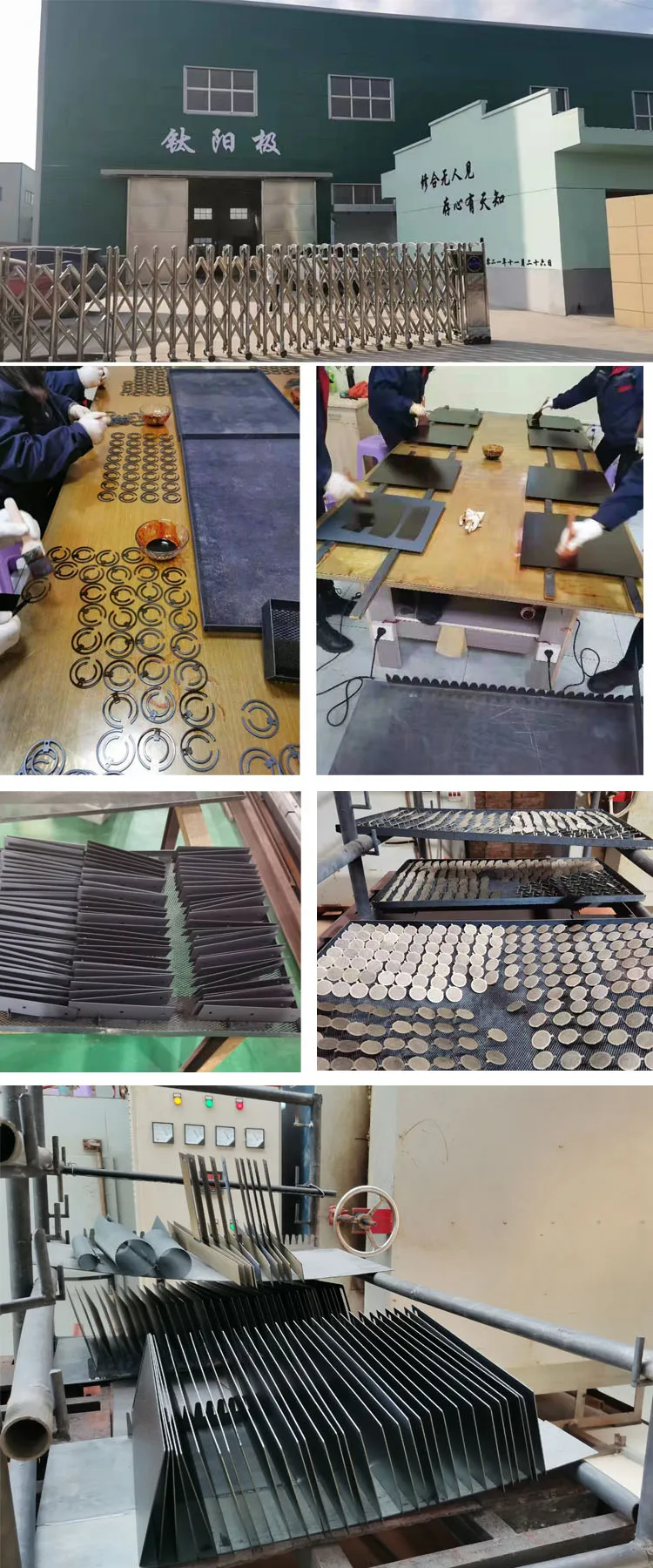

Company Profile

Baoji Dynamic company is a high technology firm which specializes in Titanium Anode, Titanium Material & Titanium Product manufacturing and trade. With a factory space about 16,000 square meters, our company has about many experienced workers, advanced equipment and test facilities. Attaching great importance to quality, our company has applied international standard in all aspects including the purchase of material, R&D,production, inspection, sales and post-sales.

Testing Equipment
The company is equipped with testing equipment:Tensile testing machine, Optical Measuring Machines, Scanning electron microscope,
Impulsing power source, High-low temperature test chamber, Accelerated life test. etc.

Professional service

According to the customer's application, use the ambient voltage and current. The use of equipment and service life will provide
customers with the most professional guidance and provide products that meet the customer's requirements.

Packing & Delivery

Plywood case and then tied by steel band. The packaging will keep the goods more secure when in long distance transportation.


1. Q: Do you have XX model titanium anode?
A: Our titanium anode are all customized, so there are no models, according to your exact drawing, nearly any shape and size we could produce.

2. Q: Can you produce the anode for our XX equipment/generator?
A: Yes, we can.But different clients have different equipment/generator, and need different anode size,so your anode drawing is required.

3. Q: Which coating anode is suitable for me?
A: Your industry please. According to your application environment, we will give you professional advice.

4. Q: How about the anode working current and voltage?
A: Titanium anode could be used for many industries, different industries have different suitable current and voltage take the following into consideration:
The suitable environment for our titanium anode:
Current density: bellow 2000A/M2
Temperature: 40-60℃
There mustn't be any fluorine and cyanide ions in the electrolyte

5. Q: How about the titanium anode lifetime?
A: The titanium anode lifetime for different industry aren't the same, half year to 50 years, according to your exact industry and environment, we will give you the guaranteed lifetime.
