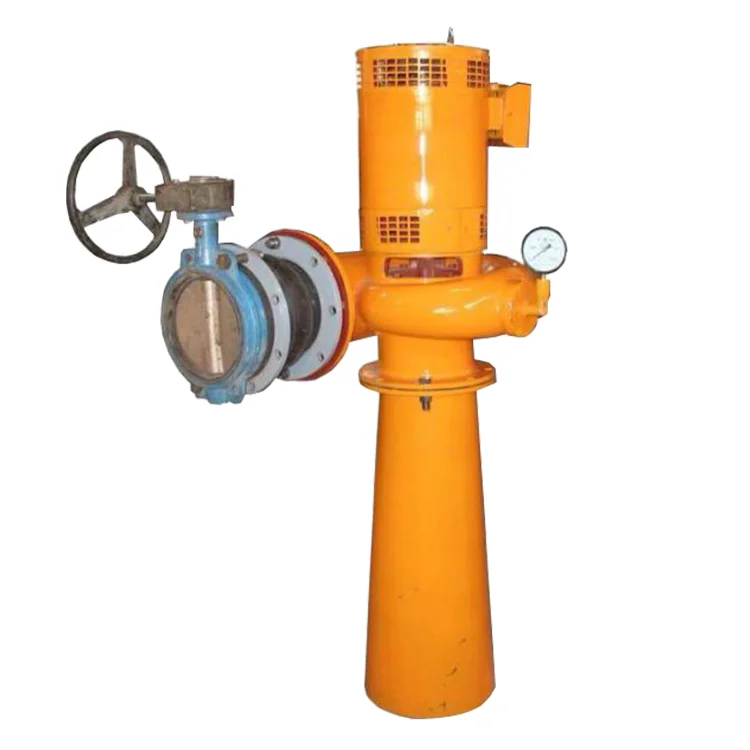

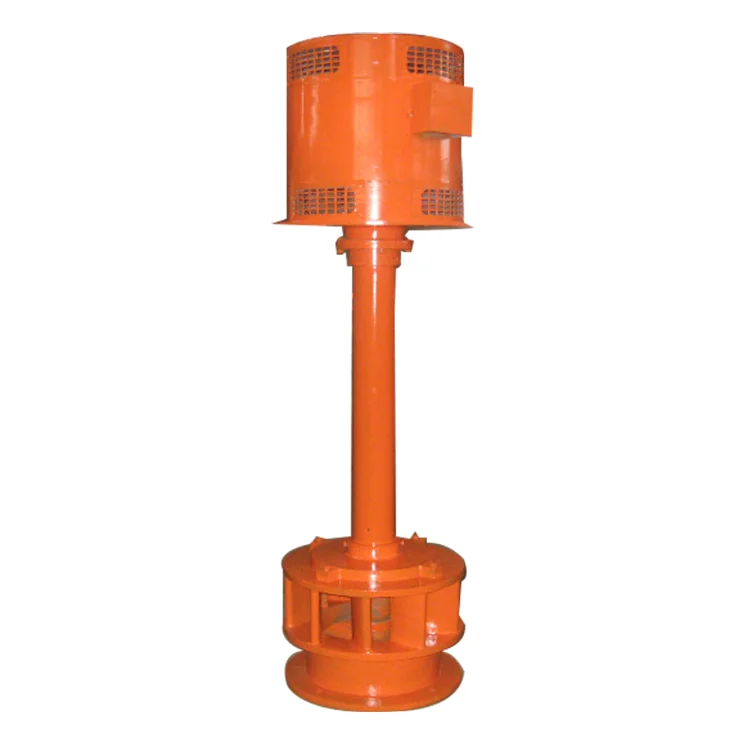

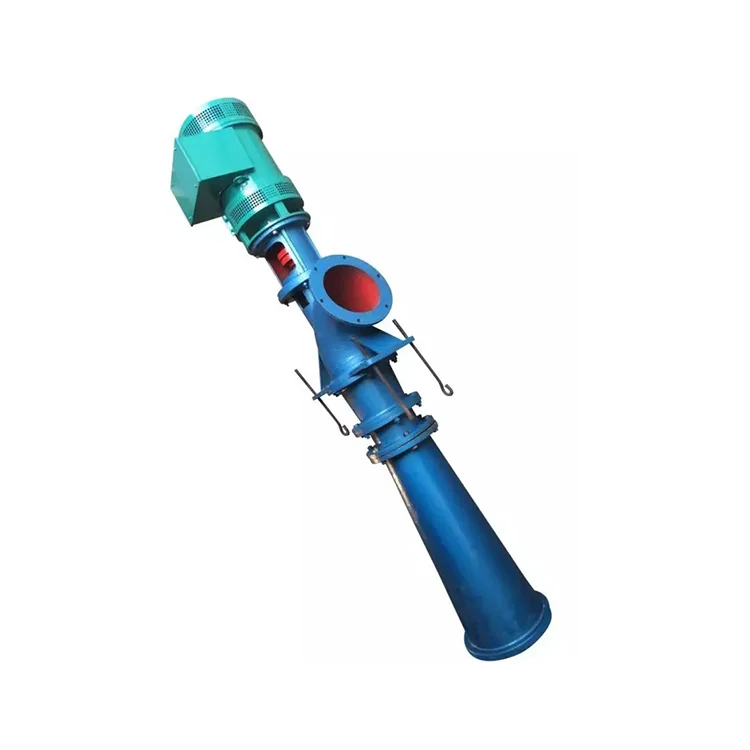

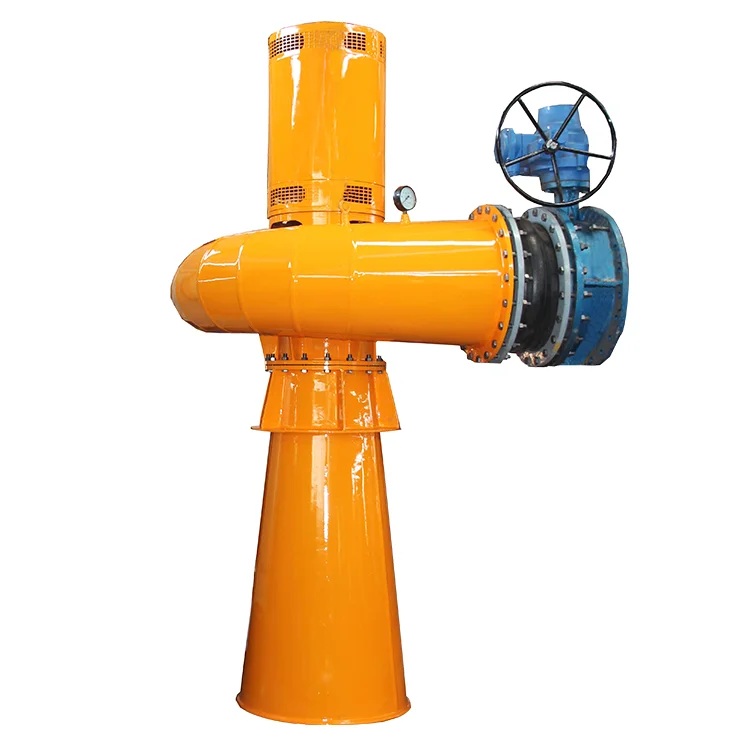

Small Hydroelectric Generator Kaplan turbine

Share on (1600686713637):


Price:

Quantity:


Product Overview

Description



Product Description


Axial flow turbine is designed for low head hydraulic power resource. Micro axial flow turbine of FORWARD is propeller turbine
(fixed blade axial flow turbine ).

Features of Axial flow turbine:
1.Turbine and generator of this unit are separated, which is easier to maintain.
2.Unlike conventional axial turbine operated in opening system.This turbine operated in closed system, which is easier to install
and has higher efficiency.
3.Design of turbine with 3 bearings and generator 2 bearings makes the unit rather reliable.

Generator adopted by FORWARD is brushless excitation type, which installed AVR device for ensuring a steady output voltage.
Voltage and frequency all are customizable.






Specification


item
value
Place of Origin
China
Jiangsu
Brand Name
Forward Hydropower
Model Number
ZDP
Warranty
3months-1year
Certification
CE
Power
3kW-50kW
Voltage
110V/220V/380V/400V
Customized
Yes
Flow Rate
0.06m3/s
design head
1.5m-5m
Type
Hydropower
Application
On-grid/off-grid


Rated capacity
Rated water head
Flow rate
runner size
Weight
5kW
3m
0.11~0.21m3/s
≥250mm
150kg
10kW
4m
0.15~0.4m3/s
≥265mm
170kg
30kW
3m
0.15~1.5m3/s
≥580mm
800kg


Packing & Delivery


Plywood wooden case packaging fasten with steel strap which warranty the turbine is 100% safe during transportation.




Company Profile


Zhenjiang Nengyuan Hydraulic Technology Co. Ltd. is located in Zhenjiang Jiangsu province. The company is a technology-intensive enterprise, focusing on the research, design, manufacture and industry service of hydraulic machines. Currently, our company is mainly engaged in the development, manufacture and sales of hydroelectric generating unit, hydraulic power recovery turbine, pump as turbine, water turbine pump, small hydro power device, mini hydro turbine. The types of manufactured hydraulic turbine units are radial flow, mixed flow, axial flow turgo, axial, pressure type axial turbine etc., covering a wide range of flow and head with its shaft power ranging from 0.5 to 500 kW. Besides, various specifications of customized hydroelectric generating units can be manufactured, according to customer demand.
The company is a technology-intensive high-tech enterprise, which has more than 49 employees. More than fifteen of them are above college degree, including 1 professor level senior engineer (enjoy special government allowance), 1 researcher, 2 associate professors, 2 PhDs, 5 masters and 4 senior engineers. They are all hydraulic machinery experts on hydraulic design, structure design, metal material, casting and generator design et al. Therefore, we have a very high level of scientific and technological innovation ability. Company sets scientific research, design, machining, assemble, testing and production into an organic whole and has all the required equipments for scientific research, design, machining and test. The maximum test power is 500kW.
The products produced by our company are sold all over the world, including Japan, South Korea, Iran, Congo et al. For many years, the "Forward" people adhering to the tenet of "Saving energy, Contributing to society" and the faith of "Innovation leads to the future, Technology serves the humankind" has won the reputation of "Choose Forward, without regret", through high-quality products. The "Forward" people sincerely welcome new and old customers come and visit our company and buy our products.


FAQ


1. who are we?
We are based in Jiangsu, China, start from 2013,sell to . There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
hydro turbine,hydroelectric generator,hydropower generator,hydroelectric device,hydro turbine

4. why should you buy from us not from other suppliers?
Engaged in the research, design, manufacture and sales of small hydropower generator .Currently, we have developed serial radial flow, mixed flow, turgo, axial, pressure type axial turbine with power 0.3kw -500kw suit for different head and flow.

5. what services can we provide?
Accepted Delivery Terms: null;
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
