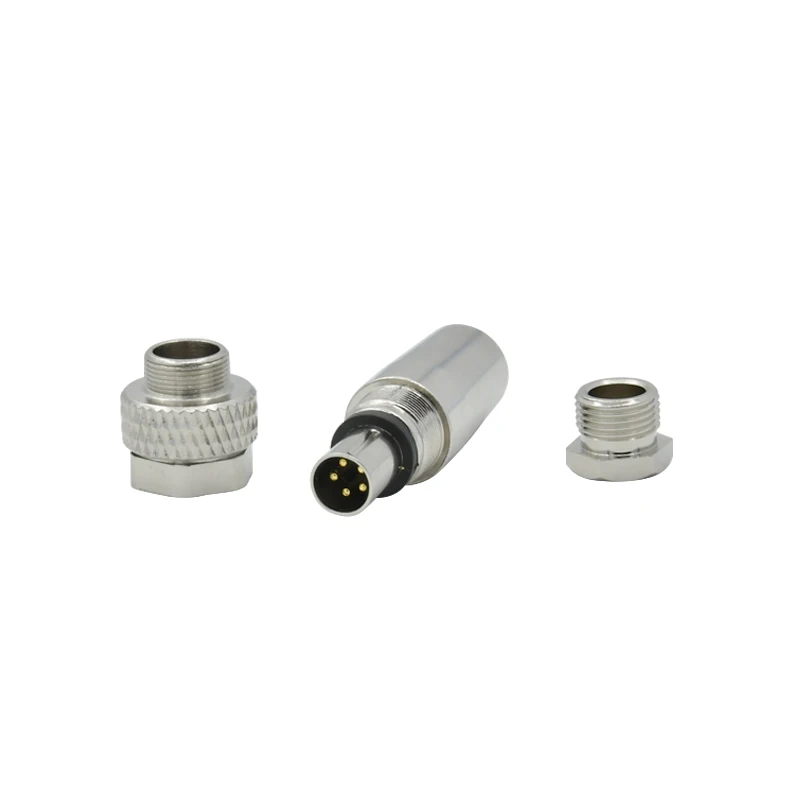

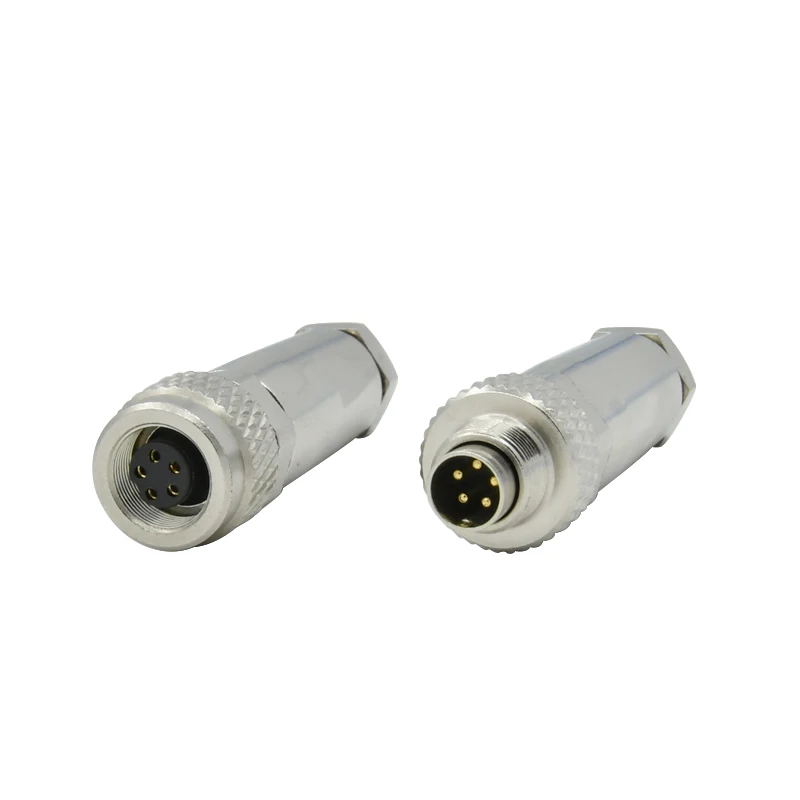

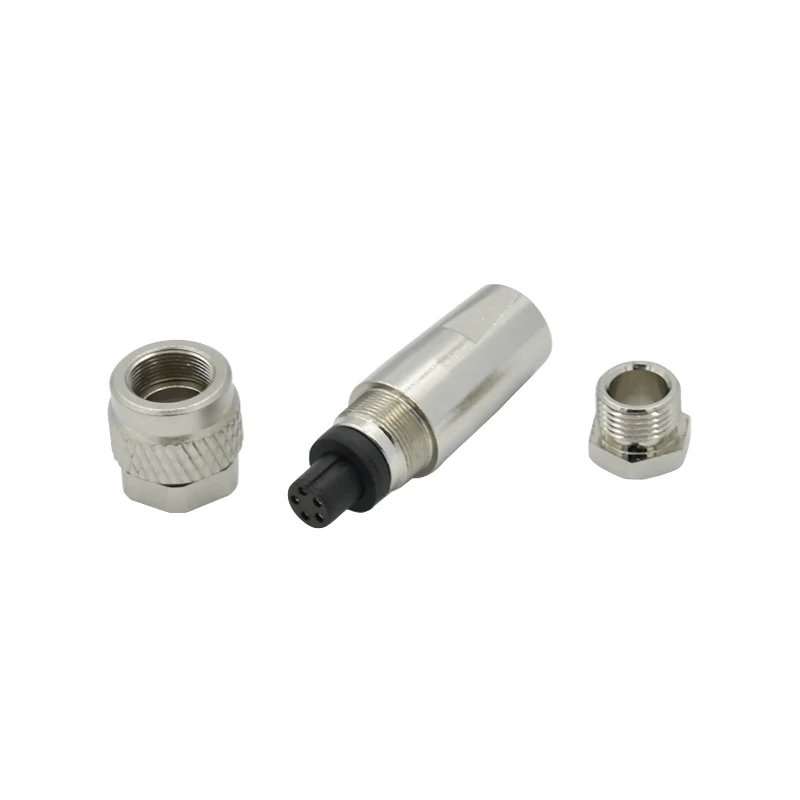

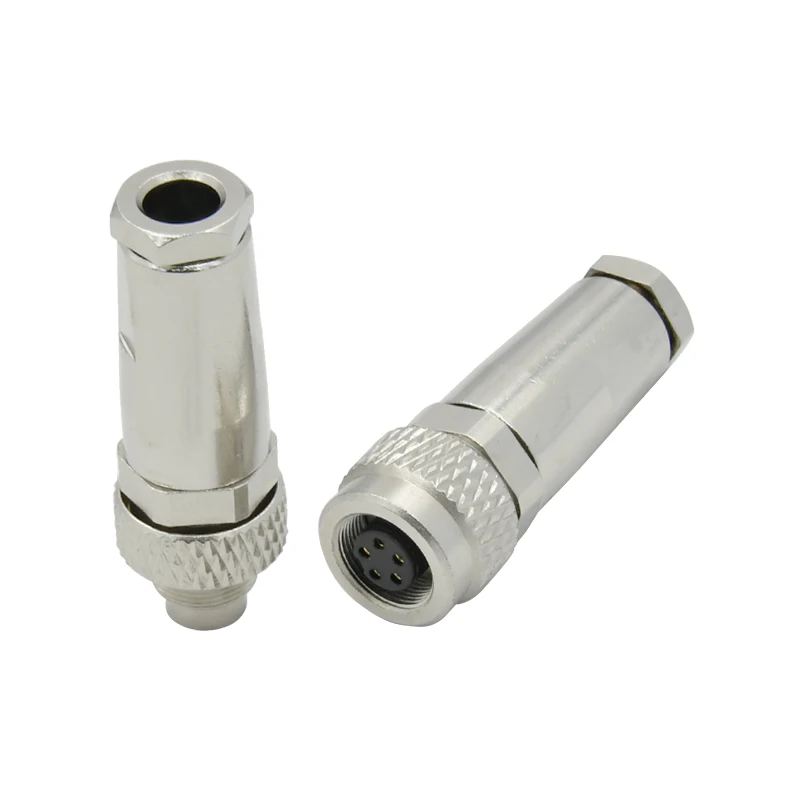

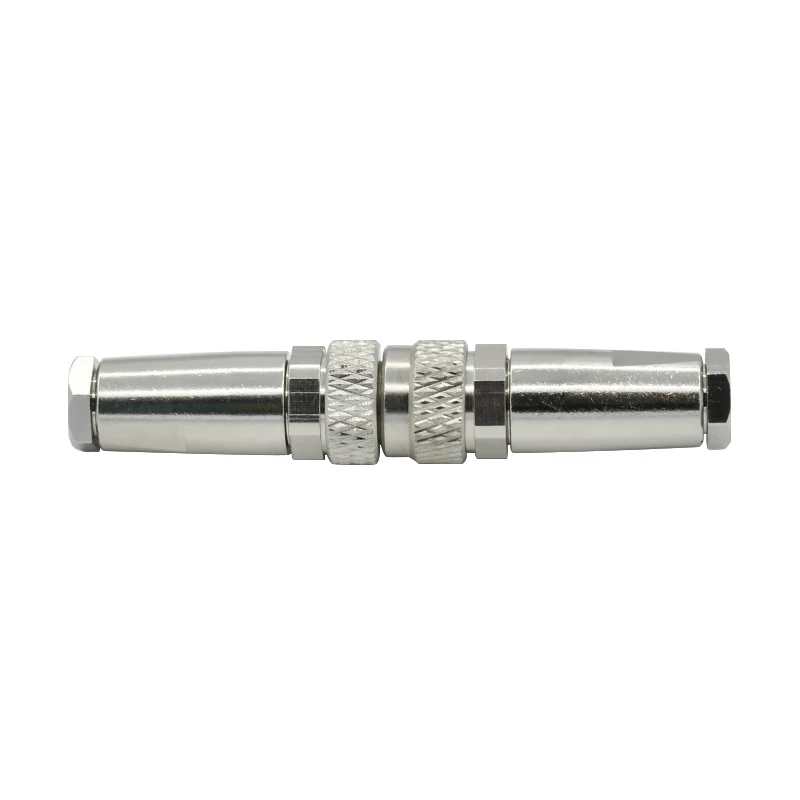

M9 metal plug male female 2 3 4 5 6 7 8 core electrical jack waterproof m9 assembly connector
- Category: >>>
- Supplier: Shenzhen Rigoal Connector Co. Ltd.
Share on (1600686755387):
Product Overview
Description
M9 Series
Molded&Panel mount&Assembly connector type
2 to 8 pin
Shielded available
Custom length
Molded&Panel mount&Assembly connector type
2 to 8 pin
Shielded available
Custom length
PVC/PUR or custom cable material
Rear/Front/Flange panel mount
Screw/Solder/PCB/With wire contact way
IP67/IP68
IEC Standard
Rear/Front/Flange panel mount
Screw/Solder/PCB/With wire contact way
IP67/IP68
IEC Standard
Specification
Coding | A coding | Mechanical operation | >500 mating cycles |
Pin No. | 2 3 4 5 6 7 8 pin | Contact plating | Au(gold plating) |
Rated current | 4A for 2 3 pin;3A for 4 5 pin;1A for 6 7 8 pin | Contact resistance | ≤10mΩ |
Rated voltage | 125V | Material of connector | CuZn |
Operating Temperature | -25°C-85°C | Cable size | 24AWG;26AWG |
Degree of protection | IP67/IP68 | Connector locking system | Screw/Solder/PCB/Wire |

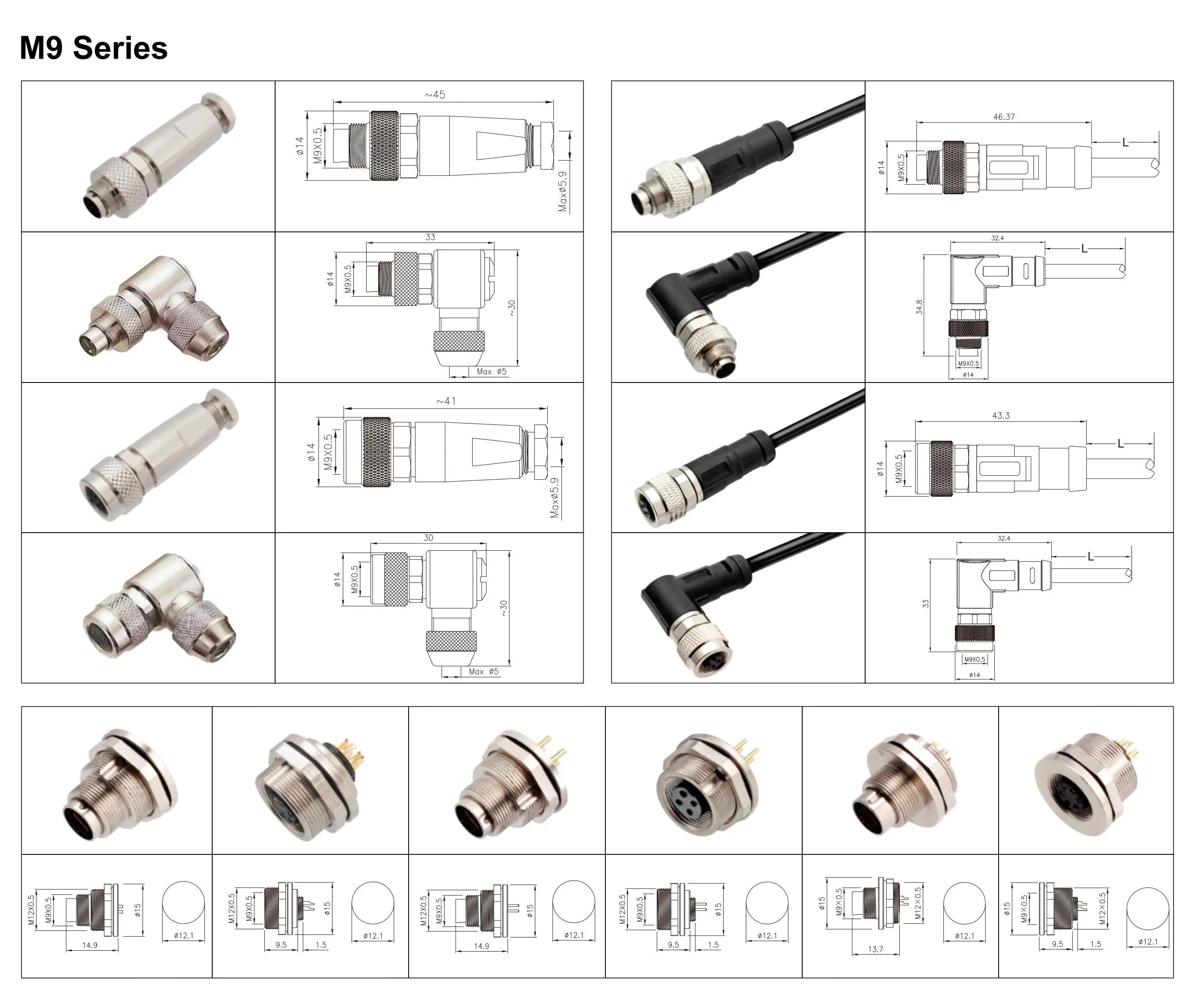

Products Display

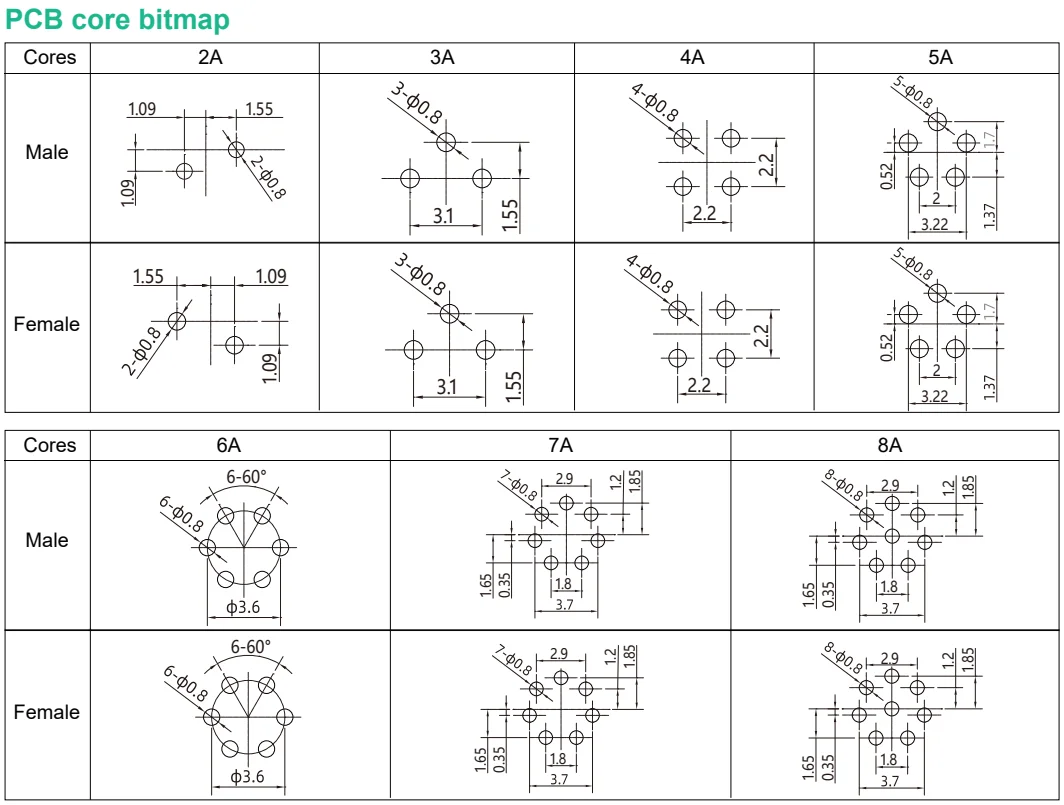

PCB core bitmap

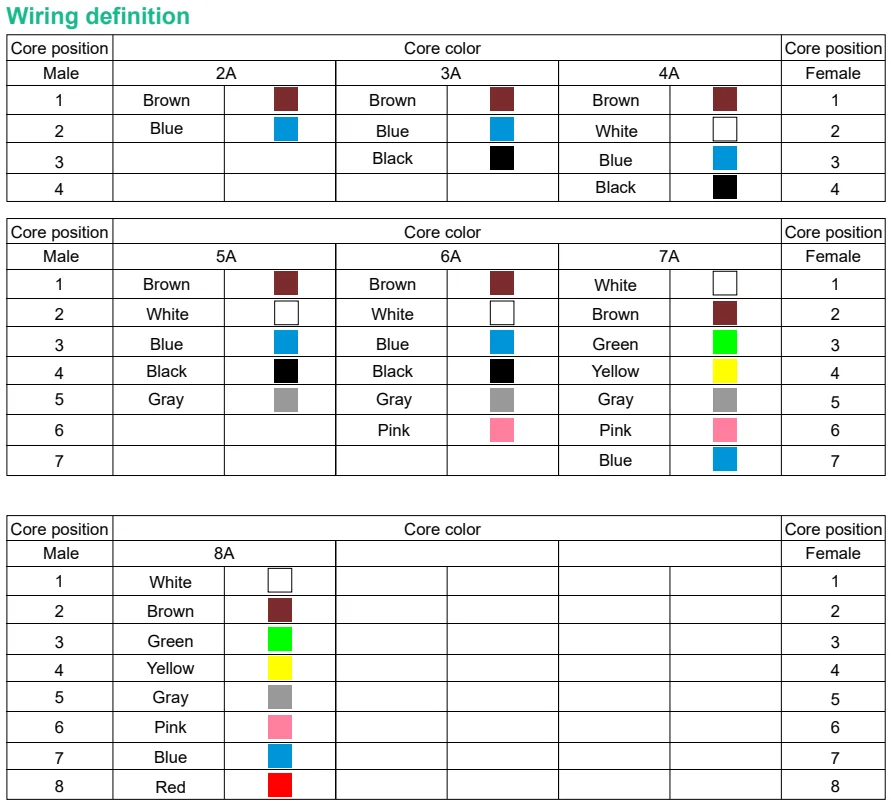

Wiring definition
Packing&Shipping
1.Put them in one transparent bag, then put in a carton
2.OEM package is available
3.According to customer requirement
2.OEM package is available
3.According to customer requirement
We will choose different transportation modes according to customers' needs,which more convenient ,which we will choose! Usually is DHL ,Fedex ,TNT,UPS ,Air shipping ,sea shipping ,training shipping etc.
