Product Overview
Description
Products Description
Scope of application
This is an economical and environmental friendly printer for printing thermal paper, cup paper, use water basic ink, you can get different printing size and quality by changing printing cylinders and anilox rollers, so the printing quality can reach your demand.
Technical Parameter
Machine model | HF-RY850-6C | |
Machine color quantities | 6 colors | |
Printing speed | 60-80m/min | |
Maximum web width | 860mm | |
Maximum printing width | 850mm | |
maximum unwinding diameter | 1300mm | |
printing size | 175-380mm | |
Total power | about 50kw | |
Registering precision | ±0.15mm | |
Total air pressure | 0.6MP | |
Voltage | 380V±10% | |
Machine weight | 6000KG | |
Machine dimension | 6800*2100*2050mm | |
Control Panel
1).Power Supply, Stop Button, Start Button and Emergency Stop.
2).Temperature Controller for each Heating Oven.
3).Anilox Roller Rotation Button for each Printing Station.
Length Counter and Speed Controller4)bottom roller tension control
2).Temperature Controller for each Heating Oven.
3).Anilox Roller Rotation Button for each Printing Station.
Length Counter and Speed Controller4)bottom roller tension control
Automatic constant tension control
tension is control pulling material tight or loose.machine come with 2 Set Auto Constant Tension Controller For Unwind and Rewind.
tension is control pulling material tight or loose.machine come with 2 Set Auto Constant Tension Controller For Unwind and Rewind.

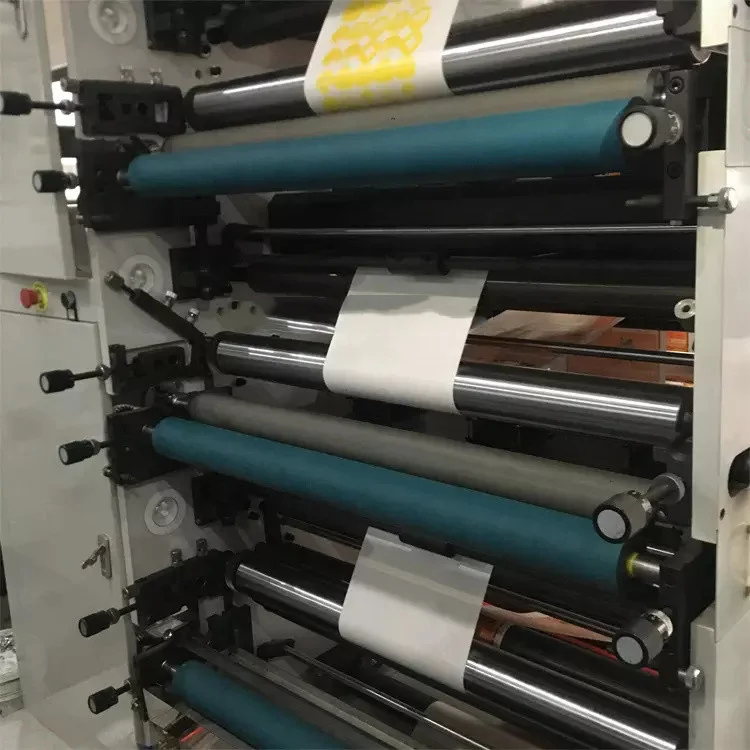

Printing Unit
Printing Station Comes with Ink Rubber Roller, Ceramic Anilox Cylinder, Printing Plate Cylinder, Scrapper Blade and Ink Containe,platen roller, with Helical Gear
Printing Station Comes with Ink Rubber Roller, Ceramic Anilox Cylinder, Printing Plate Cylinder, Scrapper Blade and Ink Containe,platen roller, with Helical Gear
Web Guide
can control material go straightly,then output final product with good edge.
can control material go straightly,then output final product with good edge.
Hydraulic Lifting And Uploading System
Whatever raw material weight is heavy or light, it doesnt need labor to move to unwinding location, it can automatically lift to unwinding location.
Whatever raw material weight is heavy or light, it doesnt need labor to move to unwinding location, it can automatically lift to unwinding location.
IR dryer
1).Each Printing Unit comes with 1 Unit Infrared Heating Drying Oven.
2).Infrared Heating Drying Oven is placed on material and after each printing station.
1).Each Printing Unit comes with 1 Unit Infrared Heating Drying Oven.
2).Infrared Heating Drying Oven is placed on material and after each printing station.
