GYTC8S GYXTC8S armored 12 24 48 cores singlemode outdoor Figure 8 self supporting fiber optic cable
PRODUCT TYPES CHOOSING
GYXTC8S

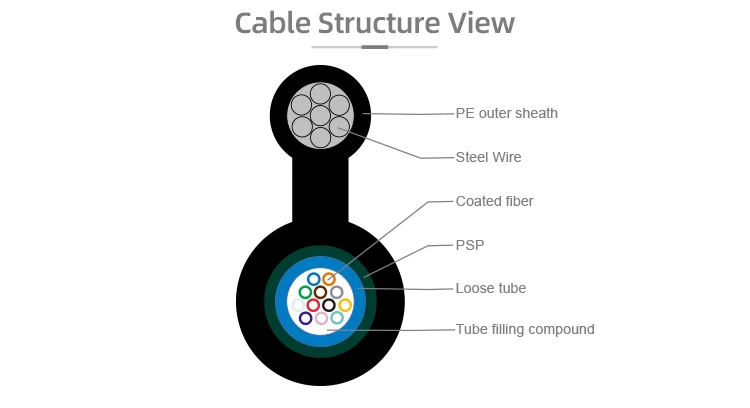

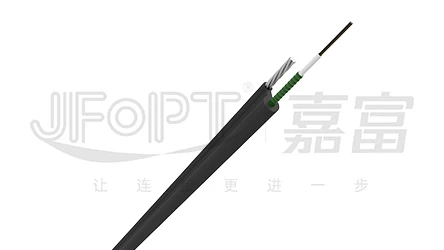

The structure of GYXTC8S is to sheath 250μm fiber into a high modulus loose tube, whihc is filled with water-resistante filling compound. A layer of plastic coated steel tape (PSP) is longitudinally covered the outer loose tube, this part and the steel strand are integrated into a figure 8 polyethylene (PE) sheath.
ORDERING INFORMATION
Item | Parameter | ||
Cable Model | GYXTC8S (self-supporting) | ||
Fiber Type | SM: G652D/G657A1/G657A2/G657B3 MM: OM1/OM2/OM3/OM4/OM5 | ||
Fiber Count | 2~24 | ||
Outer Sheath | Material | PE/customized | |
Diameter | 2~12C： 7.5*14.5mm 12~24C： 8.0*15mm | ||
Color | Black/customized | ||
PRODUCT DETAILS
Self-supporting Design
Steel messenger wire for self-surporting overhead laying, reducing construction costs.
Excellent Environmental Performance
PE sheath has good UV resistance and temperature performance.
High Moisture Resistance
Plastic coated steel tape (PSP) strengthens the moisture resistance of the cable.
Cable Parameter | ||||||
Items | Parameters | |||||
Fiber Count | 2 ~ 12 | 14 ~ 24 | ||||
Fiber | Diameter | 0.25±0.015mm | ||||
Color | Blue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua | |||||
Loose Tube | Diameter | 1.9±0.1mm | 2.6±0.4mm | |||
Material | PBT | |||||
Color | Natural | |||||
Messenger Wire | φ1.0mm×7 Stranded steel wire | |||||
Connection Size | 3.0×2.5mm | |||||
Outer Sheath | Diameter | 7.5×14.5mm | 8.0×15mm | |||
Material | PE | |||||
Color | Black | |||||
Mechanical Performance | ||||
Items | Parameters | |||
Fiber Count | 2 ~ 12 | 14 ~ 24 | ||
Tensile Strength (Long Term) / N | 1000 | |||
Tensile Strength (Short Term)/ N | 3000 | |||
Crush Resistance (Long Term) / N/10cm | 300 | |||
Crush Resistance (Long Term) / N/10cm | 1000 | |||
Min. Bend Radius (Dynamic) / mm | 20D | |||
Min. Bend Radius (Static)/ mm | 10D | |||
Operating Temperature/℃ | -40 ~ +70 | |||
Storage Temperature/℃ | -40 ~ +70 | |||
Fiber Parameter（Single Mode） | ||||||||||
Items | Unit | G.652D | G.657A1 | G.657A2 | ||||||
Mode Field Diameter | 1310nm | μm | 9.1±0.4 | 8.8±0.4 | 8.8±0.4 | |||||
1550nm | μm | 10.4±0.5 | 9.8±0.5 | 9.8±0.5 | ||||||
Cladding Diameter | μm | 125±1.0 | 125±0.7 | 125±0.7 | ||||||
Cladding Non-Circularity | % | ≤1 | ≤0.7 | ≤0.7 | ||||||
Core-Cladding Concentricity Error | μm | ≤0.6 | ≤0.5 | ≤0.5 | ||||||
Coating Diameter | μm | 245±7 | 245±5 | 245±5 | ||||||
Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ||||||
Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ||||||
Cable Cutoff Wavelength | nm | λcc≤1260 | λcc≤1260 | λcc≤1260 | ||||||
Attenuation Coefficient | 1310nm | dB/km | ≤0.34 | ≤0.35 | ≤0.35 | |||||
1550nm | dB/km | ≤0.20 | ≤0.21 | ≤0.21 | ||||||
Fiber Parameter（Multi Mode） | ||||||||||||||
Items | unit | 62.5/125 | 50/125 | OM3-150 | OM3-300 | OM4 | ||||||||
Core Diameter | μm | 62.5±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | ||||||||
Cladding Diameter | μm | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | ||||||||
Core Non-Circularity | % | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ||||||||
Cladding Non-Circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||||||||
Core-Cladding Concentricity Error | μm | ≤1.5 | ≤1.5 | ≤1.0 | ≤1.0 | ≤1.0 | ||||||||
Coating Diameter | μm | 245±7.0 | 245±7.0 | 245±7.0 | 245±7.0 | 245±7.0 | ||||||||
Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ||||||||
Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ||||||||
OFL Bandwidth | 850nm | MHz·km | ≥160 | ≥500 | ≥700 | ≥1500 | ≥3500 | |||||||
1300nm | MHz·km | ≥500 | ≥500 | ≥500 | ≥500 | ≥500 | ||||||||
850nm | dB/km | ≤3.0 | ≤2.5 | ≤2.3 | ≤2.3 | ≤2.3 | ||||||||
1300nm | dB/km | ≤0.8 | ≤0.7 | ≤0.6 | ≤0.6 | ≤0.6 | ||||||||
