Factory price thermal flow switch oil water flow switch
US $1.90-$2.40
Oil Flow Switch Relay/ PNP/ NPN Output Signal Flow Sensor 24V Electronic Water Flow Switch
- Category: Flow Switches >>>
- Supplier: Shanghai,Lanchang,Automation,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Oil Flow Switch Relay/ PNP/ NPN Output Signal Flow Sensor 24V Electronic Water Flow Switch
Product Description
Product brief introduction
Thermal flow switch is based on the principle of heat exchange design, probe the built-in heating module as well as the thermal module, heat dissipation of heating module and the flow velocity is closely related to the body. If there is no medium flow in the pipe ,thermal circuit receives a fixed value, when the fluid flows through the probe, thermal circuit receives the signal changes over medium velocity, thermal circuit will convert the temperature difference signals of heating module and thermal module into electrical signals, the processor will convert it into PNP/ NPN/ relay signal output, etc.
Feature
LED indicate the velocity
No movable parts, free maintenance
Various length of sensors can be chose
Easy installation
One type for various pipe diameter
Continuously adjustable switch value
Almost no pressure loss
Overall protection grade IP67

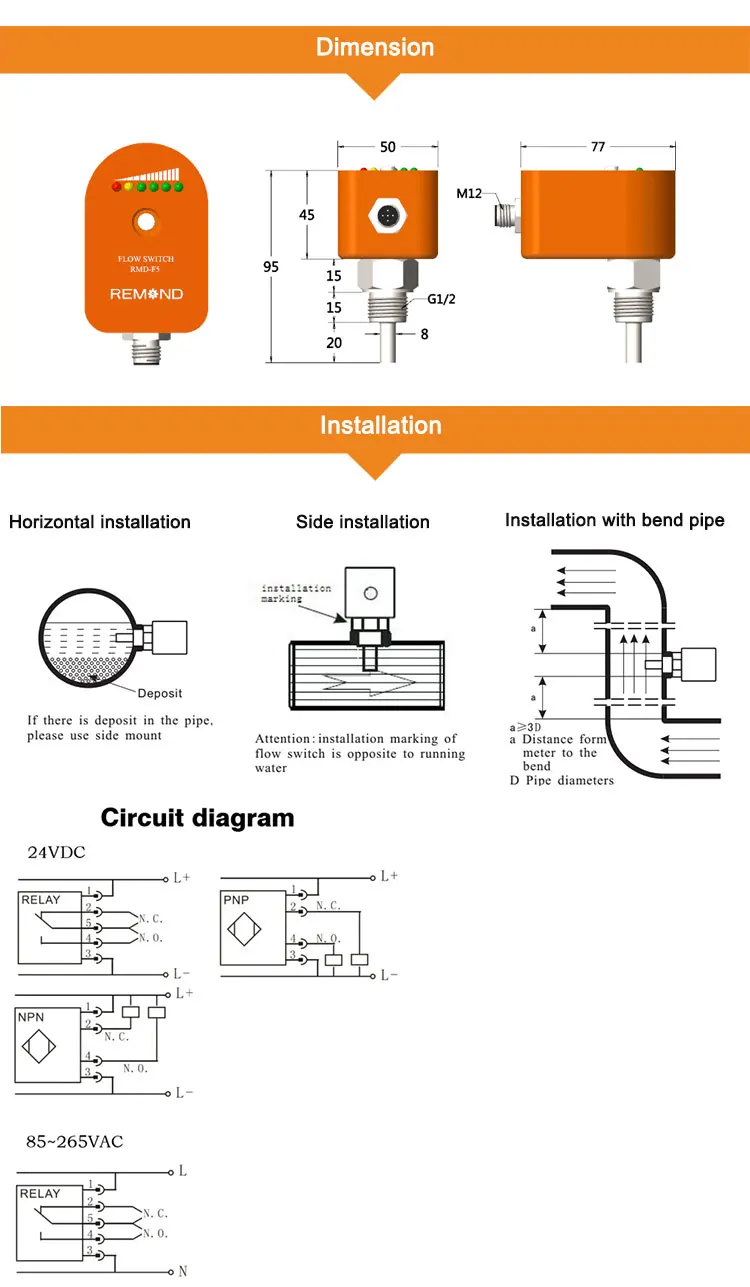

Detailed Images

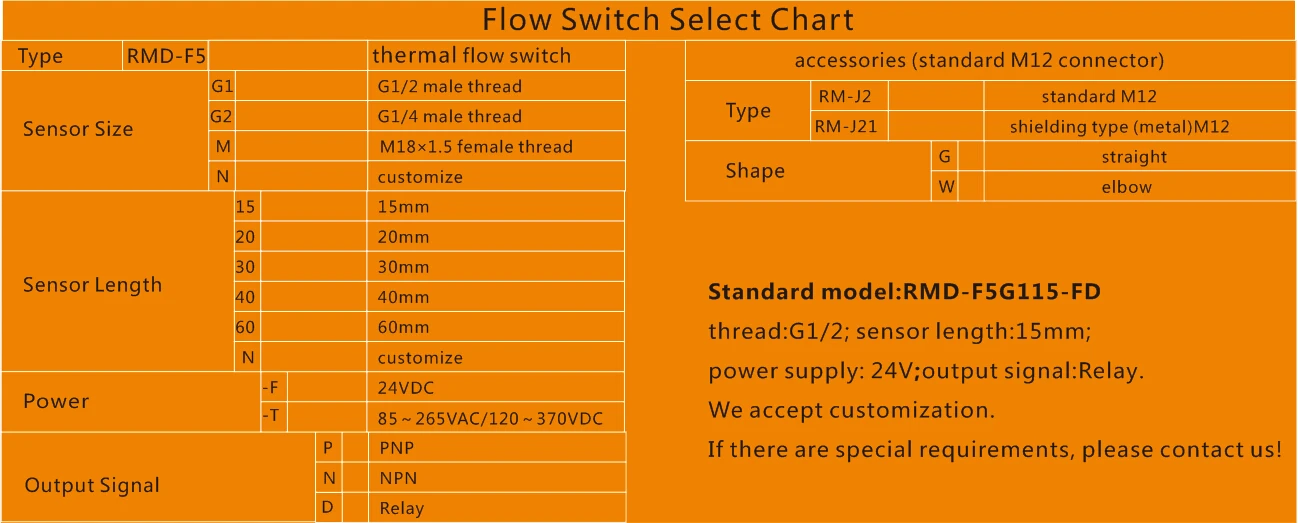

Flow Switch technical parameter
| Measuring range | Water: 3-300cm/s; Oil:3-300cm/s |
| Accuracy | ±1-±10cm/s |
| Warm up time | 3 minutes |
| Working pressure | 100bar |
| Medium temperature | 0-80℃ |
| Thread | G1/2, G1/4 male thread, M18*1.5 female thread |
| Power supply | DC24V, AC110V, AC220V |
| Output signal | Relay/ PNP/ NPN |
| Sensor length | 15mm, 20mm, 30mm, 40mm, 50mm, 60mm |
| Consumption | <60mA |
| Setting | Potentiometer |
| Response time | 2(2-10)s |
| Load | Current: 250mA; Relay: 30VDC/5A, 220VAC/5A |
| Output protection | Reverse/ Short-circuit/ Overload |
| Protection grade | IP67 |
| Material | Sensor:316 Body: ABS |
Related Products
Company Information
Certifications
Application
Gas liquid dual use ,it can be used for gas and hydraulic pressure system, circulating water, monitoring of the cutting fluid and lubricant, as well as Idling of pump protection,iron and steel ,metallurgy ,pharmaceutical ,chemical industry, etc
