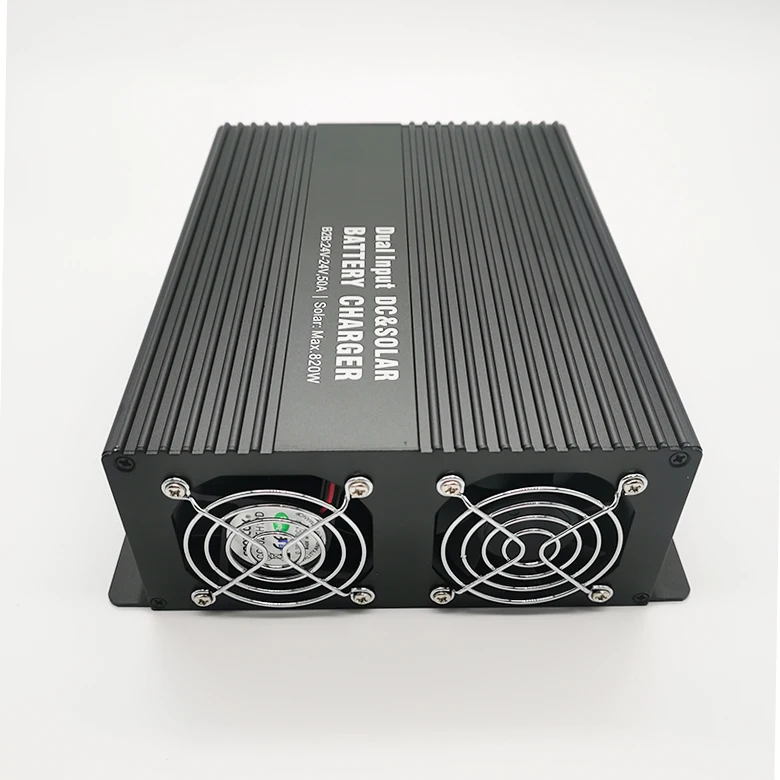

STARZ DC to DC Battery Charger 24V Dual Input 50A In-vehicle DC Battery Charger

This is an automatic 12V DC-DC charger that can charge the main battery through the alternator and starter battery, DC12V to DC12V battery charger designed specifically for motorhomes, campers, ships, etc.

Charge converter, "Battery to Battery (B2T/BTB)" operation, mobile operation from alternator and starter battery (Battery to Battery):

1. The powerful charge converter (booster) enables the on-board battery to be fully charged while driving.

2. It increases / decreases the voltage to the necessary level in order to provide the on-board battery with the optimum for you

3. To be able to charge the charging characteristic precisely.

4. It compensates for line losses and significant voltage fluctuations of the alternator, such as at Vehicles constantly occur, completely out.

5. The 24V consumers supplied are protected against overvoltage and voltage fluctuations.

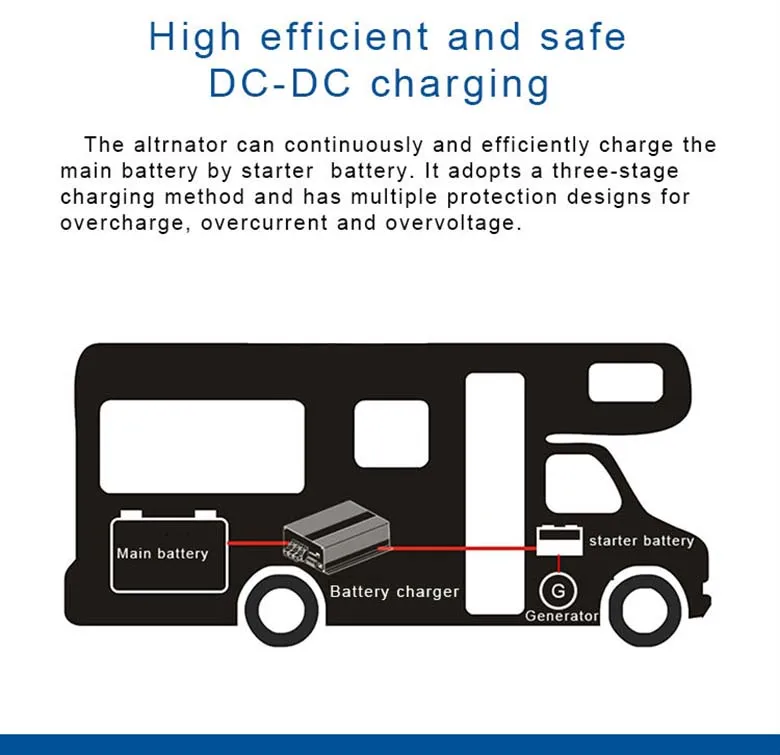

B2B Charge

It means to charge the main battery through alternator and starter battery. If it is not used in the vehicle, you can also use one battery to charge another battery
1. When the vehicle is running, the vehicle alternator can quickly charge the main battery through the charger at full power
2. The charger can charge the main battery according to the specified voltage and current by boosting or stepping down to ensure that the main battery is in accordance with the standard. charging curve charging.

Parameter:

• Main battery “BOARDⅠ"

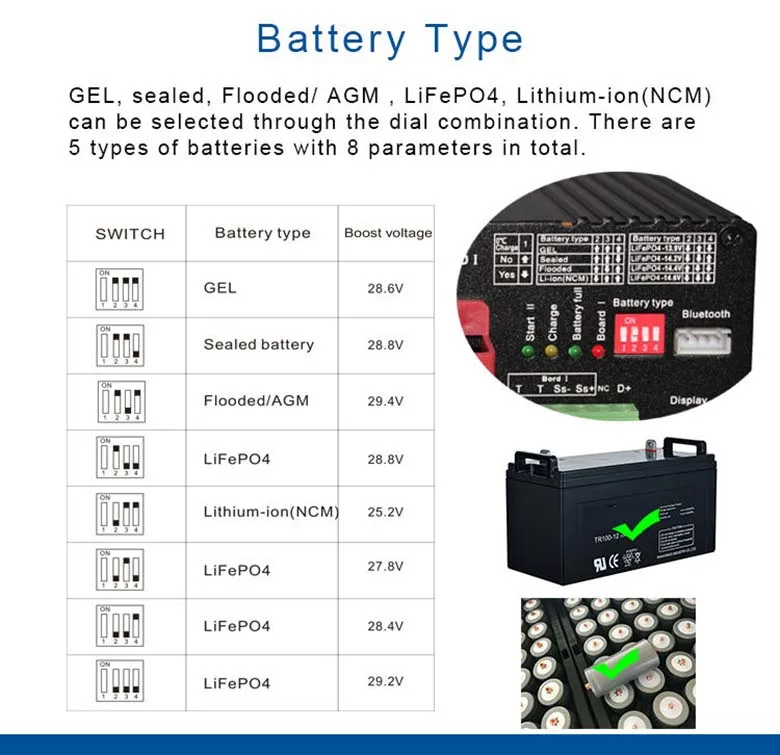

• Lead-Acid, Gel, AGM Batteries Nominal Voltage: 24V


• LiFePO4 Nominal Voltage:25.6V


• lithium-ion(NCM) Nominal Voltage:22.2V


• Capacity (Battery Size), recommended:100-520AH


• Battery voltage range:16V-32V


• Vehicle Starter Battery “Start II”:


• Vehicle Starter Battery Nominal Voltage:24V


• Capacity (Battery Size), recommended:80-100AH


• B2B Charging operation


• Start battery voltage range:21V-32V


• Max charge power :1300W


• Max charge current :50A


• "D+" signal voltage:16V-32V


• Temperature compensation: -3mv/℃/2V


• “TR” signal: NC


• Main battery temperature sensor ”T T”:YES


• Main battery voltage detection ”SS-,SS+": YES


• Stand-by current: 16±2Ma


• Operating temperature:-20-50℃

Optional accessories:

• Meter(MT-2)


• Bluetoth Dongle(BT10)


• Temperature sensor(TRS)

Remarks:
Products will be upgraded gradually, there might be some minor functional differences after upgrading, if customers don’t know the functions clearly, please contact us, we will not accept the refund due to the products update
