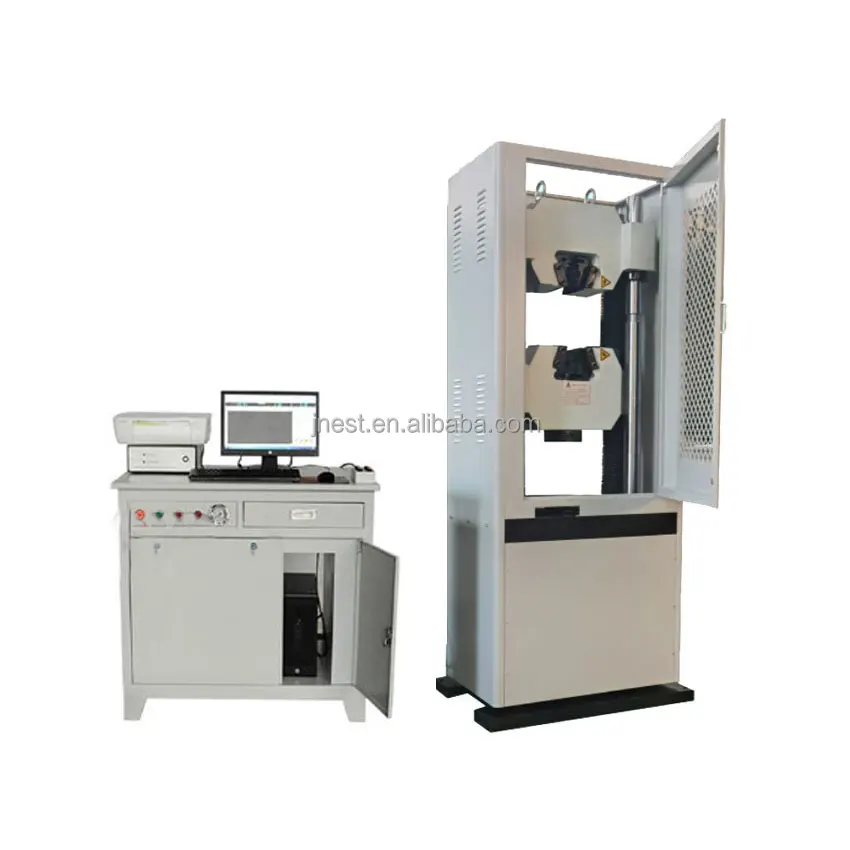

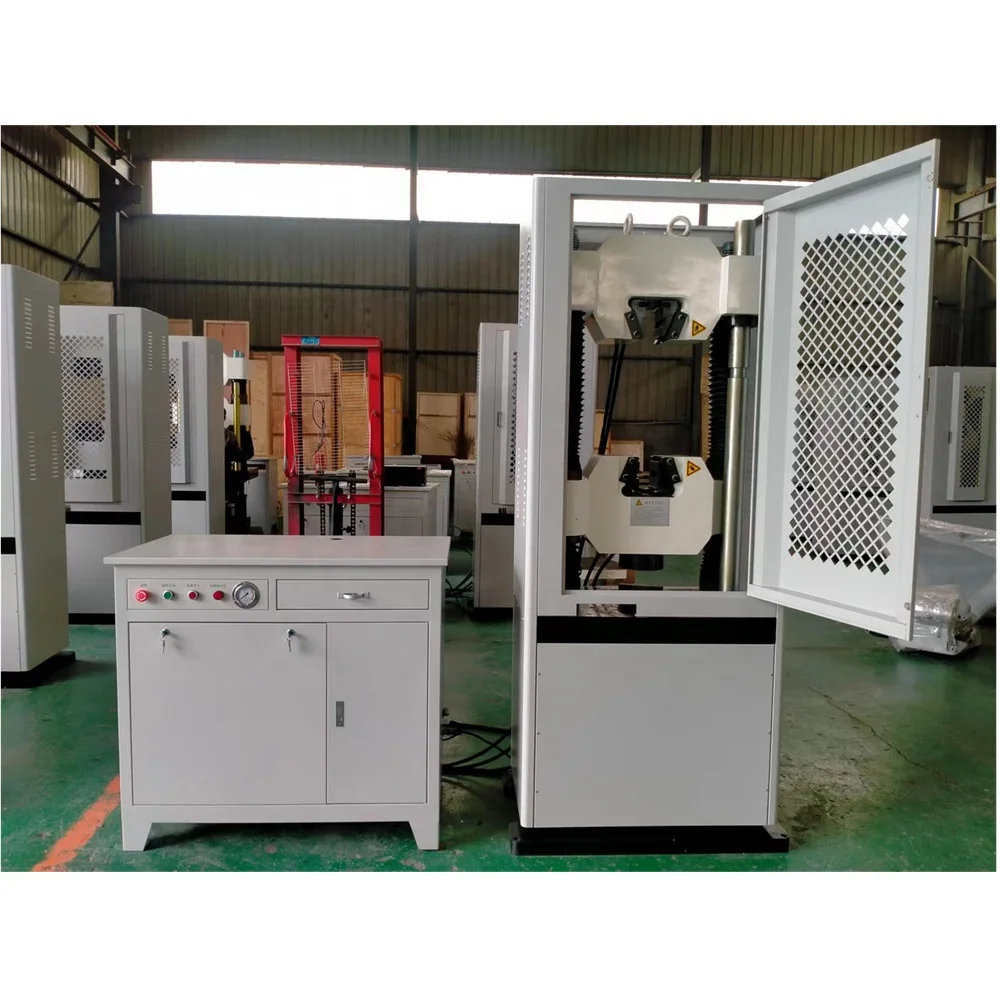

100ton 1000kn steel bar computer control electro hydraulic servo hydraulic universal tensile testing machine
- Category: >>>
- Supplier: Jinan Est Test Instrument Co. Ltd.
Share on (1600687387194):
Product Overview
Description
100ton 1000kn steel bar computer control electro-hydraulic servo hydraulic universal tensile testing machine
Product Description
WAW series Computer control Electro-Hydraulic Sevo Universal testing machine are mainly used in testing of 300KN-2000KN,electronic measure collecting test data,programming full automatic analysis,printing report and curves.
Hydraulic universal testing machine adopts cylinder down-setting host,mainly use for metal,non metal tensile, compression, bend and shear test, it is applicable to metallurgy, construction,light industry,aviation,spaceflight,materials, universities and colleges,scientific,research institutes and other fields, the test operation and data processing accord with GB/T228-2010<Metal material Room-temperature tensile Testing Method>
Technical Parameters : As for more accurate parameters and technical solution, please feel free to contact Ms. Nancy at anytime.
Model |
EWAW-W300 |
EWAW-W600 |
EWAW-W1000 |
Maximum test force | 300KN | 600KN | 1000KN |
Measuring range | 1 or 0.5 grade | ||
Test force resolution | 0.01KN | ||
Test force indication relative error | ≤±1% | ||
Deformation precision | |||
Piston stroke | 250mm | ||
Piston max movement speed | 80mm/min | ||
Stretch space(mm) | 700MM
| ||
Clamping Method | Manual/automatic clamping | ||
Round Sample Clamping Diameter(mm) | φ6-26 | φ13-40 | φ13-60 |
Flat Sample Clamping thickness | 0-15mm | ||
Max Clamping width of flat sample(mm) | 70 | 75 | 75 |
Pressure Plate Size | φ160(or 204*204) | ||
Max distance between bending fulcrum(mm) | 450 | 450 | 450 |
Stretch space two legs distance(mm) | 395 | 520 | 530 |
Oil pump motor power | 1.1Kw | 1.1Kw | 1.1Kw |
Net weight | 1900kg | 2100kg | 3200kg |

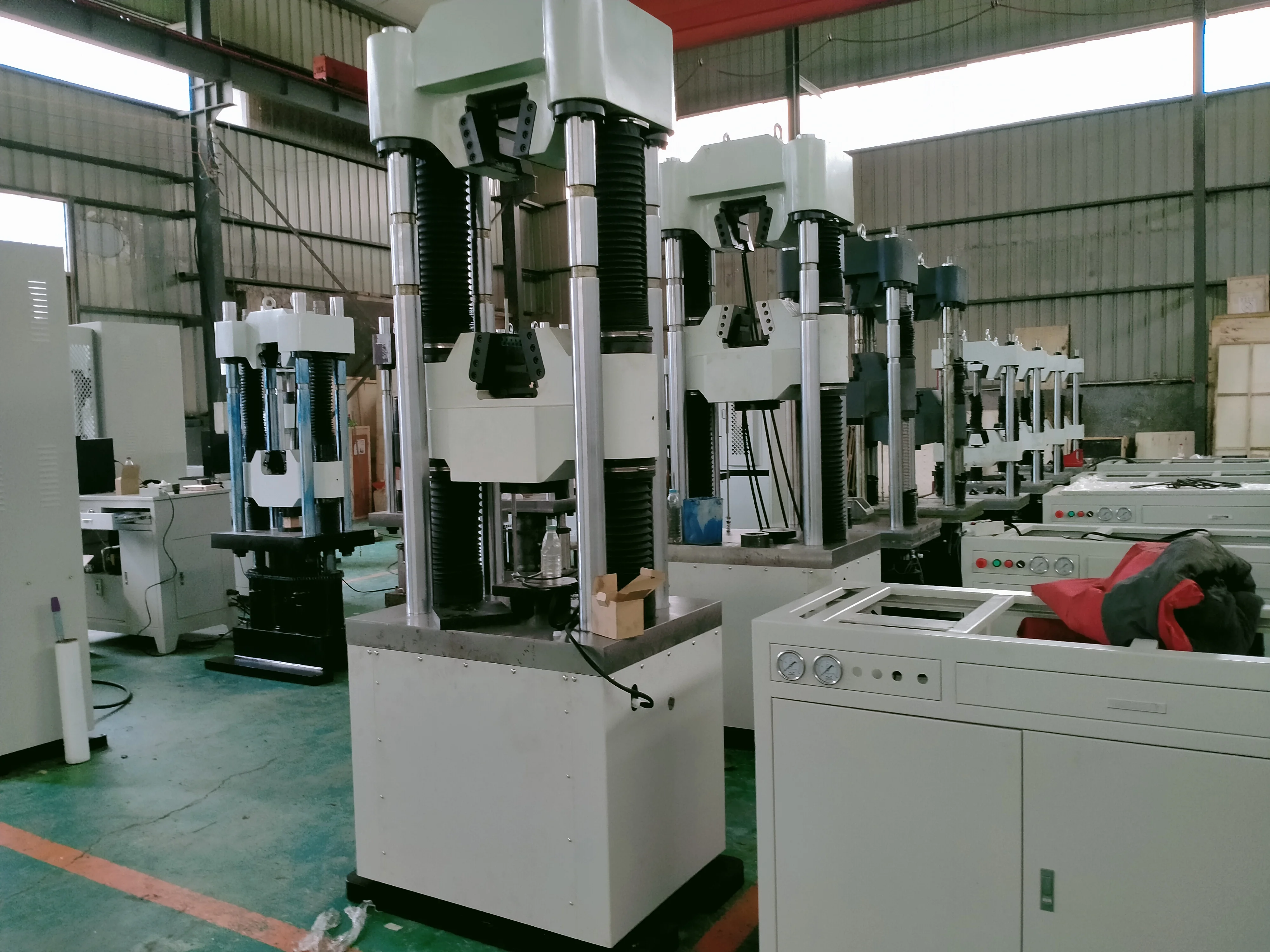

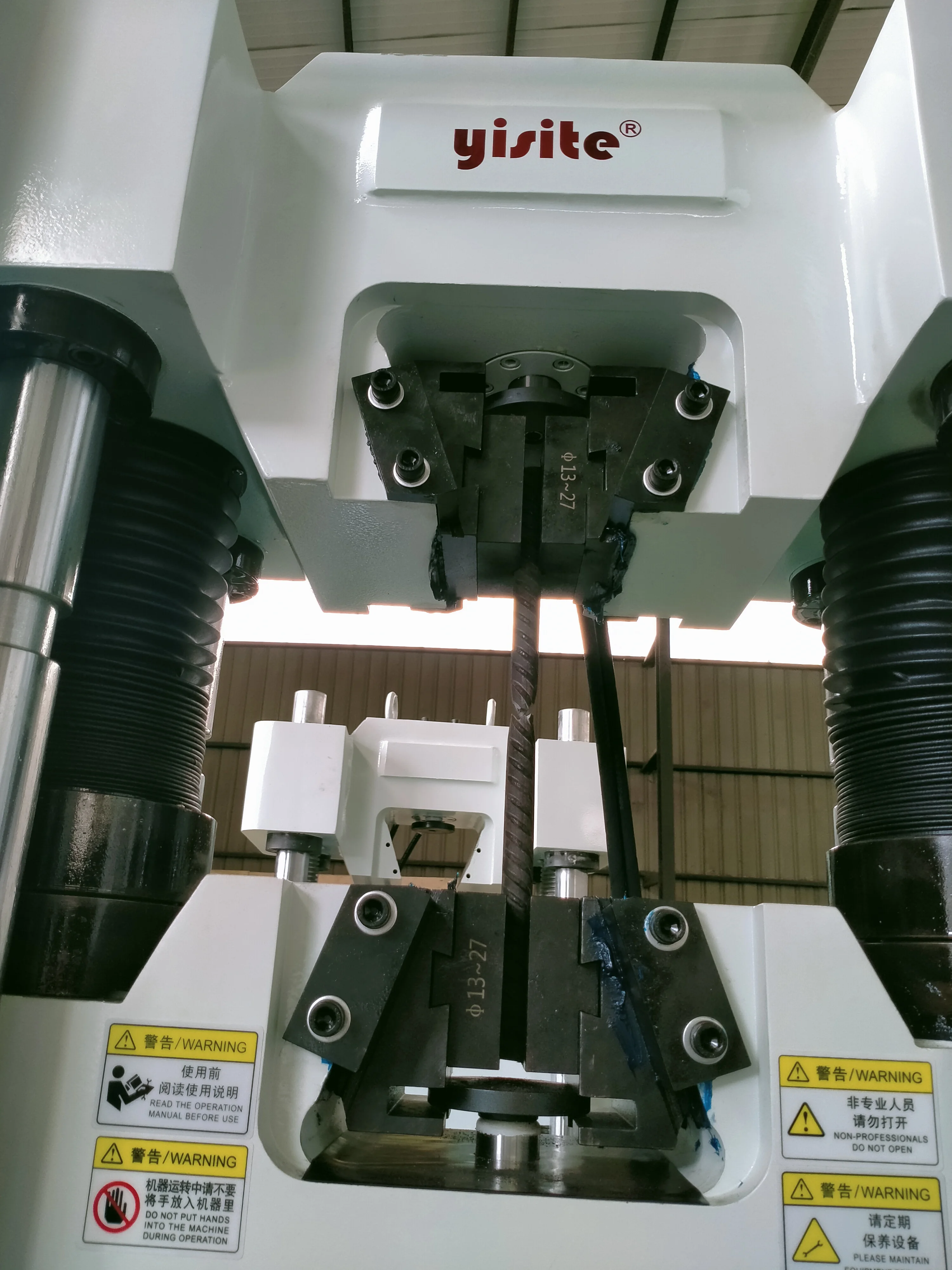

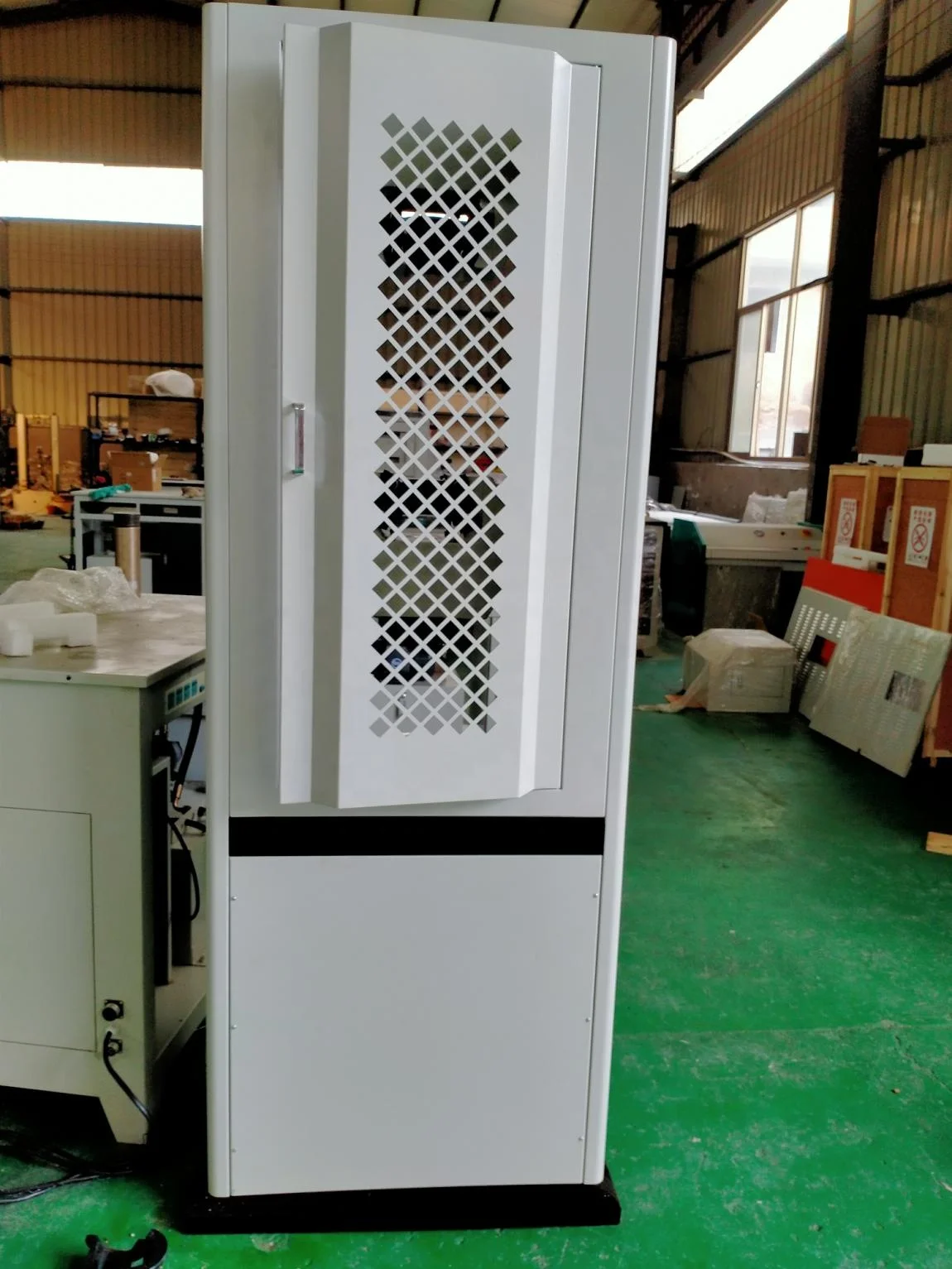

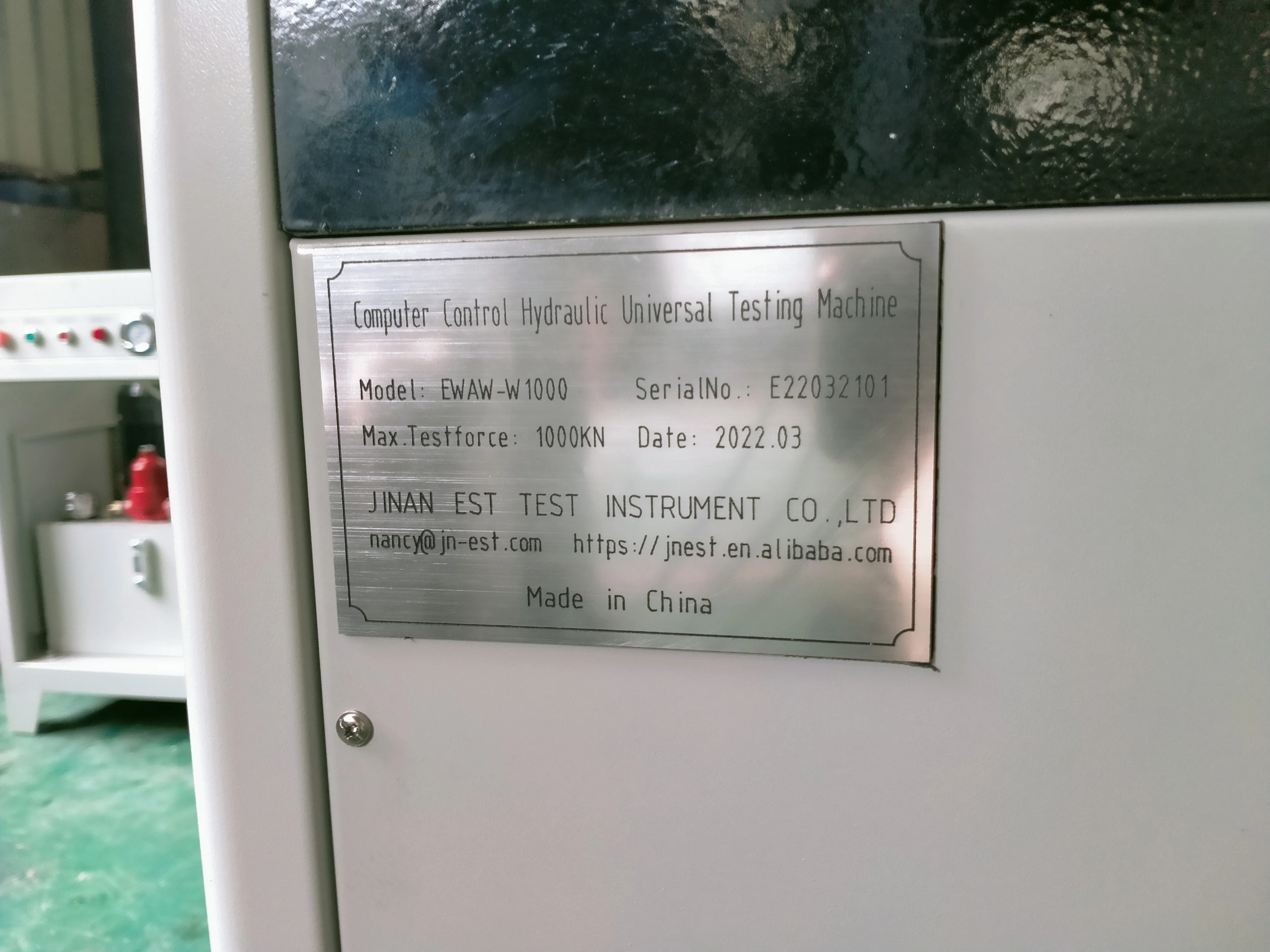

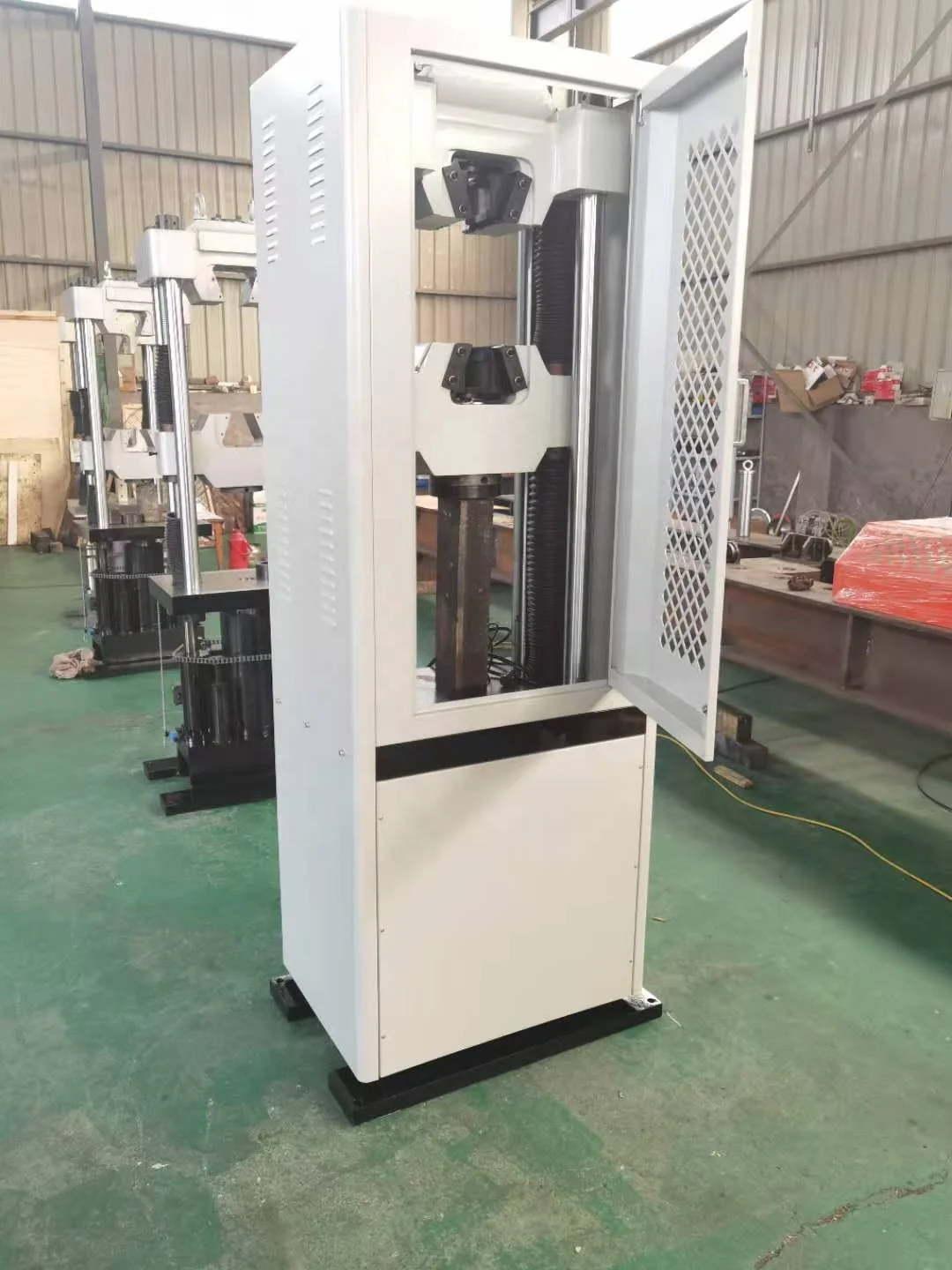

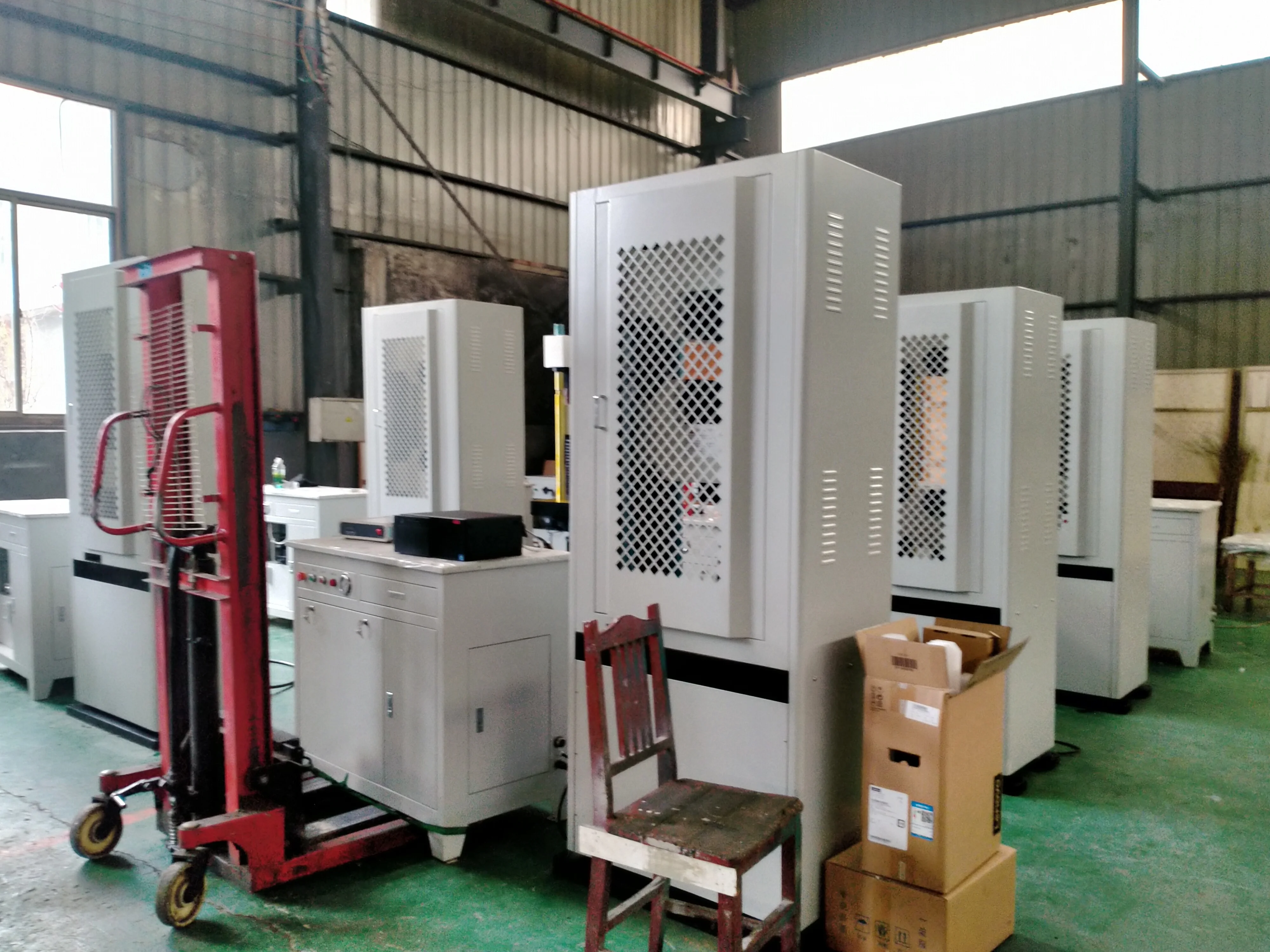

Realistic Pictures
