New Handheld Rock Drill /small YN27 Drill Equipments for sale rock drill machine
- Category: >>>
- Supplier: Yantai Bede Machinery Co. Ltd.
Share on (1600687629992):
Product Overview
Description
Products Description

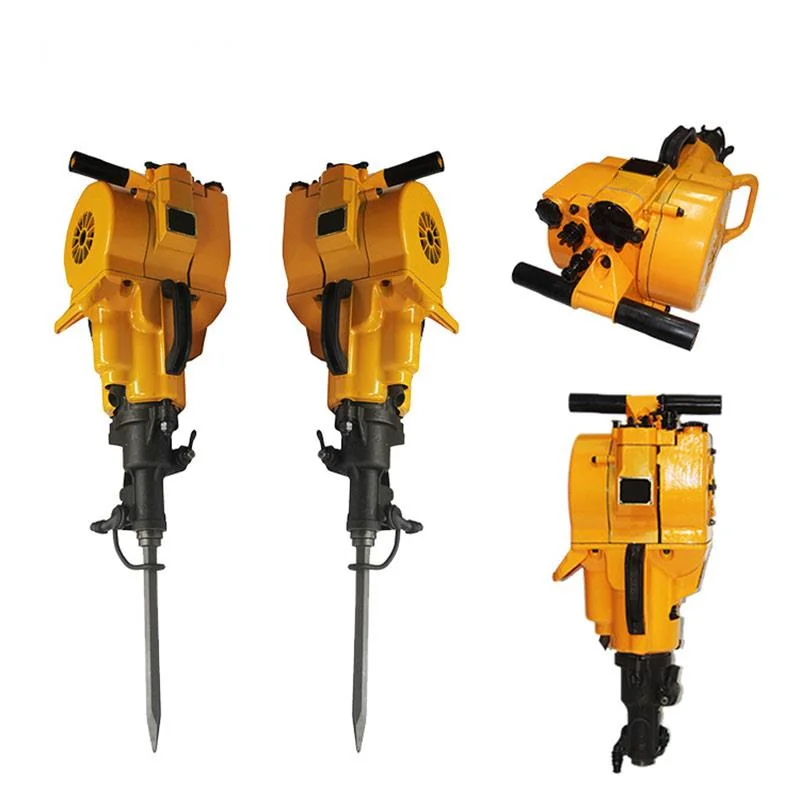

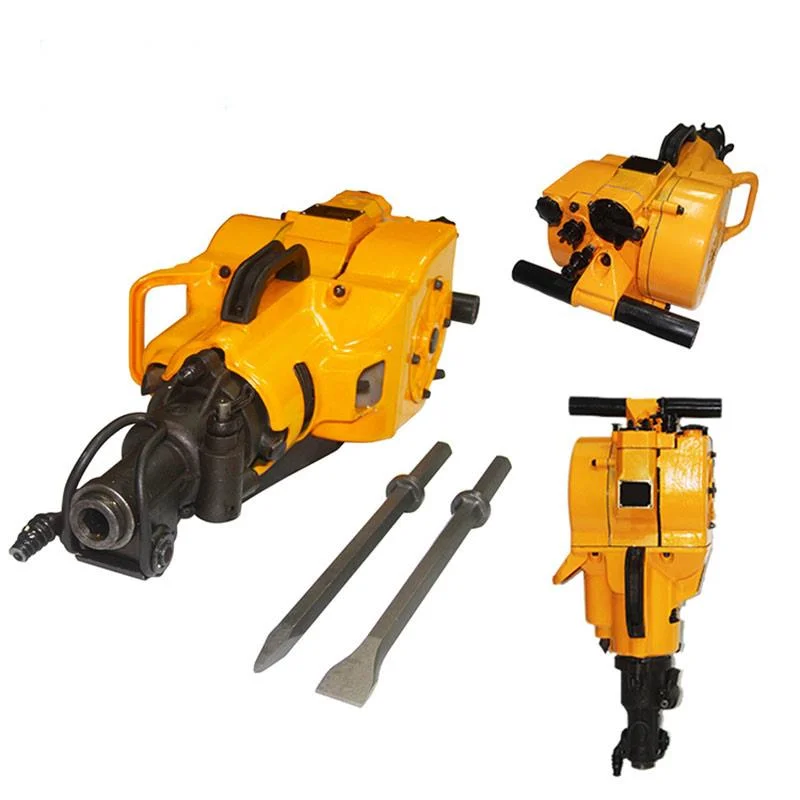

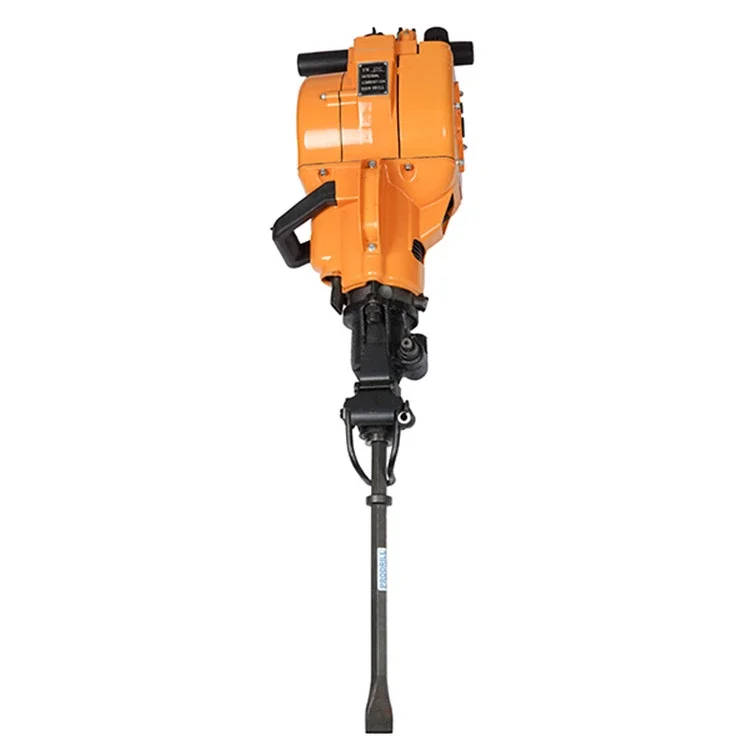

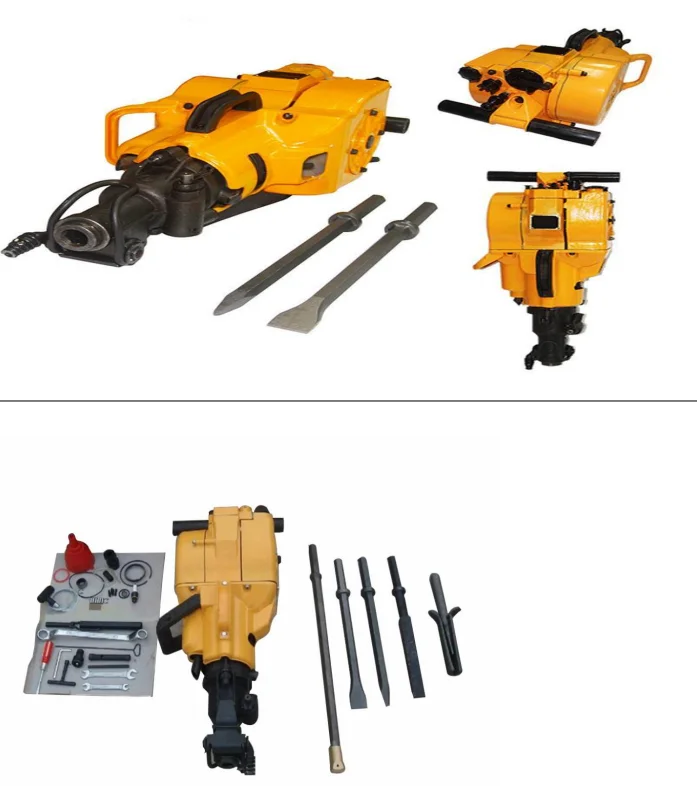

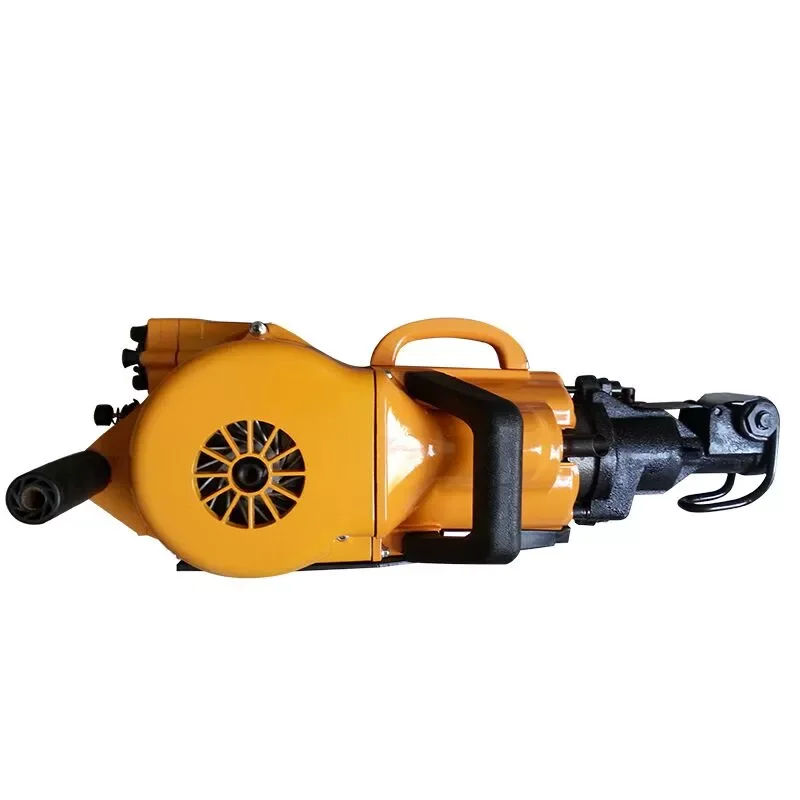

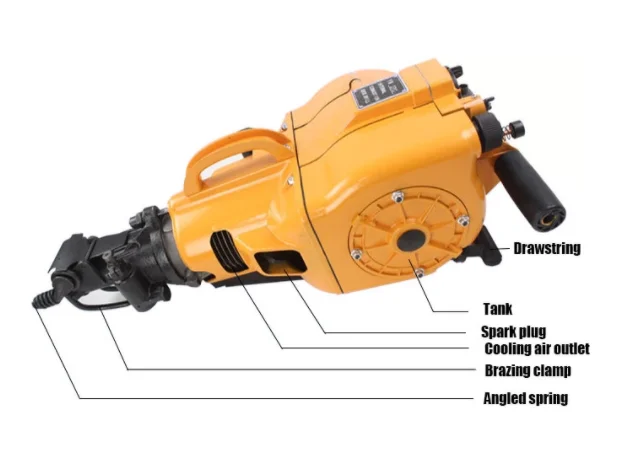

New Handheld Rock Drill /small YN27 Drill Equipments for sale rock drill machine
Gasoline rock drill machine is mainly used in places that lack of electricity and compressed air. Compared with other types of rock drill, it has advantages such as light weight, portable, strong adaptability, convenient operation and so on.Meanwhile it is a hand- held drill, during operation,rock power is blown away by the compressed air produced by the machine itself. .Its suited towork on high mountains, plains.

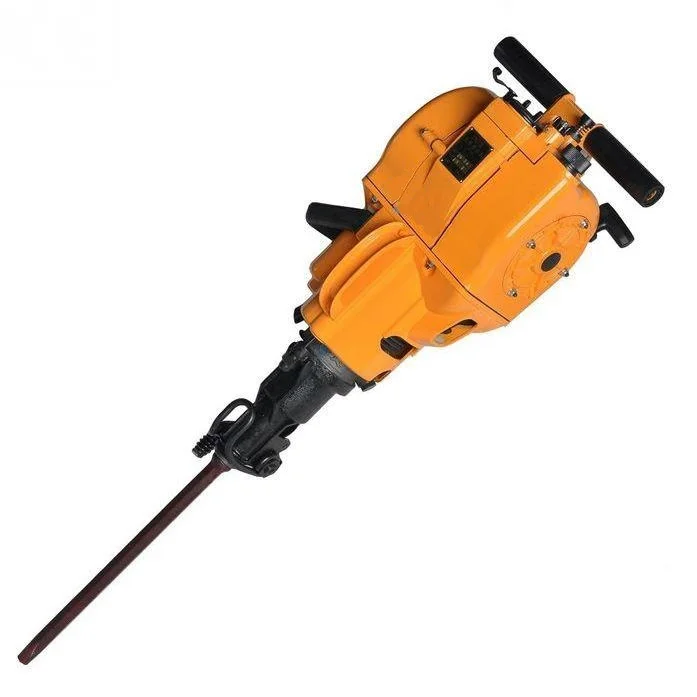

New Handheld Rock Drill /small YN27 Drill Equipments for sale rock drill machine
Main Characteristics
1. Easy to operate, just turn the handle to make it work.
2.Time and labor saving, drilling fast and high efficiency.
3. First-class level drilling tools, suitable for site without power or pressure equipment, it has wide adaptability for high mountain and plain, extreme temperature (40 to -40).
4.Used to drill vertical downward hole(max depth 6) and and <45째 upward hole.
5.Light drilling tools, only 27kg, easy to carry.
1. Easy to operate, just turn the handle to make it work.
2.Time and labor saving, drilling fast and high efficiency.
3. First-class level drilling tools, suitable for site without power or pressure equipment, it has wide adaptability for high mountain and plain, extreme temperature (40 to -40).
4.Used to drill vertical downward hole(max depth 6) and and <45째 upward hole.
5.Light drilling tools, only 27kg, easy to carry.
Product Paramenters
New yn27c pionjar 120 jack hammer petrol YN27C rock drill machine | ||
Model | YN27C | |
Weight | 27kg | |
overall dimension | 810*380*280mm | |
engine | single cylinder, air cooled two strokes | |
Cylinder diameter*stroke piston | 58*70mm | |
Rotating speed of engine | more than 2450r/min | |
displacement of engine | 185cm^3 | |
carburetor | hand needle valve, no floating type | |
Ignition system | controllable silicon contactless system | |
Drilling speed | more than 2450r/min | |
Max drilling depth | 6M | |
Fuel consumption | 1.2L/min | |
Tank capacity | more than 1:14L | |
mixing ratio of gasoline and lubrication oil | 12:01 | |
end of drill rod dimensions | hexagonal 22*108mm | |
Rotating speed of drill rod | more than 200r/min | |
Clearance of spark plug | 0.5-0.7mm | |

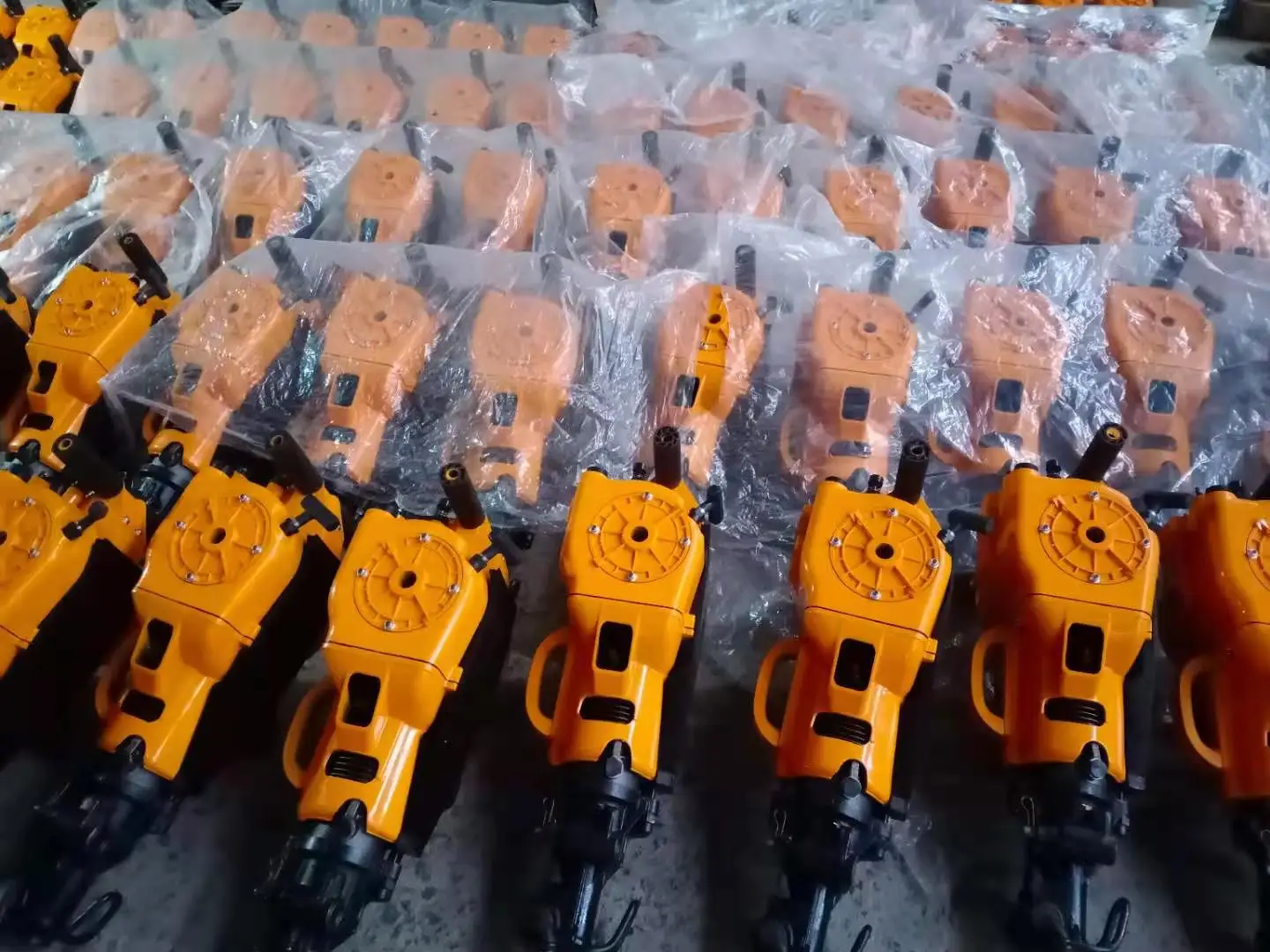

Company Profile

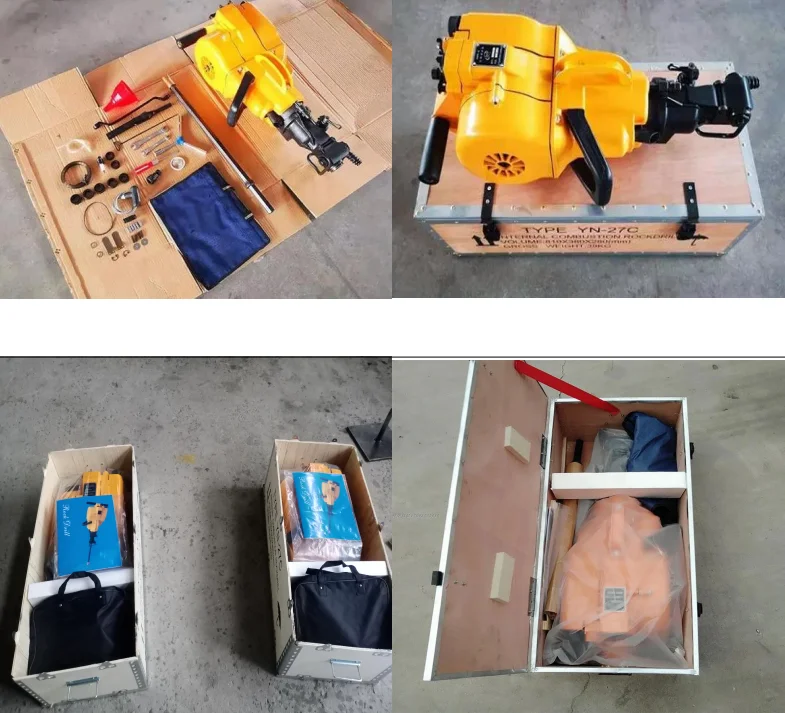

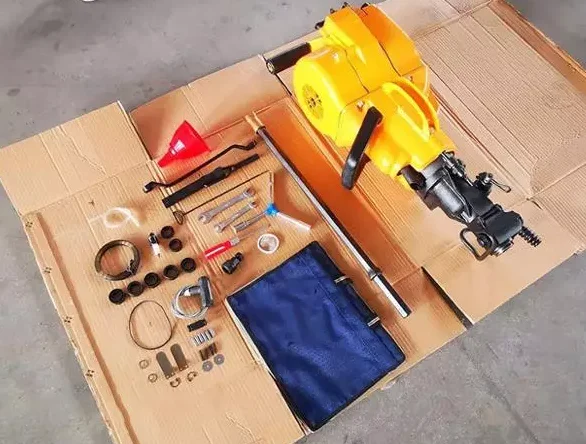

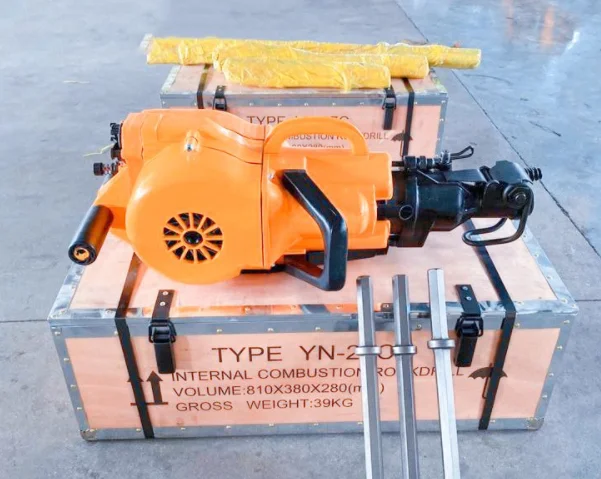

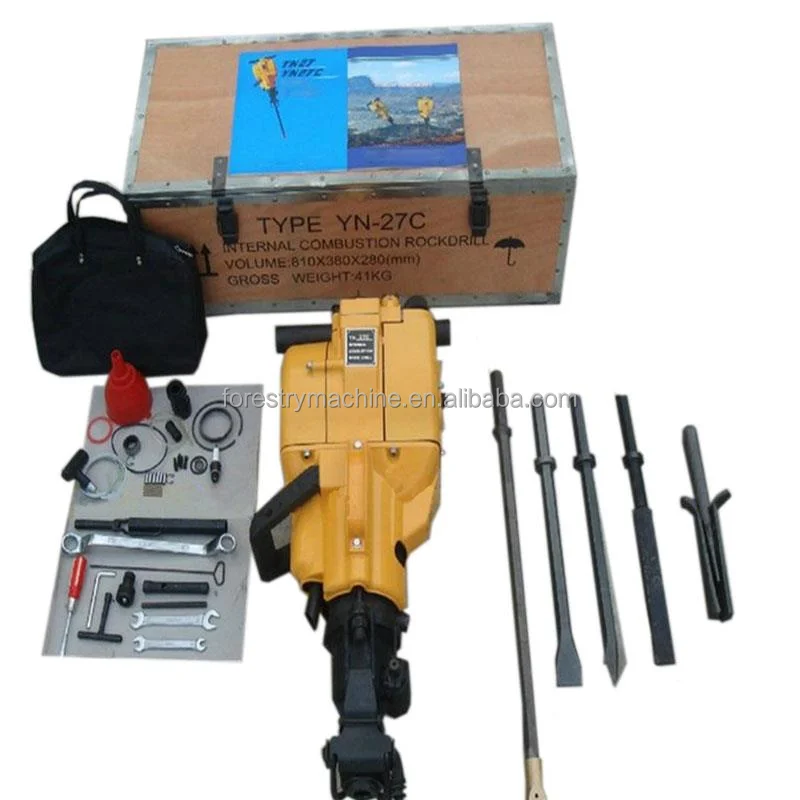

Product Packaging
FAQ
Q: Are you a factory or trade company?
A: We are a trade company with 2 factories. And we can supply one-stop service as a trade company if diverse goods are needed.
Q: What's the MOQ?
A: Well, the MOQ is different from 1 set to 50 set according to machines size. For big size machine MOQ can be 1 set; for small size machine MOQ at least 5 setS.
Q: Do you have professional engineers?
A:Yes. We have professional engineers and designers. We can provide OEM products.
Q: Can you provide custom machine, Yes or No?
A:Yes. We can provide custom machine for clients.
Q: Is OEM acceptable to your factory?
A: Yes, OEM production is one of our advantages.
Q: What's your lead time / delivery time / date for delivery?
A: 3-7day
Q: What's your delivery term?
A: FOB Qingdao China usually, also can be CIF/DDU/DDP if needed.
A: We are a trade company with 2 factories. And we can supply one-stop service as a trade company if diverse goods are needed.
Q: What's the MOQ?
A: Well, the MOQ is different from 1 set to 50 set according to machines size. For big size machine MOQ can be 1 set; for small size machine MOQ at least 5 setS.
Q: Do you have professional engineers?
A:Yes. We have professional engineers and designers. We can provide OEM products.
Q: Can you provide custom machine, Yes or No?
A:Yes. We can provide custom machine for clients.
Q: Is OEM acceptable to your factory?
A: Yes, OEM production is one of our advantages.
Q: What's your lead time / delivery time / date for delivery?
A: 3-7day
Q: What's your delivery term?
A: FOB Qingdao China usually, also can be CIF/DDU/DDP if needed.
