Special Offers Price Available Automatic Bag in Box Packing Machine
- Category: >>>
- Supplier: Shanghai Boom Packaging Machinery Co. Ltd.
Share on (1600687631359):
Product Overview
Description
PRODUCT DESCRIPTION
Special Offers Price Available Automatic Bag in Box Packing Machine

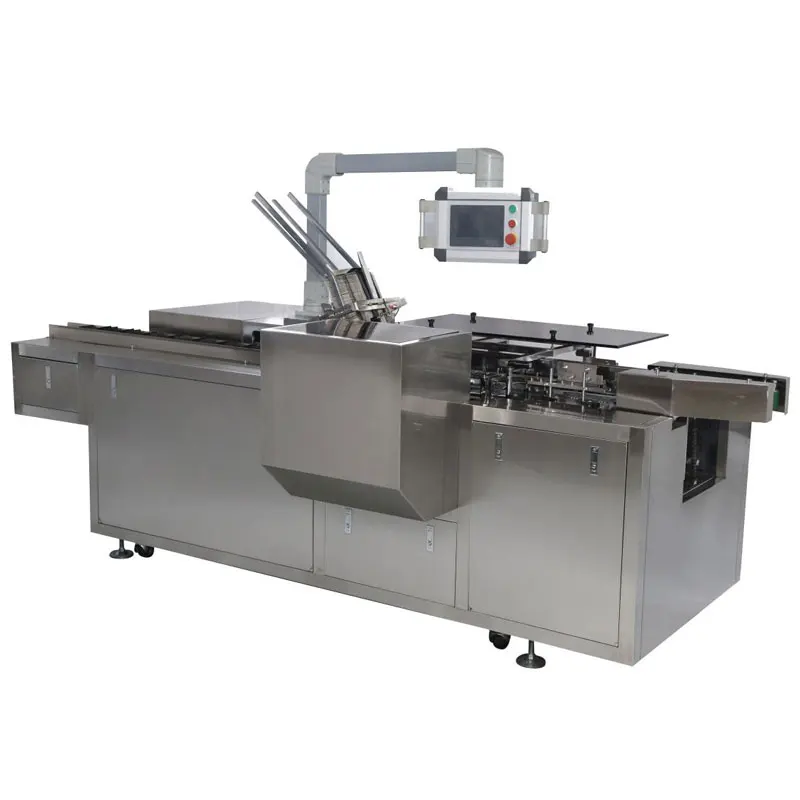

HTZH-100 Automatic Box Packing Machine can reliably pack all kinds of medicine boards, traditional Chinese medicine products, small and long-body regular articles, and some foods into paper boxes with specific specifications, seal the paper boxes and send them out. The machine can finish automatically all jobs such as leaflet folding, carton opening automatically, the stuff cartooned, bitch number printing, carton sealing, and so on. it can be used alone, or be linked with the other device, to be a production line.
SPECIFICATIONS
Model | HTZH-100 |
Productivity | 80-100pcs/min |
Box Size Range | L(55-220)mm*W(20-120)mm*H(12-70)mm |
Box Paper Requirements | 250-450g/m3 |
Instructions Size Range | L(100-260)mm×W(100-190)mm |
Instructions Paper-Based Requirements | 55-70g/m3 |
Motor Power | 1.5KW |
Power Supply | 220V/380V/50Hz/60Hz |
Machine Noise | ≤80dB |
Gas Source | 0.5-0.8Mpa |
Air Consumption | 120-160L/min |
Dimension(L*W*H) | 3500×1500×1600mm |
Weight | About 1200KG |
FEATURES AT A GLANCE
HTZH-100 Box Packing Machine Features
1. Using a servo/stepper motor and touch screen, PLC makes the man-machine interface display clear, operation more simple, with a higher degree of automation, more human.

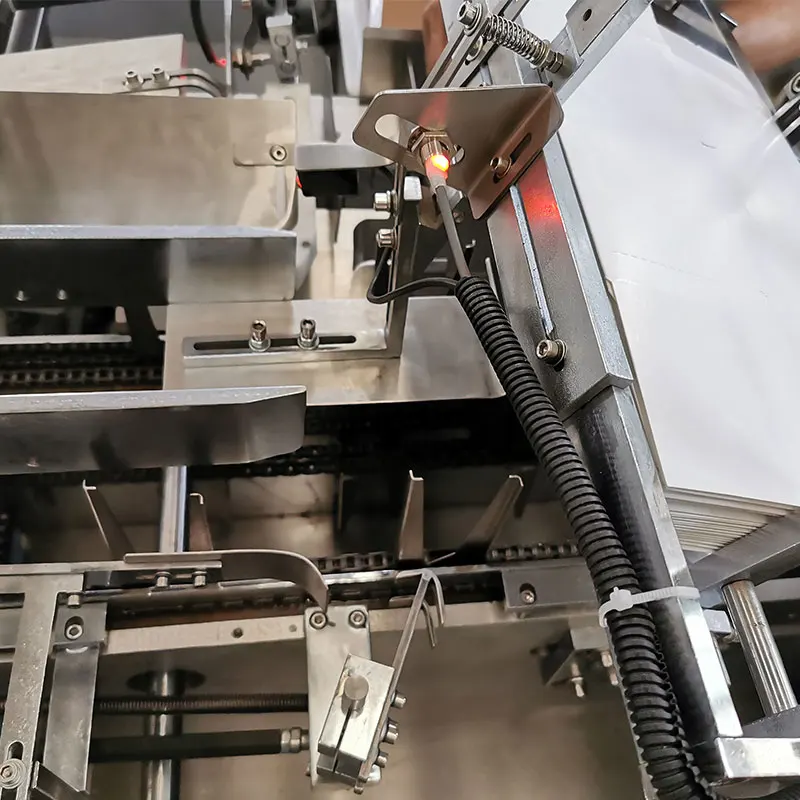

2. Automatic photoelectric detection and tracking system is adopted to save packaging materials to the greatest extent.
3. The packaging range is large and easy to adjust, and a variety of specifications can be quickly converted between sizes.
2. Automatic photoelectric detection and tracking system is adopted to save packaging materials to the greatest extent.
3. The packaging range is large and easy to adjust, and a variety of specifications can be quickly converted between sizes.
4. It is not necessary to replace the mold to replace the specification, only adjustment can be achieved.
