Product Overview

Description



PRODUCT DETAIL


Features

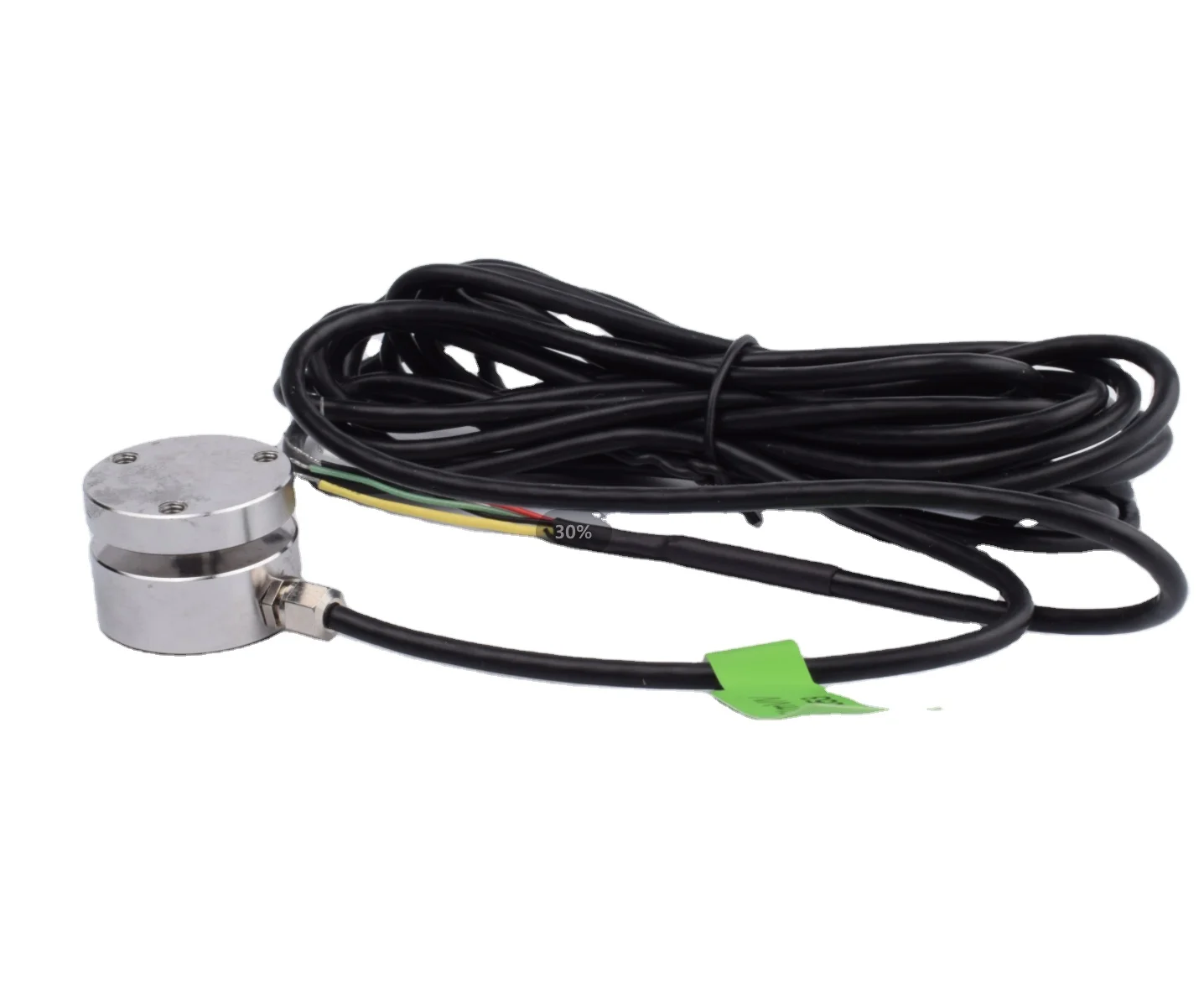

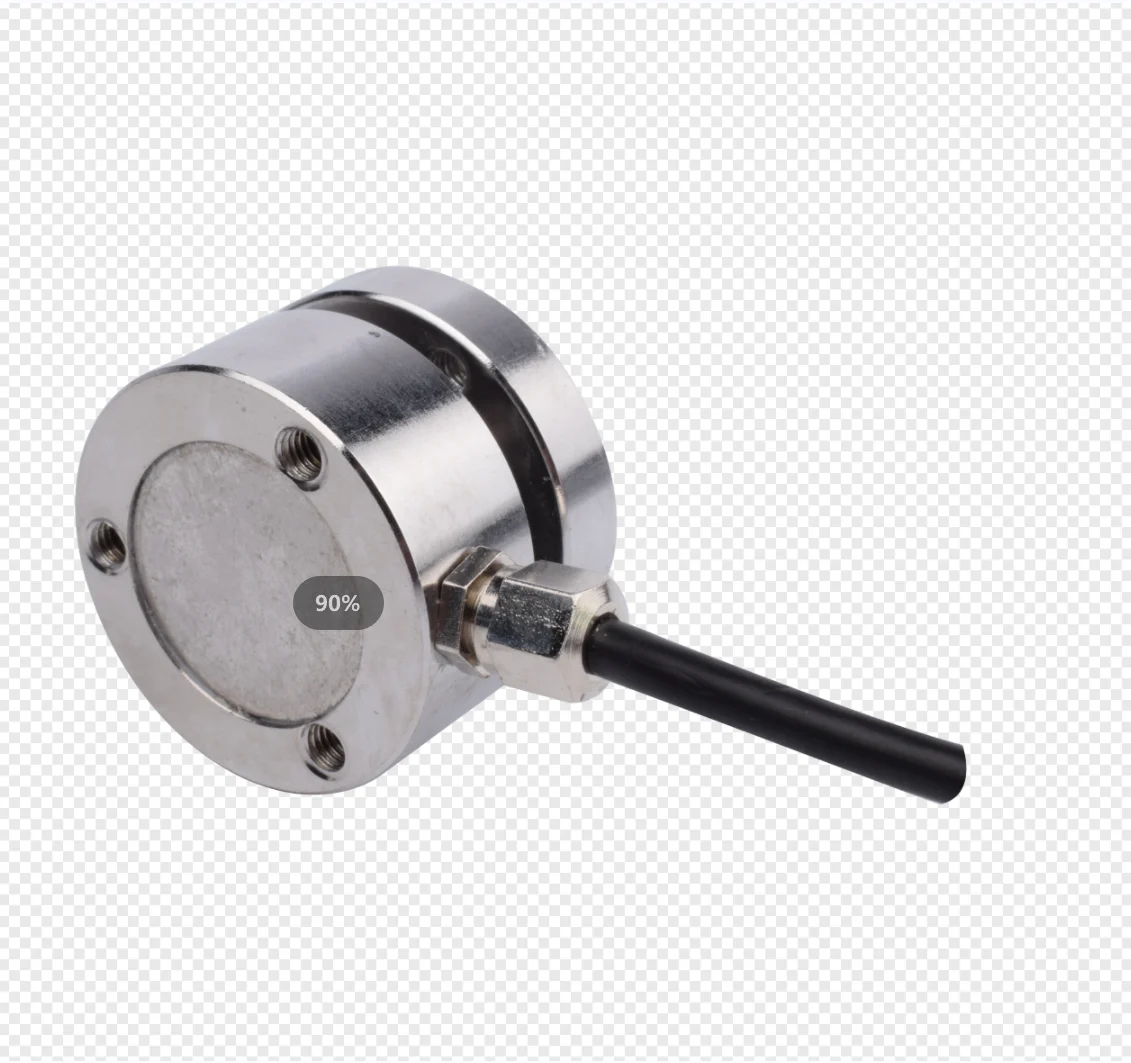

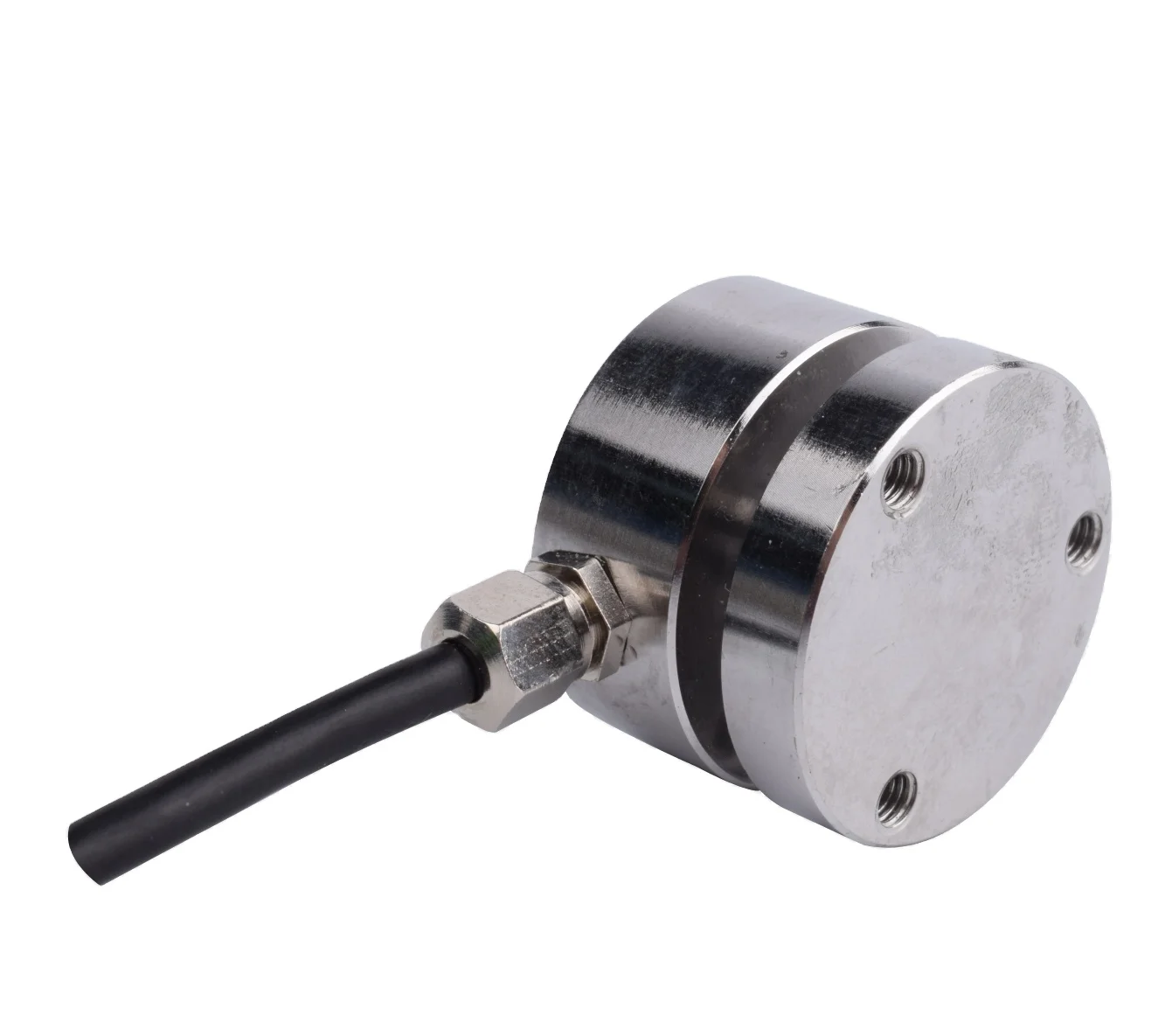

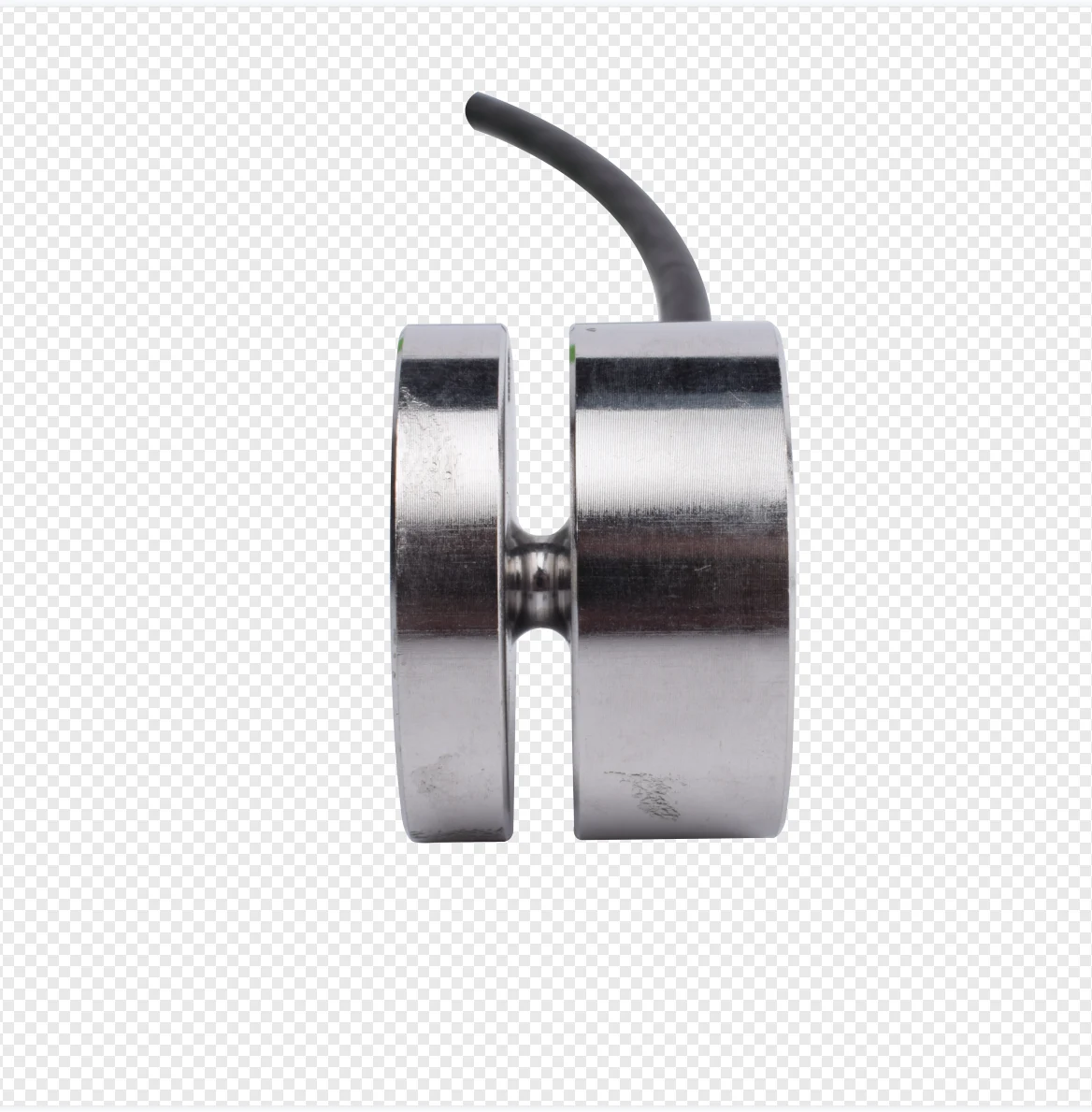

Micro flatbed pressure load cell FA127 is made of stainless steel. The subminiature load cell has six measuring ranges,
respectively 0-10KG,0-20KG,0-50KG,0-100KG,0-200KG,0-500KG. The subminiature flange force sensor can be used in many applications.
* Mini size
* Small deformation
* High precision


Applications
* 3C product testing
* Robotics
* Clamping force measurement

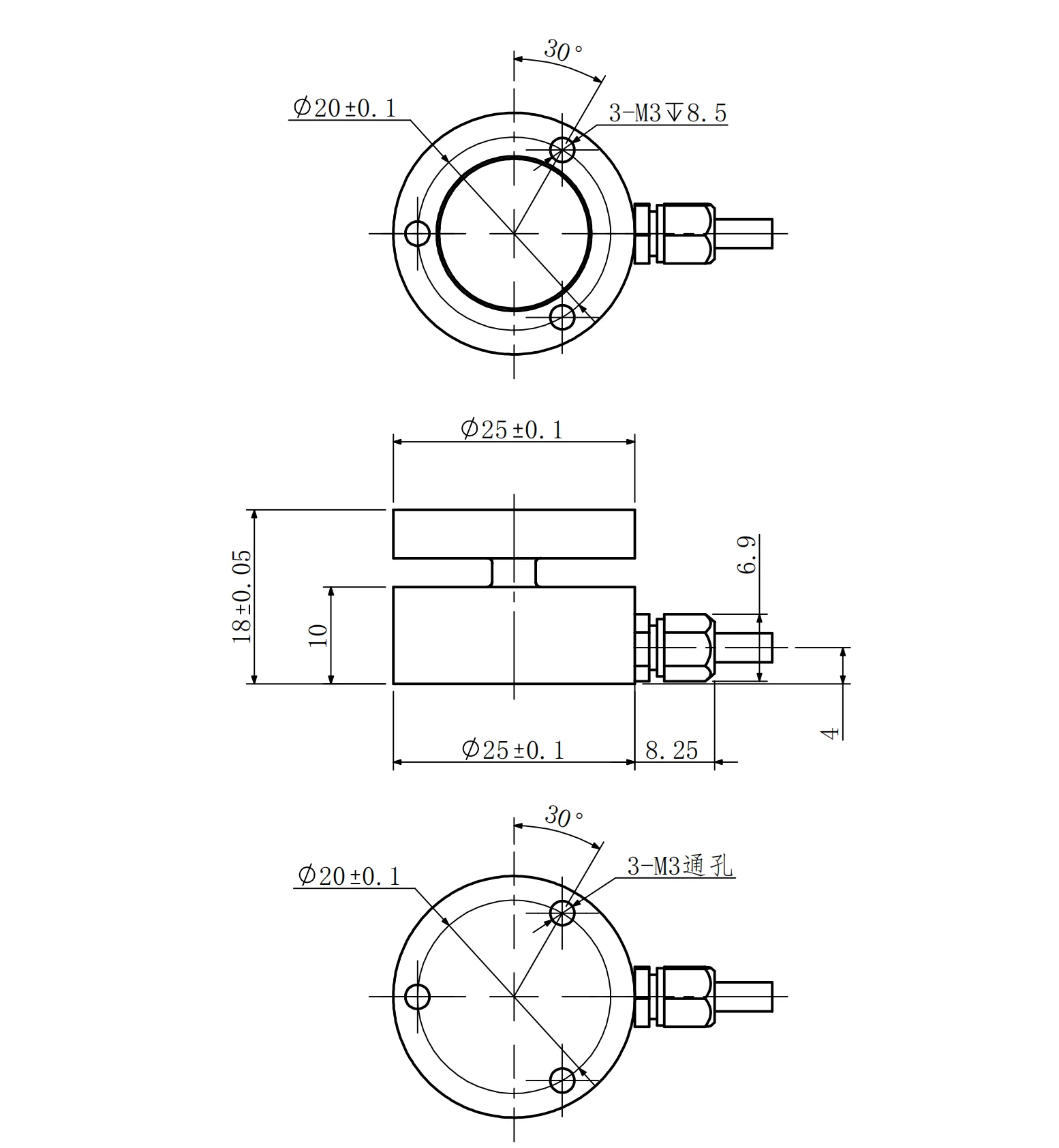

Mounting Dimension

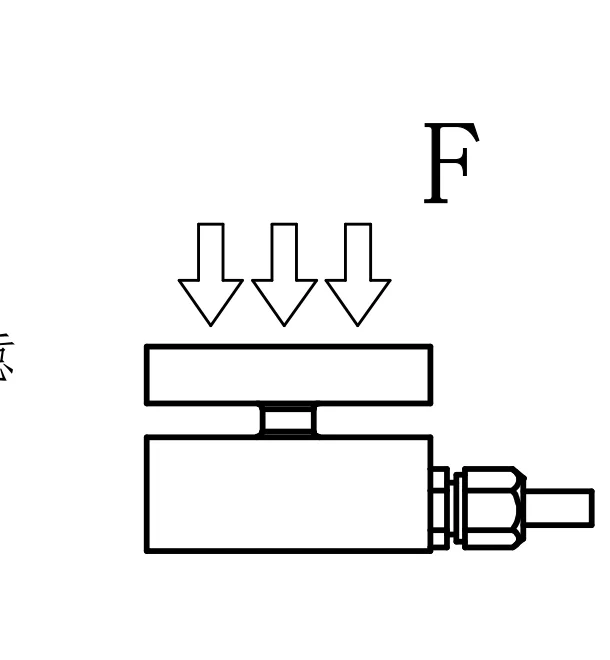

Load Direction

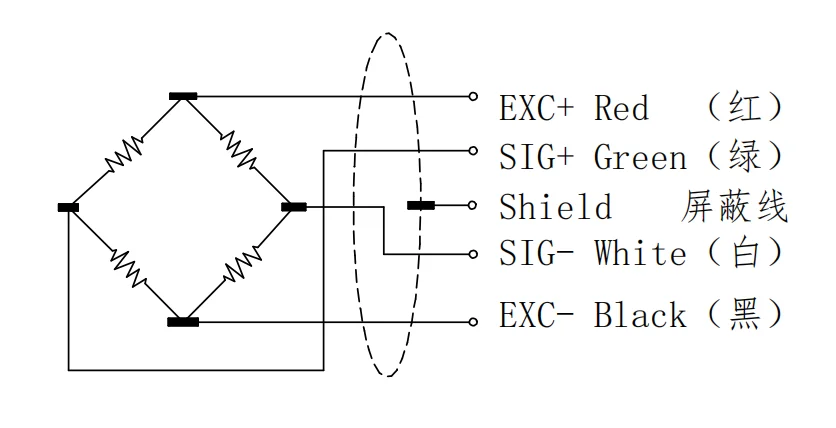

Wiring Code




Specifications


Specifications
Technique
Capacity
10,20,50,100,200,500kg
Rated output
1.0±10%mV/V
Zero balance
±0.03 mV/V
Non-linearity
0.5%F.S.
Hysteresis
0.20%F.S.
Repeatability
0.20%F.S.
Input impedance
700±20Ω
Output impedance
700±10Ω
Insulation
≥5000MΩ/100VDC
Recommended excitation
5-15V
Maximum excitation voltage
20V
Compensated temp range
-10~60℃
Operation temp range
-20~80℃
Temp.effect on output
0.1%F.S./10℃
Temp.effect on zero
0.1%F.S./10℃
Safe overload
150%F.S.
Ultimate overload
200%F.S.
Cable size
Φ3×3000mm
Material
Stainless Steel
