Bulldozer DH16K With High Performance 160HP Hydrostatic Crawler Bulldozer
- Category: >>>
- Supplier: Sinomada,Heavy,Industry,(Changsha),Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
High efficiency 1800HP Bulldozer DH08J China Crawler Bulldozer With Free Spare Parts
The K series crawler dozer is the latest generation hydrostatic-drive dozer from SHANTUI. Built off the the superiorities of the J series dozer, while using EPA Tier 4f/EU Stage IV engines, state-of-art technologies such as adjustable work-mode and grade assist, the new K series dozer becomes more powerful and intelligent, give you more productivity with less fuel consumption. K series dozer can be used in landscape, municipal engineering, earth-moving, grading, logging and many other applications.

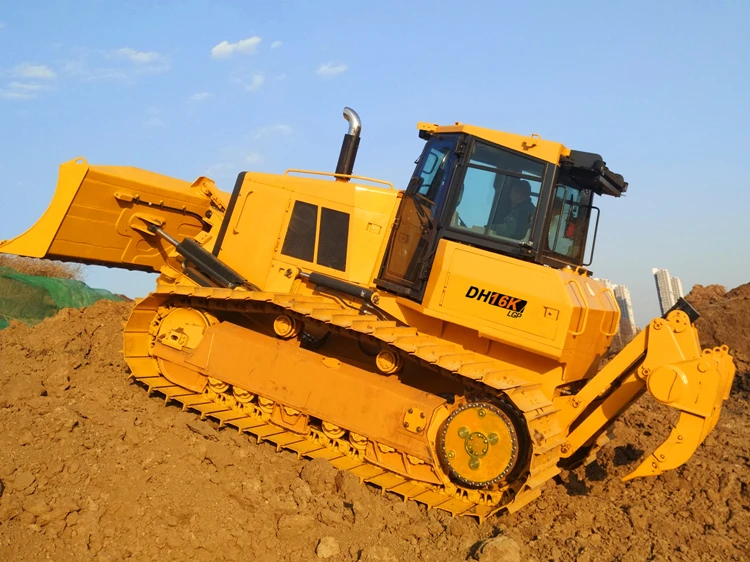

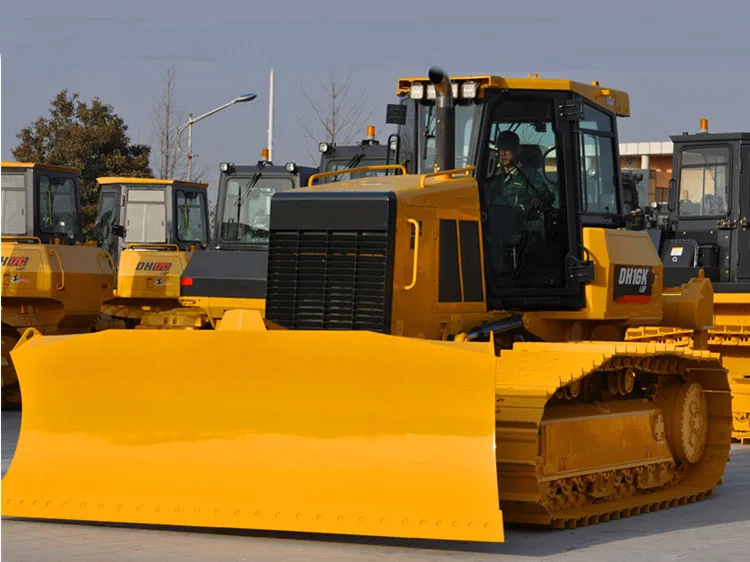

PRODUCT PICTURES
PRODUCT SPECIFICATIONS
ENGINE | ||||
ENGINE | Cummins QSB 6.7 | |||
EMISSION STANDARD | Tier4f | |||
RATED SPEED | 2000rpm | |||
GROSS POWER | 142kW(190hp) | |||
NET POWER | 138W(185hp) | |||
NUMBER OF CYLINDERS | 6-107mm-124mm(6-4in.-5in.) | |||
PISTON DISPLACEMENT | 6.7L(409cu.in.) | |||
MAXIMUM TORQUE | 809Nm(597lb.-ft.)/1500rpm | |||
COOLING SYSTEM | Intelligent temperature control fan | |||
POWER TRANSMISSION SYSTEM | ||||
POWER TRANSMISSION SYSTEM | Double loop electro static pressure drive, intelligent matching load change | |||
SYSTEM OVERFLOW PRESSURE | 42500KPa(6162.5psi) | |||
TRAVEL SPEED | - | |||
FORWARD | 0~10km/h6.2mph) | |||
REVERSE | 0~10km/h6.2mph) | |||
TRACTIVE FORCE | 230kN(35000lb) | |||
STEERING CLUTCH | Hydraulic motor differential steering, in situ steering, steering with load | |||
STEERING BRAKE | Normally closed brake | |||
FINAL DRIVE | One stage straight gear + One stage planetary gear | |||
UNDERCARRIAGE SYSTEM | XL | LGP | ||
TYPE | Pivot, balanced beam suspension, semi-rigid structure | Pivot, balanced beam suspension, semi-rigid structure | ||
TRACK TYPE | Single-grouser,lubrication | Single-grouser,lubrication | ||
TRACK GAUGE | 1890mm(74in.) | 2200mm(86.6in.) | ||
WIDTH OF TRACK SHOES | 560mm/(22in.)610mm(24in.) | 810mm(32in.) | ||
GROUND LENGTH | 3075mm(121in.) | 3075mm(121in.) | ||
GROUND AREA | 34440/37515cm²(5338/5815sq.in.) | 49815cm²(7721sq.in.) | ||
TRACK PITCH OF SHOES PER SIDE | 43 | 43 | ||
GROUND PRESSURE | 47kPa(6.82psi) | 34.3kPa(4.97psi) | ||
CARRIER ROLLERS | 2 Pieces/side | 2 Pieces/side | ||
TRACK ROLLERS | 8 Pieces/side | 8 Pieces/side | ||
PITCH | 203mm(8in.) | 203mm(8in.) | ||
MIN. TURNING RADIUS | 3735mm(127in.) | 3919mm(154in.) | ||
MAINTENANCE CAPACITY | ||||
FUEL TANK CAPACITY | 370L(98gal.) | |||
COOLANT CAPACITY | 29L(7.7gal.) | |||
ENGINE OIL CAPACITY | 16L(4.2gal.) | |||
HYDRAULIC TANK | 130L(34gal.) | |||
FINAL DRIVE | 31L(8.2gal.)/Side | |||
OPERATING WEIGHT | XL | LGP | ||
TRACTION FRAME | 17235kg(37783lb.) | 18400kg(40351lb.) | ||
RIPPER | 18780KG(41189LB.) | -- | ||
WINCH | 19310KG(42358LB.) | -- | ||
