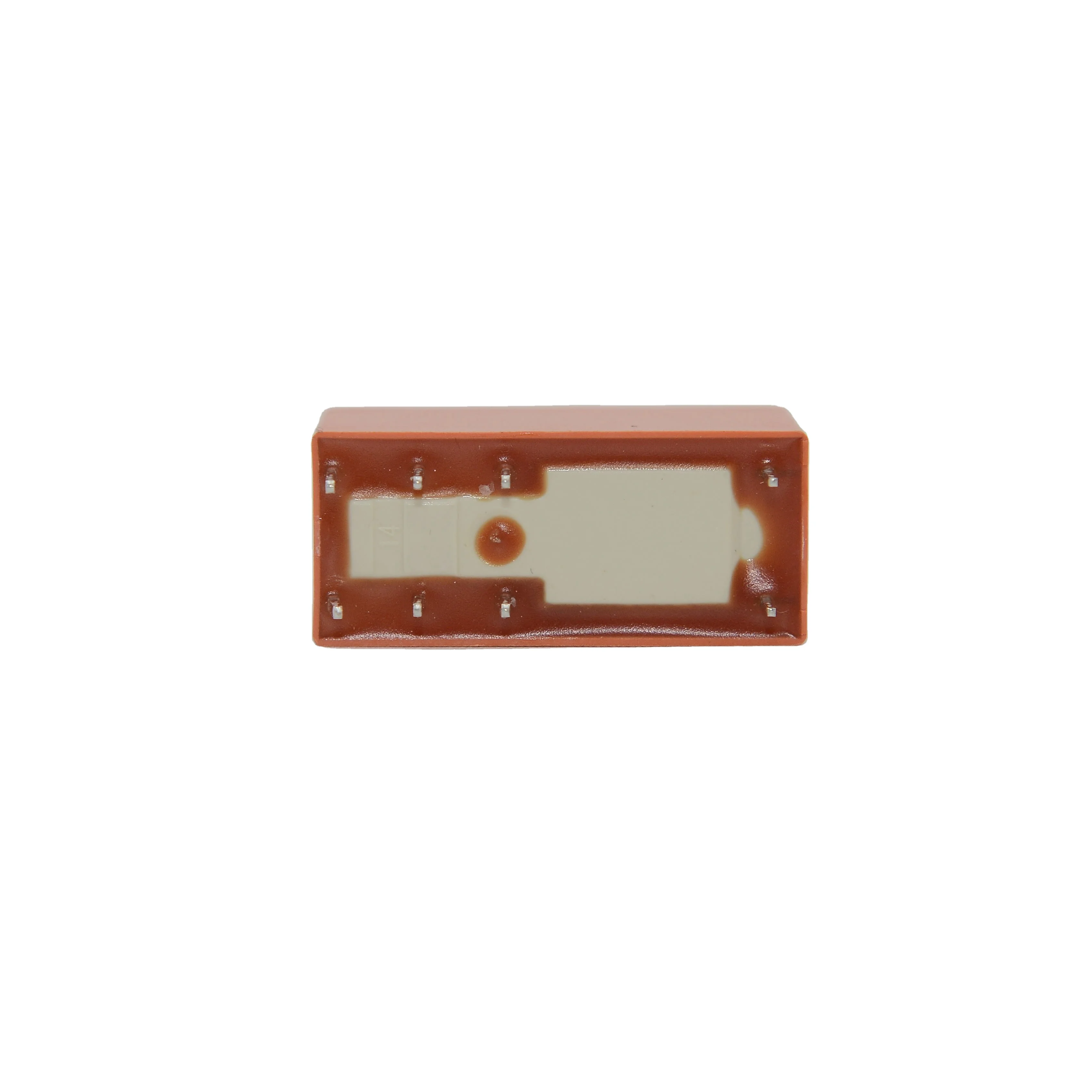

Most Popular Jqx-76f Relay Relay 90229206 Relay 891wp-1a-c

Share on:

Price:$2.20 - $2.60
Price in USD:Details


Product Overview


Product Type Characteristics

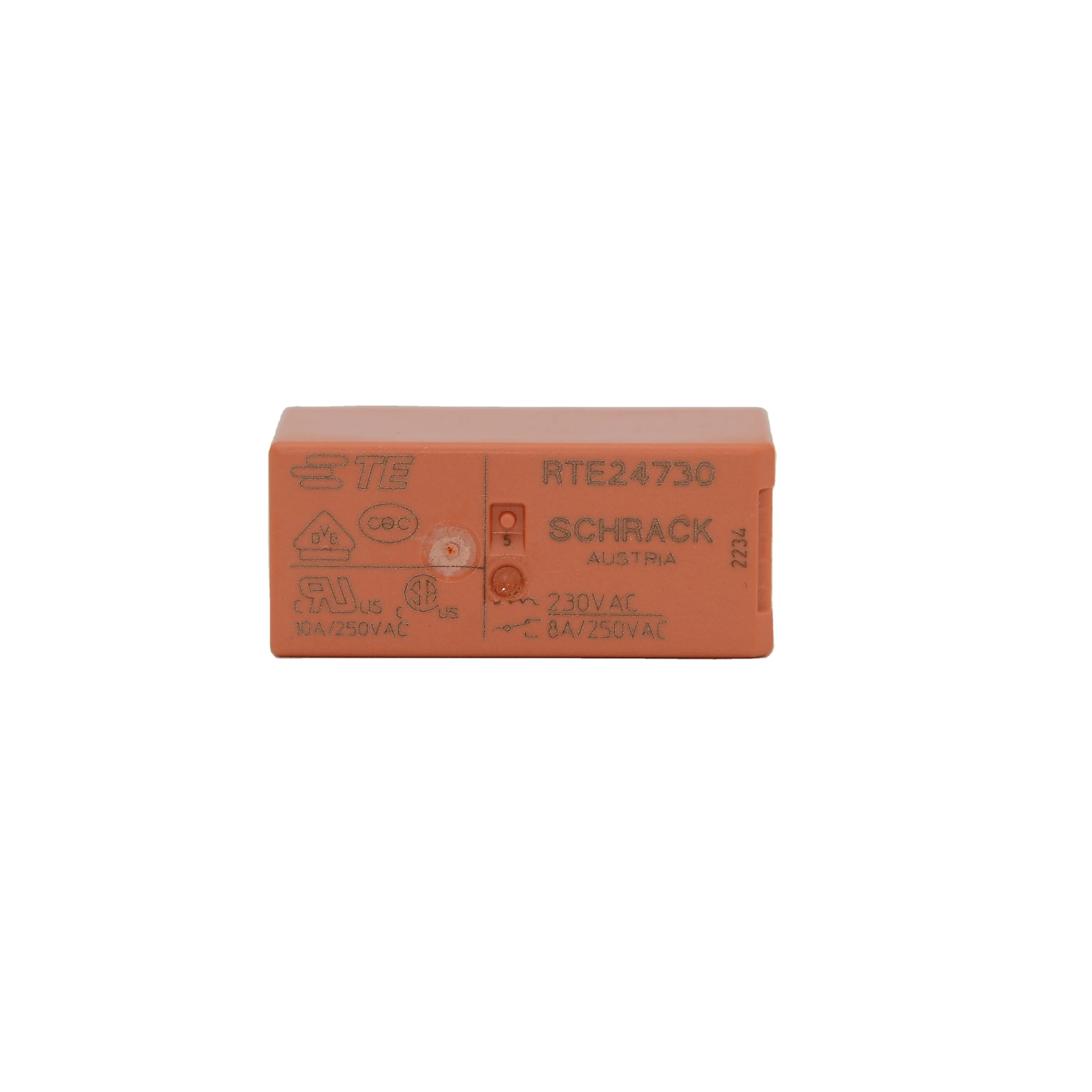

Power relay type: Standard Electrical characteristics Terminal limit disconnect current (A): 8 Coil excitation system: monostable, AC Coil power rating Class (VA):.5 -- 1 Coil power rating (AC) (VA):.74 Coil resistance (Ω): 32500 Coil characteristics: UL coil insulation class F Coil voltage rating (VAC): 230 Terminal switching voltage (Max.) (VAC): 400 Terminal voltage rating (VAC): 250 Insulation leakage between terminal and coil: 10 mm [.394 in] Insulated initial dielectric (Vrms) between terminal and coil: 5000 Insulated initial dielectric (Vrms) between adjacent terminals: 2500 Insulated leakage (mm): 8 Terminal limit continuous current (A): 8 Terminal limit closing current (A): 15 Open the insulated initial dielectric (Vrms) between terminals: 1000 Coil/terminal insulation initial dielectric class (V): 4000 -- 5000 Characteristic of main body Product Weight: 13 g [.459 oz] Insulation characteristics: Tracking index of relay base PTI250 Characteristics of contact parts Terminal arrangement: 2 Form C (CO) Terminal current Class (A): 5-10, 16 Rated terminal current (maximum) (A): 8 Terminal material: AgNi90/10 Terminal number: 2 Relay terminal type: PCB-THT, insert type Accessories of machinery Relay mounting type: printed circuit board, socket size Product height: 15.7mm [.618 in] Product Length: 29 mm [1.142 in] Product width: 12.7mm [.5 in] Width class (mechanical) (mm): 12 -- 16 Insulation gap between terminal and coil: 10 mm [.394 in] Height class (mechanical) (mm): 15 -- 16 Insulation gap class (mm): 8 Length class (mechanical) (mm): 25 -- 30 Usage Environment Ambient temperature (Max.) : 70 °C [158 °F] Characteristics of packaging Packaging method: Carton, Tube

Delivery efficiency 1Day
