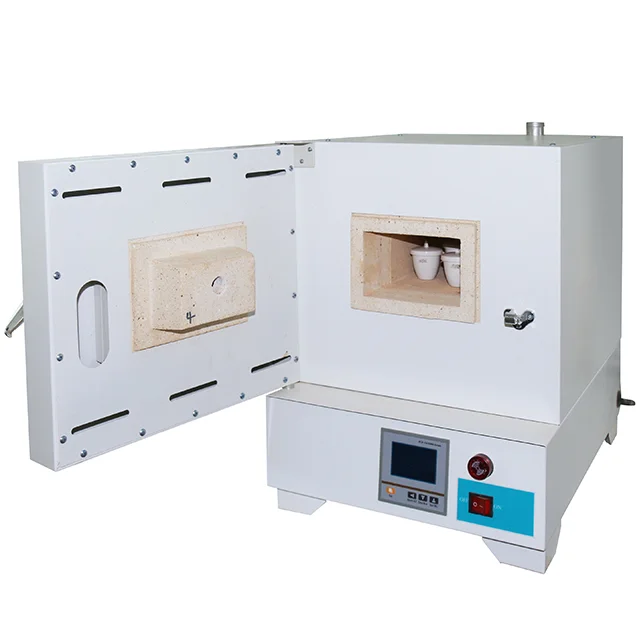

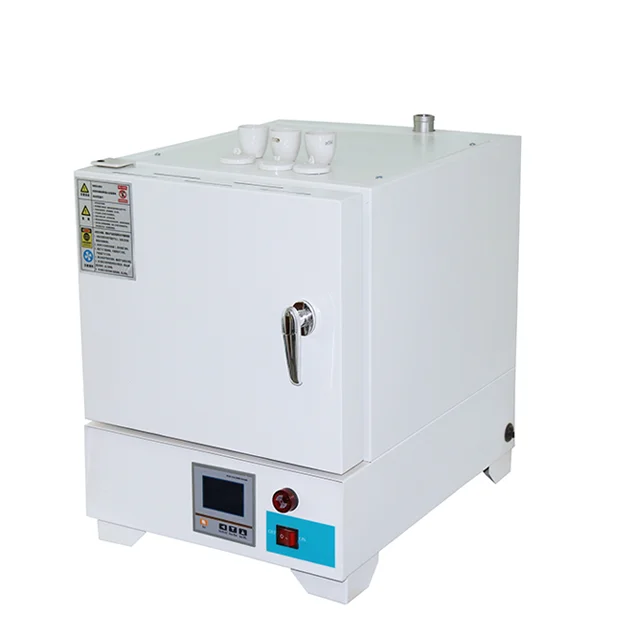

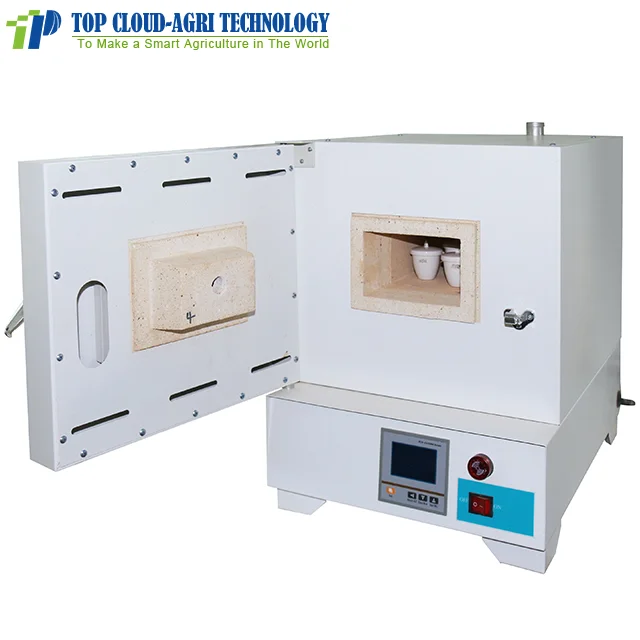

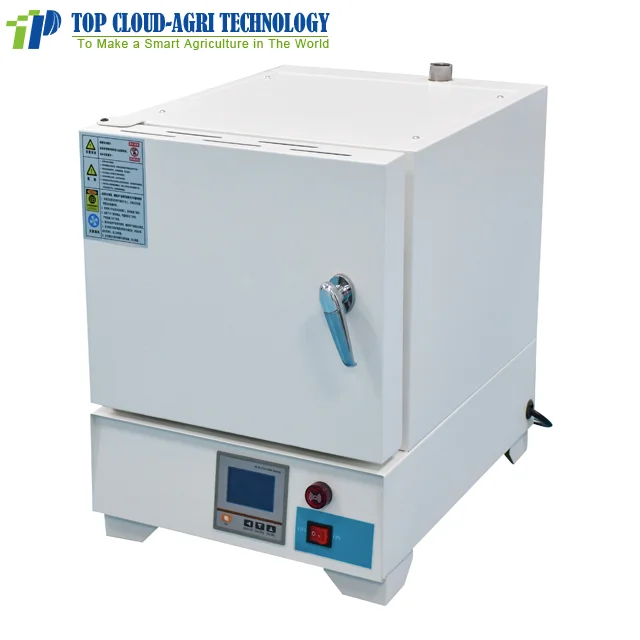

Metal Ceramic Compact Box Type Muffle Furnaces
- Category: >>>
- Supplier: Zhejiang Top Cloud-Agri Technology Co. Ltd.
Share on (1600687906337):
Product Overview
Description
Product Description
It is designed based on the company's many years of manufacturing experience. It is specially used for the laboratories of industrial and mining enterprises, colleges and universities, and scientific research units as high temperature heat treatment such as chemical element analysis and quenching, annealing, and tempering of small steel parts; it can also be used for high temperature heat treatment such as sintering, dissolution and analysis of metals, stoneware, and ceramics.
Features
■The unique design of the furnace door makes the opening operation safe and easy, and ensures that the high-temperature hot gas in the furnace does not leak.
■Microcomputer PID controller, easy to operate, accurate temperature control, reliable and safe.
■Corrosion-resistant and lightweight furnace to ensure durability.
■Excellent door sealing minimizes heat loss and increases the uniformity of temperature in the furnace.

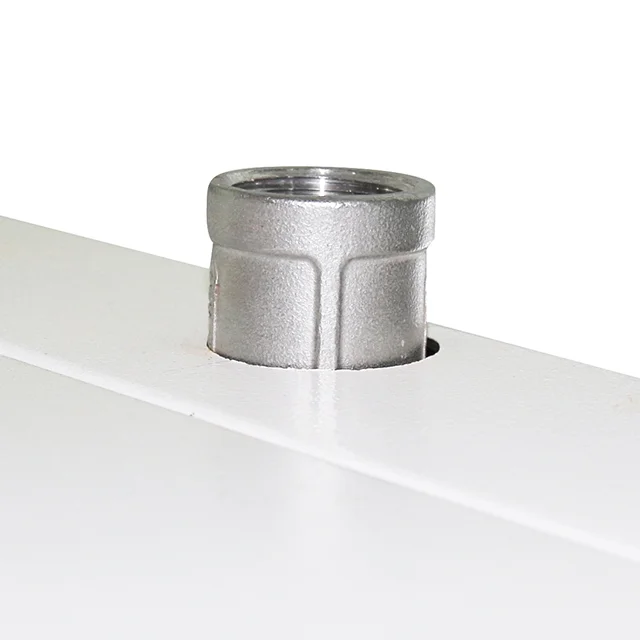

■The BZH series has been equipped with a unique air inlet and outlet and smoke exhaust device.
■QSZH series are equipped with air inlet and outlet devices on both sides of the front and back, which can be filled with inert gas, so that the heating device will not be oxidized and decarbonized.
■Microcomputer PID controller, easy to operate, accurate temperature control, reliable and safe.
■Corrosion-resistant and lightweight furnace to ensure durability.
■Excellent door sealing minimizes heat loss and increases the uniformity of temperature in the furnace.
■The BZH series has been equipped with a unique air inlet and outlet and smoke exhaust device.
■QSZH series are equipped with air inlet and outlet devices on both sides of the front and back, which can be filled with inert gas, so that the heating device will not be oxidized and decarbonized.
Specification

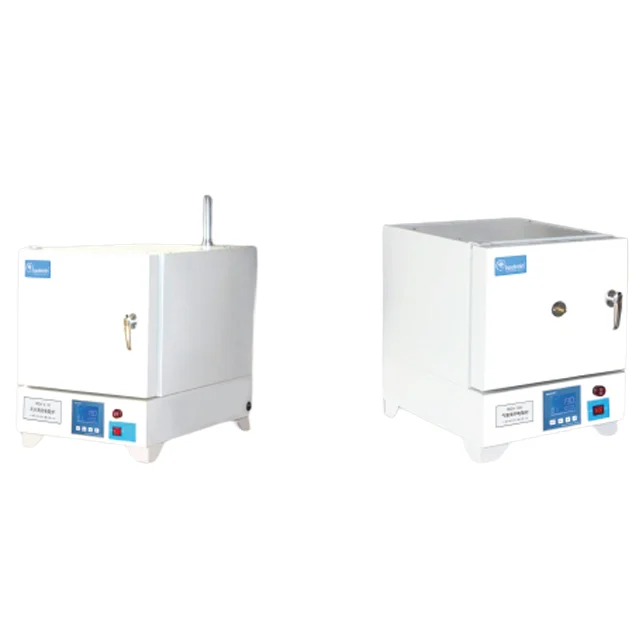

Model | Ash Resistance Furnace BZH Series / Atmosphere Protection Resistance Furnace QSZH Series | ||||||
BZH-2.5-10 | BZH-4-10 | BZH-8-10 | BZH-12-10 | ||||
QSZH-1002 | QSZH-1004 | QSZH-1008 | QSZH-1012 | ||||
Rated power | 2.5KW | 4KW | 8KW | 12KW | |||
Voltage | 220V | 380V | |||||
Heating element | Resistance wire | ||||||
Temperature measuring element | K-type thermocouple | ||||||
Liner size (mm) (Width x depth x height) | 120*200*80 | 200*300*120 | 250*400*160 | 300*500*200 | |||
Rated temperature | 1000°C | ||||||
Model | Ash Resistance Furnace BZH Series / Atmosphere Protection Resistance Furnace QSZH Series | ||||||
BZH-2.5-12 | BZH-5-12 | BZH-10-12 | BZH-12-12 | ||||
QSZH-1202 | QSZH-1205 | QSZH-1210 | QSZH-1212 | ||||
Rated power | 2.5KW | 5KW | 10KW | 12KW | |||
Voltage | 220V | 380V | |||||
Heating element | Resistance wire | ||||||
Temperature measuring element | K-type thermocouple | ||||||
Liner size (mm) (Width x depth x height) | 120*200*80 | 200*300*120 | 250*400*160 | 300*500*200 | |||
Rated temperature | 1200°C | ||||||
☞Hot Products
☞Related Products
Packing & Delivery
After-sale Service
We have a professional after-sales team with global service coverage and 24-hour time difference free to provide you with solutions.
FAQ
1. Are you a manufacturer or not?
Yes, we are.We have more than 300 workers and 26680 square meters of production base in Zhejiang province which is close to Shanghai and Ningbo port. Welcome to come and visit our factory.
2. How do you guarantee the quality of your products?
We have passed ISO9001 / 14001 / 45001 quality system certification. And has a professional quality inspection team of more than 30 inspectors. Adhere to the strict quality control of each process from raw materials to packaging.
3. What is your after-sales service?
The warranty time is 1 full year, lifelong maintenance.
4. How long is your delivery lead time?
It is generally 3-5 days, but it will vary according to different products and quantities.
Yes, we are.We have more than 300 workers and 26680 square meters of production base in Zhejiang province which is close to Shanghai and Ningbo port. Welcome to come and visit our factory.
2. How do you guarantee the quality of your products?
We have passed ISO9001 / 14001 / 45001 quality system certification. And has a professional quality inspection team of more than 30 inspectors. Adhere to the strict quality control of each process from raw materials to packaging.
3. What is your after-sales service?
The warranty time is 1 full year, lifelong maintenance.
4. How long is your delivery lead time?
It is generally 3-5 days, but it will vary according to different products and quantities.
5. OEM available?
Yes,OEM is acceptable. Please contact us for specific information.
Yes,OEM is acceptable. Please contact us for specific information.
Company Profile
TOP Cloud-agri was found on 2008. It is a national high-tech enterprise specializing in the design, development, manufacture and sales of agricultural testing instruments, laboratory equipment and smart agriculture. The core products of the company are testing instrument in seed shape measurement, seed breeding,sampling,cleaning,storage,seed vigor and health research, plant physiology, soil physical properties analysis, crops quality analysis, food safety detection, agriculture produce quality testing, plant protection, pest forecast and monitoring,weather monitoring, water quality detection, smart agriculture solutions, and other general laboratory devices.
Click on the image above for more company information
☞Certificate
TOP Cloud-agri has passed ISO9001:2015,ISO14001:2015,ISO45001:2018 .Now we are speeding up the construction of Three Major Base.
Up to now, TOP Cloud-agri has joined National 863 project, State Star Plan Project and others multiple national scientific research projects,and the company was awarded 18 national Invention patents, 40 utility model patents, 7 appearance patents, 140+ product software copyright, 39 software product registration; Meantime, TOP Cloud-agri has been identified as Zhejiang Provincial Academician Workstation, Provincial Enterprise Research Institute.
