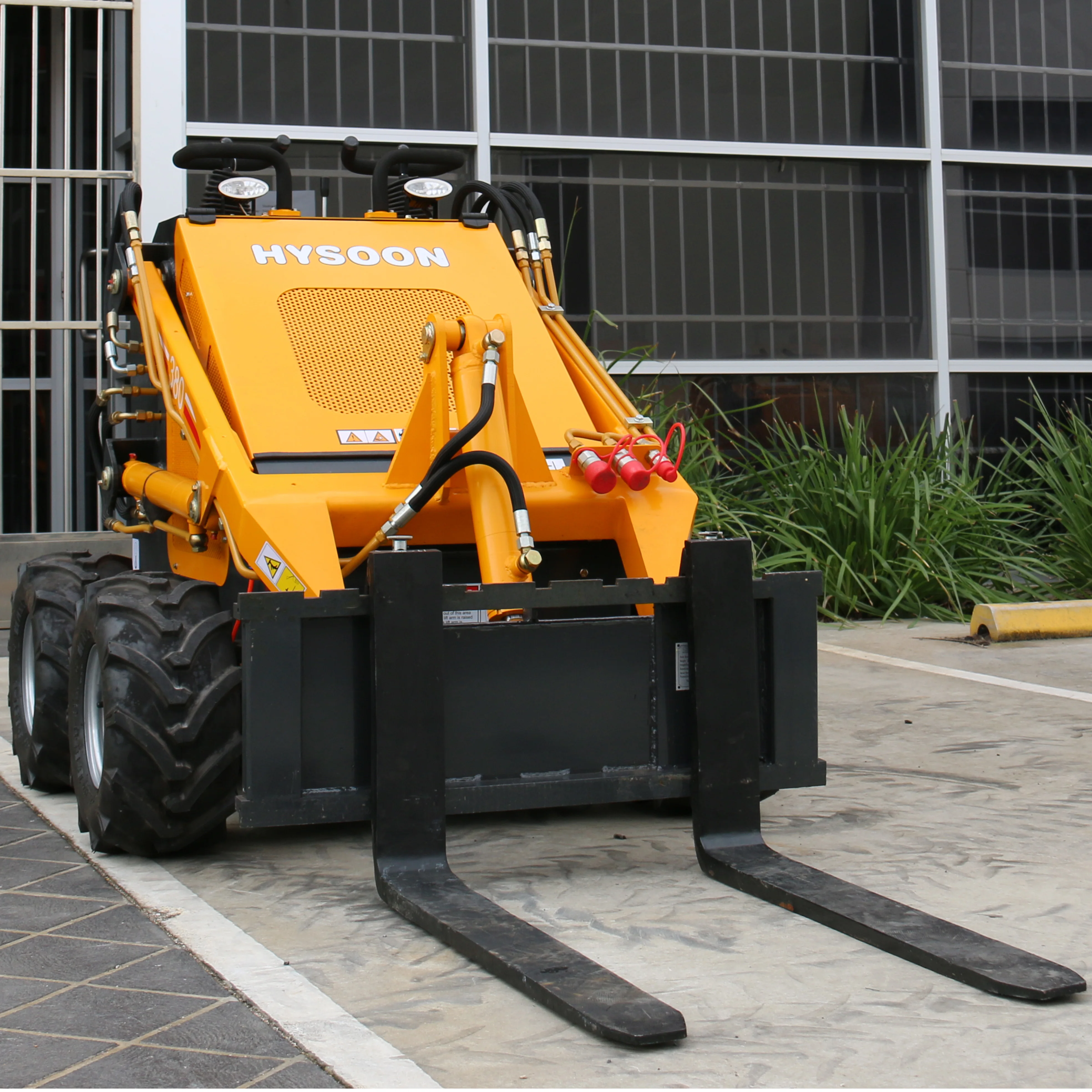

Hysoon mini skid steer loader

Share on:

Price:$7,200.00 - $7,500.00
Price in USD:Details


Product Overview



Hysoon  mini skid steer loader_02.jpg


 Hysoon  mini skid steer loader


ItemHysoon  mini skid steer loader
Wheel TypeTrack Type
Max working height(A)2143 mm2128 mm
Max pin height (B)1884 mm1869 mm
Max dump height(C)1488 mm1473 mm
The highest point discharge distance(D)348 mm399 mm
Total height (H)1233 mm1218 mm
The height from the ground(F)118 mm105mm
Wheelbase (G)636 mm612mm
No bucket length(J)1752 mm1752 mm
Total width (W)1160 mm1060 mm
Bucket width (K)980 mm980 mm
Total length(L)(with bucket)2206 mm2206 mm
Turning radius (R)1307 mm1317 mm
Bucket swing angle(β)55°55°
Bucket unloading angle(γ)30°30°
Opening-closing angle(θ)25°25°
Angle of departure(α)11°10°
EngineRated Power (KW)17.15KW
Rotating Speed3600rpm
Hydraulic SystemPressure17Mpa
Working Time(s)
Performance parametersOperating Load200kg
Bucket Capacity0.15m³
Max Lifting Force375kg
Travel Speed0-5.5km/h
Operating Weight890kg
 NormalOptional Item
EngineAmerican Briggs&Stratton gasoline engine 23HP.Kohler gasoline engine 23.5hp
PumpChinese gear pump, double pump.Chinese Triple pump; Italian servo pump(joystick)
ValveItalian double valve.Italian triple valve. Optional
Operating Handle:double hydraulic mechanical handles.one servo handle & one mechanical handle
Moving way:wheel type with engineering tires.wheel type with solid tires; rubber track type
Attachment:Original with a standard bucket.various attachments.


1. Easy controlled attachment joint and quick hitch plate, Hysoon  mini skid steer loader quickly and easily.

2. Folding pedal designed, the driver can stand up the pedal or walk behind to operate the machine.

3. Clear instrument panel sign, operating conveniently.

4. Joystick handle optional, operating more comfortably.

5. International warranty engine, enjoy local 3 years free engine maintenance.

6. Wheel type and track type of Hysoon  mini skid steer loader can be chosen.

7. Hysoon  mini skid steer loader is easier maintenance machinery, upper cover and back guard plate can be easily opened and dismounted, you also can easily discharge the wasted engine oil outside the body, replace the spare parts easily, like the filter, and engine oil, oil filter, spark plug and so on.



·Hysoon mini skid steer loadercan for various function. digging machine mini loader mini digger for garden mini skid steer trencher can attach different attachments, such as bucket, digger, auger, backhoe, hydraulic breaker, pallet forks, angle broom, sweeper,lawn mower, snow blower, stump grinder, tree spade, 4 in 1 bucket, leveler, dumping hopper, ripper, grapple , tiller, mixer, stone bucket, trailer, snow blade and so on, thus ensuring there is a tool for every job you can possibly imagine. If you can think of a job for the skid steer loader, chances are there is an attachment specific to that task.



·Hysoon  mini skid steer loader can be used in gardening, landscaping, road, farm, construction, meet different jobs.


·Hysoon  mini skid steer loader

Packaging for LCL: steel frame & plywood packaging


· Packaging for FCL
