Single Phase Front Board Installed Mechanical Energy Meter
US $8.30-$8.79

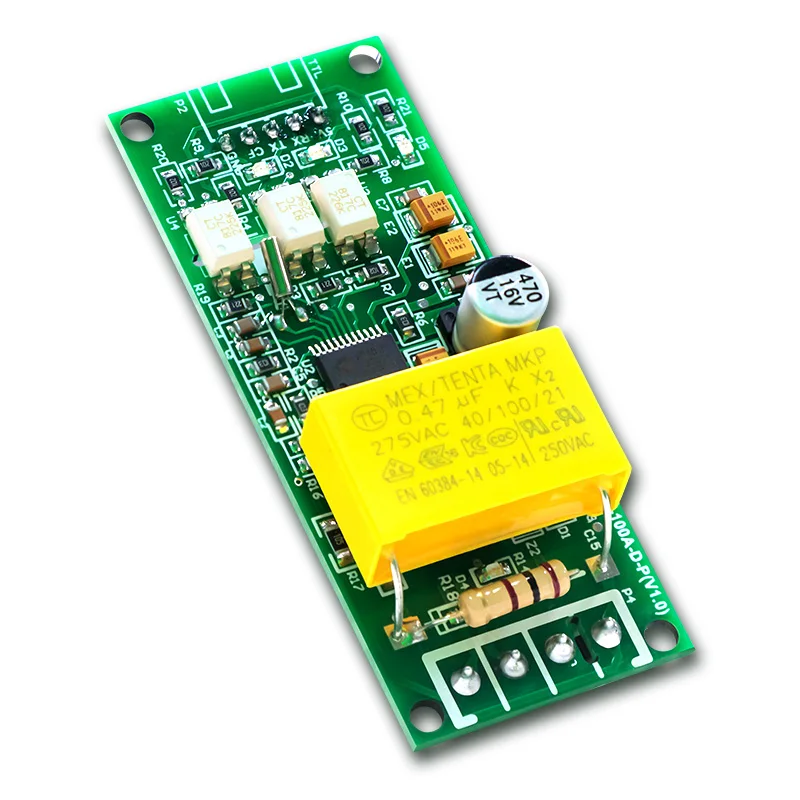

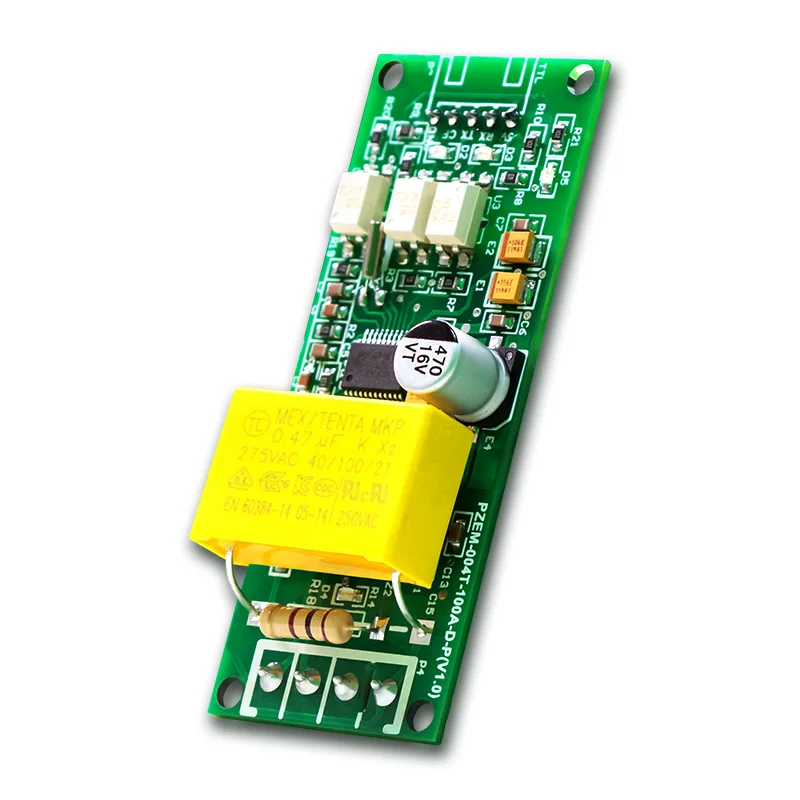

Peacefair PZEM004T D P PCB Only Single Phase Modbus Voltmeter Ammeter Smart Electricity Power Energy Meter Kwh Wattmeter TTL Pin
- Category: Electrical Instruments >>>
- Supplier: Ningbo Peacefair Electronic Technology Co. Ltd.
Share on (1600688013166):
Product Overview
Description

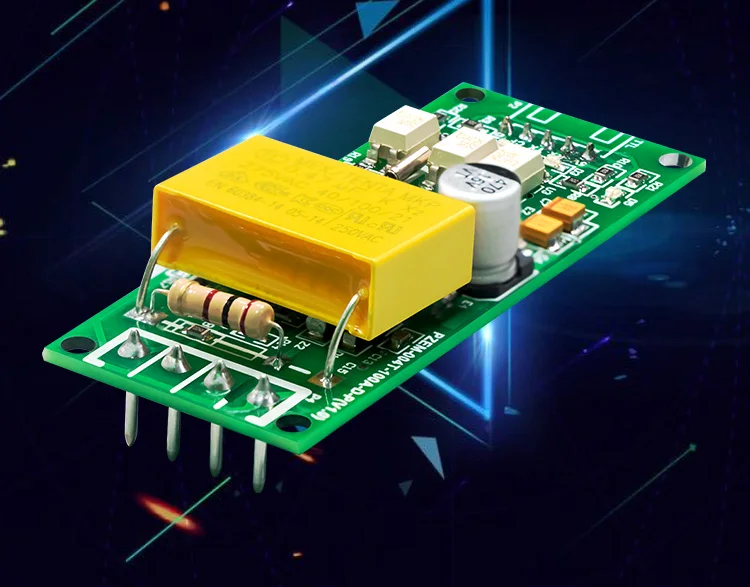

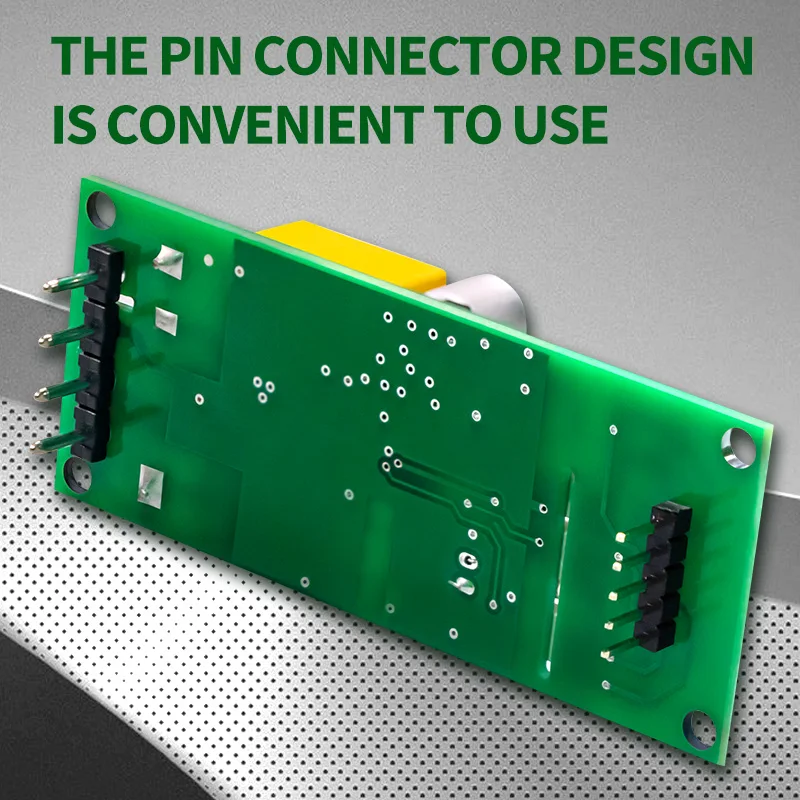

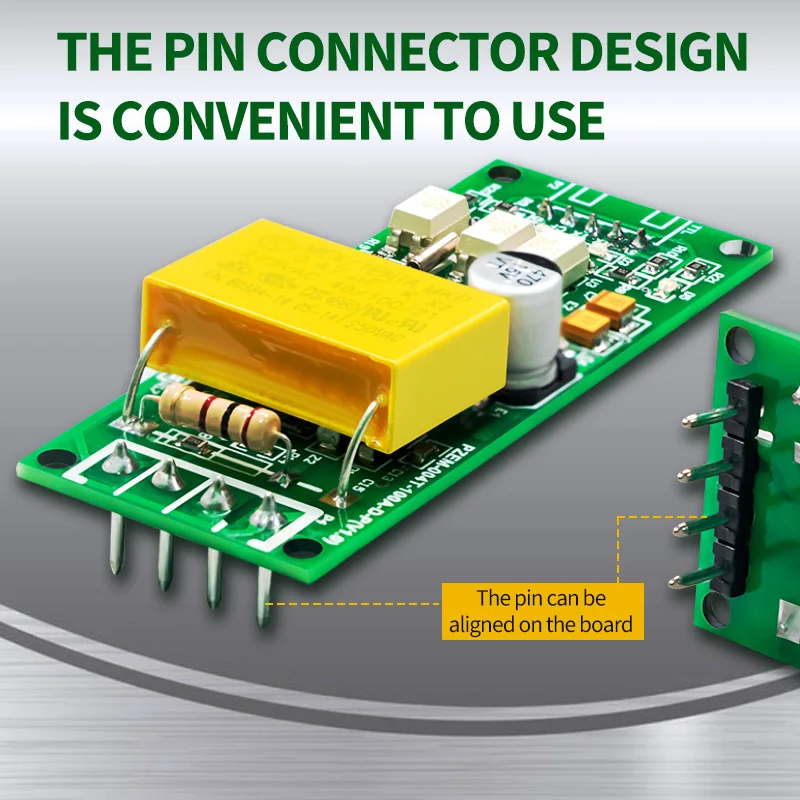

The new version for PZEM-004T which is with pin terminal connector and add pulse output
Very Important Notification:
This is type customized on the basis of the original function of PZEM-004T 3.0 version, it use the pin terminal connector on both
of the end on the PCB and add the pulse output function, the pulse constant is 1600mp

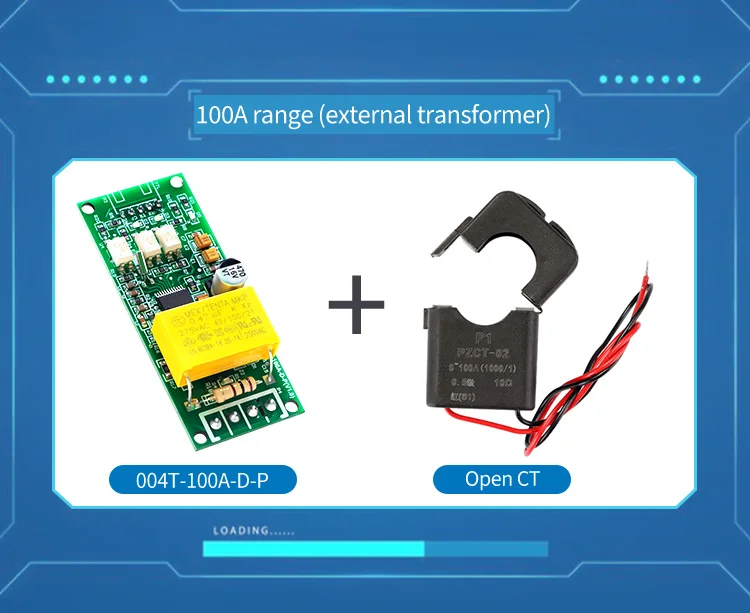

Input (Application):110/220VAC/100A

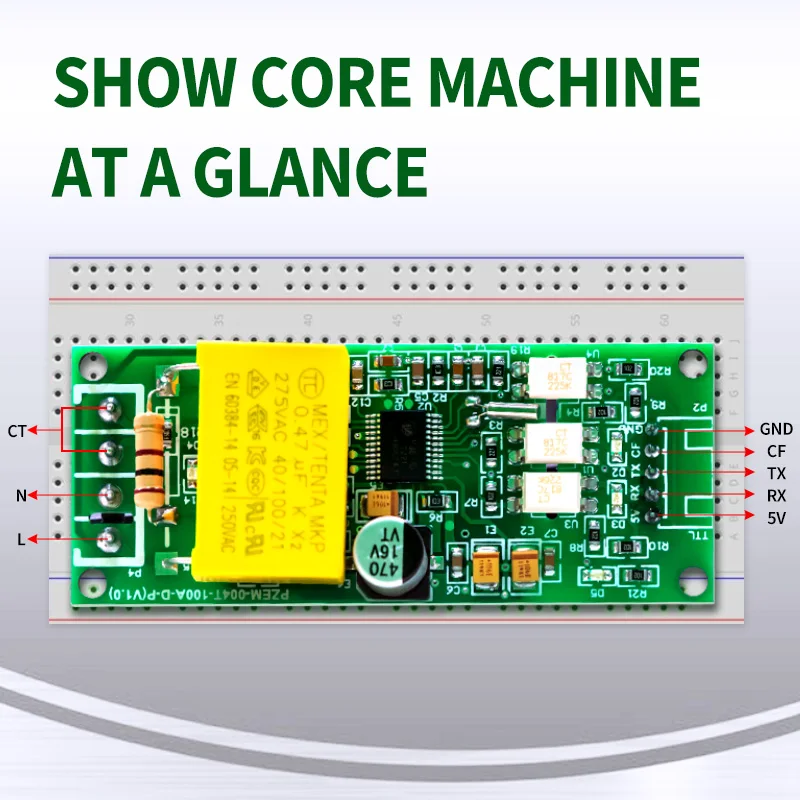

Output:RX TX CF GND
Power Supply:5V
Power:22KW max
All other function is as same as the PZEM-004T 3.0 version, please refer it.
Very Important Notification:
This is type customized on the basis of the original function of PZEM-004T 3.0 version, it use the pin terminal connector on both
of the end on the PCB and add the pulse output function, the pulse constant is 1600mp
Input (Application):110/220VAC/100A
Output:RX TX CF GND
Power Supply:5V
Power:22KW max
All other function is as same as the PZEM-004T 3.0 version, please refer it.

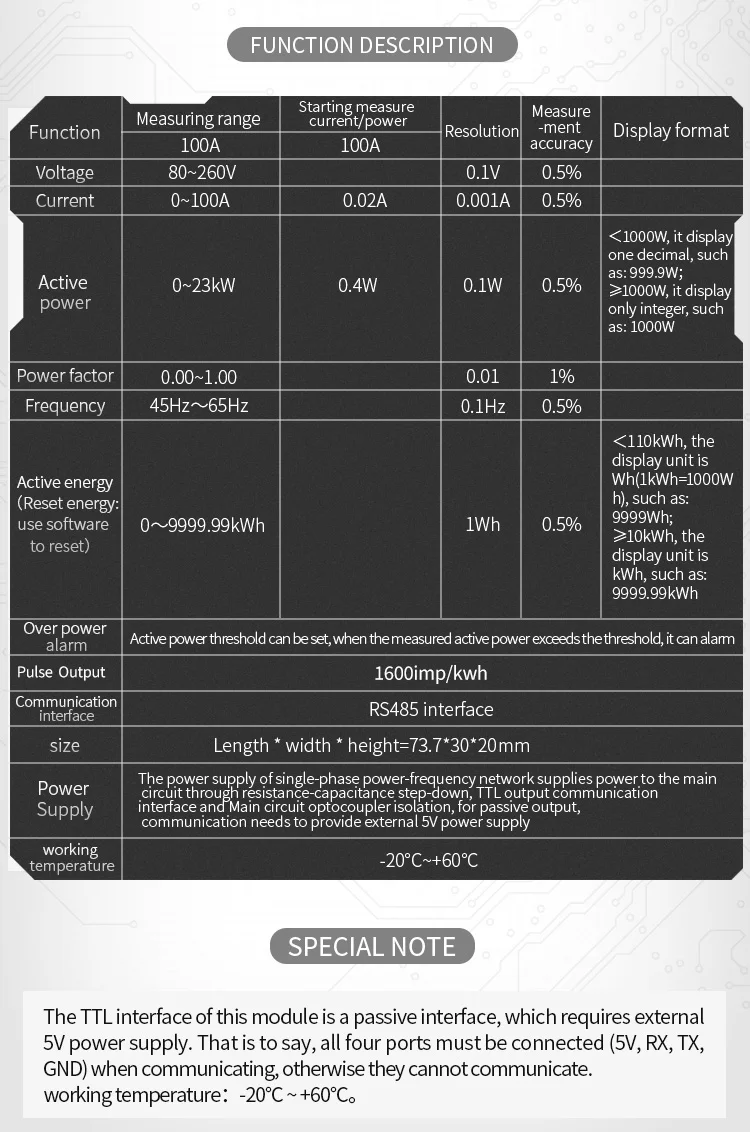

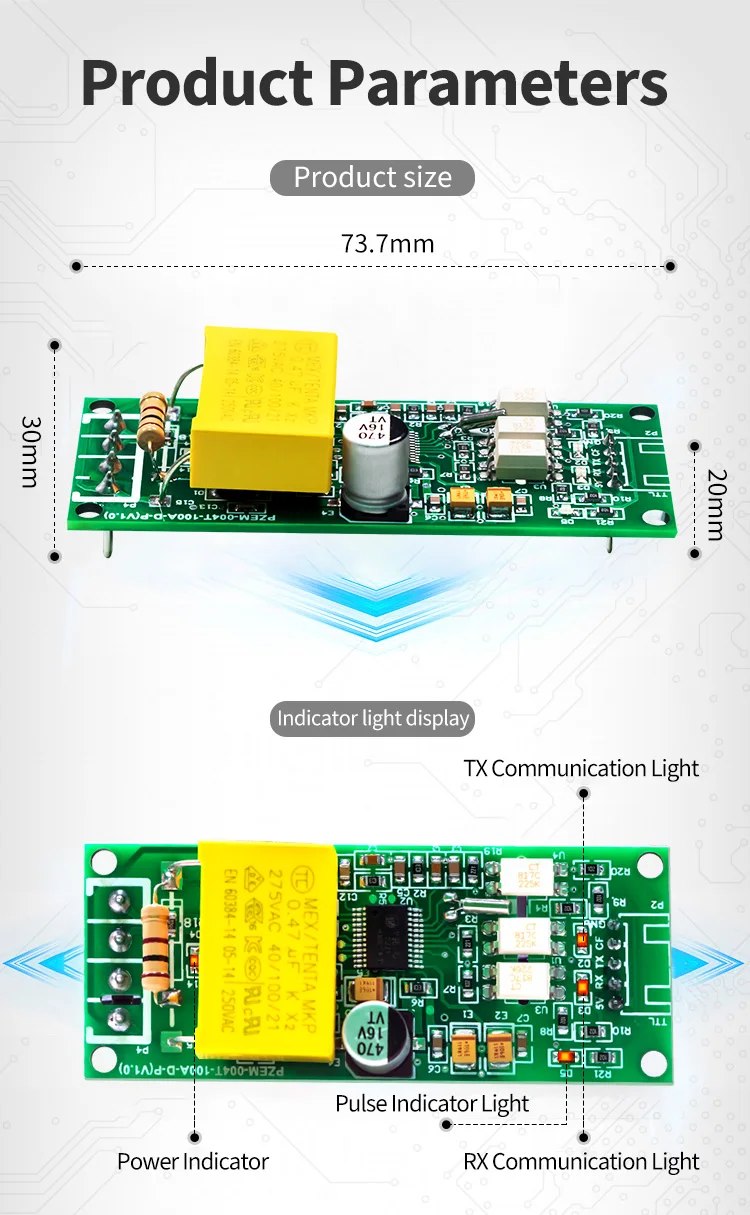

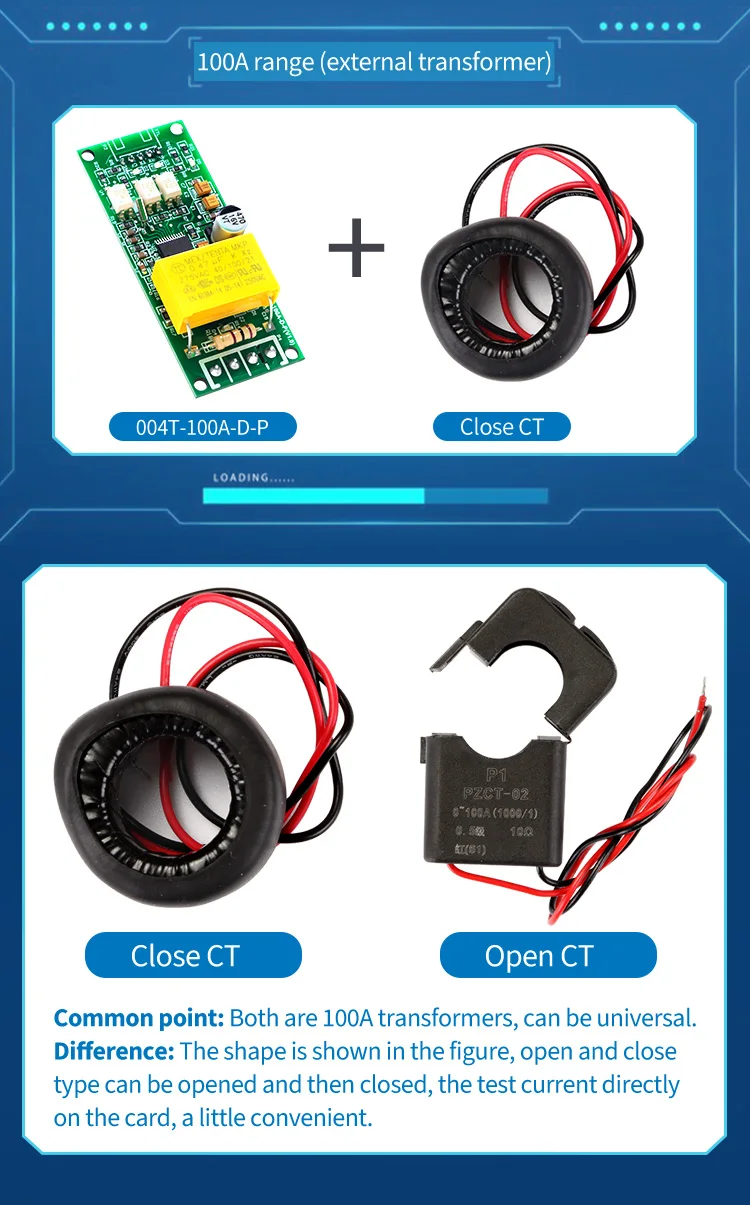

Model No. | PZEM-004T -D-P |
Voltage | Measuring range:80～260V Resolution: 0.1V |
Current | Measuring range:0-100A (with coil CT) Starting measure current: 0.02A Resolution: 0.001A |
Active power | Measuring range:0~23KW Starting measure power: 0.4W Resolution: 0.1W |
Power factor | Measuring range:0.00~1.00 Resolution: 0.01 |
Frequency | Measuring range:45Hz～65Hz Resolution: 0.1Hz |
Active energy | Measuring range:0～9999.99kWh Resolution: 1Wh |
Note:

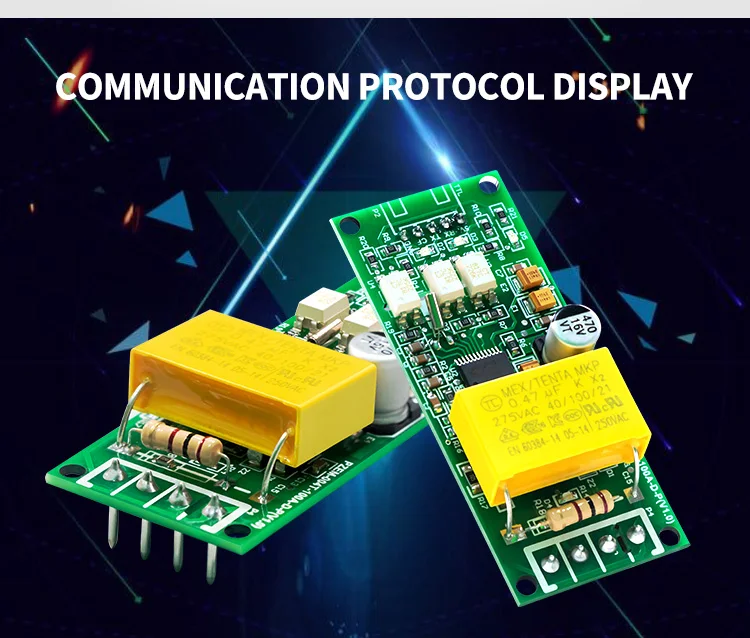

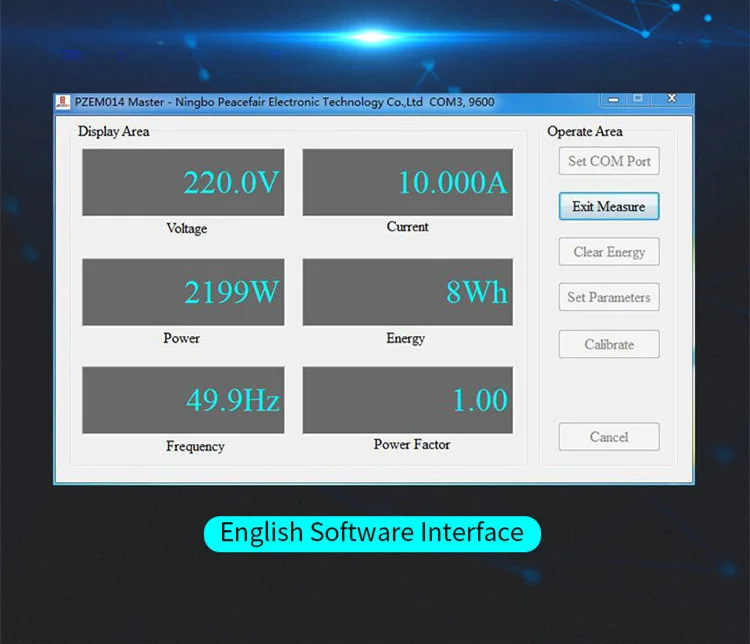

1. Communication interface
RS485 interface。
2. Physical layer protocol
Physical layer use UART to RS485 communication interface
Baud rate is 9600, 8 data bits, 1 stop bit, no parity
3. The TTL interface of this module is a passive interface, it requires external 5V power supply, which means, when communicating, all four ports must be connected (5V, RX, TX, GND), otherwise it cannot communicateRS485 interface。
2. Physical layer protocol
Physical layer use UART to RS485 communication interface
Baud rate is 9600, 8 data bits, 1 stop bit, no parity
4. Working temperature
-20’C ~ +60’C
-20’C ~ +60’C
