Product Overview
Description
Products Description

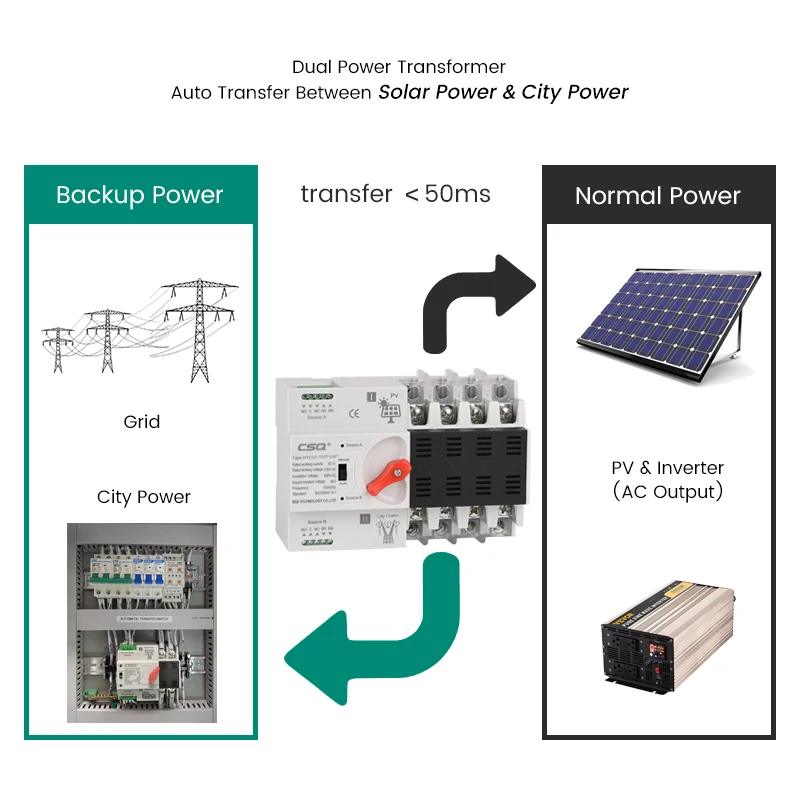

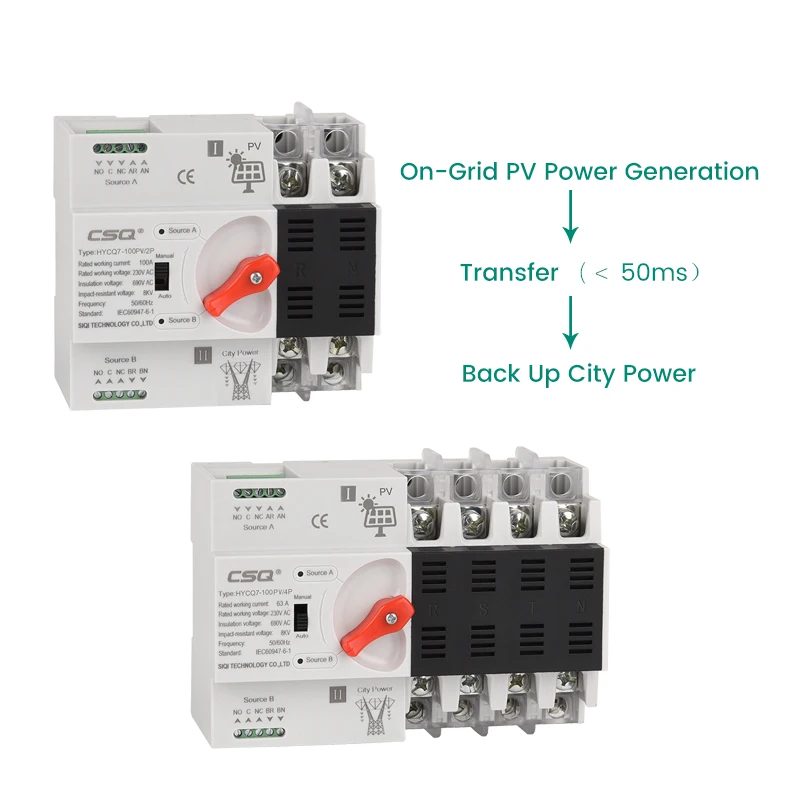

HYCQ7-100PV series new design automatic transfer switches are new developed micro household power transfer switch.. The switch is mainly used for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once, which therefore ensures the continuirty, reliability, and safety of power supply. The product is specially designed for household orbit-type installation and specially use in PZ30 power distribution box.
Product Paramenters

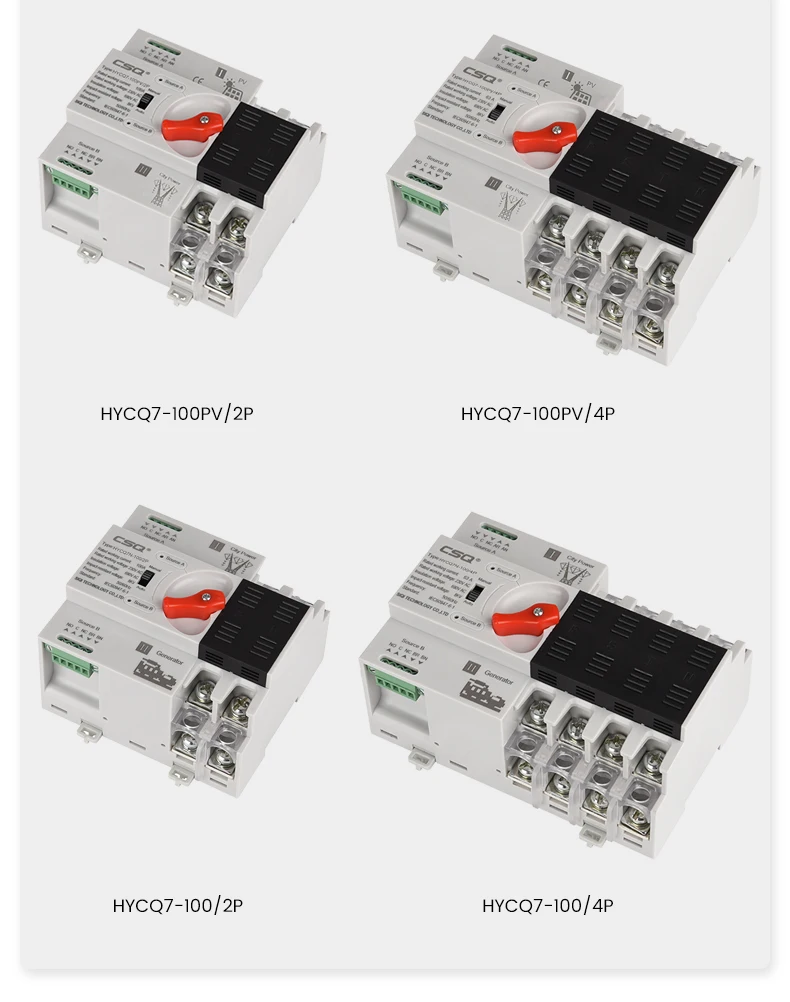

Model | HYCQ7-100PV | ||||||
Poles | 2,4 | ||||||
Rated Current Ie (A) | 10A~100A | ||||||
Installation | Din rail | ||||||
Rated insulation voltage Ui (V) | AC690, 50HZ | ||||||
Rated working voltage Ue (V) | AC400, 50HZ | ||||||
Rated impulse withstand voltage (KV) | 8KV | ||||||
Connecting and breaking | 6.0Ie 1.05Ue cosØ=0.50±0.05, 50 times | ||||||
Operating performance | 2.0Ie 1.05Ue cosØ=0.80±0.05, 6000 times | ||||||
Rated limited short-circuit current Iq | 50KA | ||||||
SCPD (FUSES ) | RT16-00-63A | ||||||
Control circuit | Rated supply voltage Us: AC220V, 50HZ. Working condition:85% Us~110% Us | ||||||

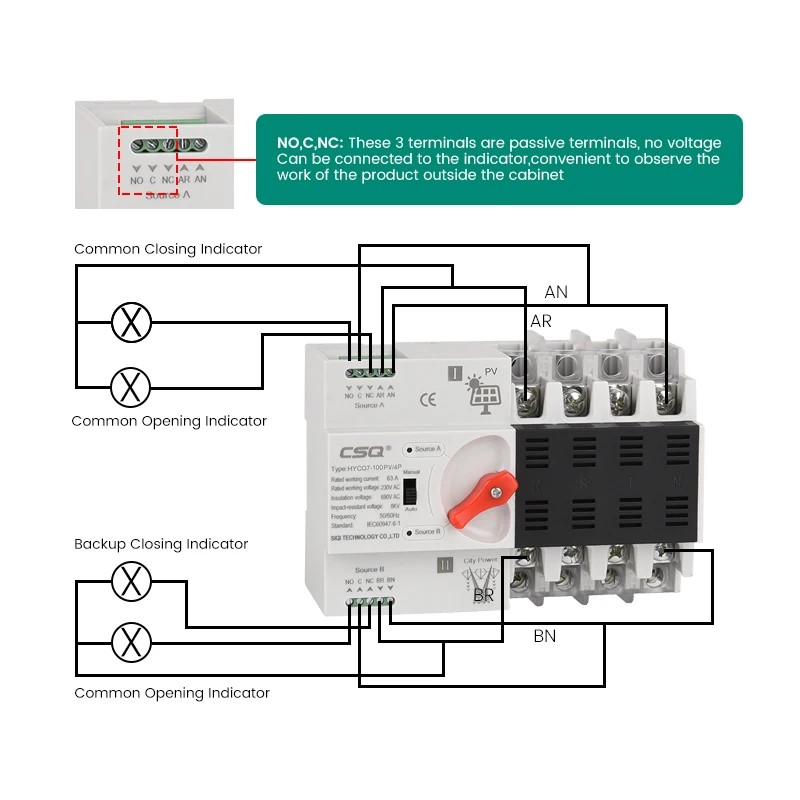

Ancillary circuit | Two isolated relays, each relay with 2 groups of passive switch contact. Contact capacity: AC220 50Hz, Ie=5A | ||||||
Switching time | <50ms | ||||||
Action time | <50ms | ||||||
