Product Overview
Description

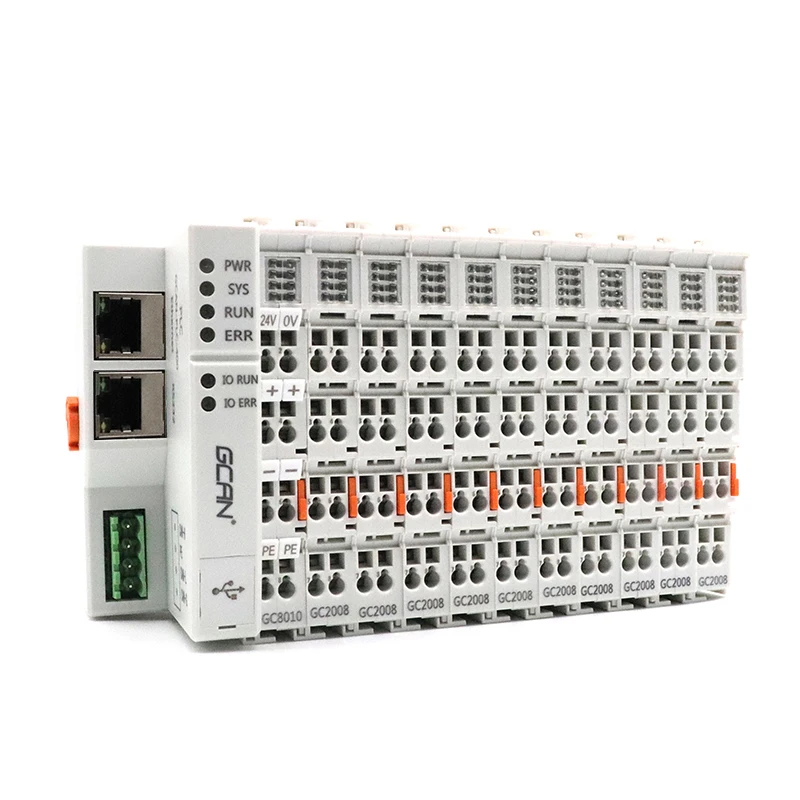

GCAN PLC Controller
The GCAN-PLC module consists of a programmable control module (GCAN-PLC-400/510/511) and several I/O modules (GC-1008/2008/…). The control module has a variety of fieldbus communication interfaces that allow users to connect to the network and communicate with other devices.
MODULAR DESIGN
EASY TO USE
EASY NETWORKING
SMALL SIZE
VARIOUS INTERFACES
Main Control Modul
IO Modules
Terminal Module

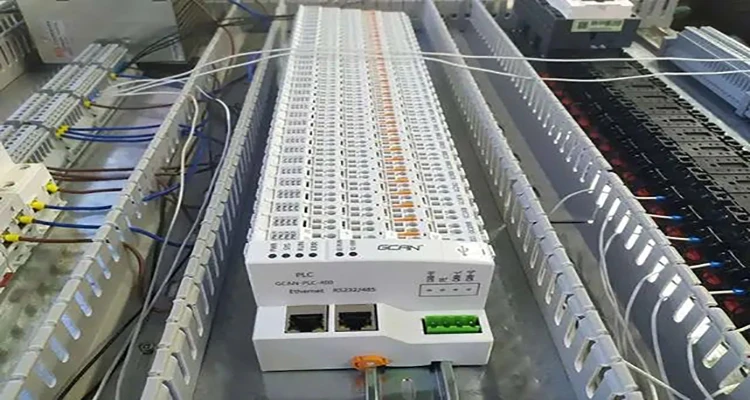

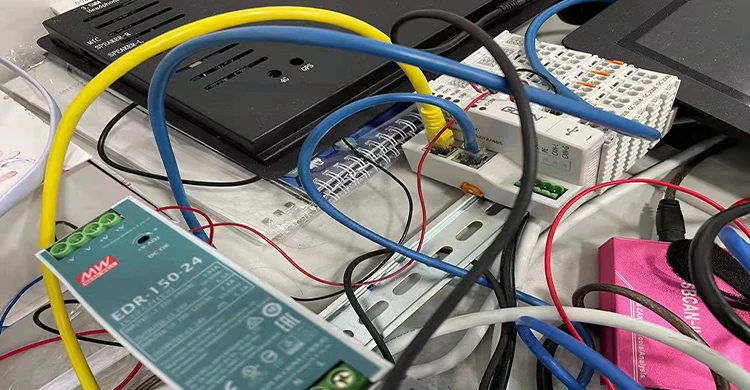

Successful Project
PRODUCT SPECIFICATIONS
Model | Characteristic | Communication bus |
GCAN-PLC-400 | CPU frenquency 168M | 1*CAN+1*Ethernet+ 1*RS232(or RS485) |
Program storage:16M byte | ||
Data storage:512K byte | ||
GCAN-PLC-510 | CPU frenquency 400M | 1*CAN+1*Ethernet+ 1*RS232(or RS485) |
Program storage:32M byte | ||
Data storage:16M byte | ||
GCNA-PLC-511 | CPU frenquency 400M | 1*CAN+1*Ethernet+ 1*RS232+1*RS485 |
Program storage:32M byte | ||
Data storage:16M byte |
1 | CAN bus interface, with ISO11898 standard | ||||||
2 | Ethernet interface, 10/100M adaptive | ||||||
3 | Serial interface, RS232 or RS485 | ||||||
4 | Programming: OpenPCS (support SFC, LD, FBD, ST, IL of IIEC 61131-3 standard) | ||||||
5 | Power supply: 24V DC (18~36V) | ||||||
6 | Maximum number of I/O modules to fit: 32 (up to 32*8 I/O points) | ||||||
7 | Working temperature and humidity: -40°C~+85 °C, 0-95% RH without condensation | ||||||
8 | Dimensions: 97 mm*68 mm*47 mm | ||||||

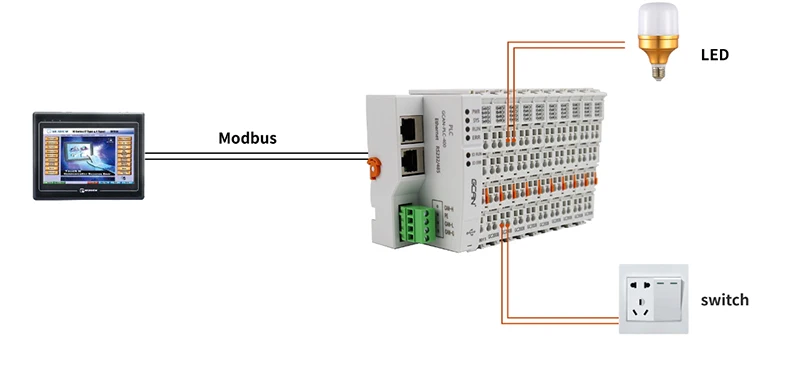

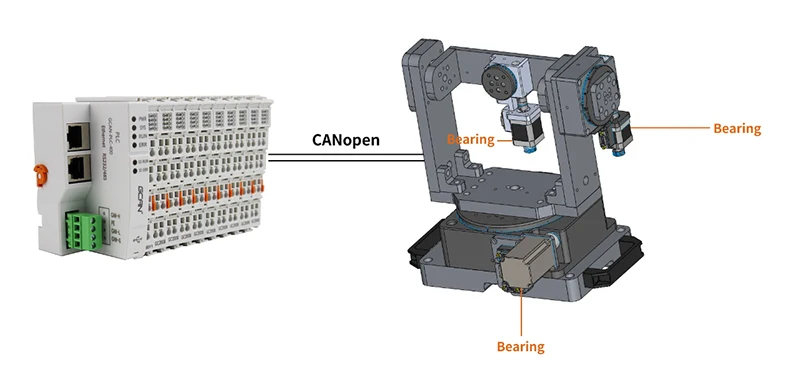

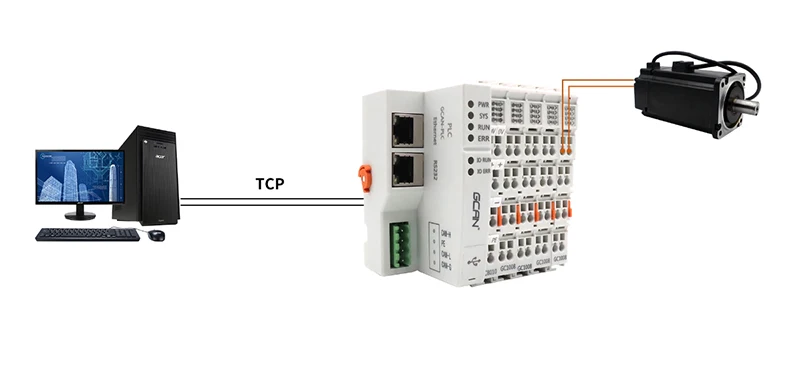

Application
IO Modules
I/O | Type | Characteristic | Signal | Channel |
Digital | GC-1008 | Digital input(PNP) | 24V DC | 8-channel |
GC-1018 | Digital input(NPN) | 24V DC | 8-channel | |
GC-1502 | Counter(200kHz max) | - | 2-channel | |
Digital | GC-2008 | Digital output(PNP) | 24V DC | 8-channel |
GC-2018 | Digital output(NPN) | 24V DC | 8-channel | |
GC-2204 | Relay output | - | 4-channel | |
GC-2302 | PWM(20Hz~200kHz) | - | 2-channel | |
Analog input | GC-3604 | Voltage input, 16 bits | -5~+5V | 4-channel |
GC-3624 | Voltage input, 16 bits | 10V~+10V | 4-channel | |
GC-3644 | Current input, 16 bits | 0-20mA | 4-channel | |
GC-3654 | Current input, 16 bits | 4-20mA | 4-channel | |
GC-3664 | Voltage inptu, 16 bits | 0~+5V | 4-channel | |
GC-3674 | Voltage input, 16 bits | 0~+10V | 4-channel | |
GC-3804 | 2-wire PT100, 16 bits | Thermal resistance | 4-channel | |
GC-3814 | 2-wire PT1000, 16 bits | Thermal resistance | 4-channel | |
GC-3822 | 3-wire PT100,16 bits | Thermal resistance | 2-channel | |
GC-3832 | 3-wire PT1000,16 bits | Thermal resistance | 2-channel | |
GC-3844 | K type thermocouple | Thermocouple | 4-channel | |
GC-3854 | S type tyhermocouple | Thermocouple | 4-channel | |
GC-3864 | T type thermocouple | Thermocouple | 4-channel | |
GC-3874 | J type thermocouple | Thermocouple | 4-channel | |
Analog output | GC-4602 | Voltage output, 16 bits | -5V~+5V | 2-channel |
GC-4622 | Voltage output, 16 bits | -10V~+10V | 2-channel | |
GC-4642 | Current output, 16 bits | 0-20mA | 2-channel | |
GC-4652 | Current output, 16 bits | 4-20mA | 2-channel | |
GC-4662 | Voltage output, 16 bits | 0-5V | 2-channel | |
GC-4672 | Voltage output, 16 bits | 0-10V | 2-channel | |
GC-4674 | Voltage output, 12 bits | 0-10V | 4-channel | |
Special module | GC-6101 | RS232/RS485 extension | - | - |
GC-6201 | GPRS extension | - | - | |
GC-6501 | WIFI extension | - | - | |
GC-8012 | Power extension | - | - |
Delivery & after-sales
After-sale service
Our main products are all independent research and development.We provide one year free after-sales warranty,lifetime free software and technical support if you have any question，our after-sales engineer will answer for you,please feel free to purchase.

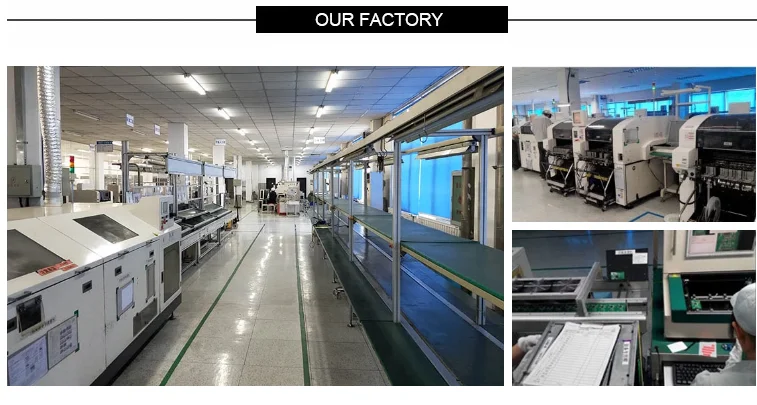

Factory
