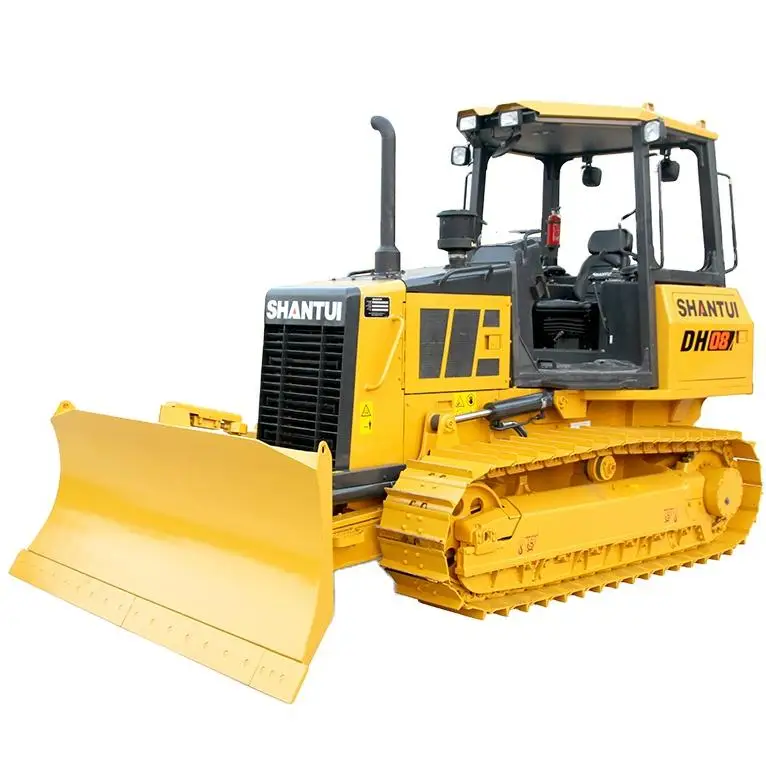

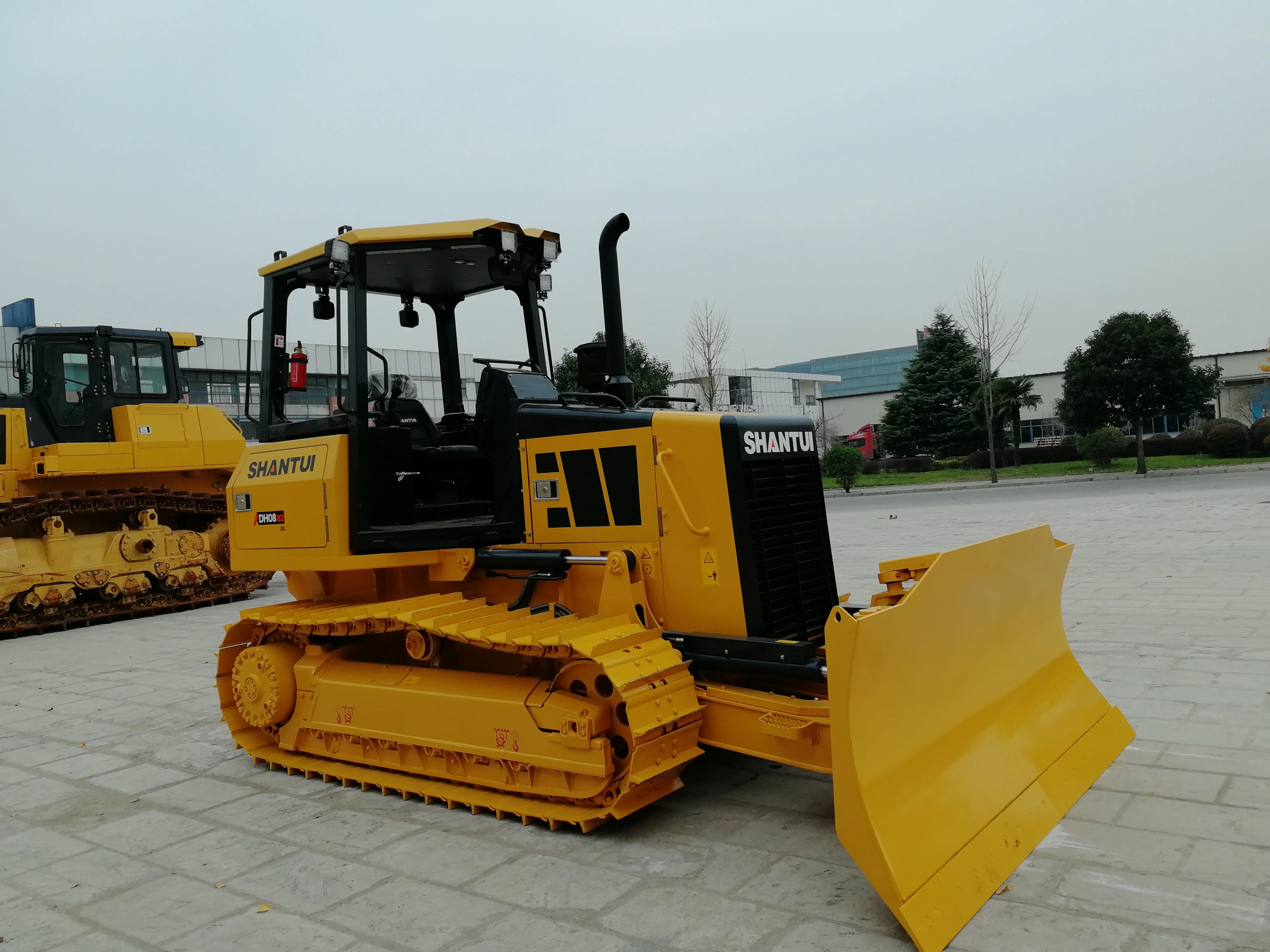

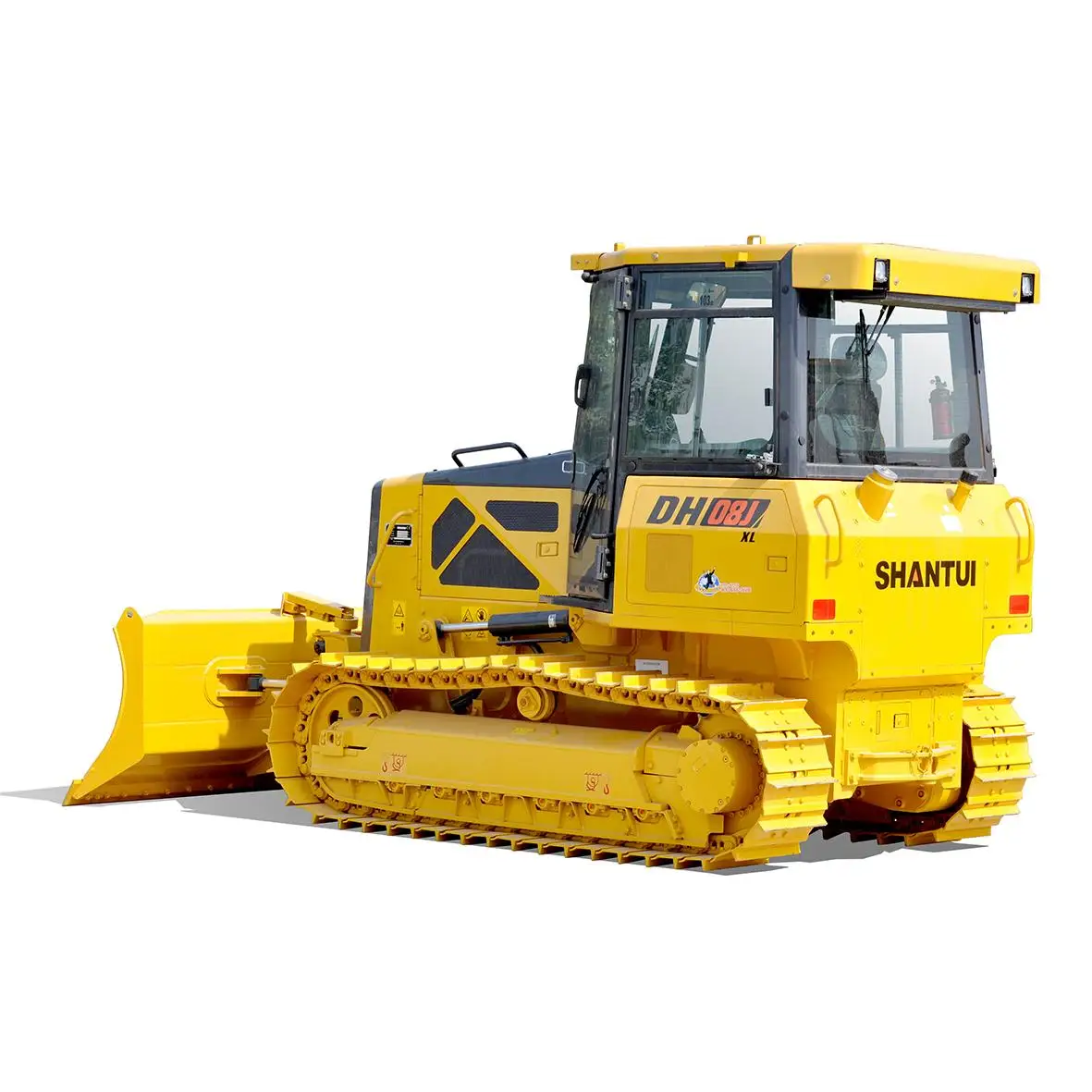

Высокопроизводительный мини гусеничный бульдозер по выгодной цене
- Category: >>>
- Supplier: Qingzhou Changhui International Trade Co. Ltd.
Share on (1600688200310):
Product Overview
Description
Product Description
Specification
* DH08B2 Shantui Bulldozer features

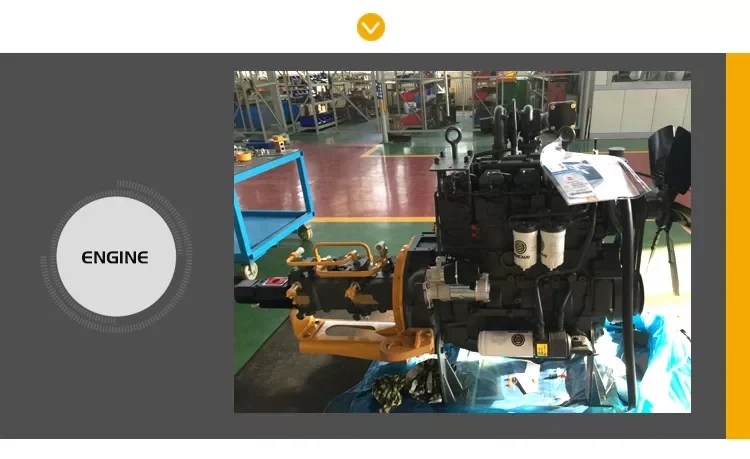

China Stage II emission Weichai mechanical engine that meets the national non-road machinery emission
requirements, the parts are versatile and the maintenance cost is low.
* Intelligent matching technology to achieve the highest efficiency and the most reasonable fuel economy.
requirements, the parts are versatile and the maintenance cost is low.
* Intelligent matching technology to achieve the highest efficiency and the most reasonable fuel economy.

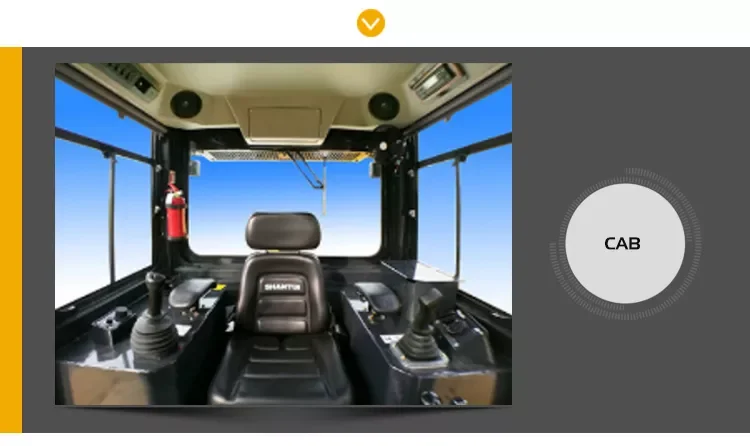

Shantui dozer cab
* The ergonomic hexahedron integrated cab has large space, good view and tight seal.
* Suspended single-throttle pedal, small size, large foot movement space, comfortable operation.
* The adjustable range of seat and armrests provides the driver with the most comfortable posture.
* Standard cab + air-conditioning, the whole cab adopts a sealed vibration damping system equipped with sound-absorbing sponge,
vibration noise is small and the driver's ear noise can be reduced to 85 decibels.
* Intelligent display and control terminal integrated instrument, cigarette lighter, USB charging port, radio, toolbox, sunshade,
fire extinguisher, etc., to provide a richer humanized driving experience, comfortable and safe driving environment.
* The vehicle safety passage system ensures the safety of the driver.
* Suspended single-throttle pedal, small size, large foot movement space, comfortable operation.
* The adjustable range of seat and armrests provides the driver with the most comfortable posture.
* Standard cab + air-conditioning, the whole cab adopts a sealed vibration damping system equipped with sound-absorbing sponge,
vibration noise is small and the driver's ear noise can be reduced to 85 decibels.
* Intelligent display and control terminal integrated instrument, cigarette lighter, USB charging port, radio, toolbox, sunshade,
fire extinguisher, etc., to provide a richer humanized driving experience, comfortable and safe driving environment.
* The vehicle safety passage system ensures the safety of the driver.
Shantui Bulldozer Control Room

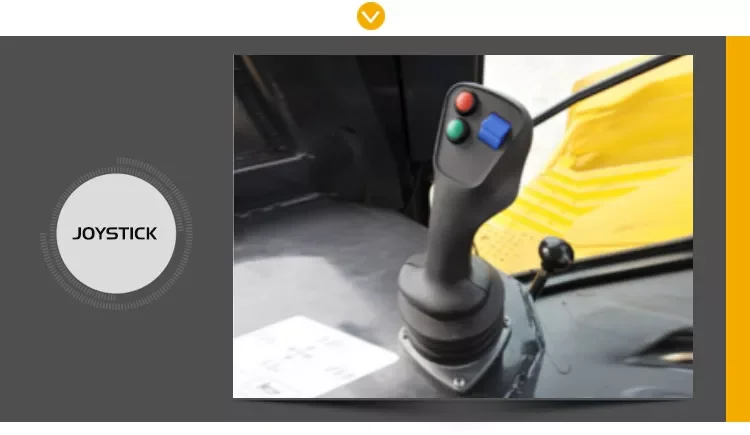

*The walking control adopts electric control single handle operation, the working device operates the pilot single handle
operation, the operation is flexible, light and comfortable.
operation, the operation is flexible, light and comfortable.
Shantui Bulldozer Chassis system

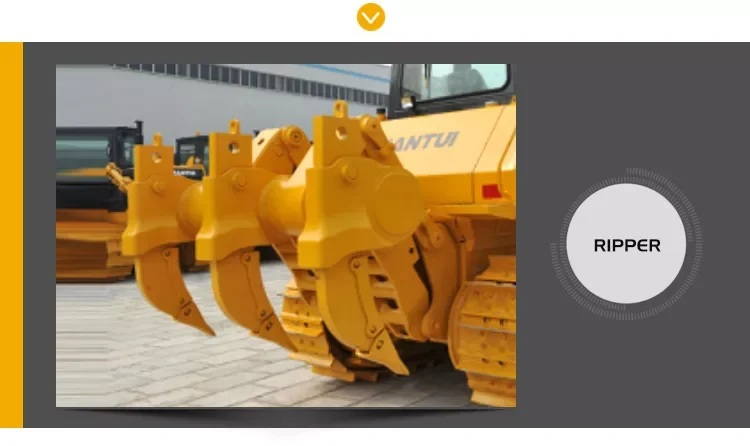

* The chassis system has a long grounding length, large ground clearance, stable driving, good passability, standard traction frame, and optional three-jaw ripper.

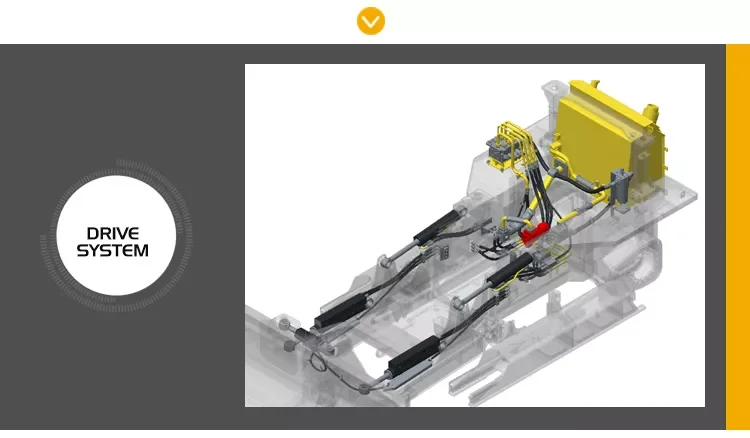

Shantui dozer drive system
* The machine adopts double-circuit electronically controlled static pressure drive system that can be loaded with steering,in-situ steering, stepless speed regulation, flexible and efficient and excellent performance in narrow site construction.

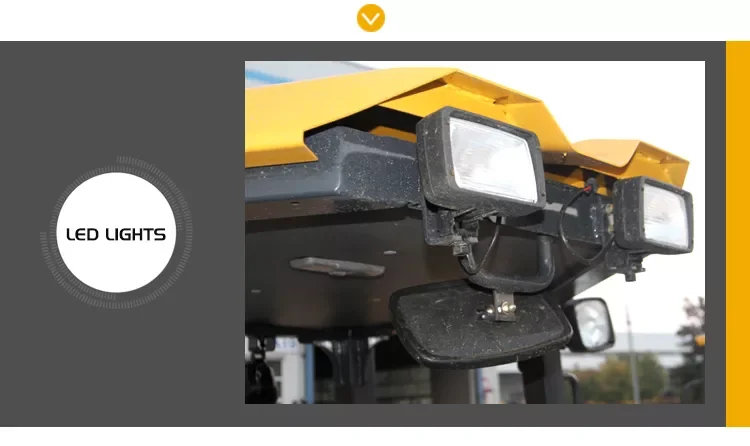

Shantui DH08 Bulldozer Led Light
* Standard LED work lights with higher brightness, improve nighttime construction lighting, and be safer and more reliable.
High Performance Mini Crawler Bulldozer with Favorable Price.
Engine | Model & Type | Weichai WP4, China II emission mechanical pump engine |
Engine size | 915x624x944 mm | |
Net Pover | 63kW/2200rpm | |
Piston Displacement | 4.5 L | |
Engine weight | 550 kg | |
Maximiun Torque | 380 N.m@ 1400-1600 rpm | |
Type | Electronic control | |
Traveling pump (Rexroth) | 2 | |
Traveling motor (Rexroth) | 2 | |
Traveling system pressure | 40 Mpa | |
Forward | 0-9 km/h | |
Reverse | 0-9 km/h | |
Carrier rollers | 1 each side | |
Track rollers | 6 each side | |
Width of track shoes | 460 mm | |
Pitch | 154 mm | |
System | Type | 2 way bhydraulic pilot control +1 way electric bhydraulic hybrid control |
Maximum pressure | 21 MPa | |
Working pump (Parker} | 1 | |
Main valve (Hydrocontrol) | 1 | |
Blade type | VPAT-blade | |
Dozing capacity | 1.93 m3 | |
Blade width | 2680 mm | |
Blade height | 950 mm | |
Maximum drop below ground | 515 mm | |
Maximum lfting height | 750 mm | |
Maximum tilt | 350mm |
Our Advantages
Company Profile
After-sale Service
Six Free Services
Free technical enquiries with our experts.
Free repair service during warranty period.
Free special services for all key construction projects.
Free 0 hour service upon deliver of machine.
Free training of operators and repairs staff.
Free maintenance service tracking (customer to provide resources)
Product and Technical Inquiries
We have established a team of specialists, knowledgeable in our products and services, in order to provide information and answers to our customers on technical issues.
Special Services for Key Projects
If Shantui machinery is in operation in key projects on a provincial level or higher, the customer will receive special services from Shantui (free special coating service, on-site service, extended on-site service). These special services will allow customers to work more freely without any worries.
Free technical enquiries with our experts.
Free repair service during warranty period.
Free special services for all key construction projects.
Free 0 hour service upon deliver of machine.
Free training of operators and repairs staff.
Free maintenance service tracking (customer to provide resources)
Product and Technical Inquiries
We have established a team of specialists, knowledgeable in our products and services, in order to provide information and answers to our customers on technical issues.
Special Services for Key Projects
If Shantui machinery is in operation in key projects on a provincial level or higher, the customer will receive special services from Shantui (free special coating service, on-site service, extended on-site service). These special services will allow customers to work more freely without any worries.
