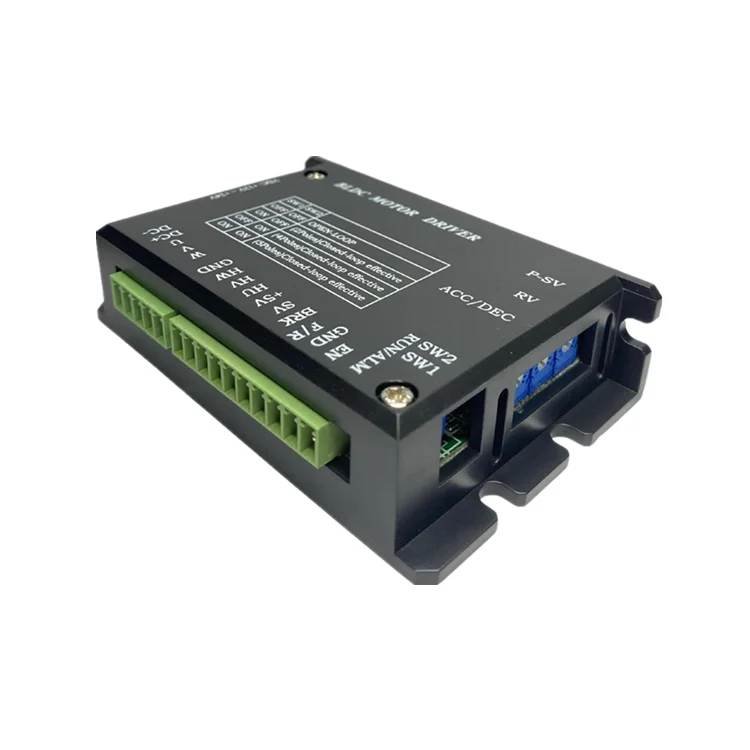

BLD-120B Motor Driver

BLD120B is a high- performance low-cost driver designed by ICAN-Tech and mainly for low voltage BLDC motor between 10W-120W.

FEATURES AT A GLANCE

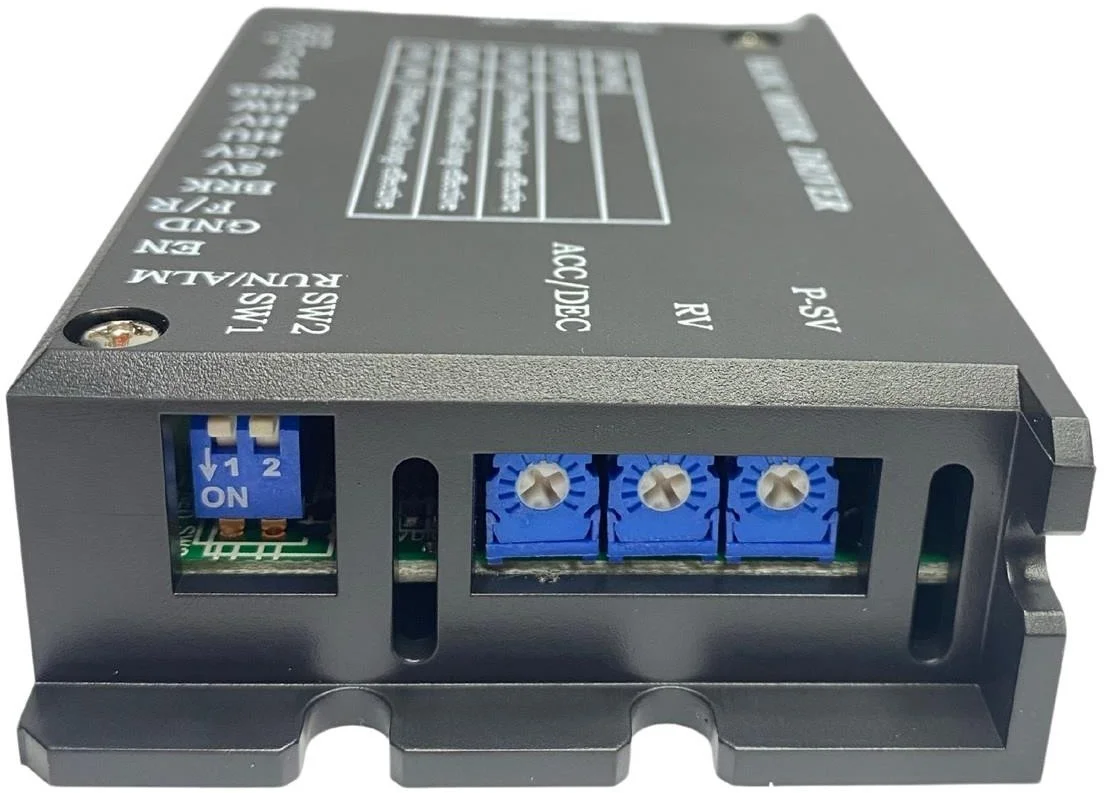

* Output power adjustment;

* Built-in RV speed setting
* External potentiometer analog speed setting;
* Open/ closed loop control;
* Supportrated power of 10W~120W;
* 5Swaiting time for locked-rotor;
* Alarm indication

PRODUCT SPECIFICATIONS

Electrical properties
Driver parameter	Min Value	Typical Value	Max Value
Voltage input DC (V)	12	24	30
Busbar Current output(A)	-	6.2	-
Phase Current Peak(A)	-		12
Motor rotor speed range(rpm)	100	-	-

Environmental indicators
Heat Sinking Method	Natural cooling or fan-forced cooling
Atmosphere	Avoid dust, oily mist and corrosive air
Operating Temperature	-30°C 〜+55 °C
Storage Temperature	-30°C 〜+70 °C

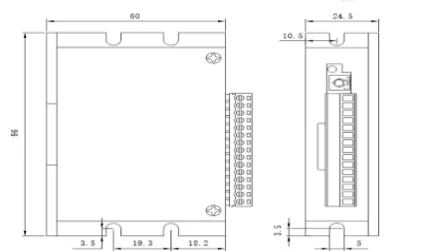

Dimension (Unit: mm)

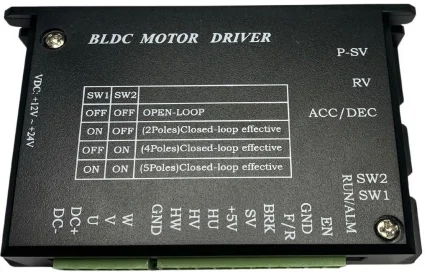

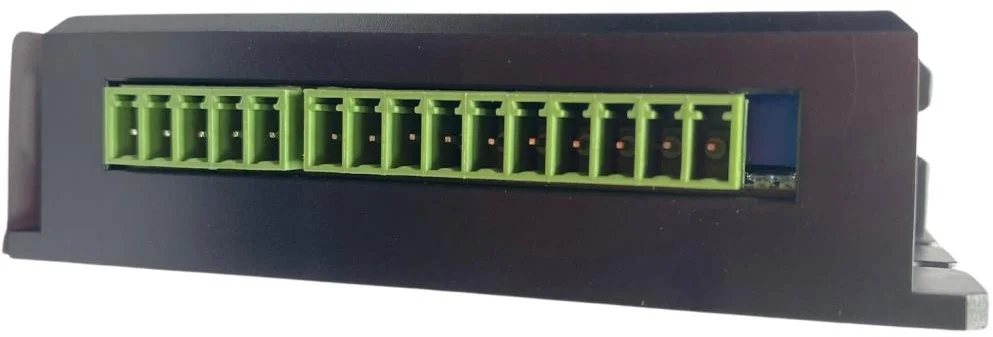

Port signal description
Signal category	Terminal	Functional Description
Power connection	GND	Power supply negative electrode
Power connection		24V	Power input 12-24V
Motor connection	U	Motor line U phase
		V	Motor line V phase
		W	Motor line W phase
Hall signal	GND	Hall sensor signal ground wire
		HU	Hall sensor signal HU
		HV	Hall sensor signal HV
		HW	Hall sensor signal HW
		+5V	Hall sensor signal power cord
Control signal	BRK	Motor brake stop control signal; motor runs when BRK and GND disconnect, otherwise, motor stops.
		EN	Stop signal terminal; EN connects GND, motor runs, otherwise motor stops.
		F/R	Motor direction control terminal; F/R and GND disconnect, motor will rotates clockwise, and otherwise, motor will rotate anticlockwise.
		GND	Ground wire
		SV	① External potentiometer speed setting input; ② External analog voltage input terminal ③ PWM speed setting input
