FTTH 1GE+CATV xPON ONU FTTH EPON GPON ONT Modem Fiber optical ONU
- Category: >>>
- Supplier: Ningbo,Yinzhou,X-Link,Communication,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
FTTH 1GE+CATV xPON ONU FTTH EPON GPON ONT Modem Fiber optical ONU | ||||||
Description:
1GE+CATV is designed as HGU (Home Gateway Unit) in different FTTH solutions; the carrier-class FTTH application provides data service access.
1GE+CATV is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
1GE+CATV adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
1GE+CATV is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
1GE+CATV is designed by Realtek chipset 9601D
Feature:
Supports Dual Mode (can access GPON/EPON OLT).
Supports SFU and HGU of EPON CTC 3.0 standard
Supports GPON G.984/G.988 standards
Support CATV interface for Video Service and remote control by Major OLT
Support NAT, Firewall function.
Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
Support port mode of VLAN configuration
Support LAN IP and DHCP Server configuration
Support WEB Management
Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
Support IPv4/IPv6 dual stack
Support IGMP transparent/snooping/proxy
In compliant with IEEE802.3ah standard
Compatible with popular OLT (HW, ZTE, FiberHome...)
Size
5.5 × 4.5 × 2 CM
Technical Item | Details |

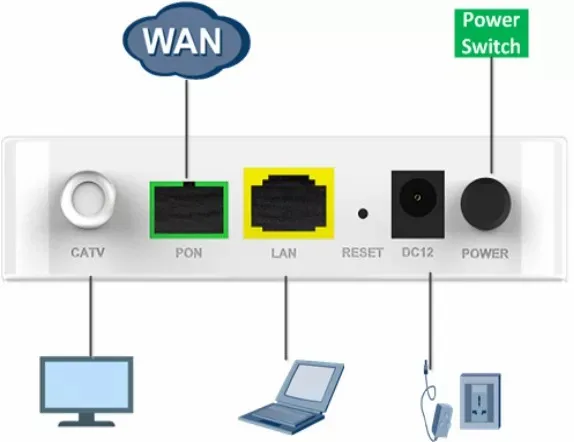

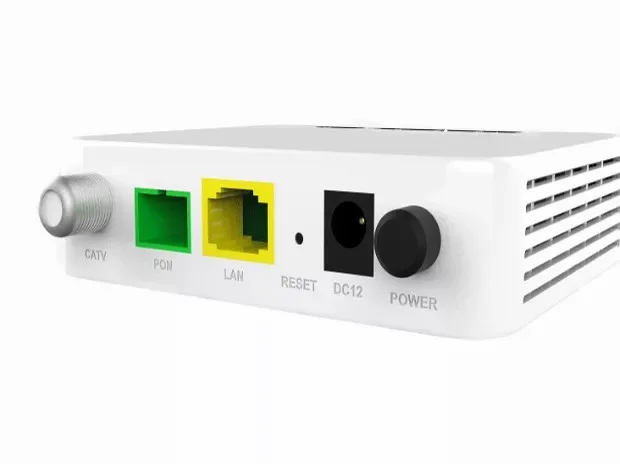

PON interface | 1 GPON/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm, Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
LAN interface | 10/100/1000Mbps auto adaptive Ethernet interfaces. 10/100/1000M Full/Half, RJ45 connector |
CATV Interface | RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV(-7dBm optical input) AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), >35(-10dBm) |

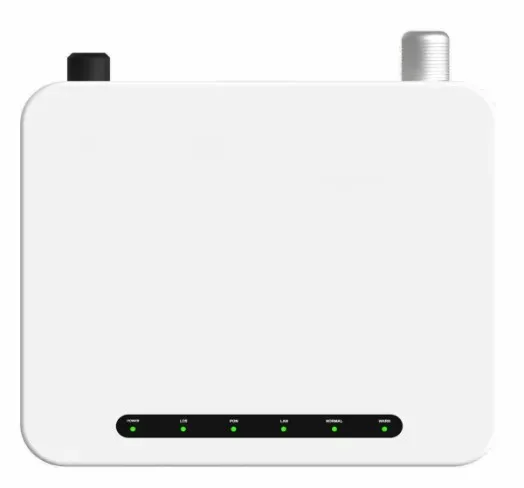

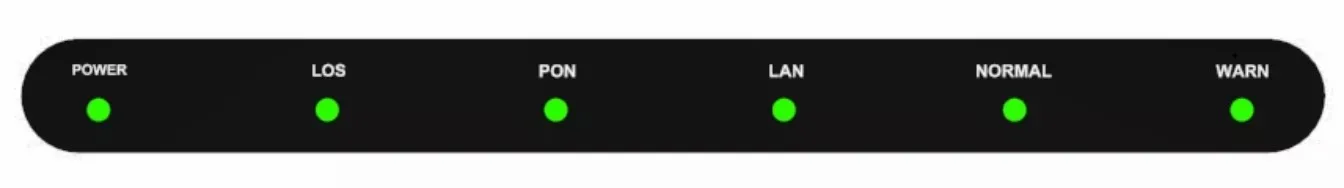

LED | 6 LED, For Status of POWER, LOS, PON, LAN, NORMAL, WARN |
Push-Button | 2, for Function of Power on/off, Reset |
Operating condition | Temperature : 0℃~50℃ Humidity :10%~90%(non-condensing) |
Storing Condition | Temperature : -40℃~+60℃ Humidity :10%~90%(non-condensing) |
Power supply | DC 12V/1A |
Power Consumption | <3W |
Net Weight | <0.2kg |
