Price:$355.00 - $375.00

Quantity:


Product Overview

Description

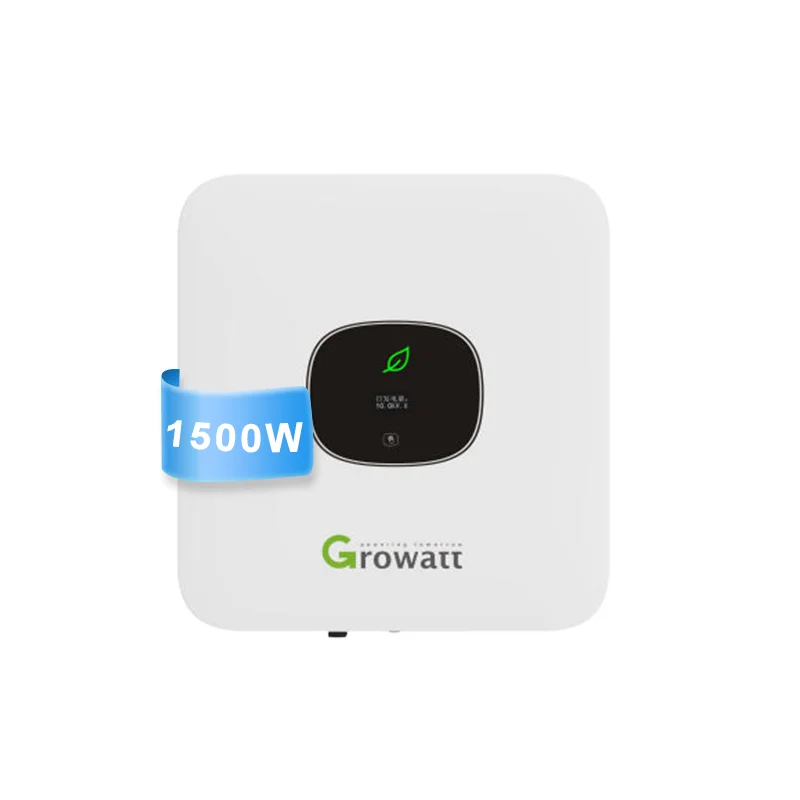

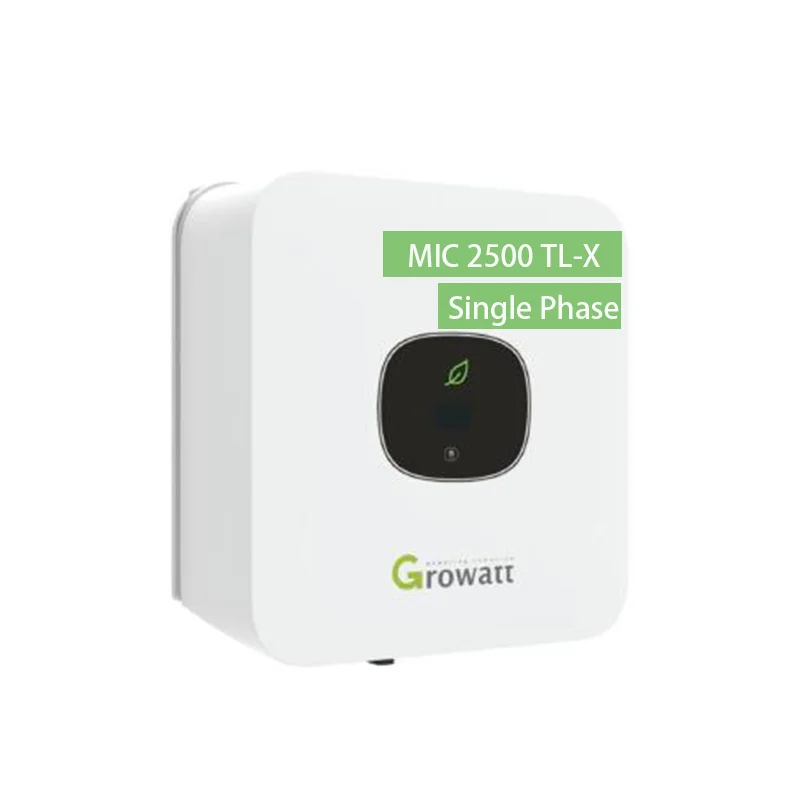

SUNLINK GO45 Solar Inverter Mppt 750W 1000W 2000W 2500W 3000W Solar Power Inverter Kit




Products Description


SUNLINK GO45 Solar Inverter Mppt 750W 1000W 2000W 2500W 3000W Solar Power Inverter Kit





MIC 750~3300TL-X


● Maximum efficiency of 97.6%
● Compact design
● Touch key& OLED display
● Flexible interface
● AFCI optional

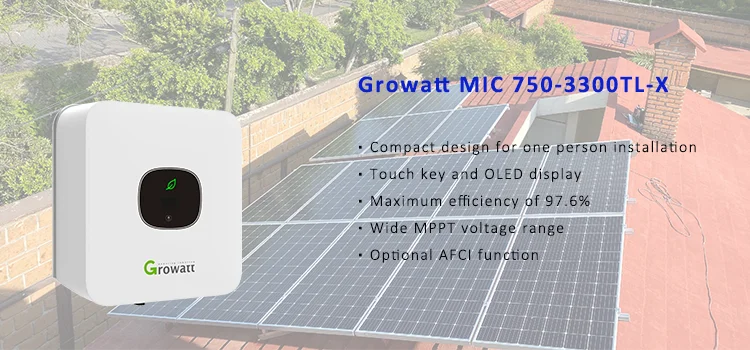

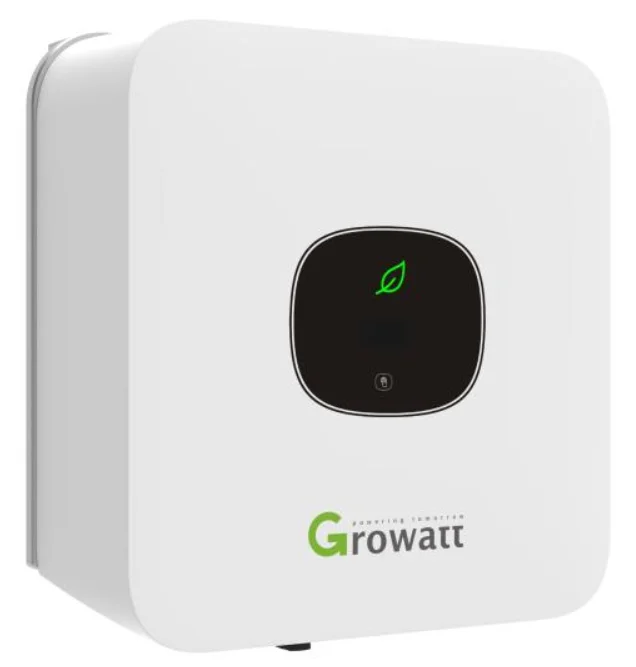

Growatt MIC 750-3300TL-X is the most up-to-date smart inverter solution for rooftop solar systems. It's of compact design and an outstanding efficiency of up to 97.6%. It's ELEGANT YET POWERFUL!




Growatt MIC 750-3300TL-X
Datasheet
750TL-X
1000TL-X
1500TL-X
2000TL-X
2500TL-X
3000TL-X
3300TL-X
Input Data
Max. recommended PV power (for module STC)

1050W

1400W

2100W

2800W

3500W

4200W

4290W
Max. DC voltage
500V
500V
500V
500V
550V
550V
550V
Start voltage
50V
50V
50V
50V
80V
80V
80V
MPPT voltage range
50V-500V
50V-500V
50V-500V
50V-500V
65V-550V
65V-550V
65V-550V
Nominal voltage
120V
180V
250V
360V
360V
360V
360V
No. of MPP trackers
1
No. of PV strings per MPP tracker
1
Max. input current per MPP tracker

13A
Max. short-circuit current
per MPP tracker

16A
Output (AC)
AC nominal power
750W
1000W
1500W
2000W
2500W
3000W
3300W
Max. AC apparent power

750VA

1000VA

1500VA

2000VA

2500VA

3000VA

3300VA
Nominal AC voltage(range*)

230V (180-280V)
AC grid frequency(range*)

50/60 Hz (45-55Hz/55-65 Hz)
Max. output current
3.6A
4.8A
7.1A
9.5A
11.9A
14.3A
14.3A
Adjustable power factor
0.8leading…0.8lagging
THDi
<3%
AC grid connection type

Single phase
Efficiency
Max. efficiency
97.4%
97.4%
97.4%
97.4%
97.6%
97.6%
97.6%
Euro weighted efficiency
96.5%
96.5%
97.0%
97.0%
97.0%
97.1%
97.1%
MPPT efficiency
99.9%


Installation

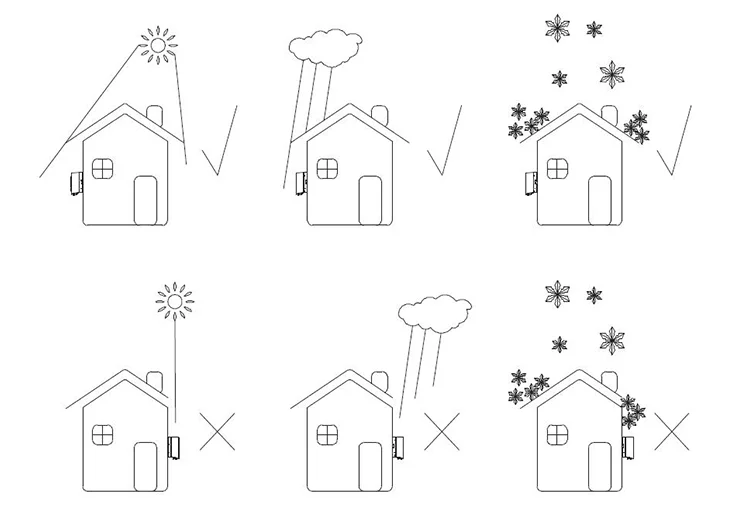

The inverter can't install to solarization , drench , firn location.We suggest that the inverters should be installed at the
location with some cover or protection.




* The installation location must be suitable for the inverter's weight and dimensionsfor a long period time.
* Select the installation location so that the status display can be easily viewed.
* Do not install the inverter on structures constructed of inflammable or thermolabilematerials.
* Never install the inverter in environment of little or no air flow, nor dustenvironment.That may derate the efficiency of the cooling fan of the inverter.
* The lngress Protection rate is IP65 which means the inverter can be installedoutdoors and indoors.
* The humidity of the installation location should be 0~100% without condensation.The installation location must be freely and safely to get at all times.

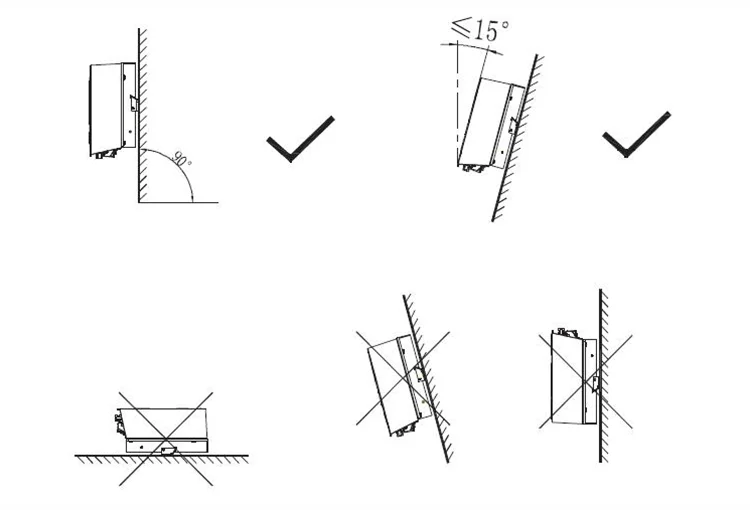

* Vertically installation and make sure the connection of inverter must be downwards.Never install horizontal and avoids forward and sideways tilt.

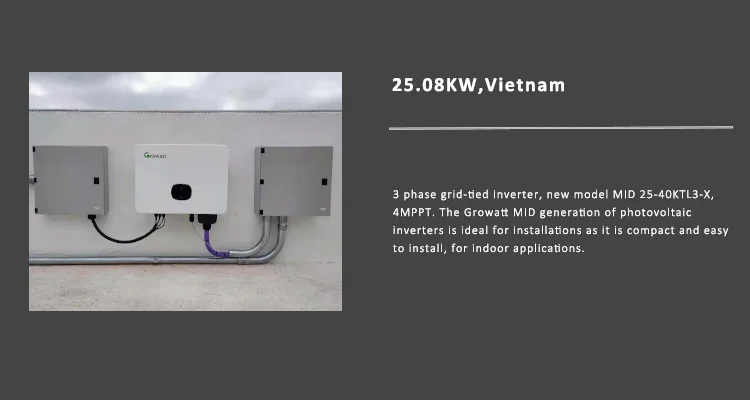

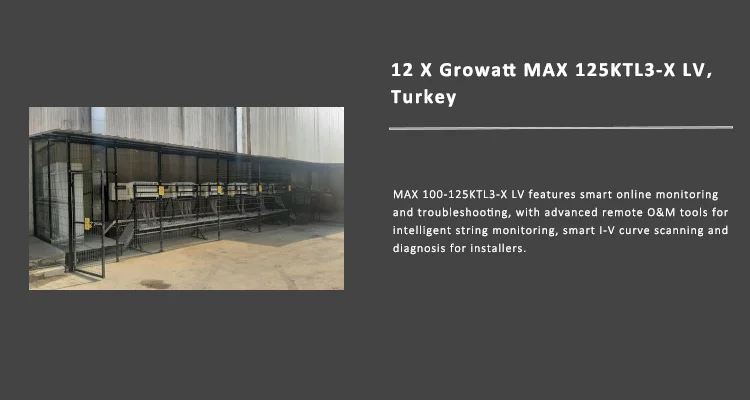

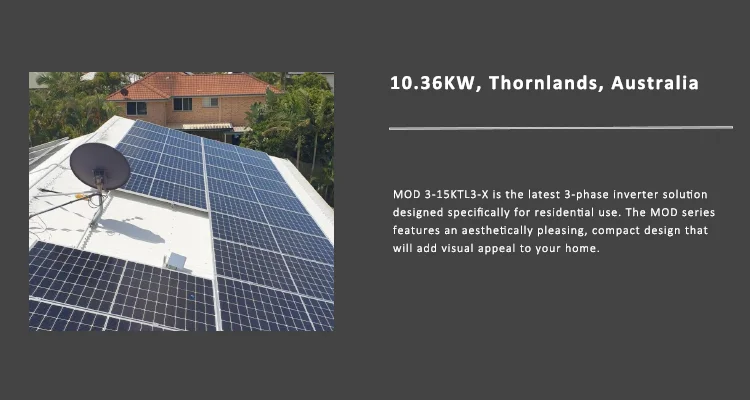

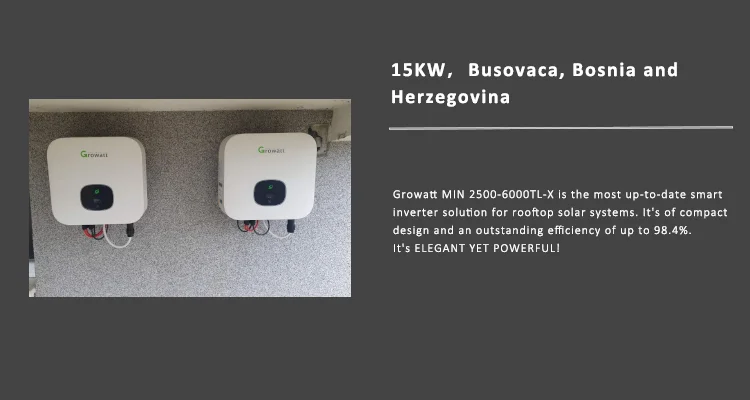

Project Cases
