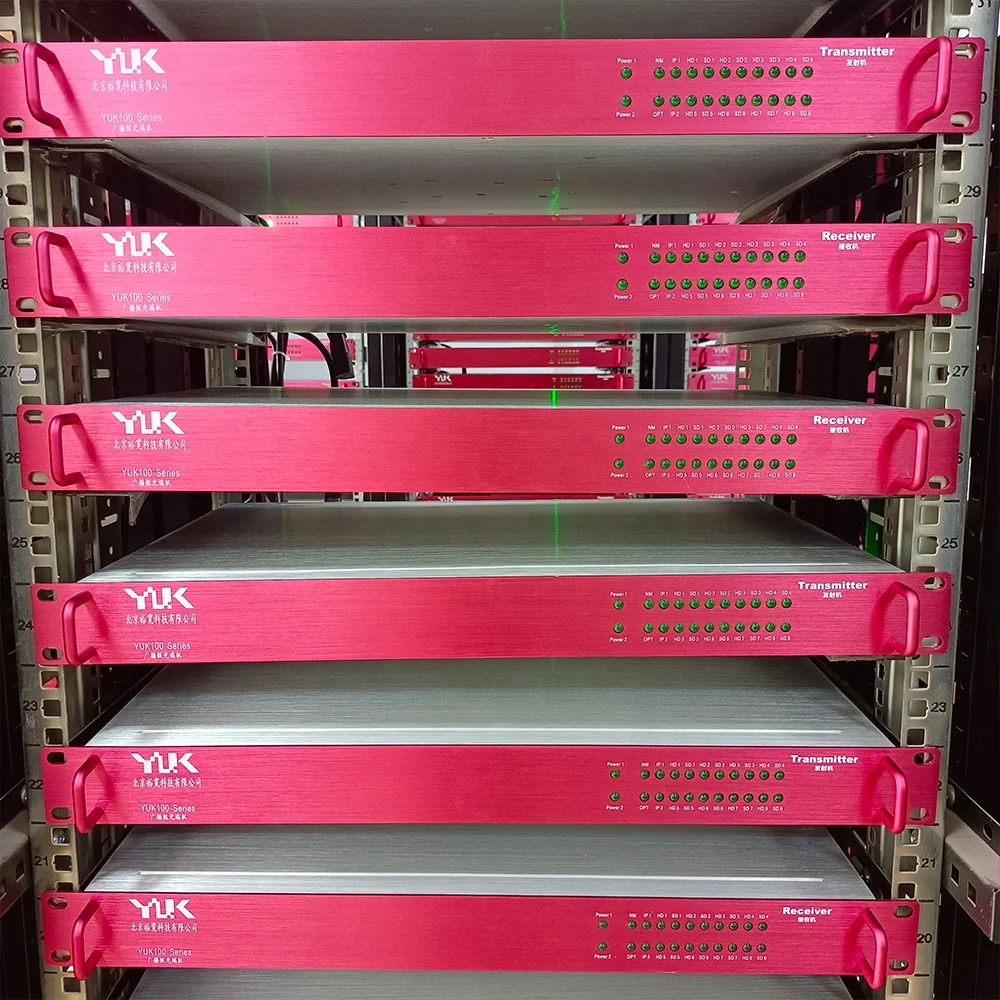

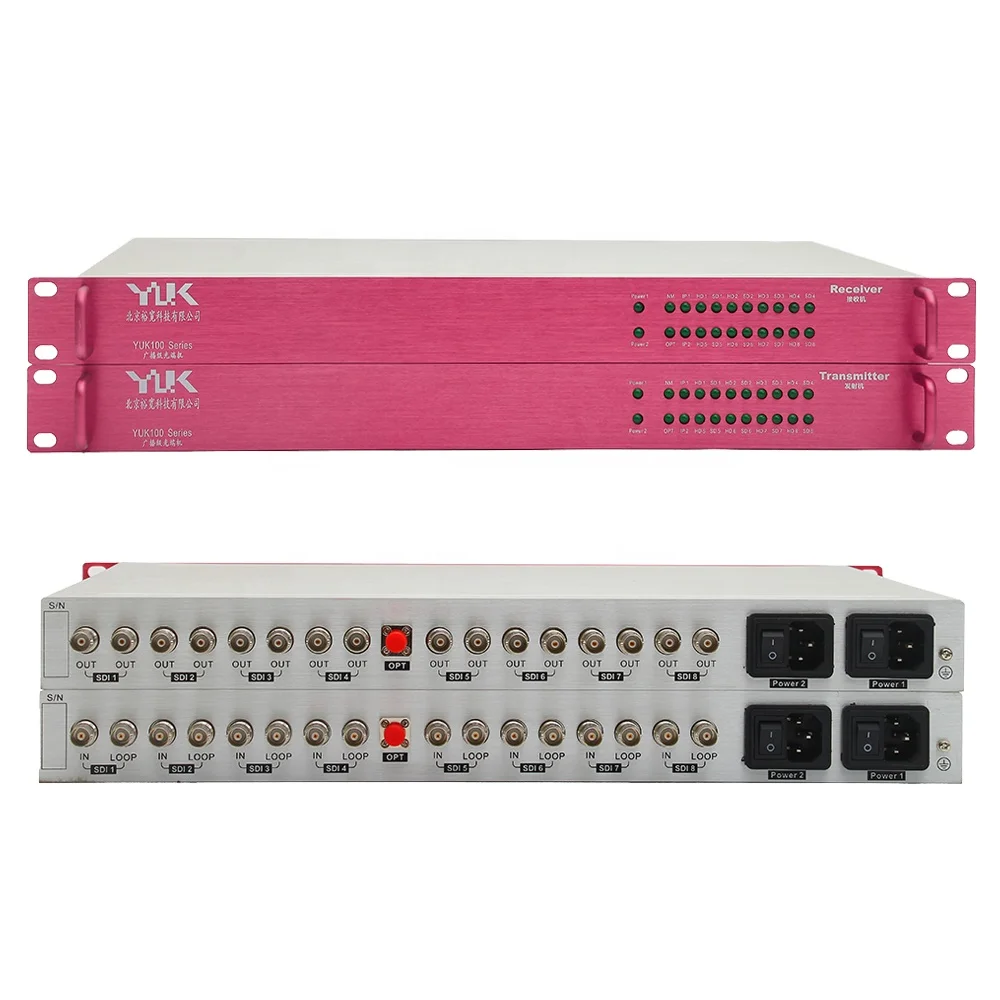

YUK100-08HD
Super Quality 8 Channel 3G HD SD-SDI CWDM Optical Fiber Extender Converter
Product Overview
YUK100-HD series fiber optic extender can transmit 8 channel unidirectional or 4 channel bidirectional 3G-SDI signal over 1-core single model or multi-mode fiber, downward compatible with HD-SDI, SD-SDI and ASI signal.It provides reliable high quality transmission up to 100KM (single mode fiber) and 0.5KM (multi-mode fiber). Digital transmission meet the requirement of high quality image transmission and can achieve the broadcast transmission level, full real-time transmission and non time delay.
Product Feature
* Bi-directional or uni-directional transmission of independent HD/SD-SDI signals or TS stream signals based on DVB-ASI interface in the same 1-core fiber
* Compatible with HD-SDI, SD-SDI and DVB-ASI, adaptive signals HD-SDI,SD-SDI,ASI
* The unique frame structure is used to ensure that the multi channel signals are in one-to-one correspondence between the sending and receiving ends
* Each input channel has loop-out, and eachoutput chanel has two outputs
* Supports uniform mode MTS and burst mode MTS signals
* Large signal capacity, the maximum data rate of each SDI channel can reach 2.5Gbps
* Complete physical layer multiplexing and high-precision PCR correction, the average PCR jitter is maintained at 30 ~ 60ns
* Digital transmission meets the requirements of high-quality image transmission and can reach broadcast-level
transmission quality
* The optical receiver has high receiving sensitivity (-30dBm) to ensure long-distance transmission of signals without repeaters
* Transmission distance 0-100km (according to actual needs)
* High definition TV signal format: HDI 143,177,270,360,540,1485,2500Mbps
* Comply with SMPTE259M,SMPTE297M,SMPTE310,SMPTE305(HDTI),SMPTE344, SMPTE292M, SMPTE424M
* SDI input has cable equalization and can compensate the loss of cable transmission
* Support passed SDI pathology code test(optional)
* Redundant two power supplies
Specification
Parameter | Typical Value | |
Video Input | ||
Input | 8 channel unidirectional 3G-SDI, ASI(Each channel has loop output) | |
Input Level | >380mVP-P | |
Input Automatic Cable Equalization | >100m(1485Mbps)(BELDEN8281 cable) >250m(270Mbps)(BELDEN8281 cable) | |
Input Reflection Loss | >16dB@270Mbps, >15dB@1485Mbps, >10dB@2970Mbps | |
Impedance | 75Ω | |
Connector | BNC | |
Video Output | ||
Output | 8 channel 3G-SDI ASI(Each channel has two outputs) | |
Output Level | 800mVP-P±10% | |
Rise/Fall time | < 135ps(HD/3G), < 800ps(SD) | |
Maximum Jitter | < 0.1UI@270 Mbps < 0.2UI@1485 Mbps < 0.3UI@2.97Gb/s | |
Impedance | 75Ω | |
Connector | BNC | |
Optic and Physical Characteristics | ||
Wavelength | From 1310nm to 1610nm | |
TX power/RX sensitivity | -5dBm~0dBm/-30dBm~-12dBm | |
Power supply | AC 220V, <20W | |
Temperature Range | -30°C~+70°C(operation), -20°C~+80°C(storage) | |
Transmission distance | 0~100KM(Actual distance is determined by customer’s requirement) | |
Optical connector | FC/PC or FC/APC | |
Dimension | 19 inch 1U Rack, 485×320×44mm | |

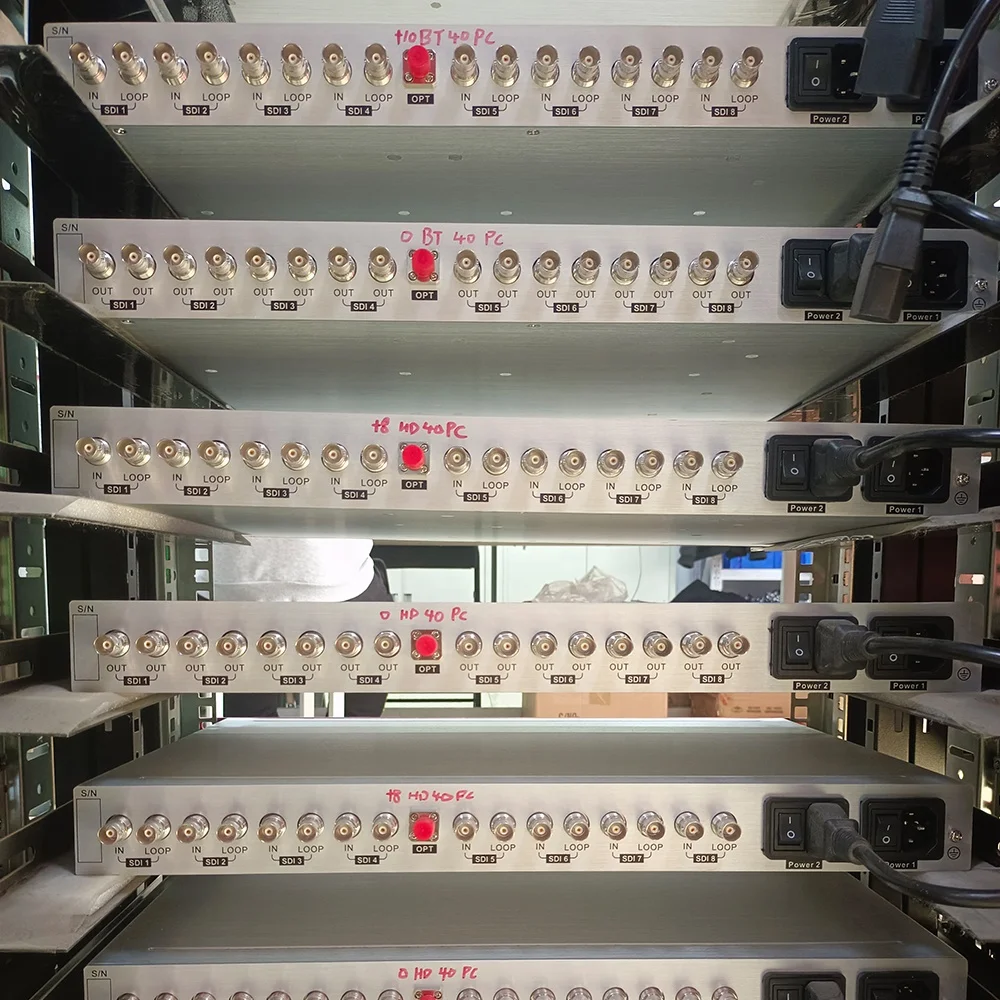

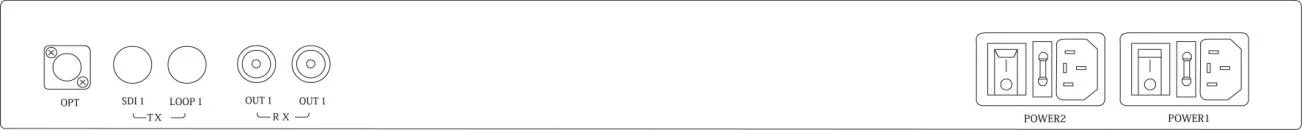

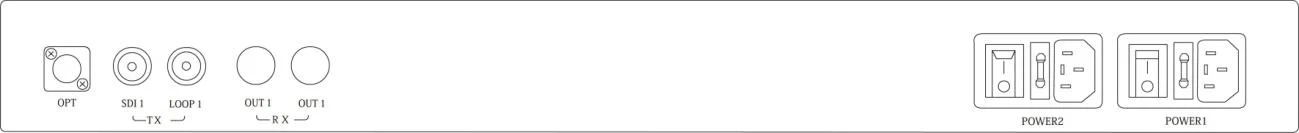

Rear Panel
YUK100-01HD
YUK100-02HD
YUK100-04HD
YUK100-08HD

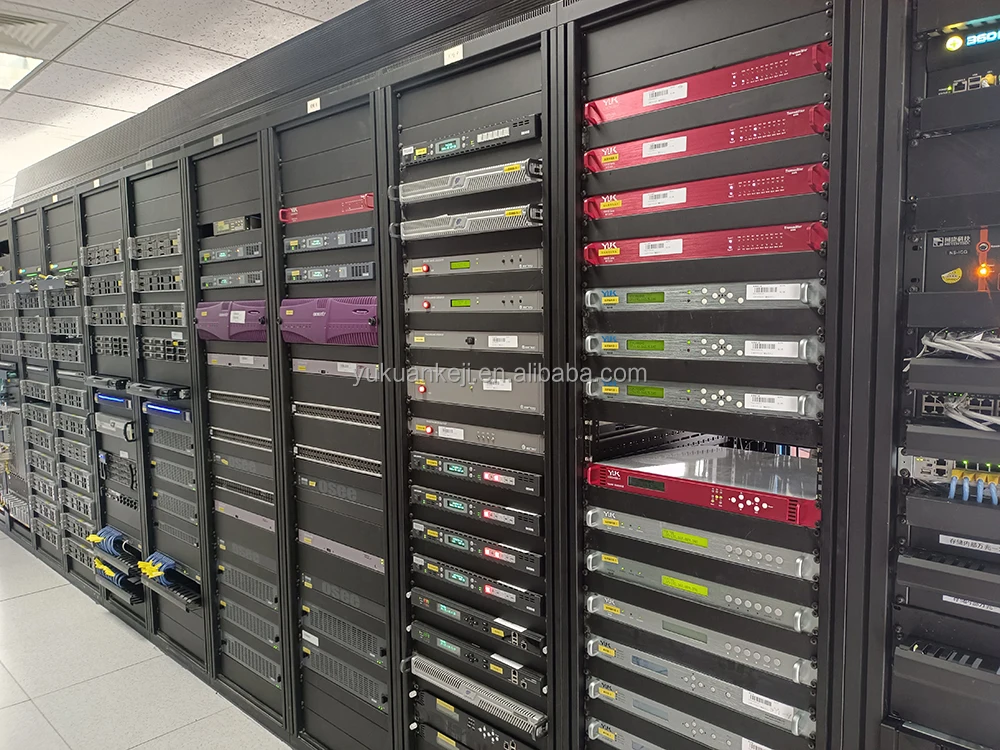

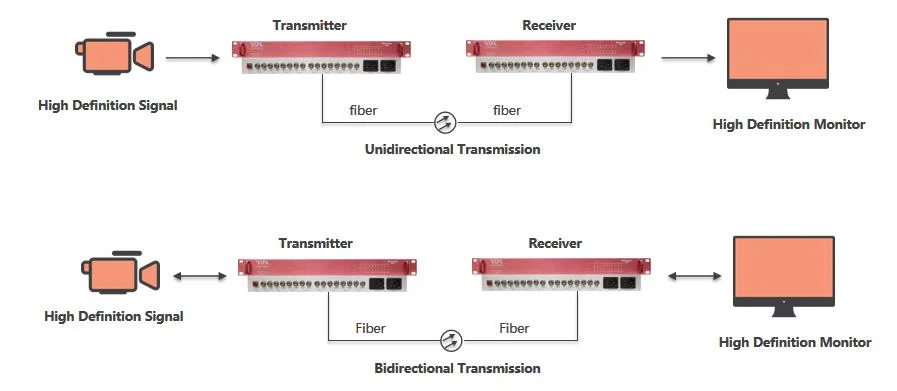

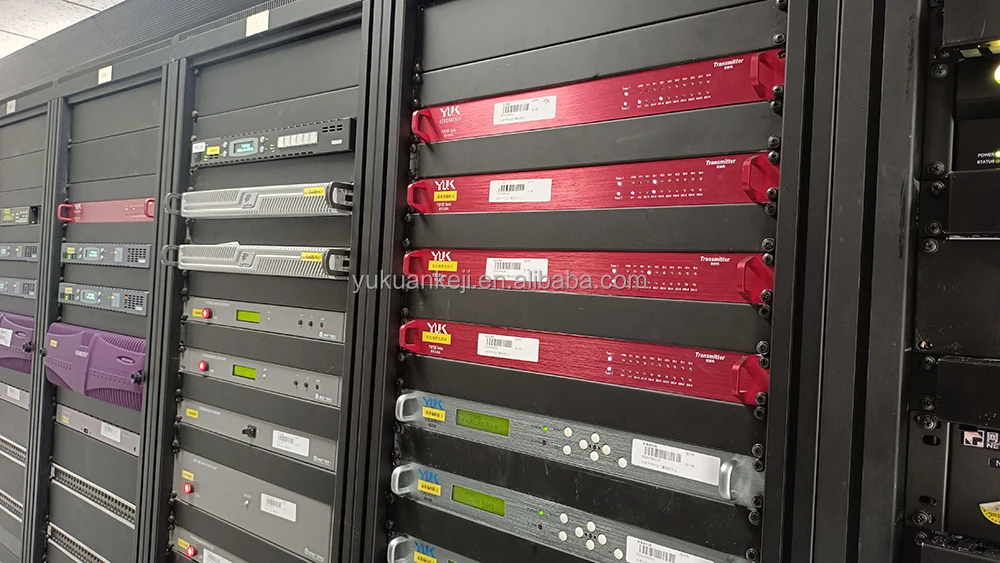

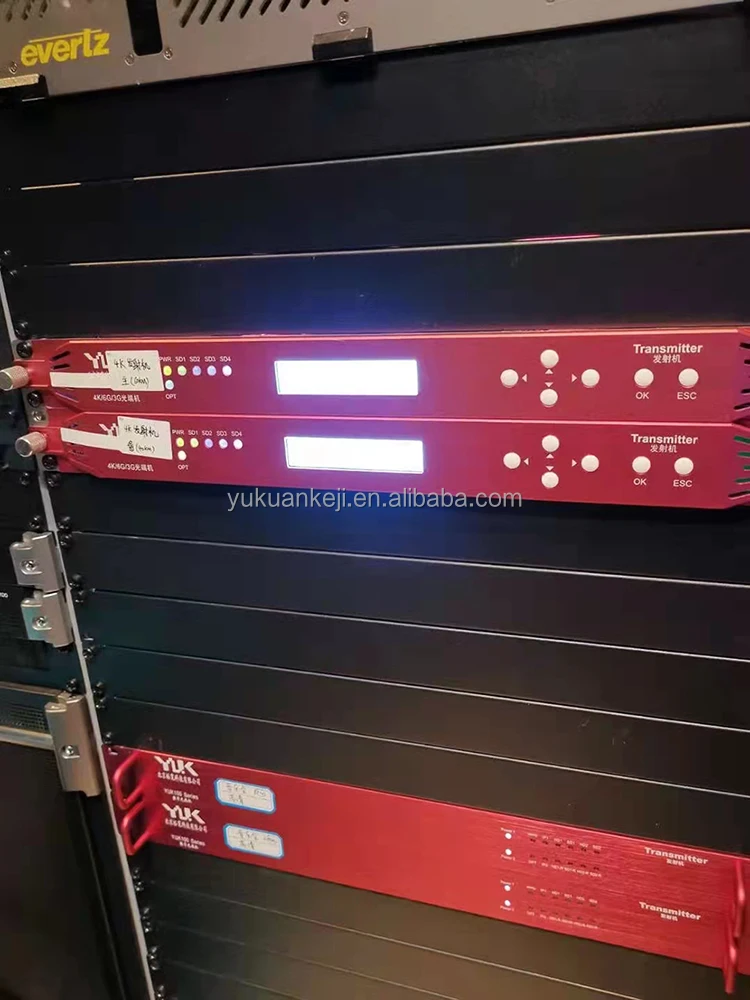

Application
Notes:
1.Transmission distance 0-40KM,40-80KM, 80-100KM.
2.Optical interface FC/PC, FC/APC. Fiber patch cable is available for other interface.
1.Transmission distance 0-40KM,40-80KM, 80-100KM.
2.Optical interface FC/PC, FC/APC. Fiber patch cable is available for other interface.
