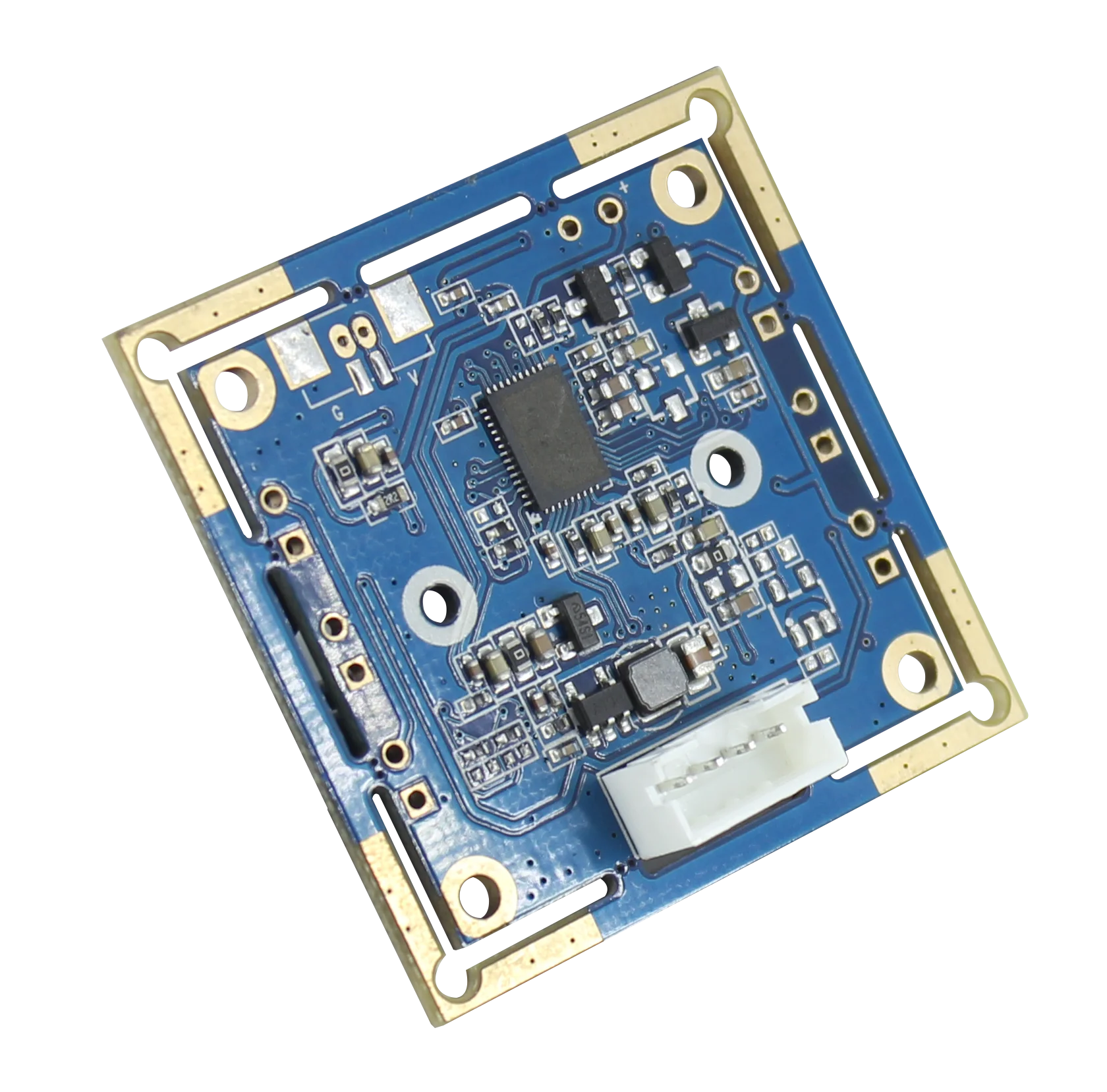

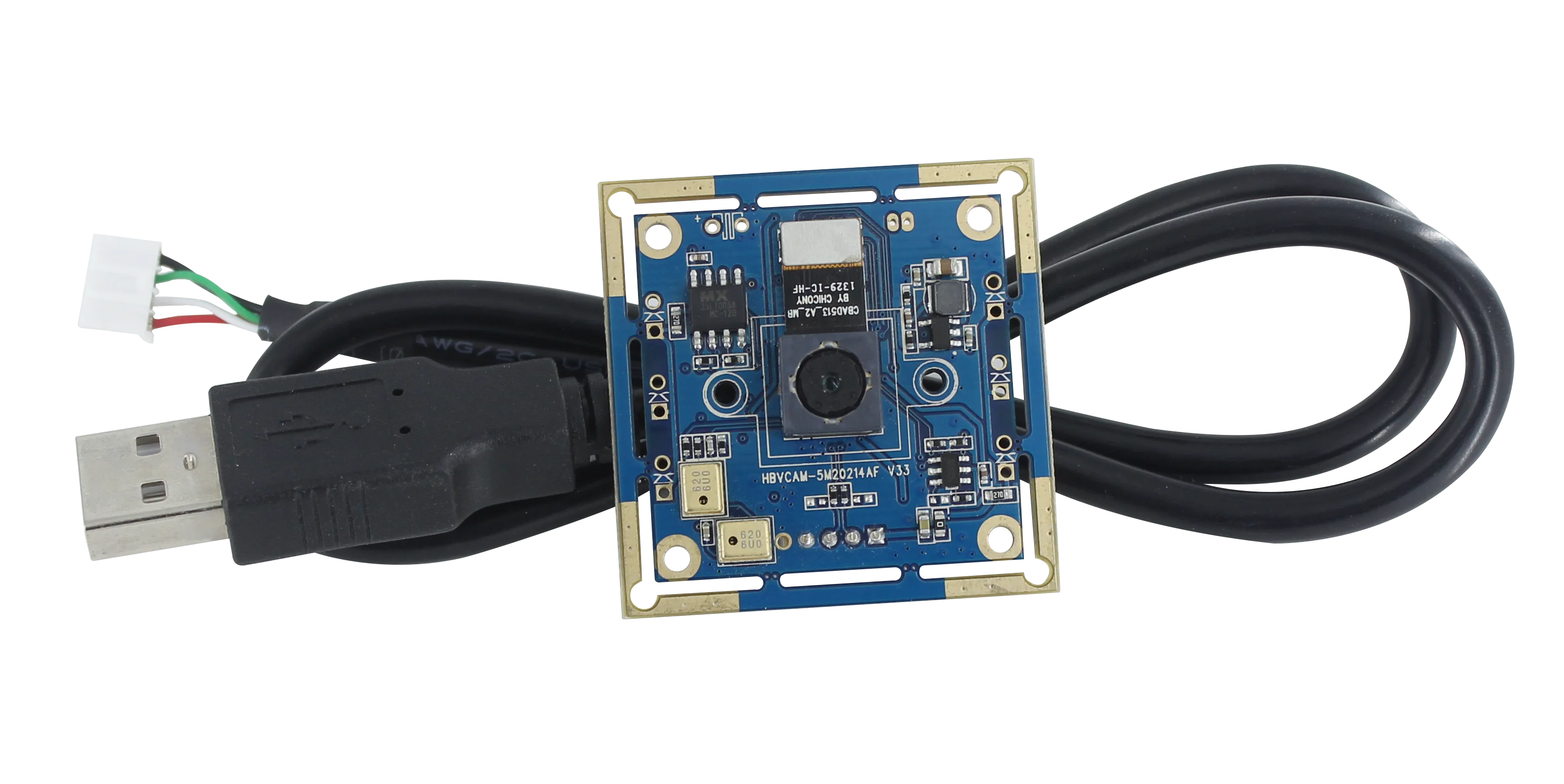

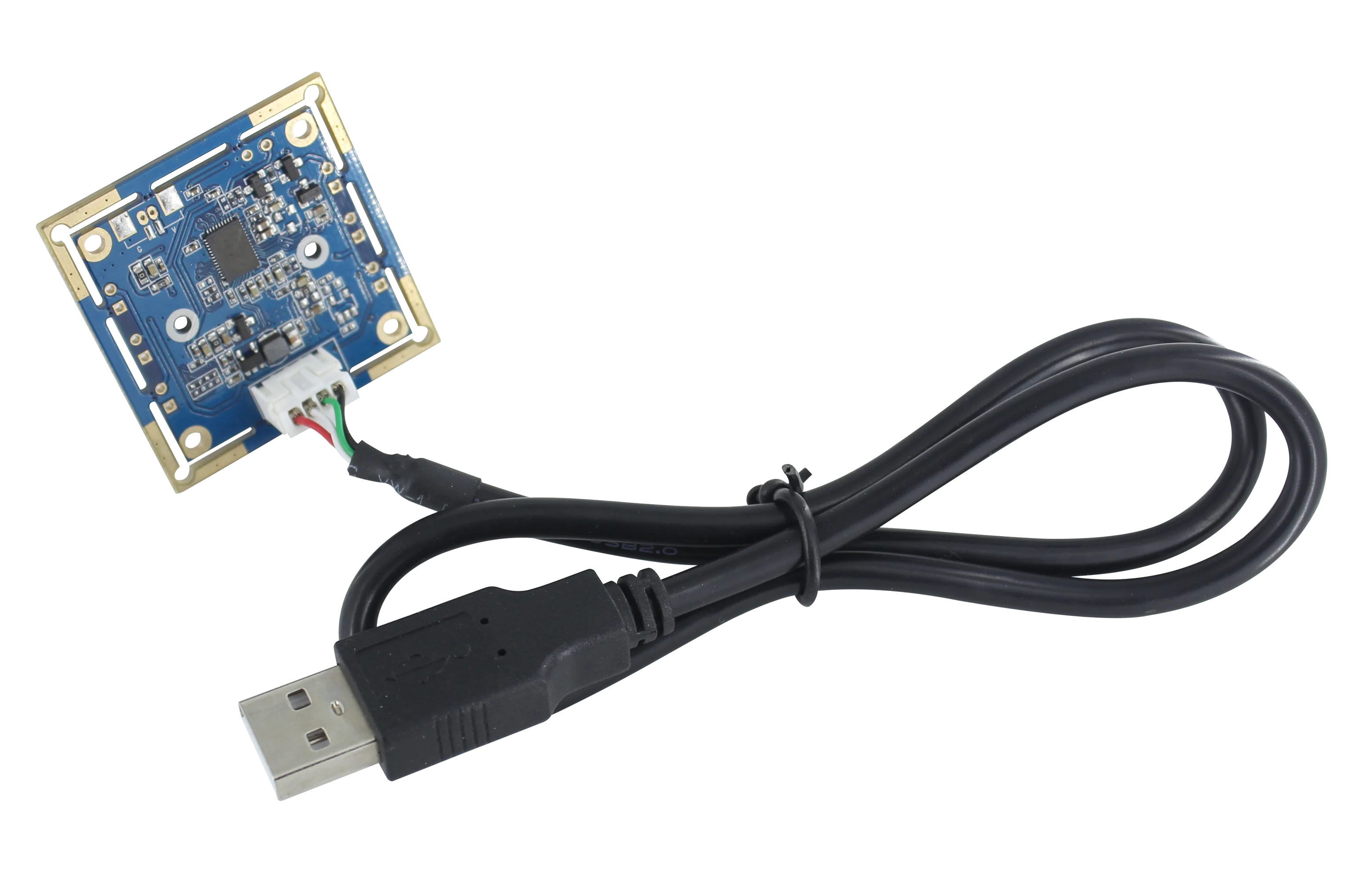

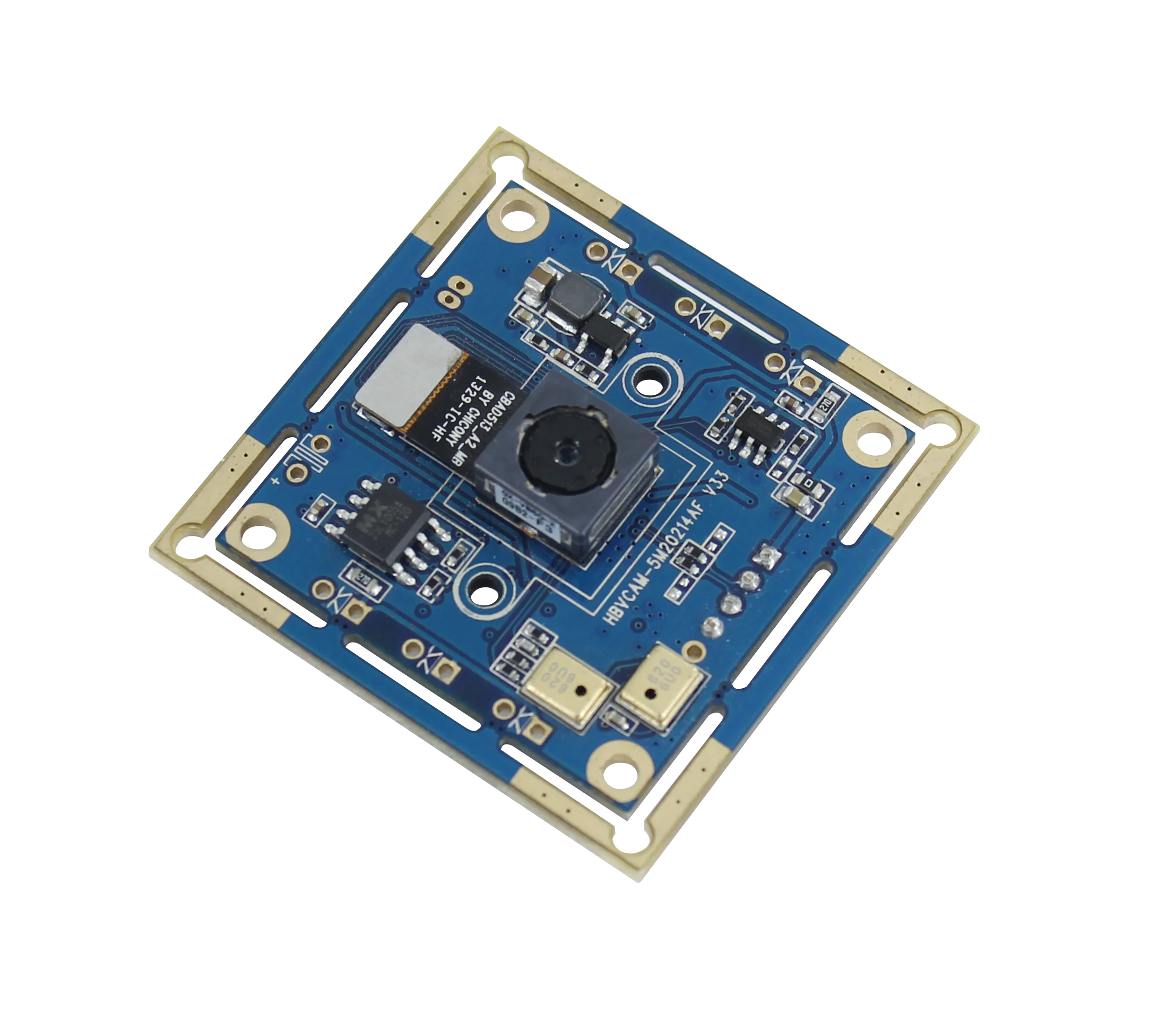

5Mp 2K Hd Free Driver Cmos Sensor OV5648(1/4') Camera Module For Industrial Control Camera

Product Overview

Description

Product Name	5 MP 2K industrial control industrial camera, advertising machine, equipment embedded built-in camera module
Module No.	HBVCAM-5M202014AF V33

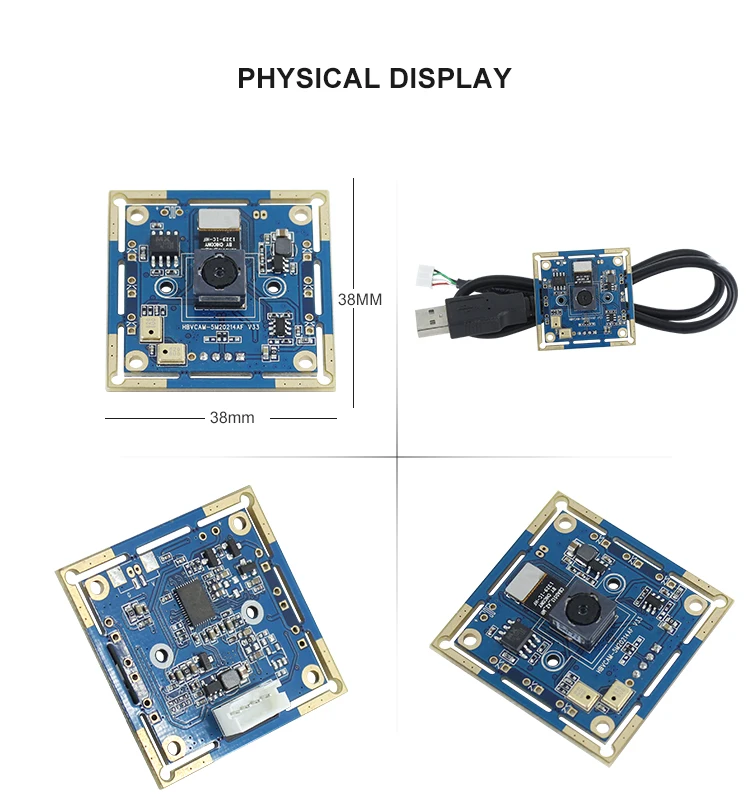

Module Size	38mm × 38mm × 7.05mm±0.2MM
Features	1. Standard industrial camera 38, 32mm panel structure 2, can add 6 white lights
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Auto
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black

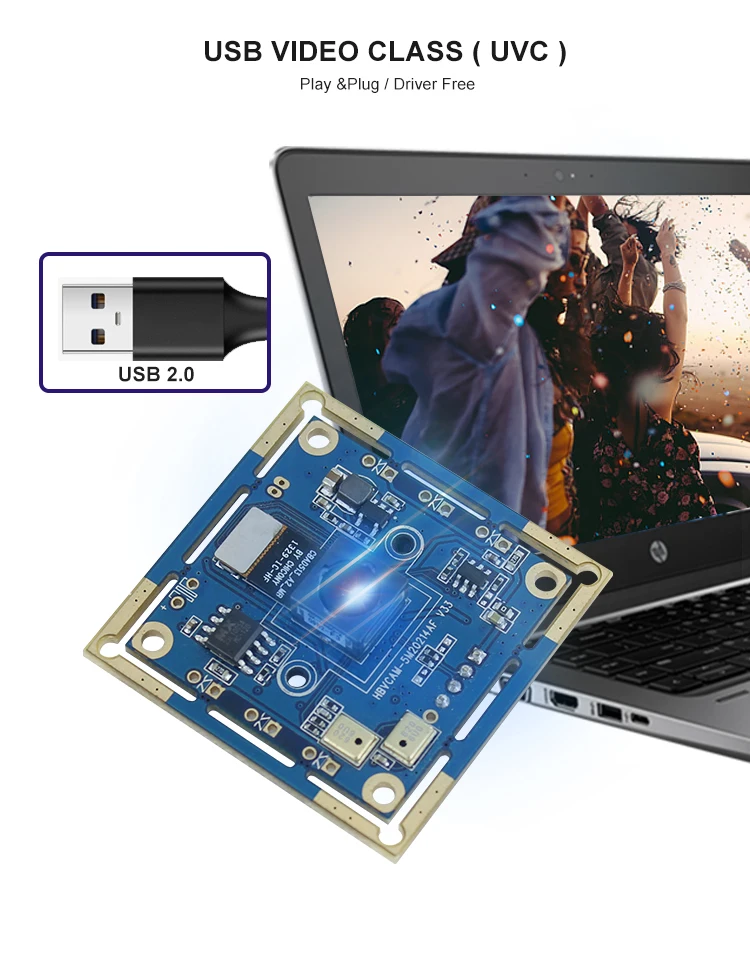

interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1000mW
Operating system request	Win XP/win 7,8 ,10/ vista /android 4.0/ mac /Linux with uvc
Sensor	OV5648 (1/4” )
Seneor Package	CSP,Bare Die
Maximum resolution	2592*1944
Sensitivity	600mV /(lux-sec)
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS   MJPEG 960x540 30FPS / YUY2 960x540 15FPS   MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS   MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS   MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS
S/N Ratio	34 db
Max Dynamic Range	67 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	4P+IR
F/No	2.8
EFL	3.1mm
FOV	65.4°
TV Distortion	<1.0%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH







1.Are you camera module manufaurer?

Yes, we are a professional usb camera module manufacturer and our compnay was established in 2013

year



2. Do you supply OEM/ODM service?

Yes, we can supply OEM/ODM service, we also can customize the camera module according to your

requirement.



3. Do you provide samples?What's the MOQ?

Samples are provided, but not free.Some of our products provide a drop shipping service, and some

products have a minimum order of 100 /500pieces



4. How to guarantee quality?

Always a pre-production sample before mass production,and final inspection and test before shipment



5: How to pay for order ?

you can pay by TT, Paypal, Escrow, Western Union



6. Does the camera module can work with Windows/Android/Linux system?

Usually the camera can work with Windows system with free driver, it is a play and plug camera

module, it can also work with some Andorid and Linux system with standard UVC protocol, it need to

be tested whether work with Android and Linux system.



7.Does the camera support OTG?

Most of our usb cameras support OTG function



8.Which software your usb camera module support?

Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer,

ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
