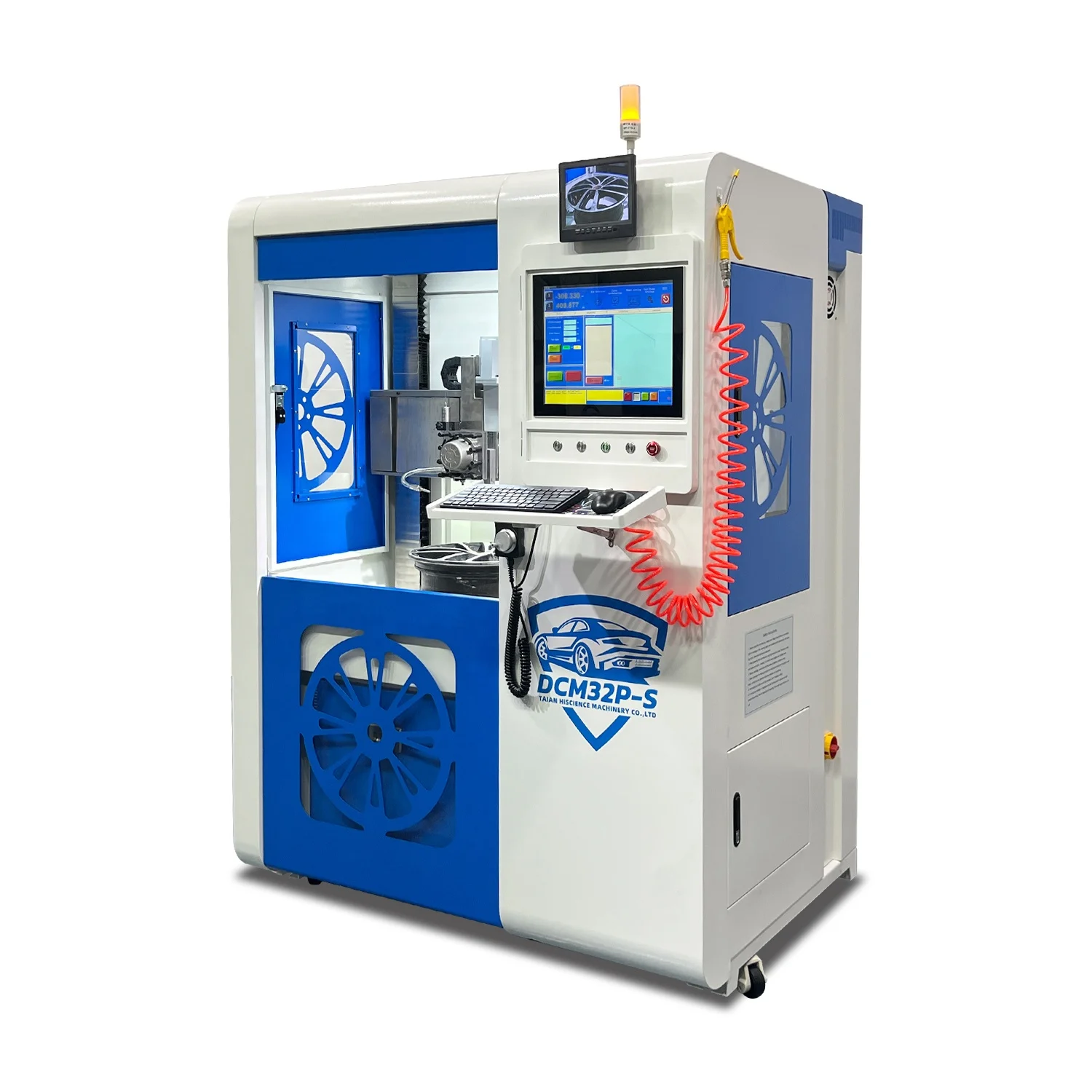

Hience автоматический обод колеса автомобиля с общей топливной магистралью для ремонта литых токарный станок с ЧПУ в Китае (стандарты CE, DCM32P S

Item

DCM32P-S

Maximum clamping wheel size

760mm (30 inch)

Maximum diameter with tire on

800mm

Maximum repairable wheel thickness

480mm

X-axis effective travel

550mm

X-axis drive motor torque

6NM

Z-axis effective travel

750mm

Z-axis drive motor torque

10NM With brake function

Maximum distance between the tool post and the chuck

600mm

Main motor power

4KW

Chuck Diameter/Number of Jaws

250mm / 4 jaws

Tool changer station

4

Tool change method

Automatic

X/Z feed accuracy

0.001mm

Wheel detection method

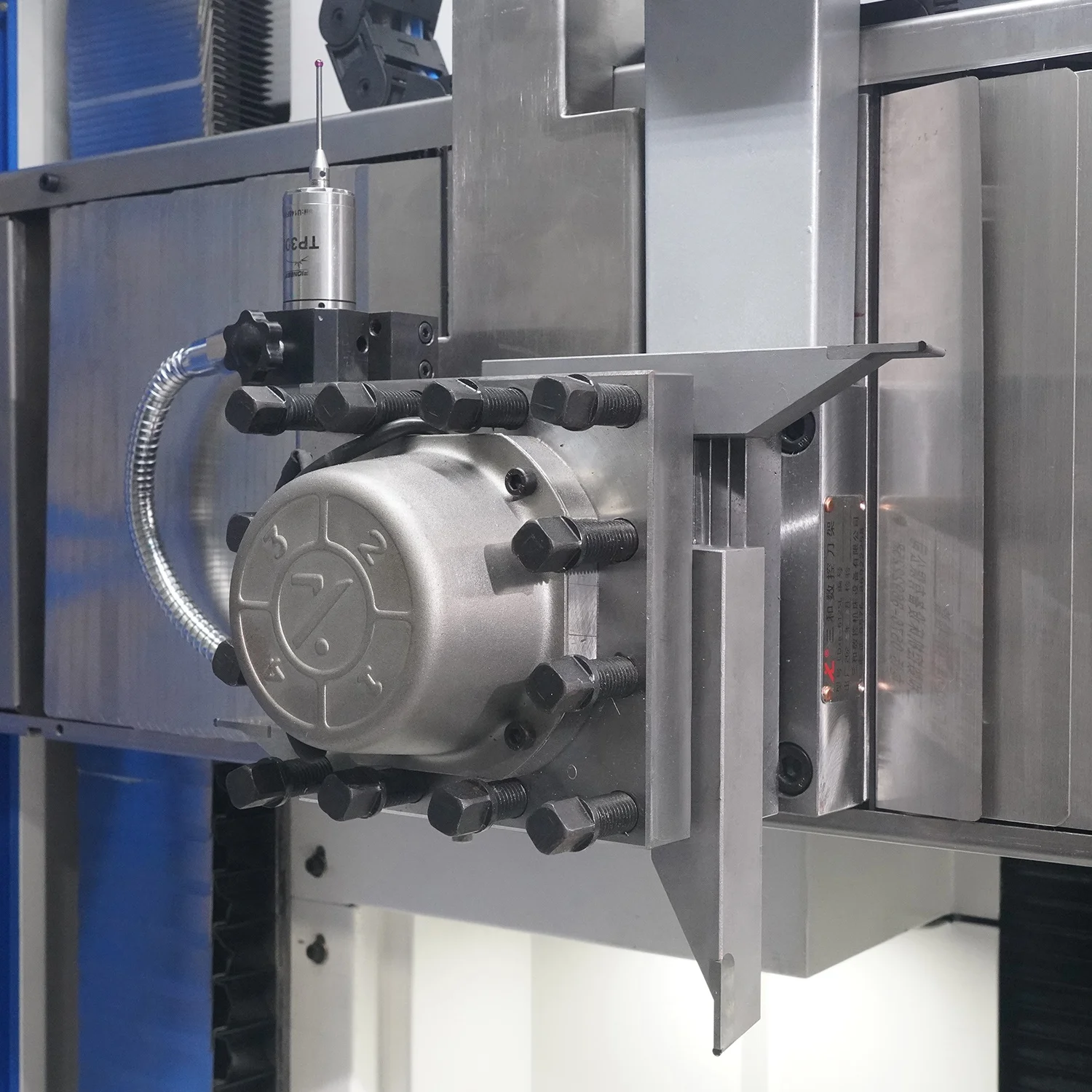

Ruby probe detection system

(optional laser detection system)

Detection accuracy

Ruby probe detection 0.001mm

Device Voltage/Frequency

380V 3ph/ 50HZ

Voltage customization for different countries

Support

Weight

1250KG

Machine size

1450*1120*1960mm
