Flexible 20 x 20 Mesh Stainless Steel Fly Screen Mesh
US $2.92-$3.50

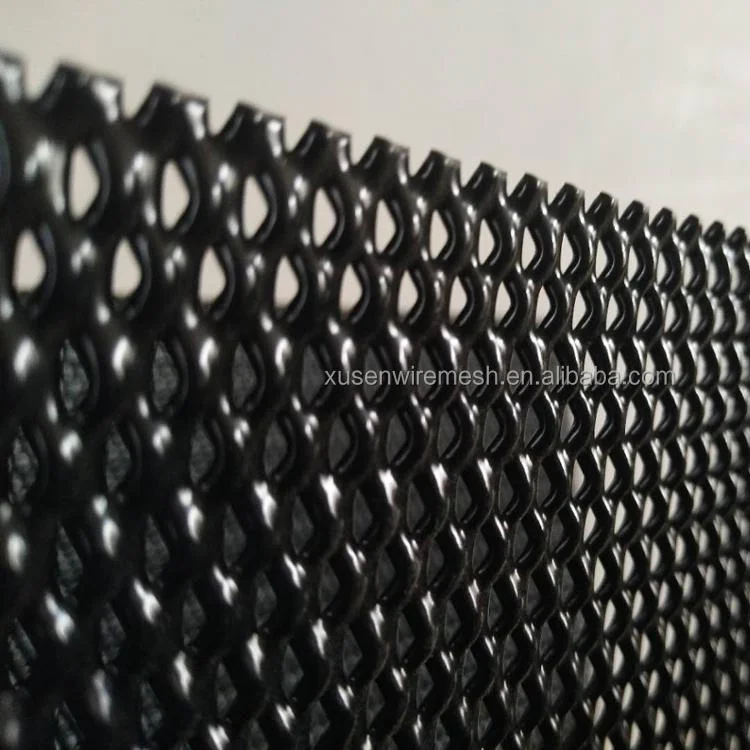

1.8mm thickness safety guard Heavy duty limited vision Privacy protection Aluminium DVA Mesh Screen
- Category: >>>
- Supplier: Hebei Xusen Metal Wire Mesh Products Co. Ltd
Share on (1600688728682):
Product Overview
Description
Powder coated Black color Aluminum expanded sheet One Way vision DVA Mesh Screen for doors and windows
Product Description
| Specifications of One Way Vision DVA Window Screen Mesh | ||||||
| thickness (mm) | Distance short (mm) | distance long (mm) | strip (mm) | width(mm) | length(mm) | weight |
| kg/sqm | ||||||
| 0.5 | 2.5 | 4.5 | 0.5 | 500 | 500 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 600 | 600 | 0.73 |
| 0.6 | 10 | 25 | 1 | 600 | 600 | 1 |
| 0.8 | 10 | 25 | 1 | 600 | 600 | 1.25 |
| 1 | 10 | 25 | 1.1 | 600 | 600 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2000 | 2000 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2000 | 2000 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2000 | 2000 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1800 | 1800 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2000 | 2000 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2000 | 2000 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2000 | 2000 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2000 | 2000 | 5 |
| 4 | 50 | 100 | 4 | 2000 | 2000 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2000 | 2000 | 11.15 |
| 5 | 50 | 100 | 5 | 1400 | 1400 | 12.39 |
| 6 | 50 | 100 | 6 | 2000 | 2000 | 17.35 |
| 8 | 50 | 100 | 8 | 2000 | 2000 | 28.26 |
DVA mesh is a kind of expanded metal, it also can be called one way vision aluminum mesh, limited vision mesh, super mesh, or privacy mesh. DVA mesh is made of aluminum or aluminum alloy. With the effect of one-way perspective, it can make sure that you can see the outside, but limit the sight see from outside, so users can enjoy the privacy of space. At the same time, its unique design of umbrella hole can effectively prevent the rain into the room. There are some other features, such as anti-corrosion,anti-rust, anti-theft, pest control and good ventilation, so one way mesh is very suitable for the protection of office andresidential windows and doors.
China supply 0.5mm 1.8mm thickness DVA screen one way vision mesh fly screen aluminum expanded mesh for door security screen
Anti-rust Ss316 stainless steel security screen with black powder coated window screen
DVA Mesh - Flyscreen & Door Factory
0.5mm and 1.8mm thick DVA One Way vision Mesh,Aluminum Dva mesh
1.8mm thick DVA One Way Vision Mesh,privacy mesh
Aluminum expanded sheet DVA secuirty limited one way vision screen mesh

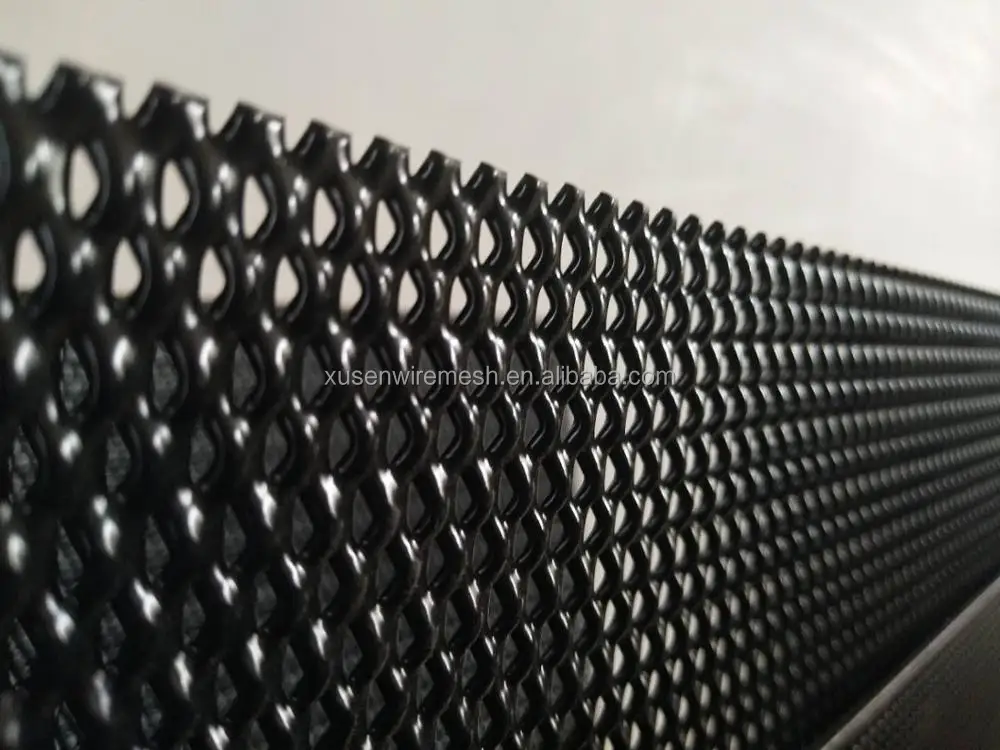

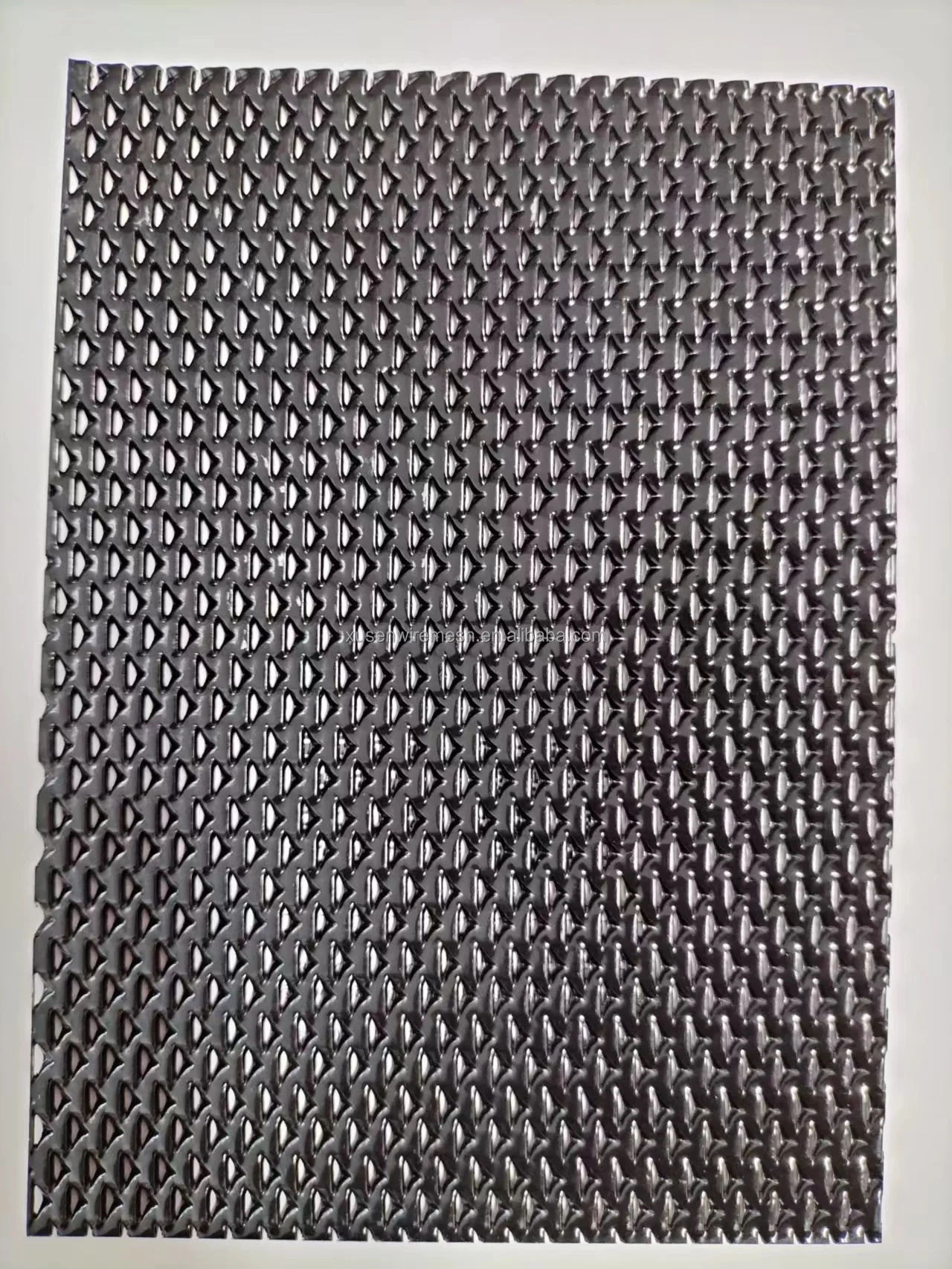

DVA mesh description

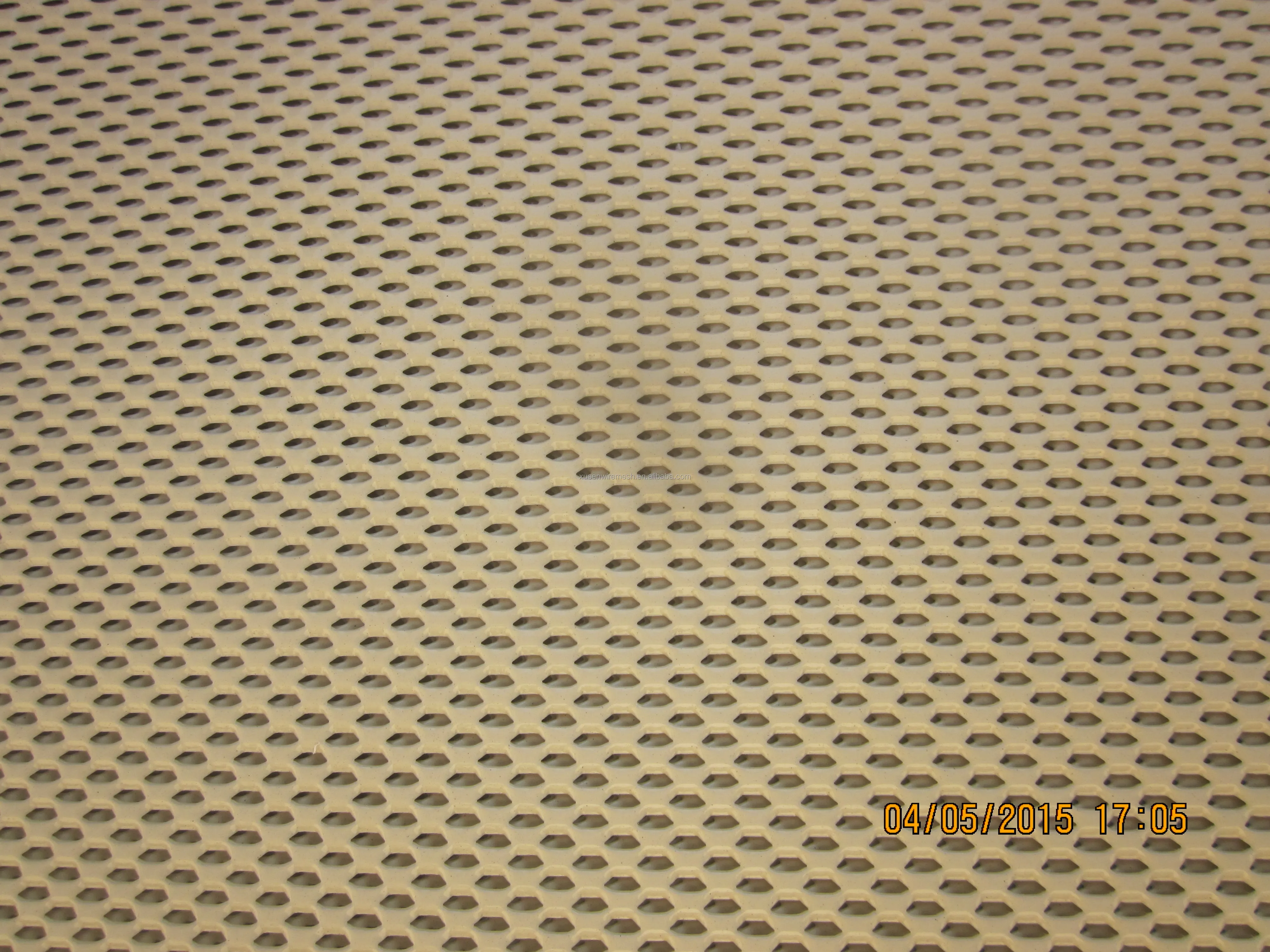

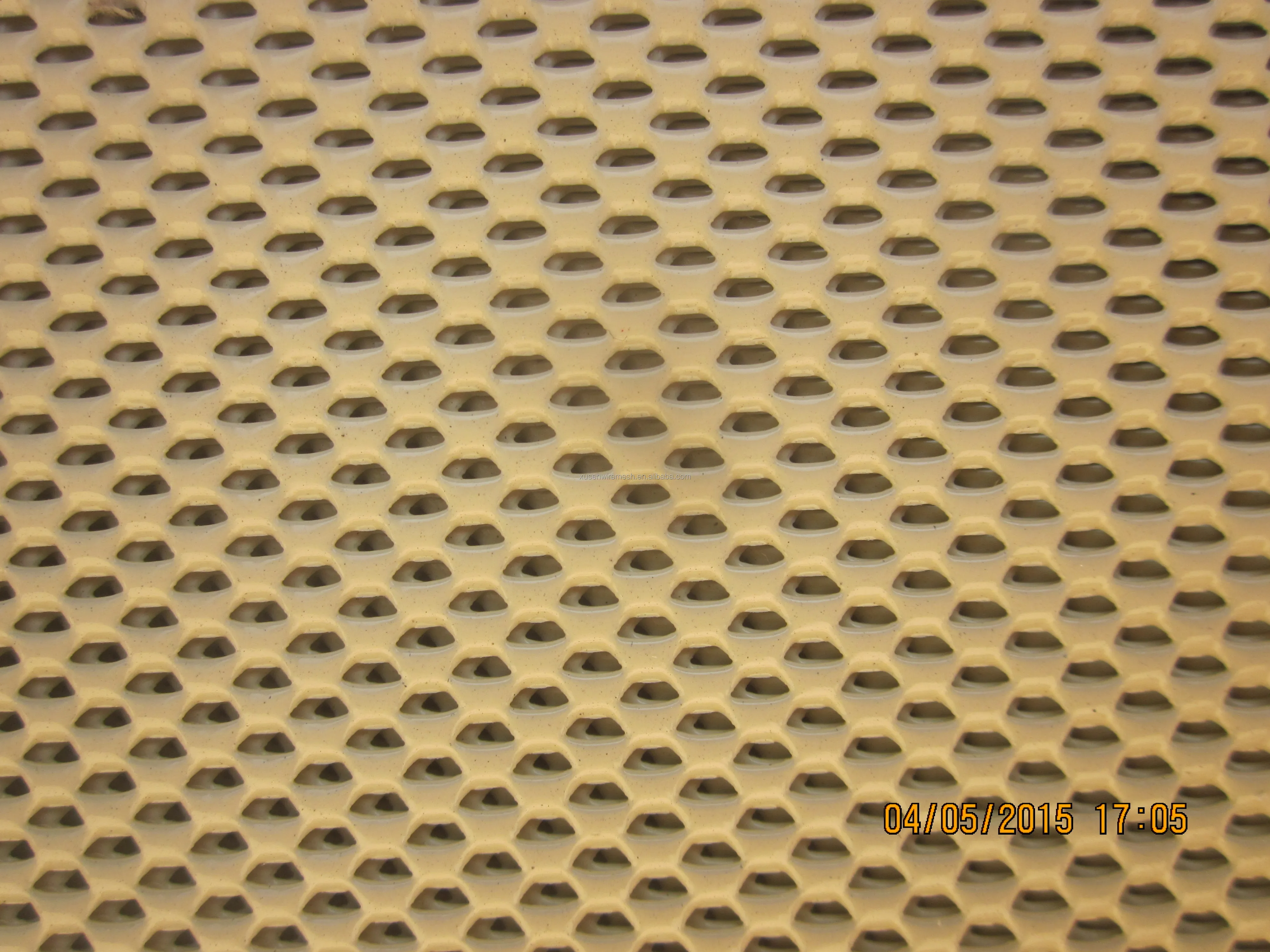

DVAM-03: The reverse side of DVA mesh.
window screen 1.8mm thickness Aluminum DVA one way mesh
DVAM-04: We can see the clear scene from the indoor.
Specifications of DVA mesh
* Materials: aluminum, aluminum alloy.
* Surface treatment: AkzoNobel/Jotun super weathering powder coating.
* Color: black, white, green, any color on require.
* Shape of opening: diamond, square.
* Thickness: 0.5 mm, 1.8 mm, 2.0 mm
* Hole size: 3 mm × 6 mm centre to centre.
* Panel length: 2000 mm,2200mm, 2400 mm.
* Panel width: 750 mm, 900 mm, 1200 mm.
Features of DVA mesh
* Light weight, high strength and high stability.
* One-way perspective, enjoy the privacy of space.
* Prevent rain from entering the house.
* Anti-corrosion, anti-rust, anti-theft, pest control.
* Good ventilation and translucency.
* Easy to clean extends the lifespan.
window screen 1.8mm thickness Aluminum DVA one way mesh
DVAM-04: We can see the clear scene from the indoor.
Specifications of DVA mesh
* Materials: aluminum, aluminum alloy.
* Surface treatment: AkzoNobel/Jotun super weathering powder coating.
* Color: black, white, green, any color on require.
* Shape of opening: diamond, square.
* Thickness: 0.5 mm, 1.8 mm, 2.0 mm
* Hole size: 3 mm × 6 mm centre to centre.
* Panel length: 2000 mm,2200mm, 2400 mm.
* Panel width: 750 mm, 900 mm, 1200 mm.
Features of DVA mesh
* Light weight, high strength and high stability.
* One-way perspective, enjoy the privacy of space.
* Prevent rain from entering the house.
* Anti-corrosion, anti-rust, anti-theft, pest control.
* Good ventilation and translucency.
* Easy to clean extends the lifespan.
Powder Coated AkzoNoble black color DVA privacy mesh

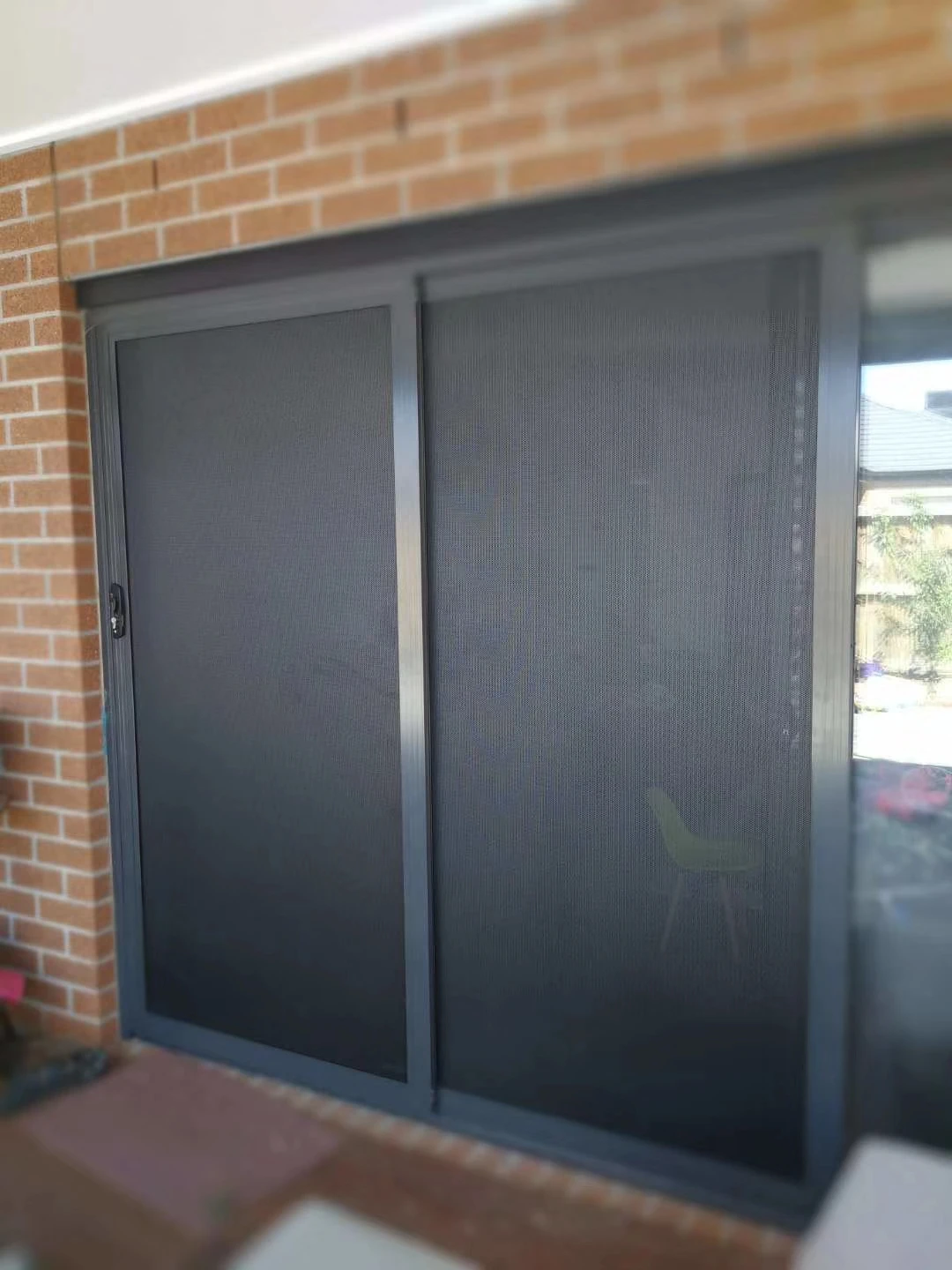

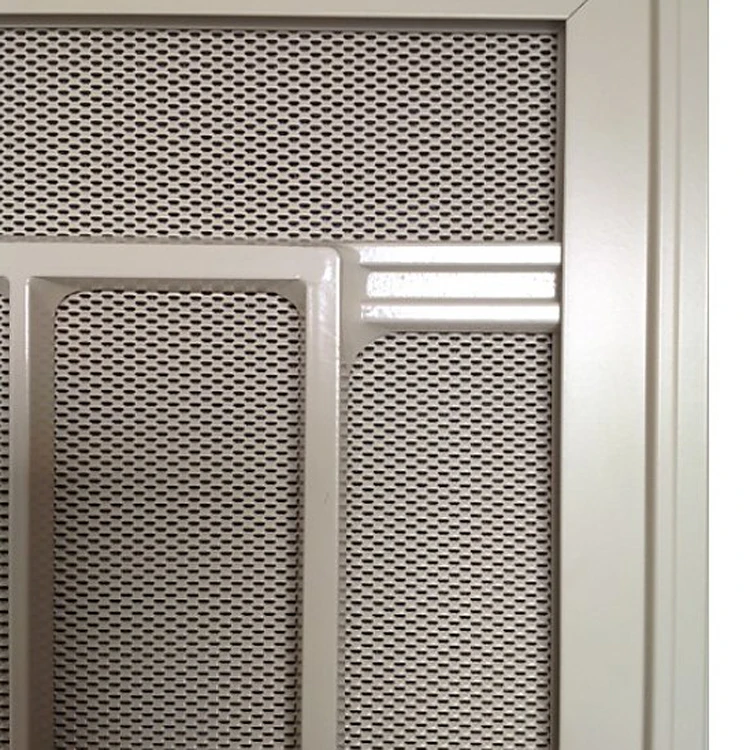

Application : DVA mesh widely used in securtiy doors and windows
Related products

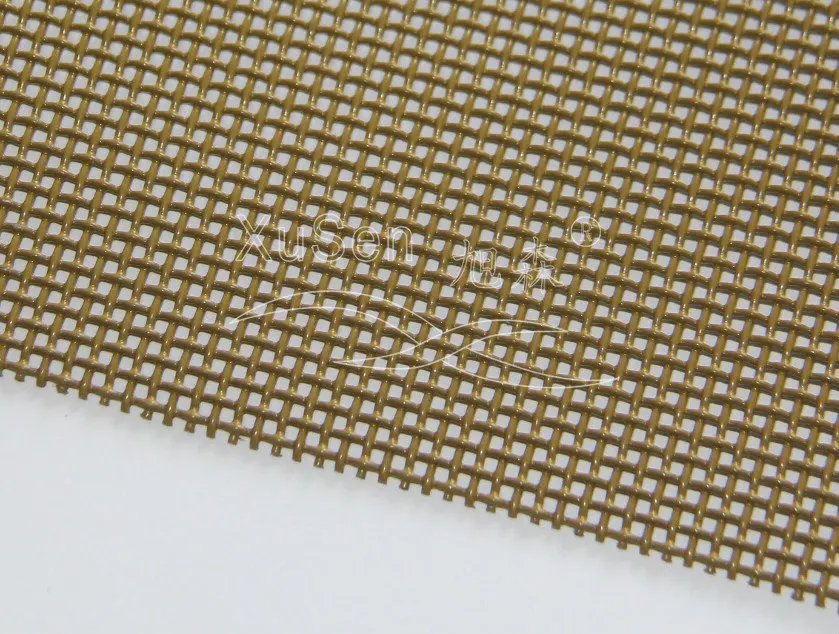

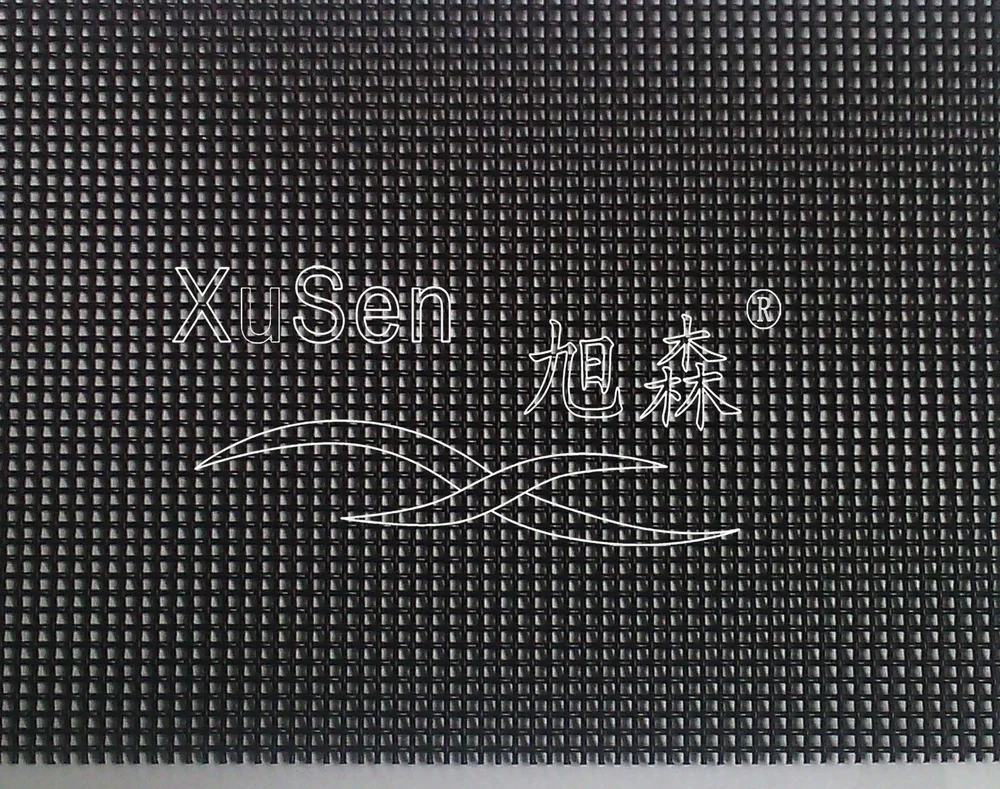

Stainless steel security window screen mesh sheets
| Burglarproof Security screens / Bulletproof stainless steel window screen | |||||||||
| material: stainless steel | wire diameter | mesh count | standard sheet wide | standard sheet length | color | MOQ | packing | delivery | payment |
| 316 / 304 / 202 | 1.0mm | 10*10 | 1m / 1.1m / 1.2m / 1.3m / 1.5m / 2m / 3m / 4m | 2m / 2.4m / 2.6m / 3m / 4m / 31.5m | black / grey / dark grey, white / silver / brown / green etc. | 300 square meters | sheets 50pcs per wooden case (recommended); big rolls 2 or 4 rolls per wooden case | 3 days for 1000m2; 15days for 20`GP, 25days for 40`GP | 30%T/T prepay, balance B/L at sight |
| 0.9mm | 11*11 | ||||||||
| 0.8mm | 11*11 | ||||||||
| 0.7mm | 12*12 | ||||||||
| 0.6mm | 14*14 | ||||||||
| 0.55mm | 14*14 | ||||||||
| 0.50mm | 14*14 | ||||||||
bulletproof screen black color bulletproof screen yellow color
bulletproof screen color selection bulletproof screen color selection
Company Information
Company Name: Hebei Xusen Metal Wire Mesh Products Co., Ltd
Address: No.20 Weier Road East Zone Industrial Park Anping County, Hengshui City, Hebei Province, China

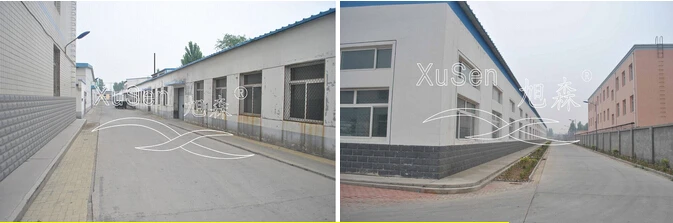

Brief introduction: Hebei Xusen covers an area of over 100,000 square meters and more than
200 employees, owning 16 machine equipments for wire drawing, 270 sets weaving machines,

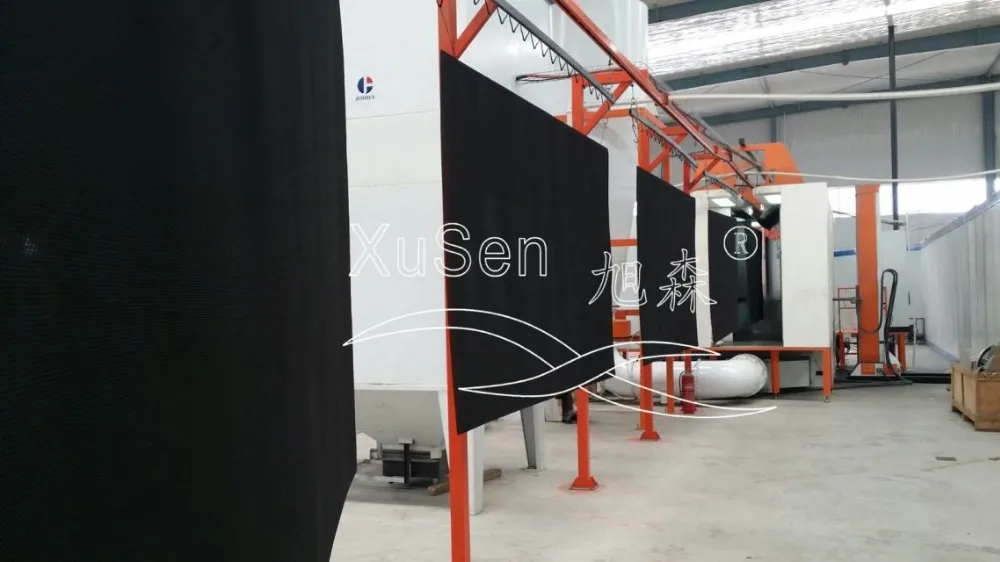

4 lines of design finalizing and powder coating, window screens day output 60000 square meters
so we have grown to be a large professional manufacturer in China.
Main products line:
1. bulletproof stainless steel window screen / security mesh screen / safety stainless steel window screen
2. fireproof fiberglass window screen / fiberglass insect screen
3. stainless steel window screen / stainless steel wire mesh
4. aluminium mesh screen / aluminum fly screen
5. polyethylene / plastic insect screen / nylon window screen
6. HDPE insect net for greenhouse and farms
7. galvanized wire mesh / galvanized window screen
Competitive advantage: High quality, lowest price, honest about material & weight, fast delivery,
good trade service.
Main export country: Canada, USA, Australia, India, Pakistan, Columbia, Ukraine, Turkey, Romania,
U.A.E., South Africa, Japan, South Korea, Indonesia, Philippine, Singapore, Thailand etc.
Welcome inquiry!
Please Contact me: Sales Manager- Doria Liu

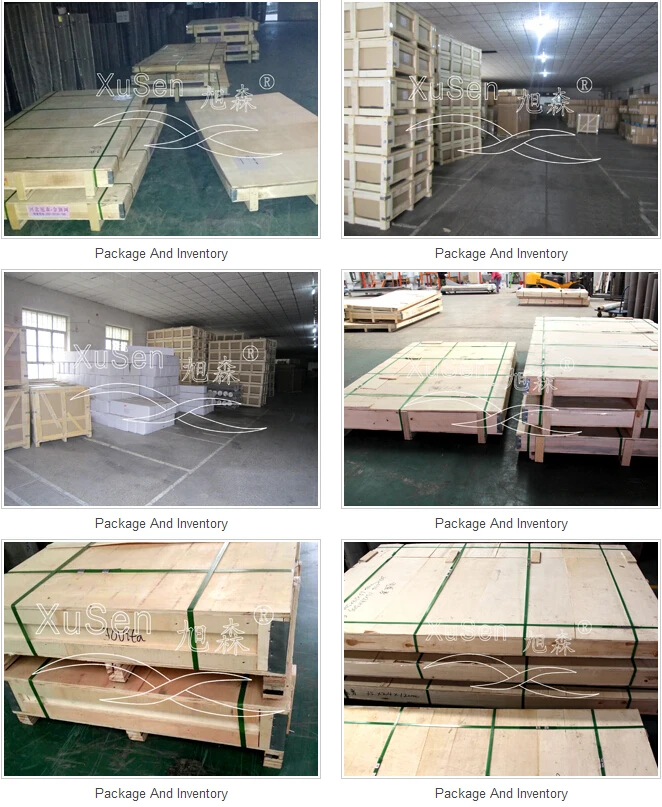

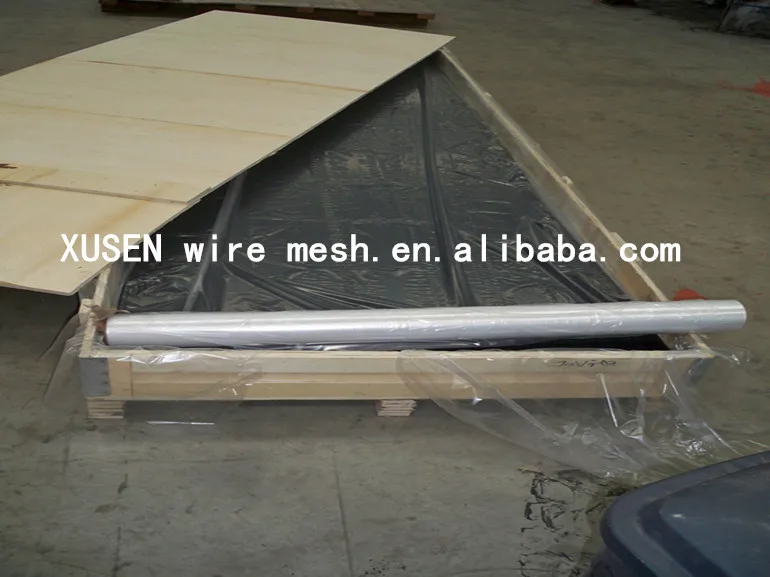

Packaging & Shipping
Burglarproof Security screens / Bulletproof stainless steel window screen

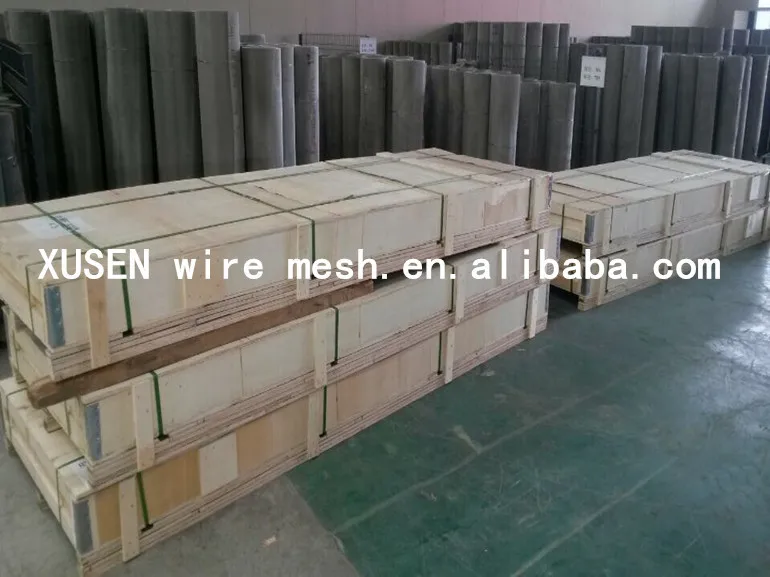

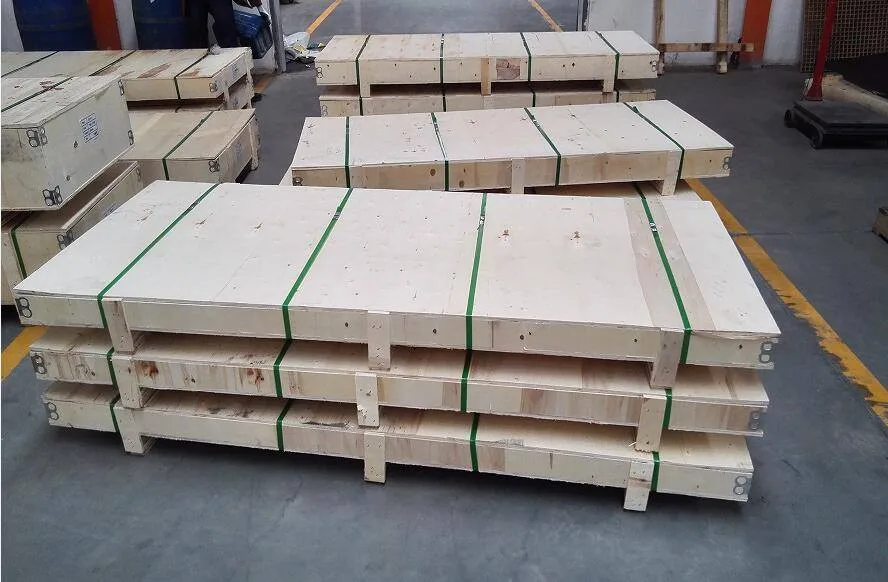

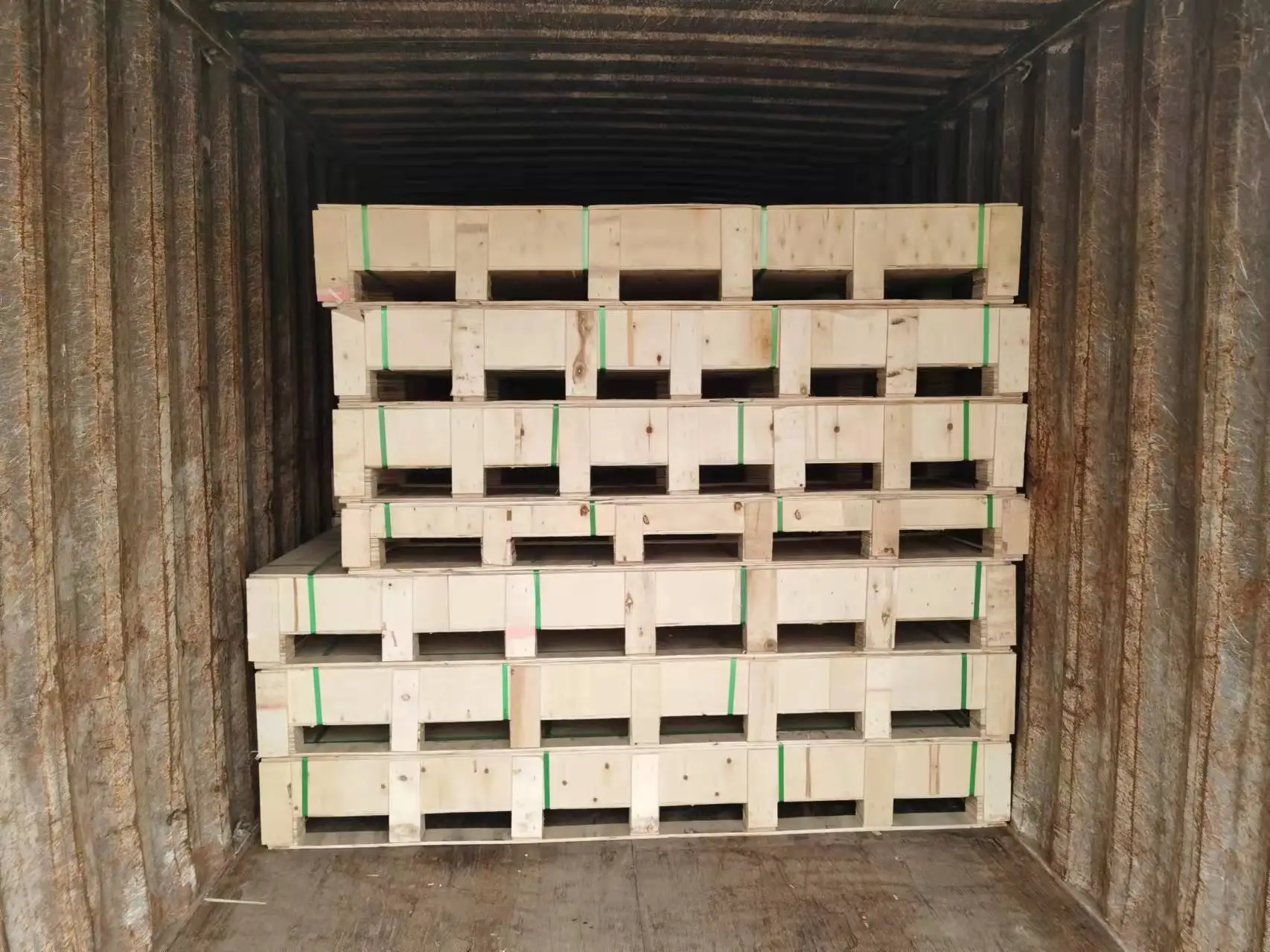

Package: Free fumigation wood case packing, 50 pieces per case or 100 pieces per case.
Nearest Shipping port: Tianjin Xingang China
FAQ
Q1. Dose your security mesh screen have quality certificate assurance?
A: Yes we have quality certificate - SGS RoHS and Salt Spray Test
Q2. Your products have life warranty or not?
A: Yes. 304 security mesh screen and 316 security mesh screen have life warranty 10 years.
Q3. Are you honest in weight and material?
A: Yes we are. Our material is real 304 and 316 stainless steel wire and stand any chemical test. Our product is honest in wire diameter and mesh size, so we can assrue our customers about weight.
Q4. If goods quality problem happens, do you have after sale service system?
A: Yes we have effective after sale service to protect consumers. If goods you bought from our company have quality problem or destroy in tranportation, we will change goods for you certainly.
Q5. Do you delivery chemical testing drugs with the goods for consumers to check quality?
A: Yes if you need we can send testing drugs to you to assure material quality.
