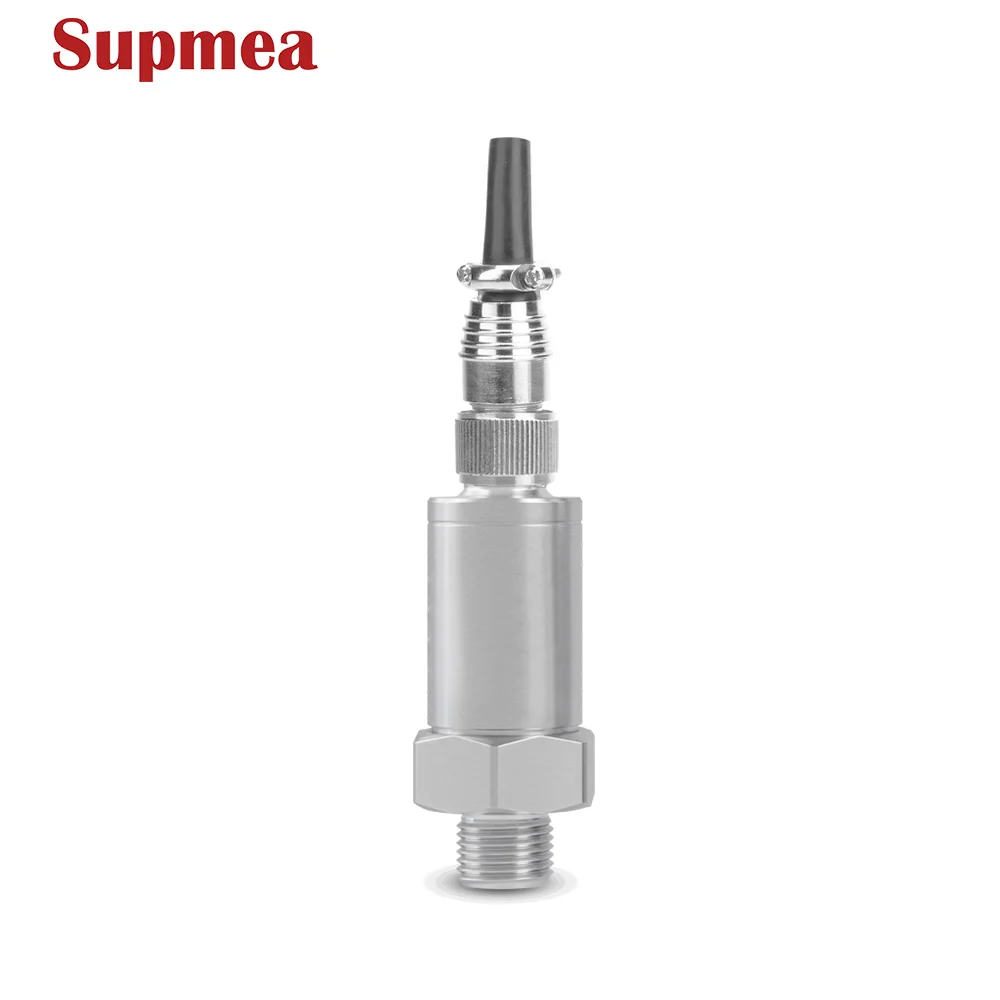

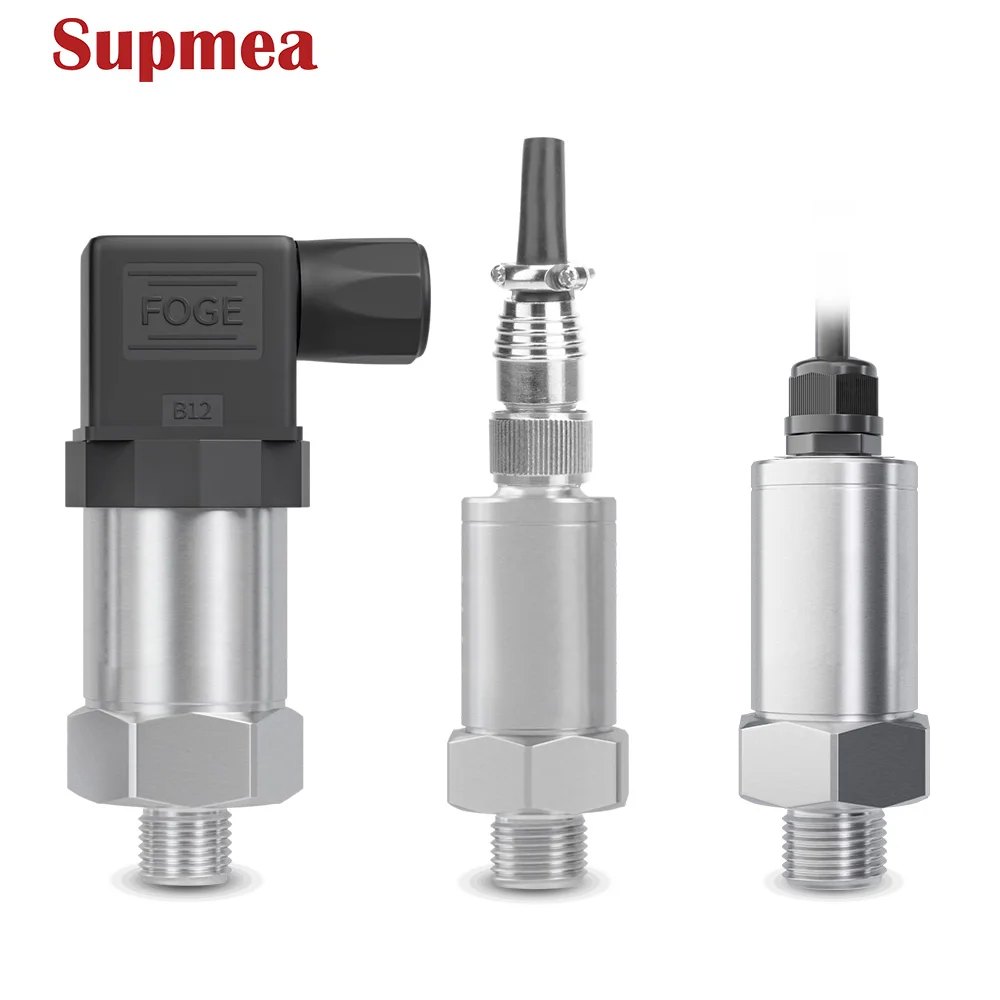

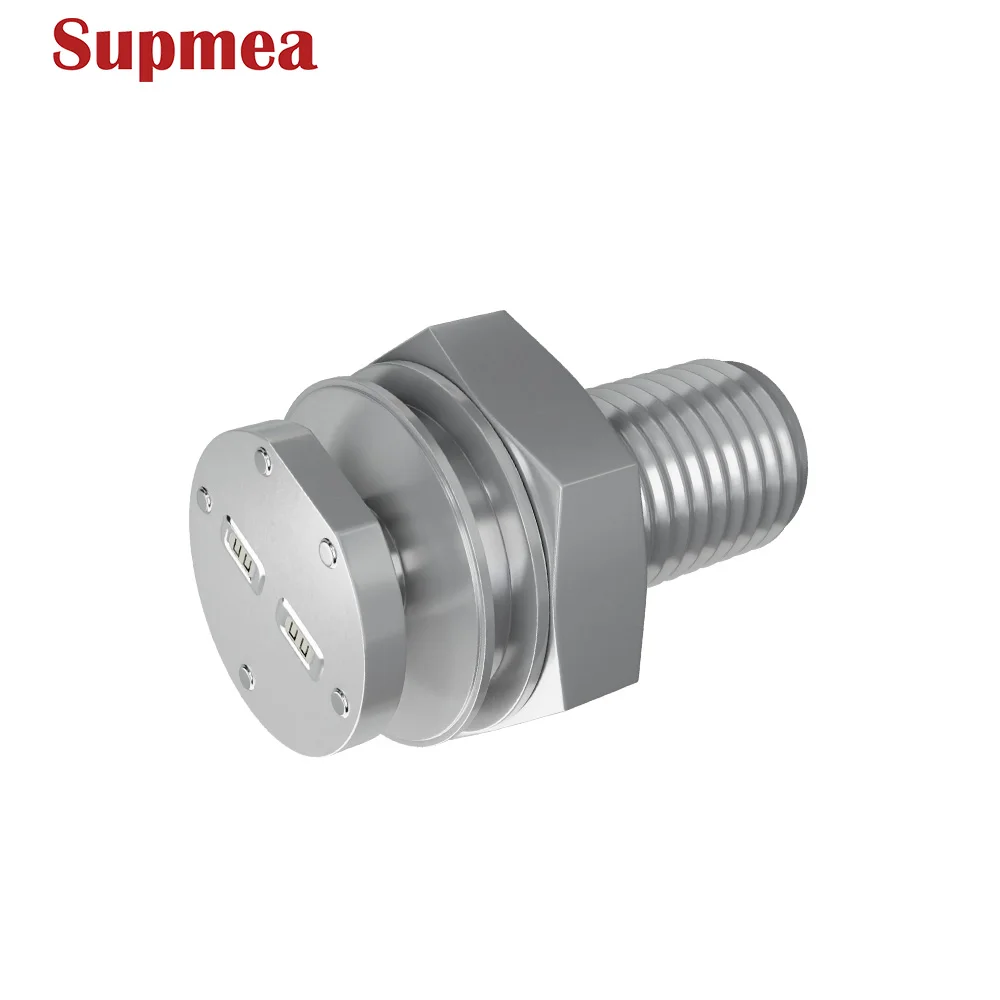

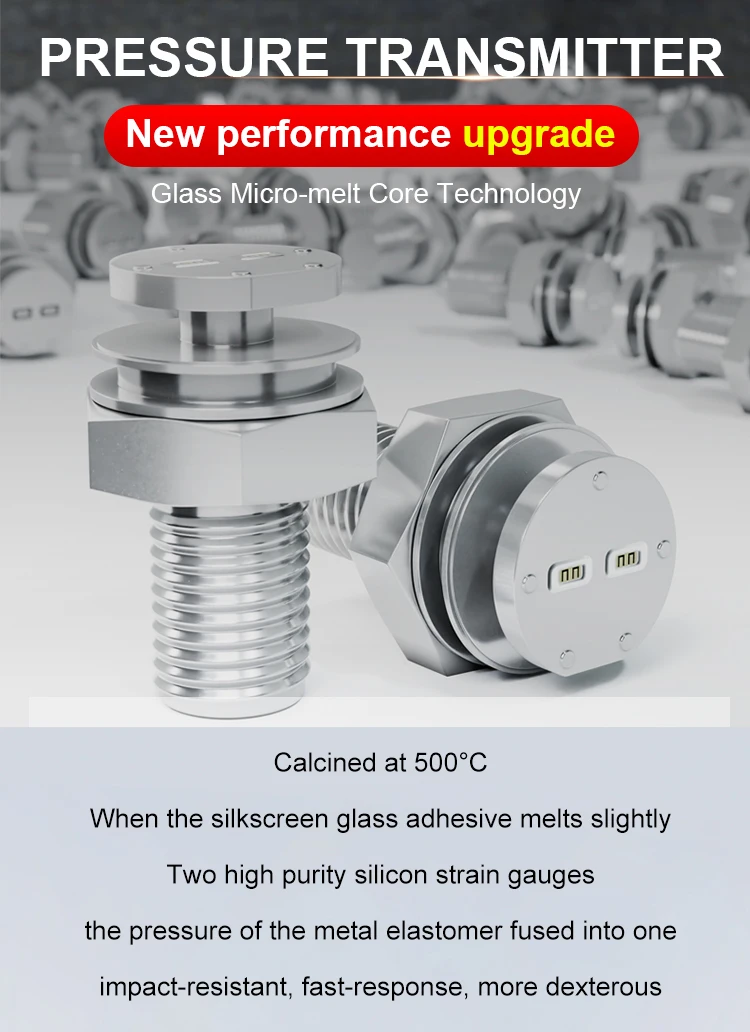

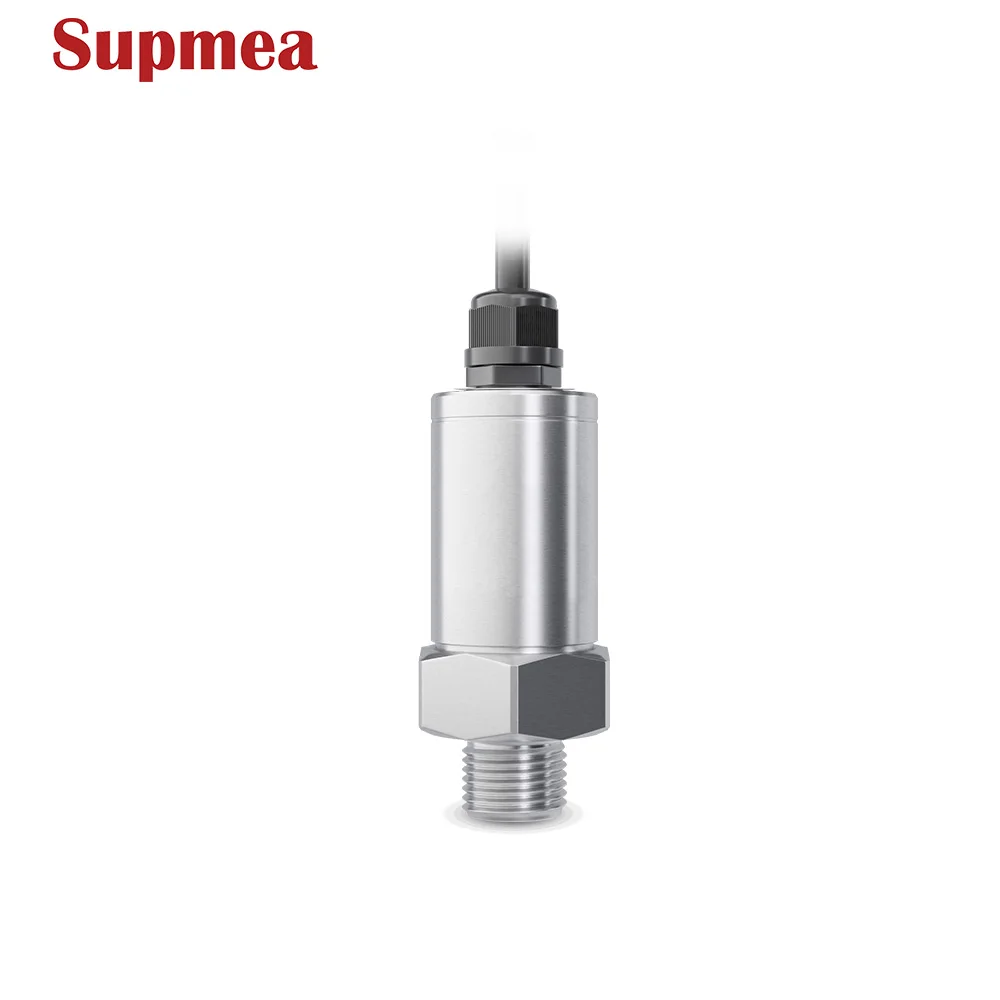

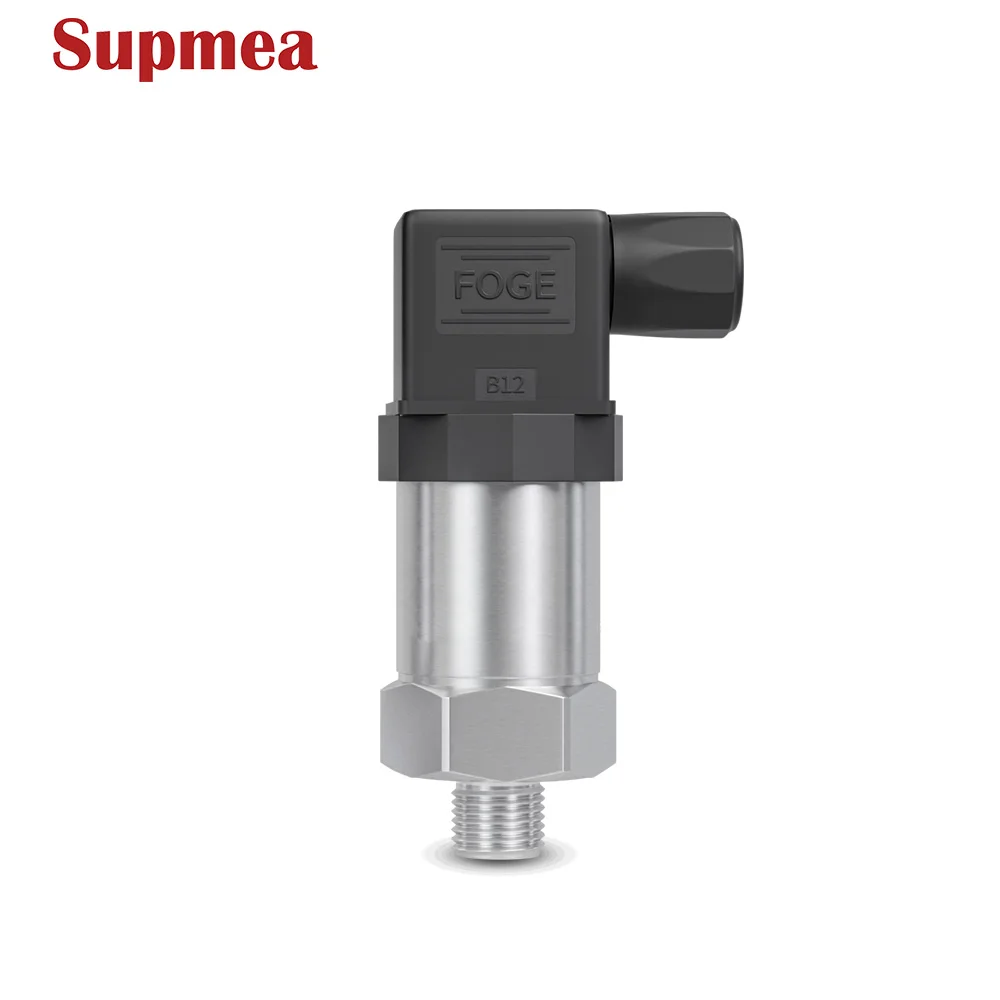

Glass micro melt core industrial 600 bar pressure transducer micro pressure sensor
- Category: >>>
- Supplier: Hangzhou Supmea International Trading Co. Ltd.
Share on (1600688780448):
Product Overview
Description
Recommend Products
Products Description
Measure Range | -100kPa…0～0.6MPa…200MPa |
Accuracy | 0.5%FS |
Pressure Type | gauge pressure |
Signal Output | (4～20mA) /(0.5～4.5)V /(0～10)V /(1～5)V |
Power Supply | 24VDC/12VDC |
Compensated Temperature | (0~85)℃ |
Working Temperature | (-10~85)℃ |
Medium Temperature | (-20~85)℃ |
Storage Temperature | (-40~125)℃ |
Zero Output Temperature Drift | ±1.5%(@-10℃～85℃) |
Full Scale Output Temperature Drift | ±1.5%(@-10℃～85℃) |
Overload Pressure | 150%FS |
Long-term Stability | ±0.2%FS/Year |
Response Time | ≤1ms(up to 90%FS) |
Protection Grade | IP65 |
Insulation Resistance | ≥100MΩ@250VDC |
Load Resistance | 250Ω(Current);＞2kΩ(Voltage) |
