Step 1: Enquiry
Show samples
check size, settle down the model machine (our machine pack different type such as trap,film)
(note: If you do not have license to import, you can ask local agent to import machines)
ep 2: Place order

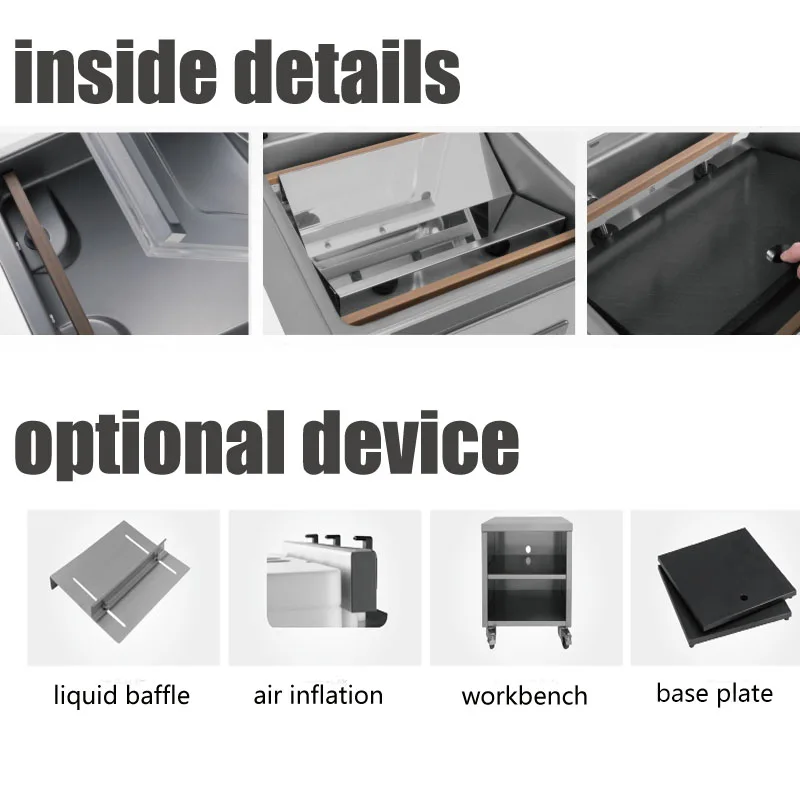

checking details like spare parts and optional device then place the order. Customer send 40% deposit and we produce the machines.
Step 3: check machine
We concern the production of the machines and send the pictures or video to customers. Once the machine is ready, customers send sample tray or sample film for testing. After test OK and send the video to customers, then customer sending the balance
Step 4: delivery
Once we received the amount Booking shipment and pack with wooden case. Deliver the goods to the customers
Step 5: installment
Once customer received the machine, kindly read the operation and contact us for video guide until the machine running smoothly
COMPANY HISTORY:

Specification:

| model | DZ-260 | DZ-300 | DZ-400A | DZ-4002H | DZ-500A |
| machine body | Food grade 304SS | ||||
| work table | 70mm deep inside | ||||
| chamber size | 385*280*70mm | 385*320*70mm | 435*435*80mm | 435*435*80mm | 525*525*80mm |
| sealing length | 260mm in front | 300mm in front | 400mm in front | 400mm*2pcs | 500mm in front |
| sealing width | 10mm | 10mm | 10mm | 10mm | 10mm |
| sealing number | 1 pc | 1 pc | 1 pc | 2 pcs | 1 pc |
| Distance between seal | 332mm | 332mm | 323mm | 323mm | 415mm |
| vacuum pump | XD 15M3/h | XD 15M3/h | XD 20M3/h | XD 20M3/h | XD 20M3/h |
| main power( approx.) | 0.38kw | 0.38kw | 0.75kw | 0.75kw | 0.75kw |
| voltage | 110/220V 50/60HZ 1 Phase (or customized) | ||||
| pack capacity | 1-3 cycles/min | ||||
| lid | Organic Plastic | ||||
| control panel | smart digital controller | ||||
| weight (without pump) | 40kg | 48kg | 95kg | 95kg | 120kg |
| Overall size(mm) | 480*330*350 | 430*410*350 | 490*535*540 | 490*535*540 | 575*650*540 |
| Function | Vacuum+seal | ||||
| Certificate | CE | ||||
| Guarantee | 1 year (for main component,exclude durable spare parts) | ||||
| Language | control panel and printed manual in English language | ||||
| Lead time | 15 days to get machine ready for standard machine | ||||
Price:
It is with seal 260-400mm, MOQ is 10pcs
* DZ – 260, Seal 260mm in front, unit price 492USD
* DZ – 300, Seal 300mm in front, unit price 523USD
* DZ – 400A, Seal 400mm in front,, unit price 570USD
* DZ – 4002H, 2pcs Seal 400mm, unit price 585USD
* DZ – 500A, Seal 500mm in front,, unit price 692USD
All the price is based on FOB Ningbo Port

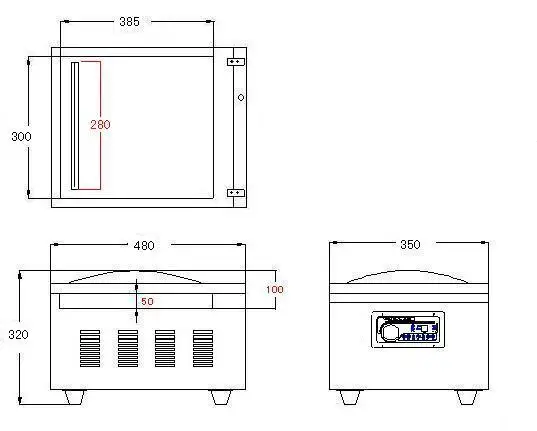

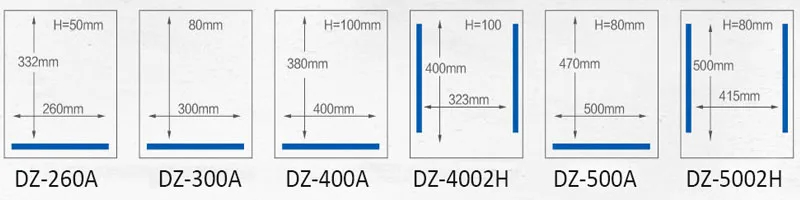

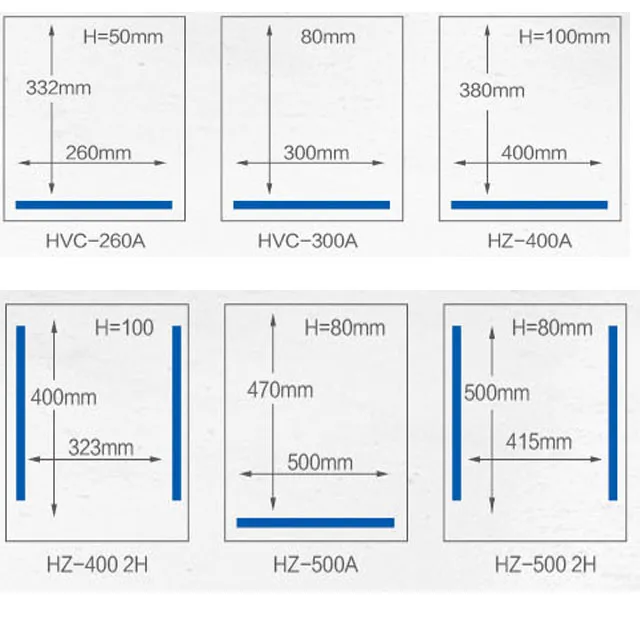

Here is our Model DZ-260A drawing:

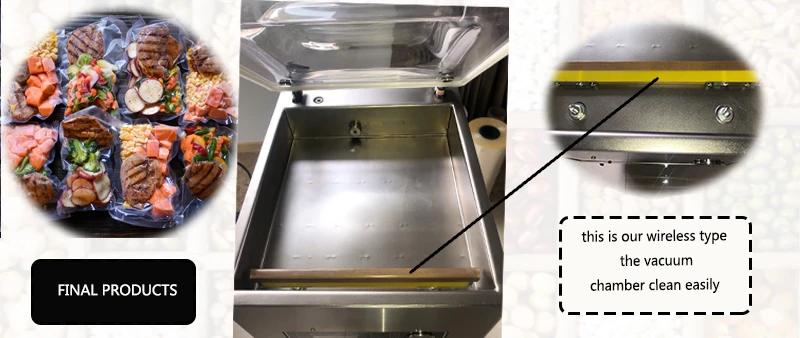

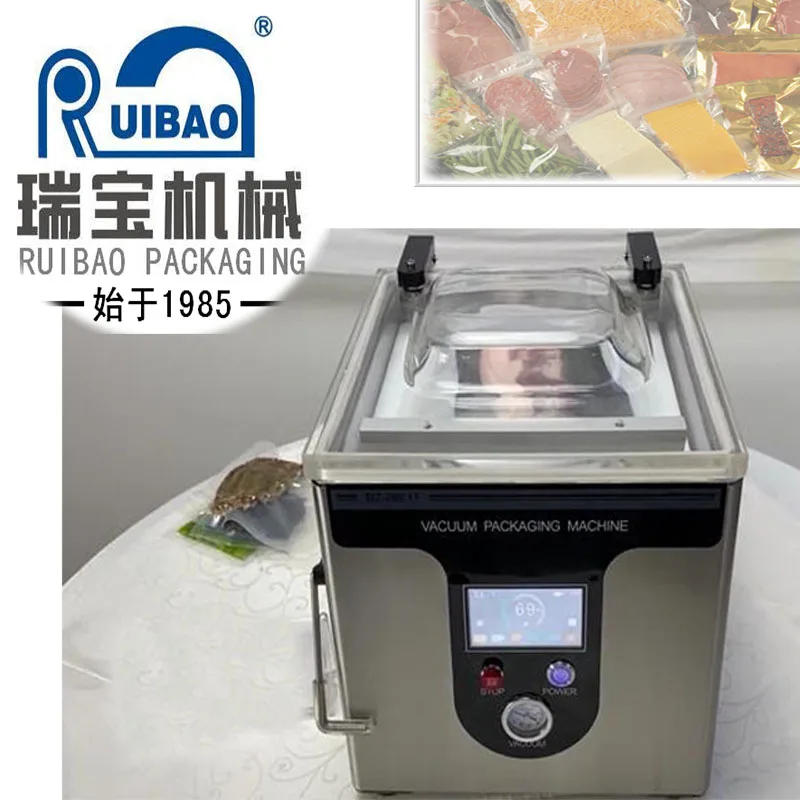

This is our updated product. Do not worry about pulling out the wire because there is no wire.
You may also like:

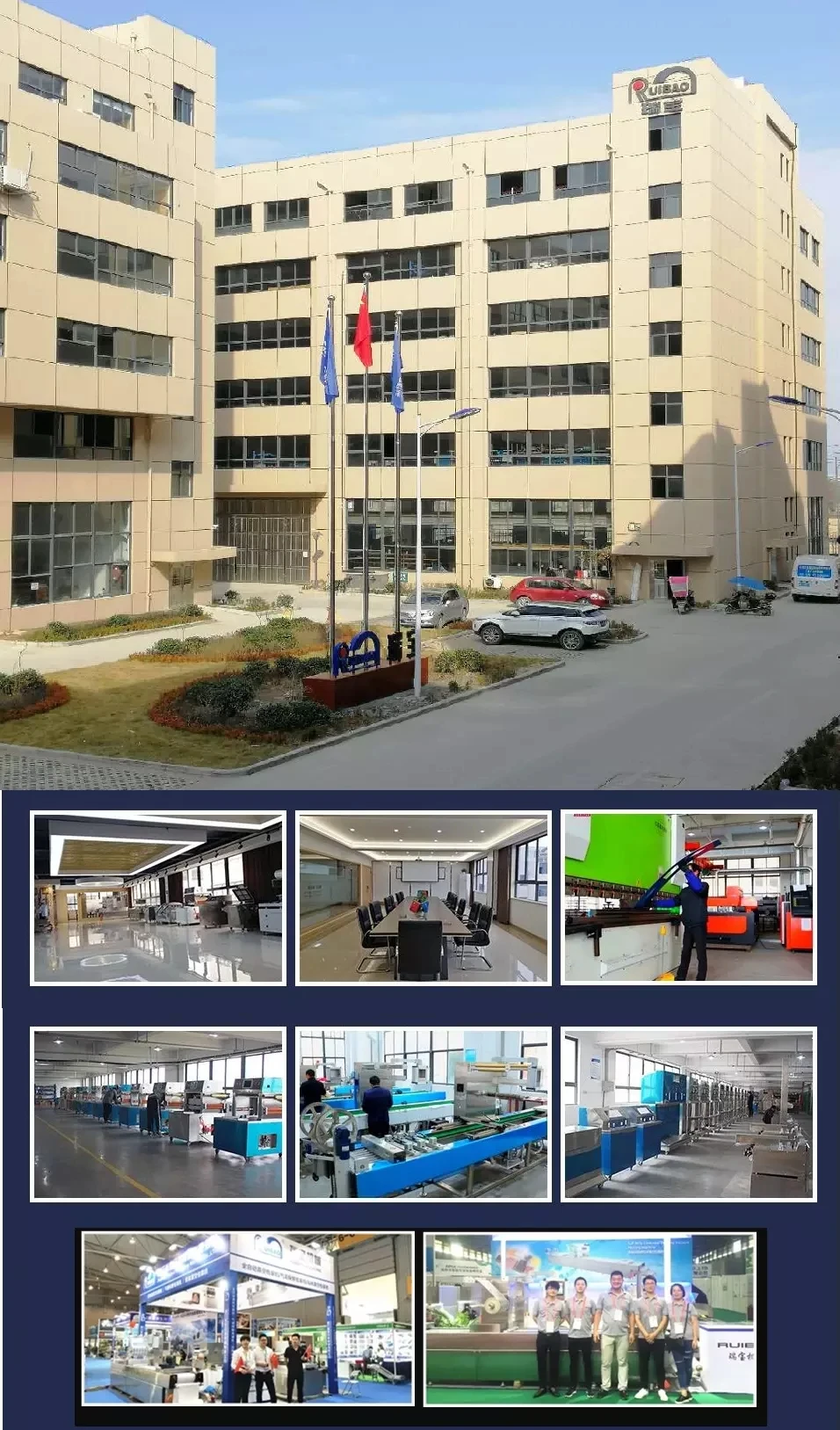

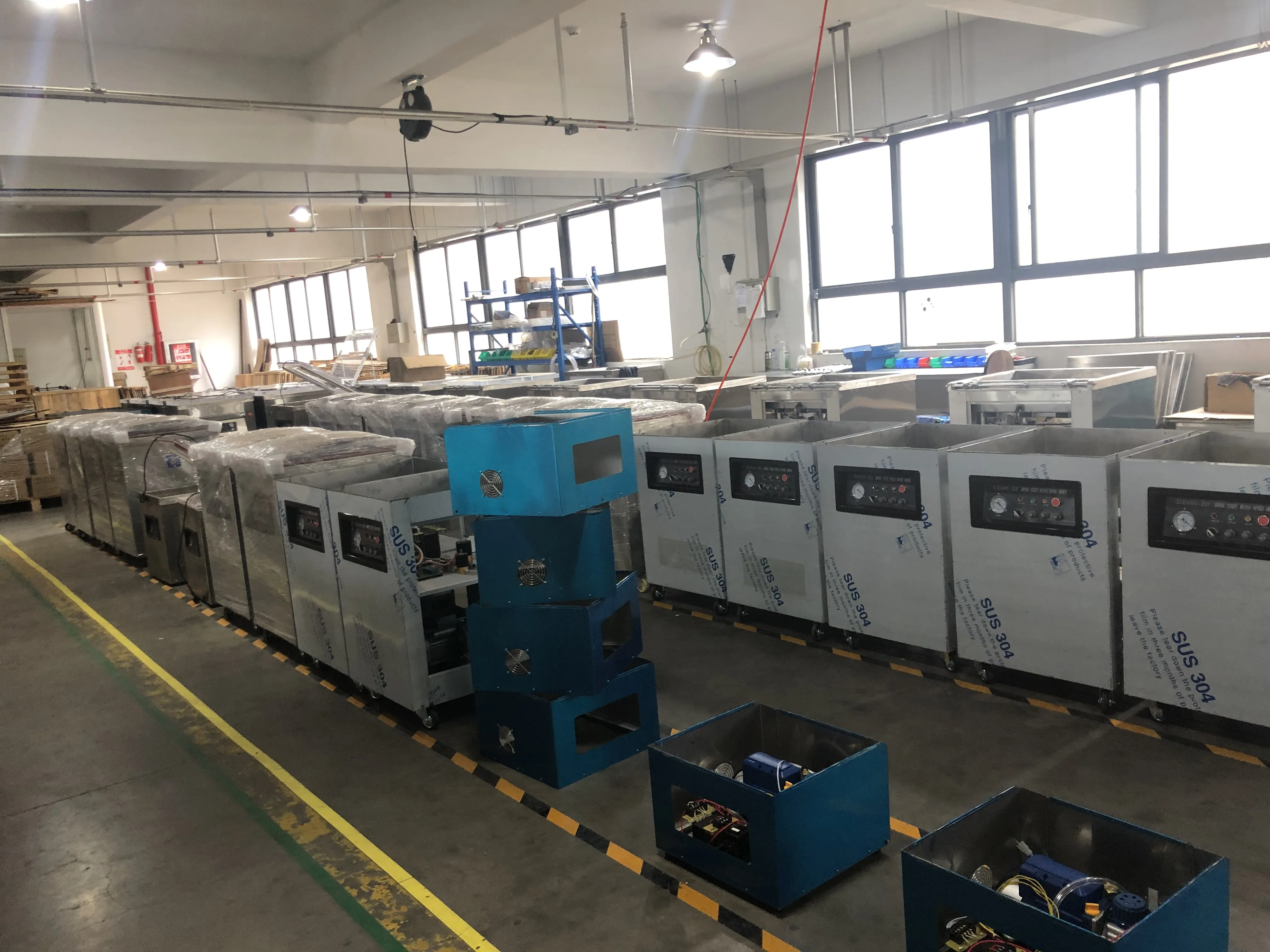

Factory show:
