China Manufacturer Customized Deye Inverter 5kw 6kw 7.6kw 8kw Hybrid Solar Power Inverter
- Category: >>>
- Supplier: FX Power Technology (shaoxing) Co .Ltd
Share on (1600688944537):
Product Overview
Description
Mechanical Parameters
Model | SUN-5K-SG01LP1 -US | SUN-6K-SG01LP1 -US | SUN-7.6K-SG01LP1 -US/EU | SUN-8K-SG01LP1 -US/EU | ||||
Battery Input Data | ||||||||
Battery Type | Lead-acid or Lithium-ion | |||||||
Battery Voltage Range (V) | 40~60V | |||||||
Max. Charging Current (A) | 120A | 135A | 190A | 190A | ||||
Max. Discharging Current (A) | 120A | 135A | 190A | 190A | ||||
Charging Curve | 3 Stages / Equalization | |||||||
External Temperature Sensor | Optional | |||||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||||
PV String Input Data | ||||||||
Max. DC Input Power (W) | 6500W | 7800W | 9880W | 10400W | ||||
PV Input Voltage (V) | 370V (100V~500V) | |||||||
MPPT Range (V) | 125V-425V | |||||||
Start-up Voltage (V) | 150V | |||||||
PV Input Current (A) | 11A+11A | 22A+11A | 22A+22A | 22A+22A | ||||
No.of MPPT Trackers | 2 | |||||||
No.of Strings Per MPPT Tracker | 1+1 | 2+1 | 2+2 | 2+2 | ||||
AC Output Data | ||||||||
Rated AC Output and UPS Power (W) | 5000W | 6000W | 7600W | 8000W | ||||
Max. AC Output Power (W) | 5500W | 6600W | 8360W | 8800W | ||||
Peak Power (off grid) | 2 times of rated power, 10 S | |||||||
AC Output Rated Current (A) | 20.8A | 25A | 31.7A / 33A | 33.4A / 35A | ||||
Max. AC Current (A) | 22.9A | 27.5A | 34.9A / 36.3A | 36.7A / 38.5A | ||||
Max. Continuous AC Passthrough (A) | 35A | 40A | 50A | 50A | ||||
Output Frequency and Voltage | 50 / 60Hz; 120 / 240Vac (split phase), 208Vac (2 / 3 phase), 230Vac (single phase) | |||||||
Grid Type | Split phase; 2 / 3 phase; Single Phase | |||||||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) | |||||||
Efficiency | ||||||||
Max.Efficiency | 97.60% | |||||||
Euro Efficiency | 97.00% | |||||||
MPPT Efficiency | 99.90% | |||||||
Protection | ||||||||
PV Input Lightning Protection | Integrated | |||||||
Anti-islanding Protection | Integrated | |||||||
PV String Input Reverse Polarity Protection | Integrated | |||||||
Insulation Resistor Detection | Integrated | |||||||
Residual Current Monitoring Unit | Integrated | |||||||
Output Over Current Protection | Integrated | |||||||
Output Shorted Protection | Integrated | |||||||
Output Over Voltage Protection | Integrated | |||||||
Surge protection | DC Type II / AC Type II | |||||||
Certififications and Standards | ||||||||
Grid Regulation | ABNT NBR 16149,ABNT NBR 16150,ABNT NBR 62116, AS4777.2, VDE 0126-1-1, NRS 097-2-1,CEC Guideline, UL1741, CSA C22.2 NO.107.1-16, UL 1741 SA, CPUC RULE 21, UL1699B, UL 1741 CRD | |||||||
Safety EMC / Standard | IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12, IEC61000-2-2, 47 CFR Part 15 | |||||||
General Data | ||||||||
Operating Temperature Range (℃) | -25~60℃, >45℃ Derating | |||||||
Cooling | Smart cooling | |||||||
Noise (dB) | <30 dB | |||||||
Communication with BMS | RS485; CAN | |||||||
Weight (kg) | 32 | |||||||
Size (mm) | 420W×670H×233D | |||||||
Protection Degree | IP65 | |||||||
Installation Style | Wall-mounted | |||||||
Warranty | 5 years | |||||||

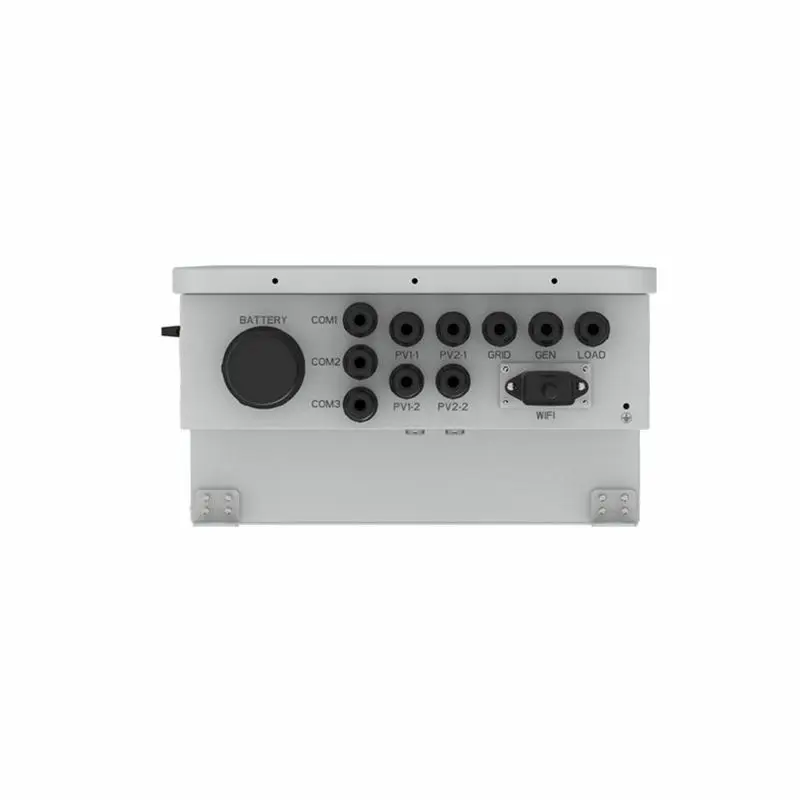

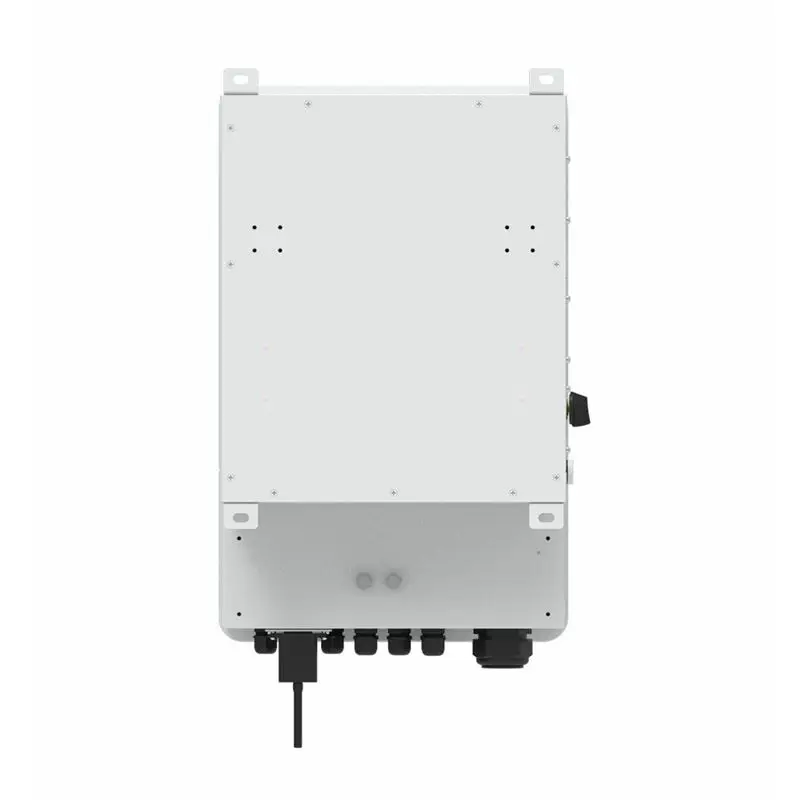

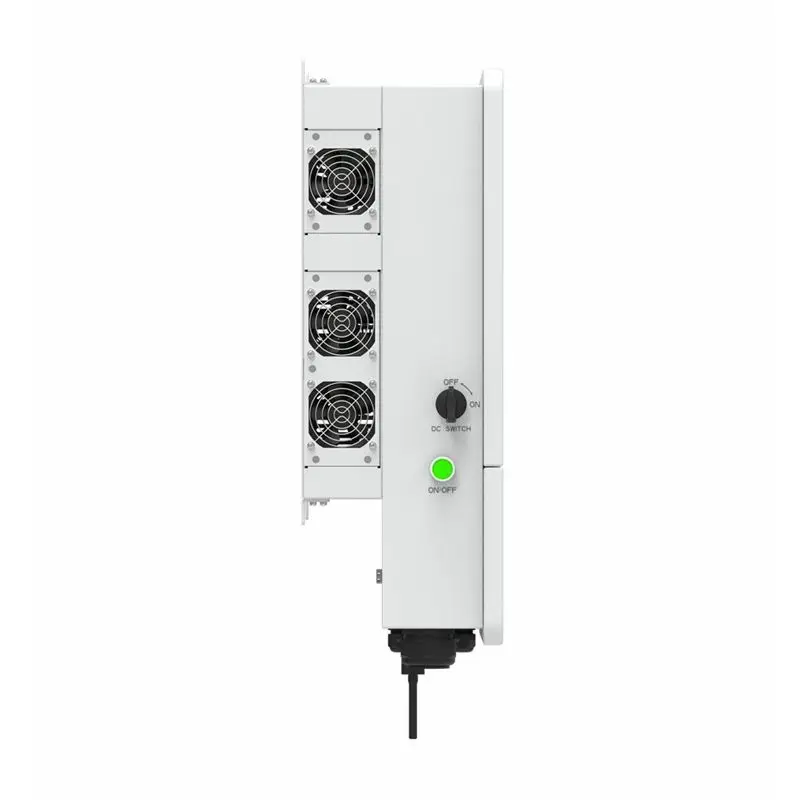

Details Images

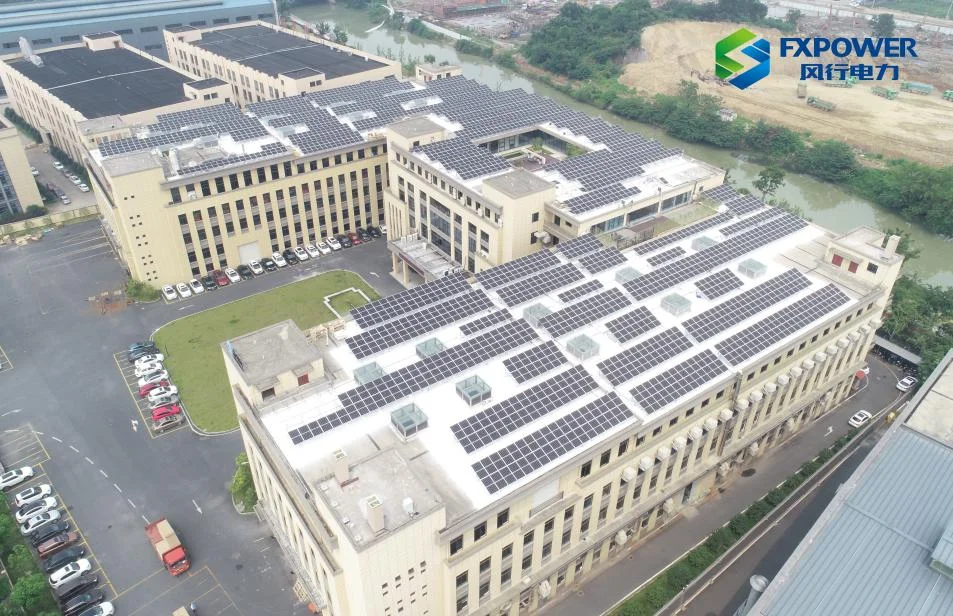

Company Profile

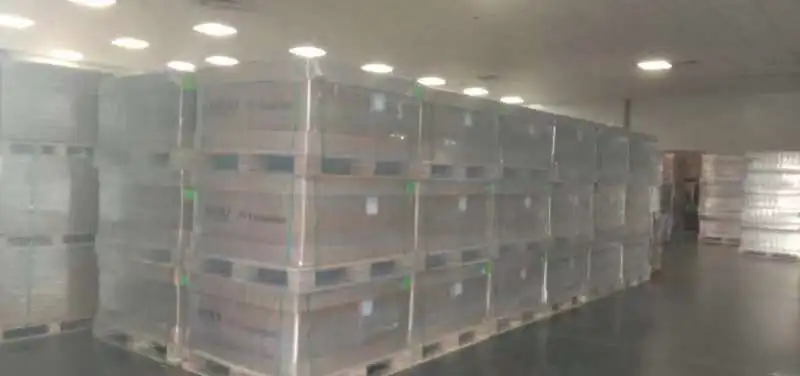

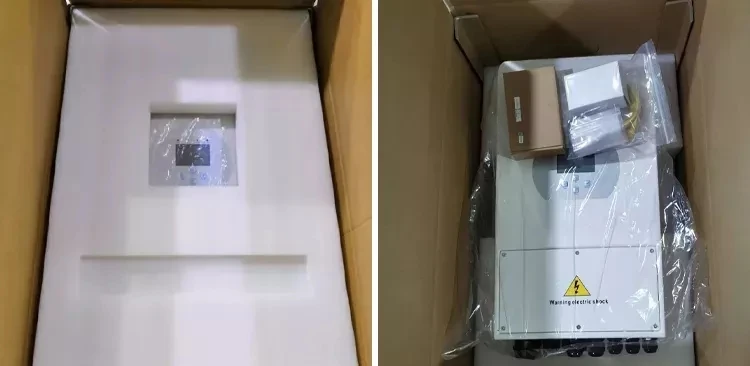

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Delivery Safe, Fast and Effective
FAQ
1.Are you a factory or trading company?
We are a factory with 3 fully automated production lines, with a daily capacity of more than 3000 pieces per day. we are also TUV certified for site supervision.
2. What is your solar panel manufacturing capacity?
Our standard solar panel annual output capacity is 3GW, with fully automatic production line and advanced testing machine set.
3. Can you do OEM lable?
Yes, we have plenty OEM experiences that will surely fulfill your requirements.
4. What is the lead time?
For solar panel, usually can be fulfilled in a month.
5. Can you provide sample?
Sure, please contact our representative for arrangement.
6.Why order from FX power?
· Quality with excellent design;
· Meets major international standards;
· 24-hour respond to any post sales service;
· Accept all major payment condition TT/LC/ /PayPal.
7.What is your advantage?
· Key components are manufactured by our own;
· Combined rich experience in solar energy;
· Research and Development capability, OEM and ODM;
· Trade Assurance protected.
8.What are your main products?
Solar power station, Solar panels, Solar inverters, Solar mounting structure, Solar storage, AC&DC cables, etc.
