DAC100 Preparative HPLC Chromatography System High Performance Liquid Chromatography System
- Category: >>>
- Supplier: Careddi Technology Co. Ltd.
Share on (1600688963100):
Product Overview
Description
Product Description
Specification

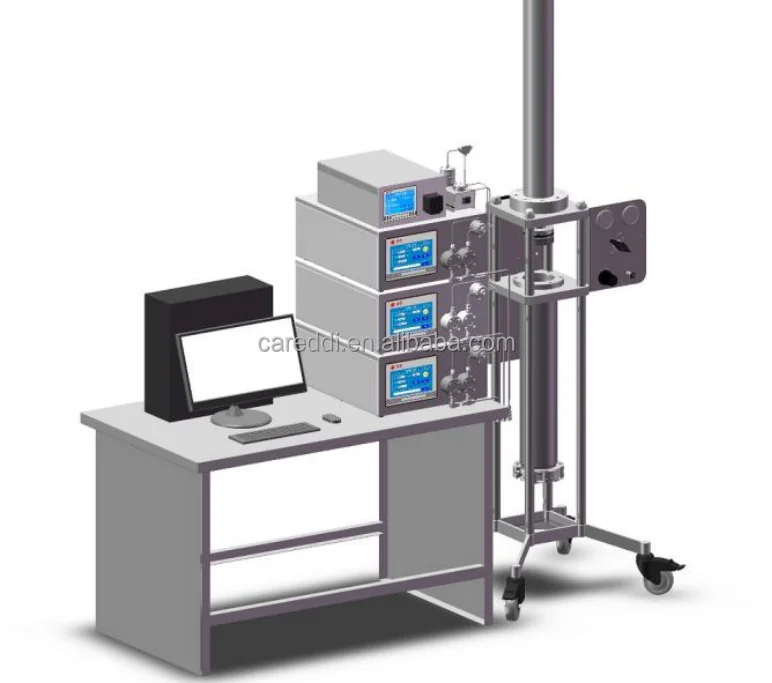

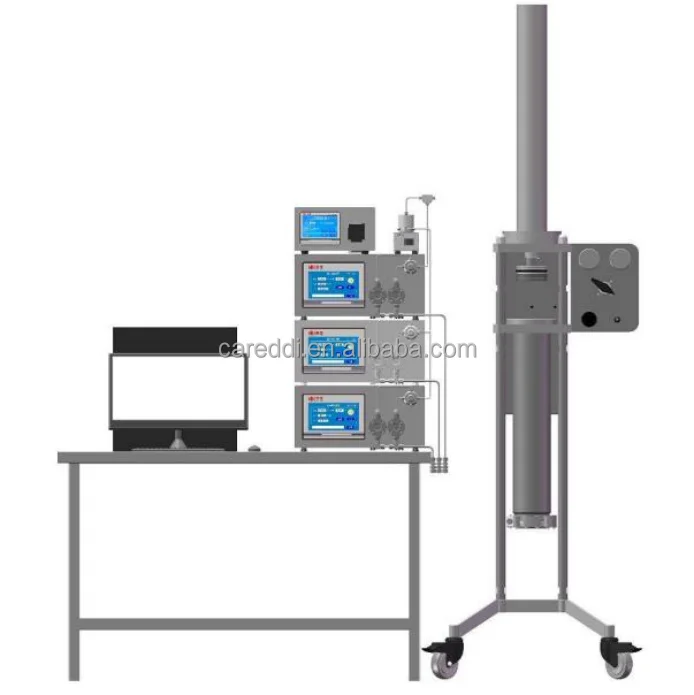

DAC100 HPLC Overall Design Description | ||||
SN. | Name | Technical Index | ||
1 | System composition | Dynamic axial compression column, infusion pump/UV detector, software, auxiliary equipment, etc. | ||
2 | System flow rate | 600ml/min | ||
3 | System pressure | 10MPa | ||
4 | Ambient temperature requirement | 5℃ ~60℃ | ||
5 | Column Specifications | DAC100*650 | ||
6 | Detection wavelength | 190-400nm | ||
7 | Material | All materials contact with liquid meet requirements of hygienic grade. Pumps, pipes, seals, etc. are free of leakage and rust. Material: Stainless steel 316L. Hose and sealing gasket are made of food silicone rubber, and the material proof document will be provided in the verification document. | ||
Product Paramenters

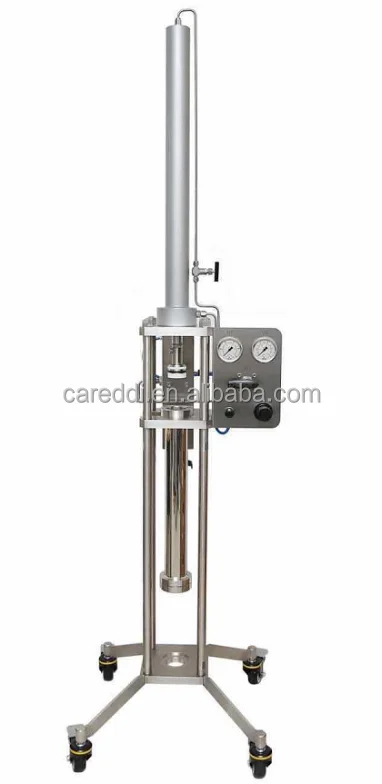

1. DAC100 Dynamic Axial Compression column
Dynamic axial compression technology completes column loading, column pressure maintenance and column unloading work through the
movement of piston. The periphery of piston is equipped with specially designed sealing structure that allows piston to slide freely along inner wall
of column tube while maintaining high seal.
Piston movement and pressure maintenance rely on pressure holding system, hydraulic power is more stable and uniform than
traditional axial compression column using spring power, which makes the use effect of separation column better. It can be loaded
of diameters (50mm-1000mm) Column while maintaining the same separation effect as the analytical column.

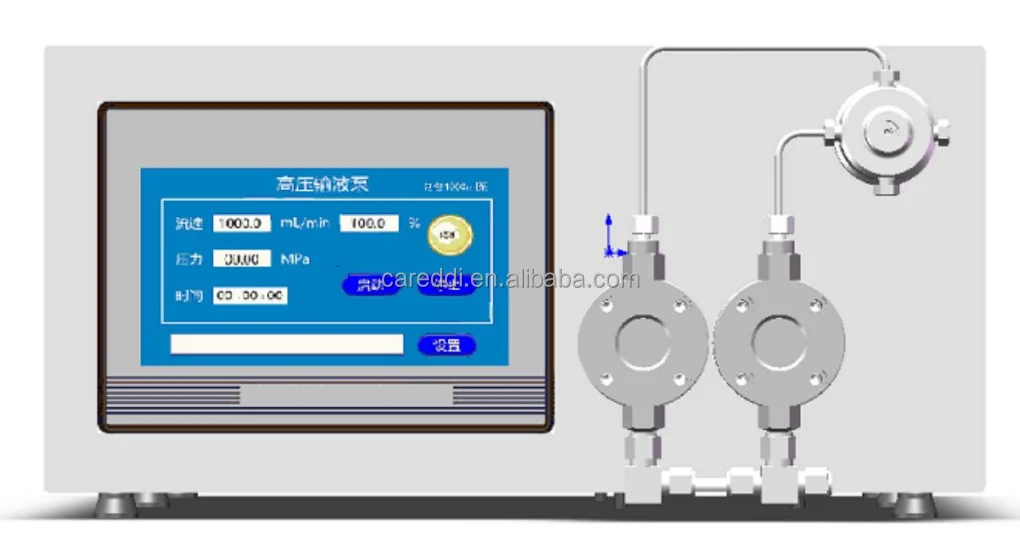

2. 600ml High Pressure pump
High-pressure preparation pump is a high-precision infusion pump system operated by PLC control touch screen. Based on the all-digital frequency generation system, advanced motor drive system and friendly man-machine display interface, the operation and control of the equipment are very convenient. The advanced pump head and one-way valve design ideas integrate the most advanced experience in the world today, so that users can ensure the accuracy and repeatability of infusion under various conditions of use.

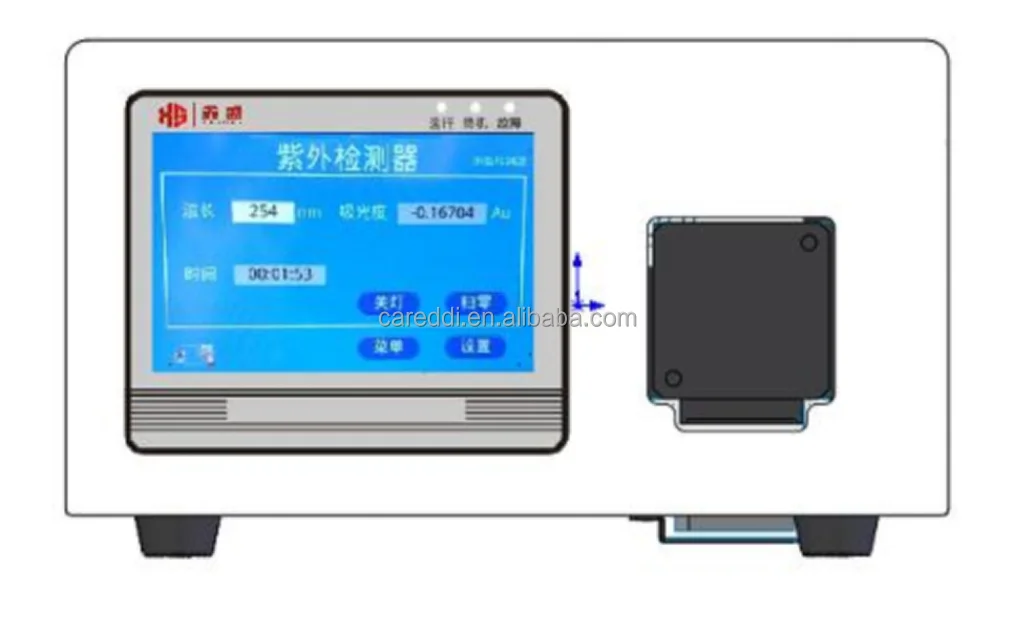

3. UV detector
UV/Visible wavelength detectors are an important part of a complete HPLC purification system. The detector design is guided by today's state-of-the-art technology, and its baseline noise and drift are reduced to a new limit through digital data processing and control. Due to the digital output function, the detector can be directly connected with the computer through the serial port
without any data acquisition unit.
The detector system adopts different flow cell unit designs for different flow rates, which fully meets the requirements of direct detection without shunt, which is a very prominent shining point of the device.
without any data acquisition unit.
The detector system adopts different flow cell unit designs for different flow rates, which fully meets the requirements of direct detection without shunt, which is a very prominent shining point of the device.

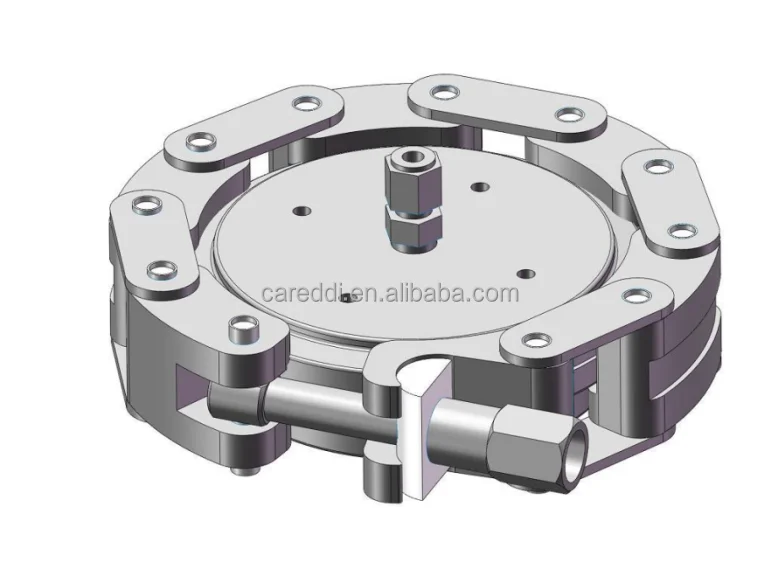

4. ID70 online filter

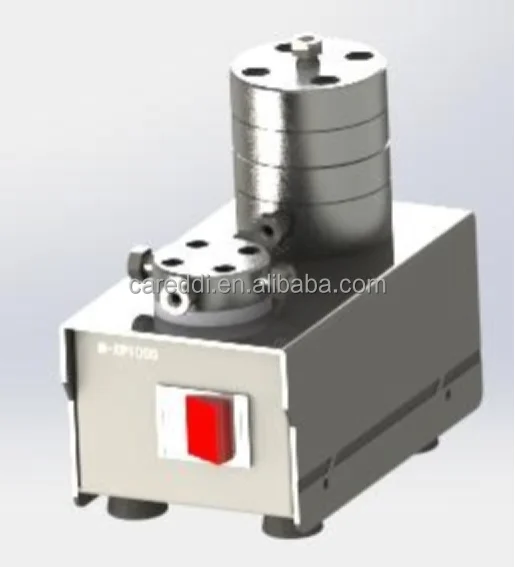

5. Dynamic mixer
The main function of this instrument is to mix
two different solutions uniformly in binary gradient test, and the ideal state is to minimize the mixing volume. The motor speed is 500rpm/min, which can ensure the uniform mixing of the solution.
The middle layer of the mixing chamber is composed of upper and lower halves. Through the rotation of the stirring bar, the liquid in the lower half can be rapidly and intensively mixed, which is dynamic. The upper part is tightly wrapped with glass wool to achieve static solution mixing service
two different solutions uniformly in binary gradient test, and the ideal state is to minimize the mixing volume. The motor speed is 500rpm/min, which can ensure the uniform mixing of the solution.
The middle layer of the mixing chamber is composed of upper and lower halves. Through the rotation of the stirring bar, the liquid in the lower half can be rapidly and intensively mixed, which is dynamic. The upper part is tightly wrapped with glass wool to achieve static solution mixing service
