Wood Sawdust Granulator Machine 1 to 1.8 tph China Hot Sale Biomass Sawdust 110kw Pellet Mill Machine Granule Rice Husk Straw
- Category: >>>
- Supplier: Shandong Bolida Machinery Co. Ltd.
Share on (1600688987076):
Product Overview
Description
Product Description
Our advantages
The new vertical centrifugal pellet machine is the latest pellet machine in China. The pellet machine adopts a large modulus hard toothed helical gearbox, strenthened spindle, strong power output, equipment stable operation, low failure rate, low production cost. It is the preferred machine model in the biomass industry.
In the process of operation, the control panel, tablet computer and mobile APP can be used to monitor the temperature of critical parts and the electric current of the equipment.
2.Independent lubrication and non-independent lubrication can be switched.
3.Reducer drive strengthen.
The gearbox adopts independent research and development big gear with 3 level drive , module increased , gear strengths increased. The gears in gearbox quality assurance for five years!

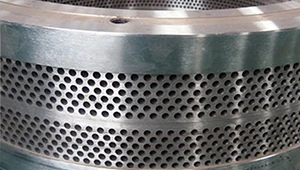

4.Die: stainless steel，with high wear resistance and high capacity.
Die of biomass pellet machine adopt integral carburizing stainless steel, high wear resistance, good stability, discharge area increase, enhance the capacity and reduce cost.
Specification
Model | Main Power(kw) | Capacity(t/h) | Dimension(L*W*H) | Weight(t) |
YGKJ560 | 132 | 1.5-2 | 2200*1300*1600 | 5.8 |
YGKJ700 | 160 | 2-3 | 2400*1400*1800 | 7.8 |
YGKJ880 | 220 | 3-4 | 3000*1500*2200 | 13 |
Parallel vertical installation reduce energy consumption loss
The motor and main shaft of wood pellet machine supplier are parallel vertical installed , which can reduce energy consumption loss in the process of transmission, more output power, higher transformation of energy efficiency.
Die: stainless steel，with high wear resistance and high capacity.
Die of biomass pellet machine adopt integral carburizing stainless steel, high wear resistance, good stability, discharge area increase, enhance the capacity and reduce cost.

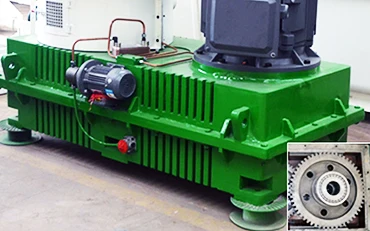

Casting material of gearbox with high stability
Gearbox shell of wood pellet machine adopts casting. Weight of shell is 2.5t. Castings have advantages of good rigidity, good heat dissipation, Low heat distortion and high stability.

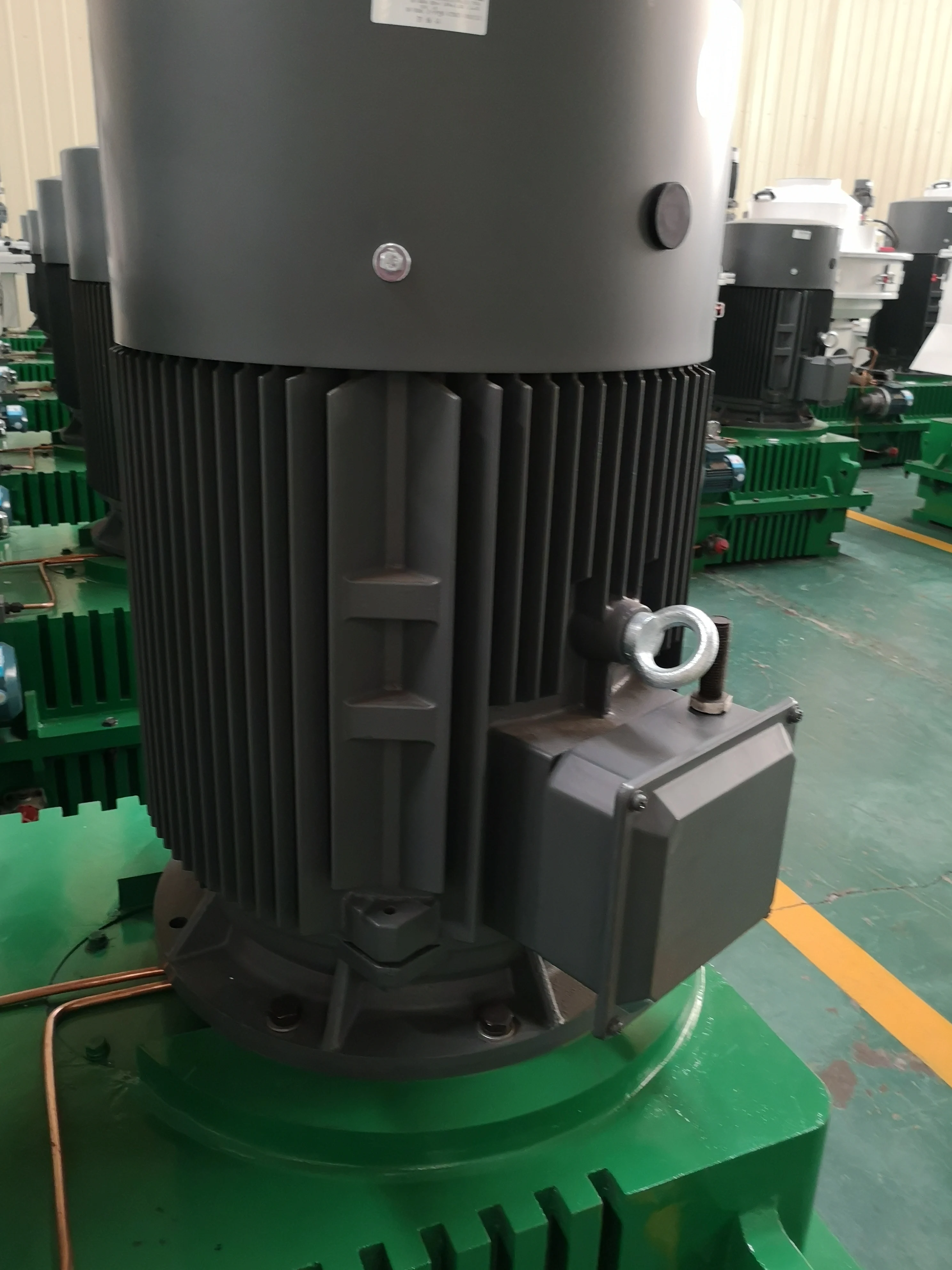

Siemens Brand Motor:
Motor of biomass pellet machine use Siemens Brand. This kind of motor is frequency and has thick copper coil, it won’t be burned due to instantaneous current.
Company Profile

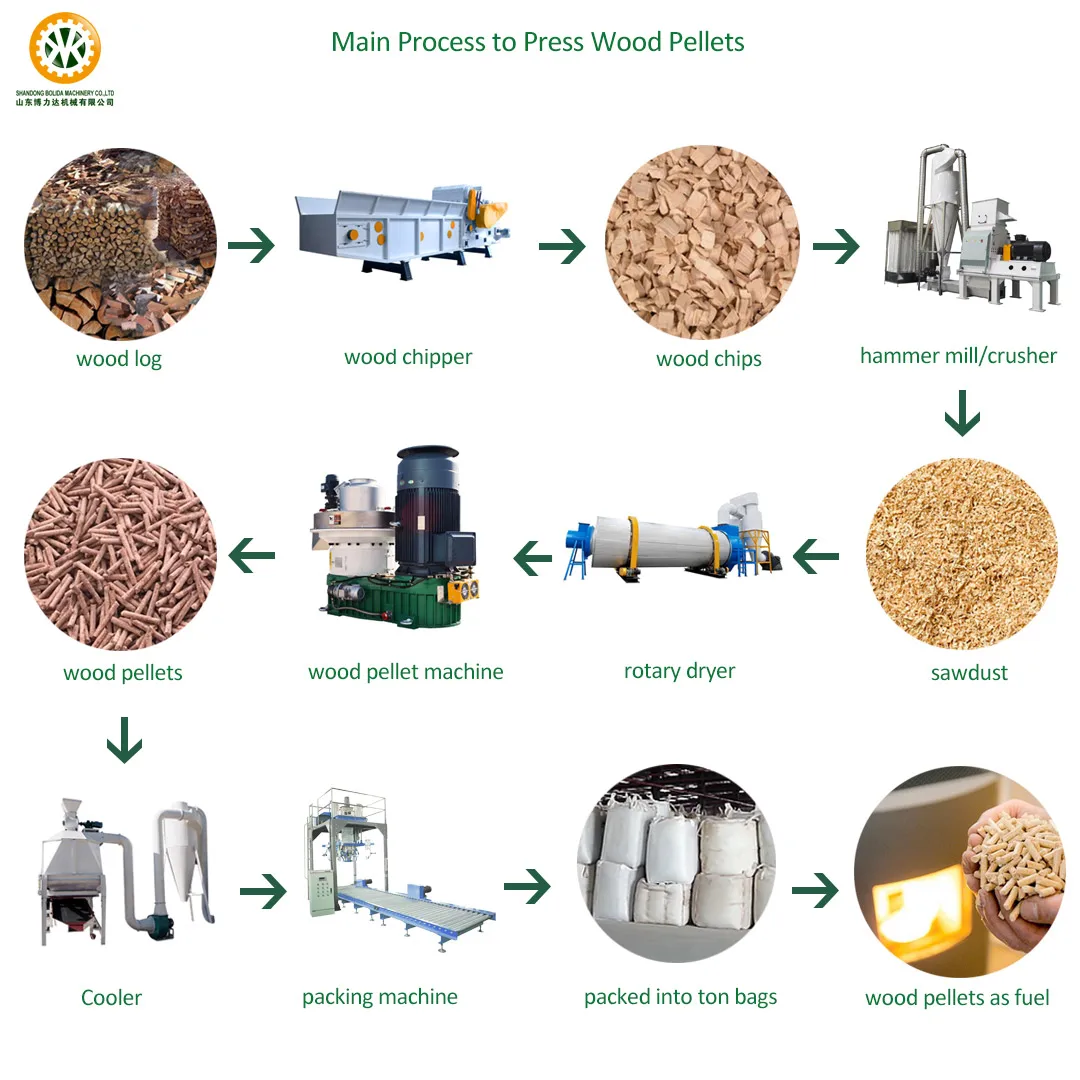

Bolida is a professional manufacture for biomass pellet machine, wood chipper, rotary dryer, biomass wood pellet line.Bolida offer turnkey solutions for pelleting plans/Wood pellet plant, complete units or single process lines such as; -Raw Material Processing; Including(Debarking-Chipping-Wet Grinding) Debarker/Splitter/Wood Chipper /Diesel Wood Chipper/Chaff Cutter /Wet Hammer Mill/Crushers -Thermal Drying Including Completely Drying line(Drum Rotary dryers/Triple Dryers/China Stain/Chamber/Steel Frame/Chimmey/Pellet Burner -Pellet Production Including Pellet Mills Machine/Hammer Mills/Coolers/Sieves/Packing Machines/Automatic Control System/Pulse Dust System.
Certifications
FAQ
1. Are you manufacturer of trading company?
We are manufacturer, also with marketing department and R&D center.
2. Do you offer installation and training?
Yes. We can dispatch technicians to customers' site to help install equipment and train how to operate.
3.How can you guarantee the after-sales service?
We have professional After-sales service center with experienced and skillful engineers. When problem of equipment occurs, our engineers will be assigned to your site to solve problems timely. Also spare parts can be provided timely due to oversea
warehouses.
4. What is your work flow?
Inquiry—Quotation—Communication—Order Confirm & Payment Received—Production—Production Tracing & Inspection—Check Every Product—Book Vessel & Arrange Delivery—Documents Post/Telex Release—Customs Clearance—Arrange Delivery to Clients` Site—Discharge Goods—Arrange Installation & Debugging
5. How do I pay to you?
(1) 30% deposit of the total amount to be paid by T / T in 5 working days after signing the sales contract, the balance of 70% will be paid before the goods leave the factory.
(2) We can negotiate specific payment terms with our client.
6. How long is the delivery time?
For standard machines, that would be 25-30 working days; For non-standard machines and customized machines according to customers' specific requirements, it would be about 30 working days. we work with the biggest freight forwarder in North China. if you need to appoint other freight measures, we can arrange them because we have rich experience and sufficient funds to handle
We are manufacturer, also with marketing department and R&D center.
2. Do you offer installation and training?
Yes. We can dispatch technicians to customers' site to help install equipment and train how to operate.
3.How can you guarantee the after-sales service?
We have professional After-sales service center with experienced and skillful engineers. When problem of equipment occurs, our engineers will be assigned to your site to solve problems timely. Also spare parts can be provided timely due to oversea
warehouses.
4. What is your work flow?
Inquiry—Quotation—Communication—Order Confirm & Payment Received—Production—Production Tracing & Inspection—Check Every Product—Book Vessel & Arrange Delivery—Documents Post/Telex Release—Customs Clearance—Arrange Delivery to Clients` Site—Discharge Goods—Arrange Installation & Debugging
5. How do I pay to you?
(1) 30% deposit of the total amount to be paid by T / T in 5 working days after signing the sales contract, the balance of 70% will be paid before the goods leave the factory.
(2) We can negotiate specific payment terms with our client.
6. How long is the delivery time?
For standard machines, that would be 25-30 working days; For non-standard machines and customized machines according to customers' specific requirements, it would be about 30 working days. we work with the biggest freight forwarder in North China. if you need to appoint other freight measures, we can arrange them because we have rich experience and sufficient funds to handle
