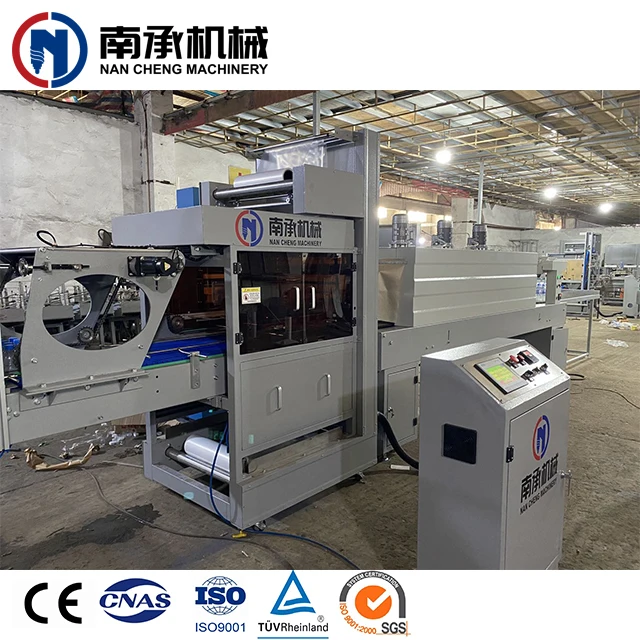

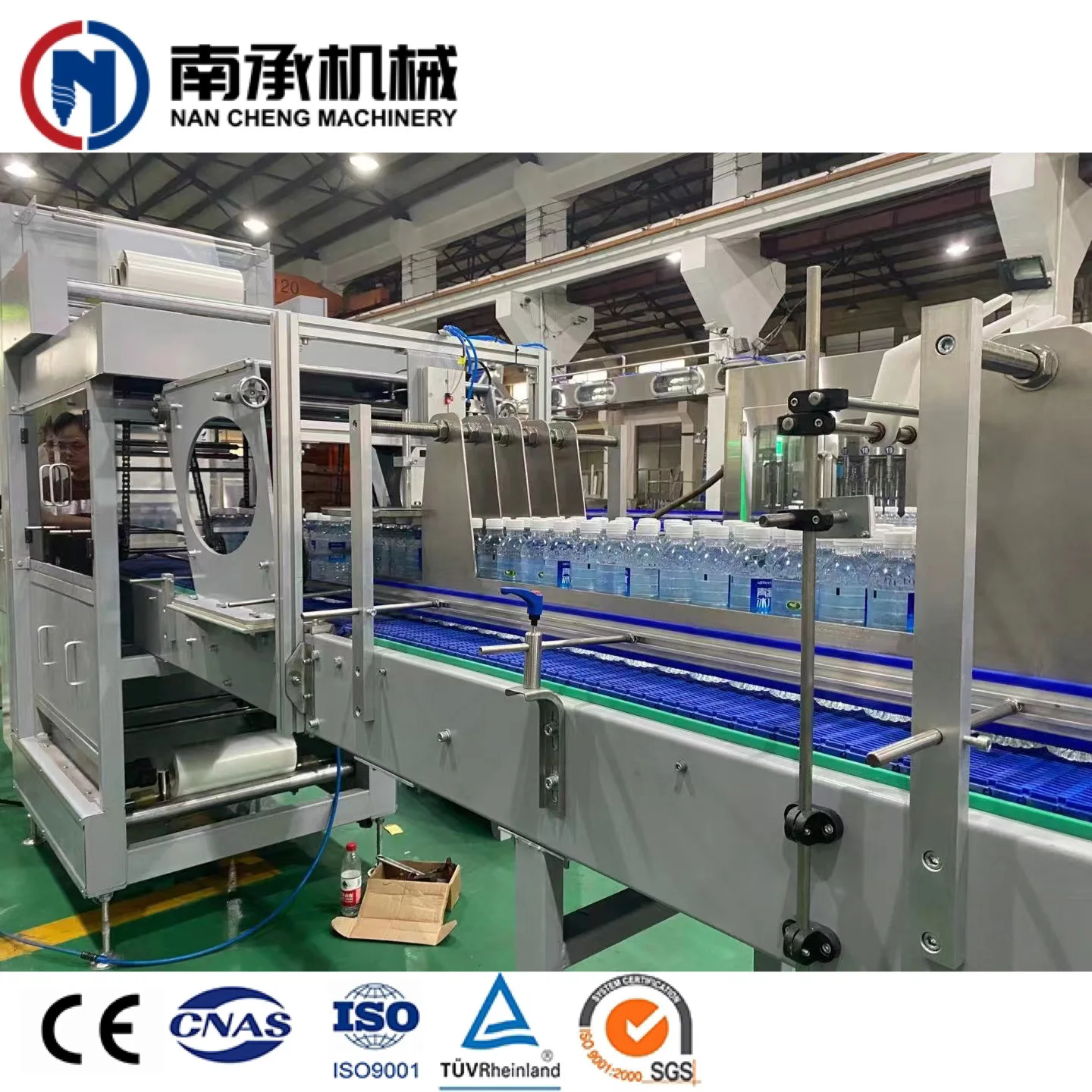

PE film shrink packing machine /bottle sleeve wrapper thermal shrink packer
- Category: >>>
- Supplier: Zhangjiagang City Nan Cheng Machinery Co. Ltd.
Share on (1600688989019):
Product Overview
Description
Products Description
Automatic bottle shrink wrapping machine is suitable for wrapping of such products as pop-top,mineral water ,bottles.beer,drinks etc without bottom tray ,working with PE film shrink tunnel to pack the goods perfectly ,the whole production process adopts the germany advanced technics ,and the main parts are imported from international famous companies ,Capacity stable and using long-time ,it consists of seven actuating motor ,through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group come out from the hot shrinking packing machine
Technical Parameters
No. | Item | Technical data |
1 | Import Power | 25KW |
2 | Import Voltage | ∮3, 380/220 VAC |
3 | Working air pressure | 0.6Mpa |
4 | Matching air compressor requirements | Discharge pressure:0.8Mpa; Flow rate:0.25m3/min |
5 | Capacity (production speed) | 0-12bags per minutes |
6 | Outline dimension of the equipment (mm) | L5970*W3510*H1940mm |
7 | The largest dimension of the wrap-page (mm) | L600*W400*H350mm |

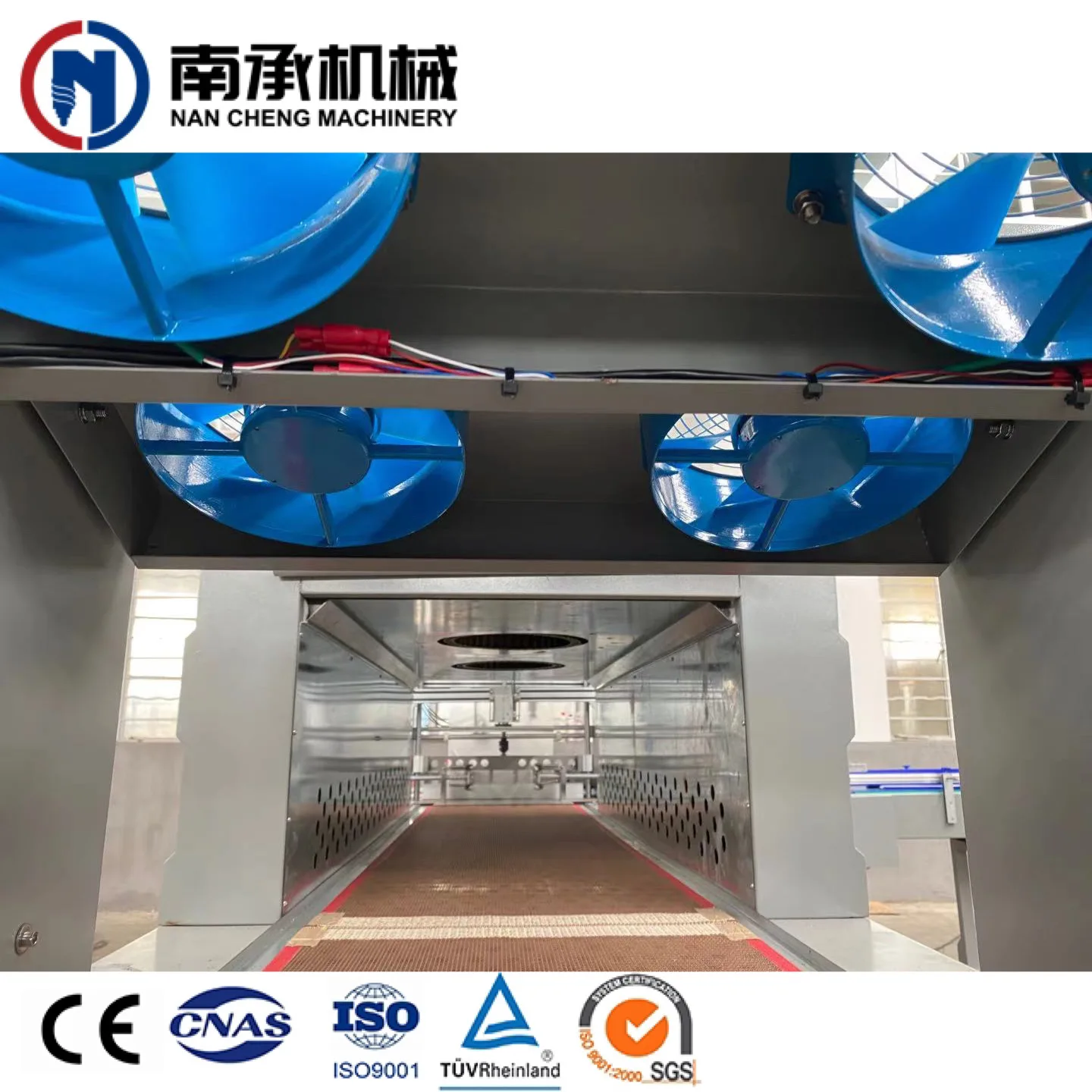

8 | The highest temperature of the heat shrink furnace | 160-260℃ Can adjust freewill |
9 | Conveyor Height | 950mm±50mm |
10 | Length of feed conveyor | 2750mm |
11 | Actual power consumption | 15Kw/hour |
12 | Equipment weight | 1.6T |
13 | Film material | PE, PP, PVC, OPF film, Thickness: 0.03mm-0.15mm, Width:200mm-600mm |

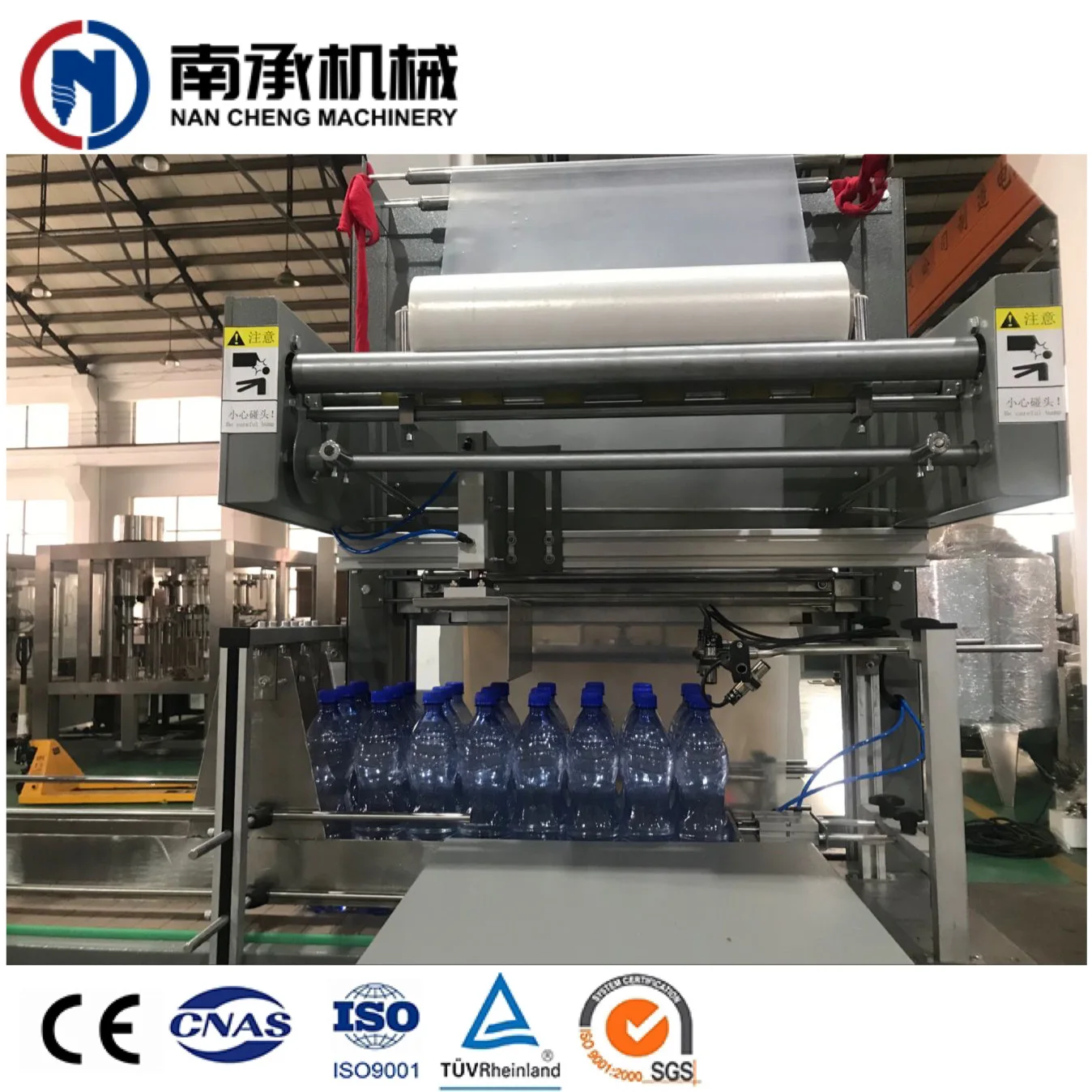

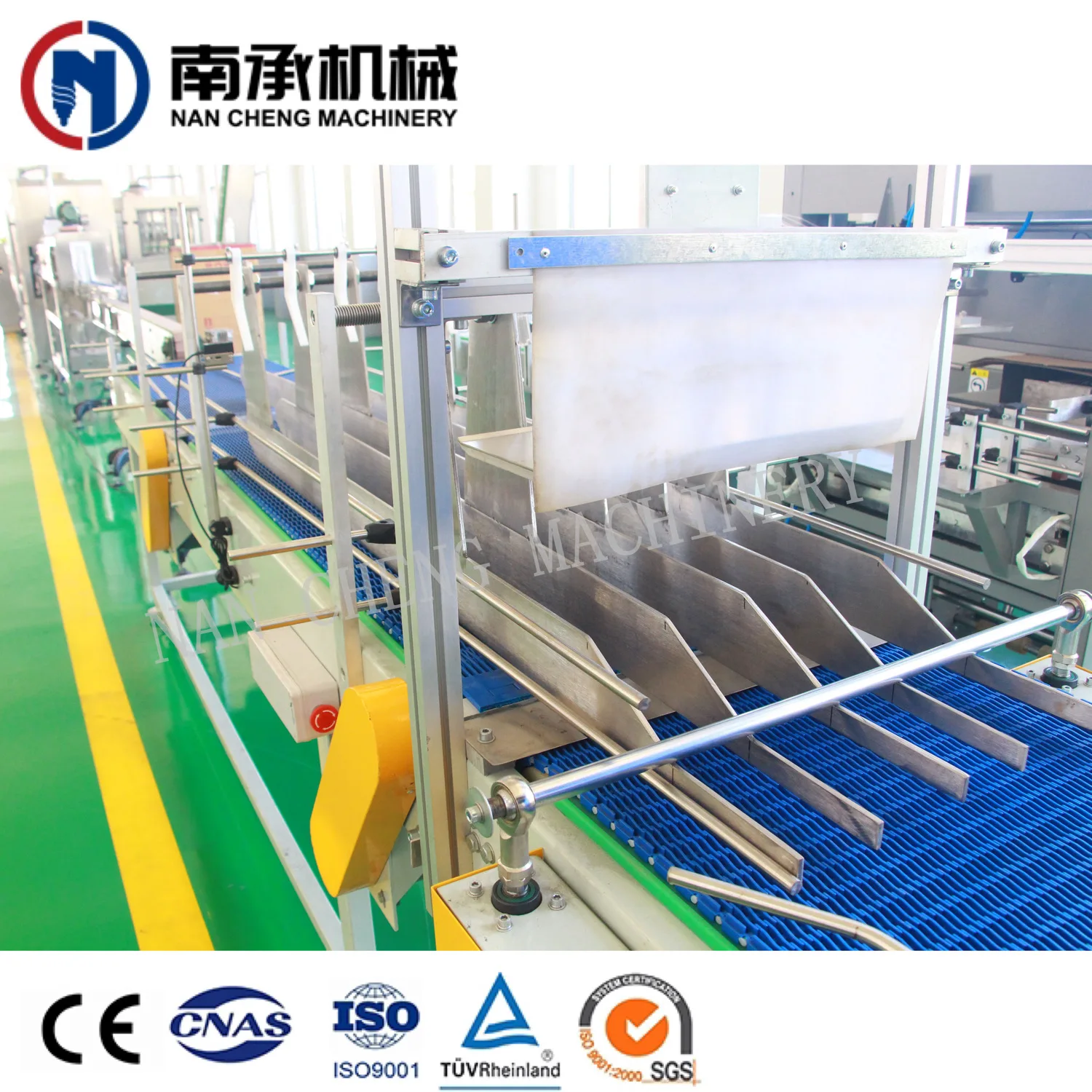

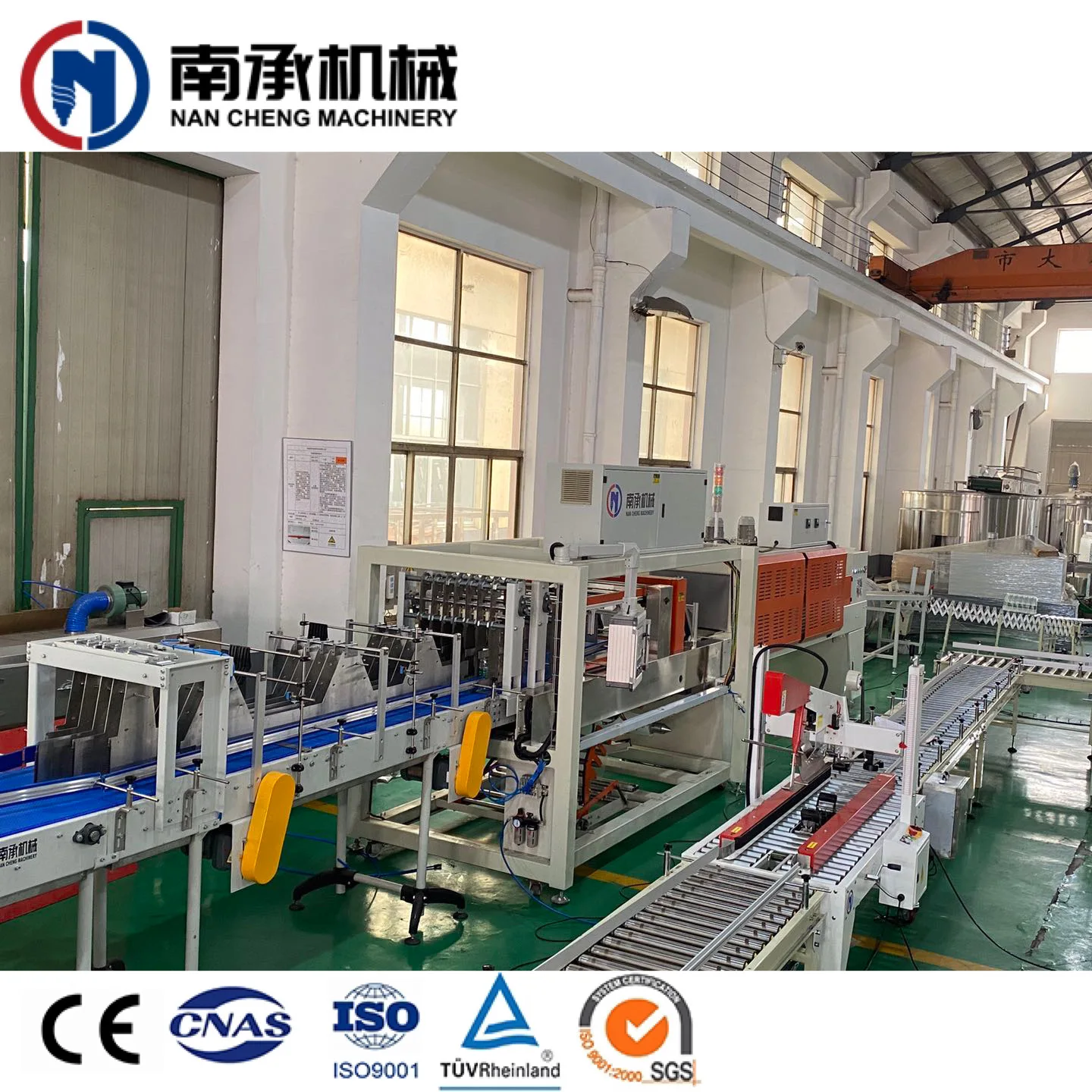

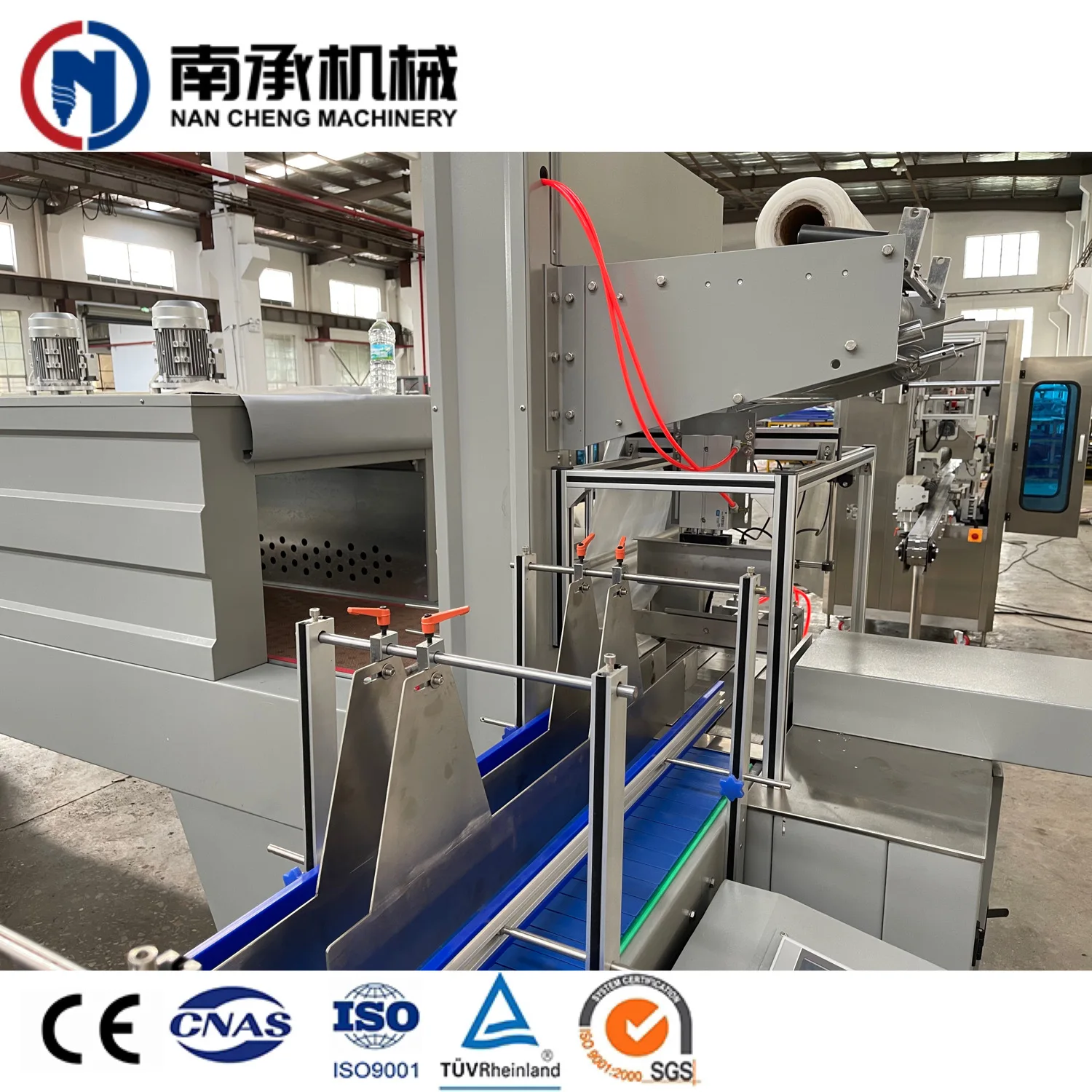

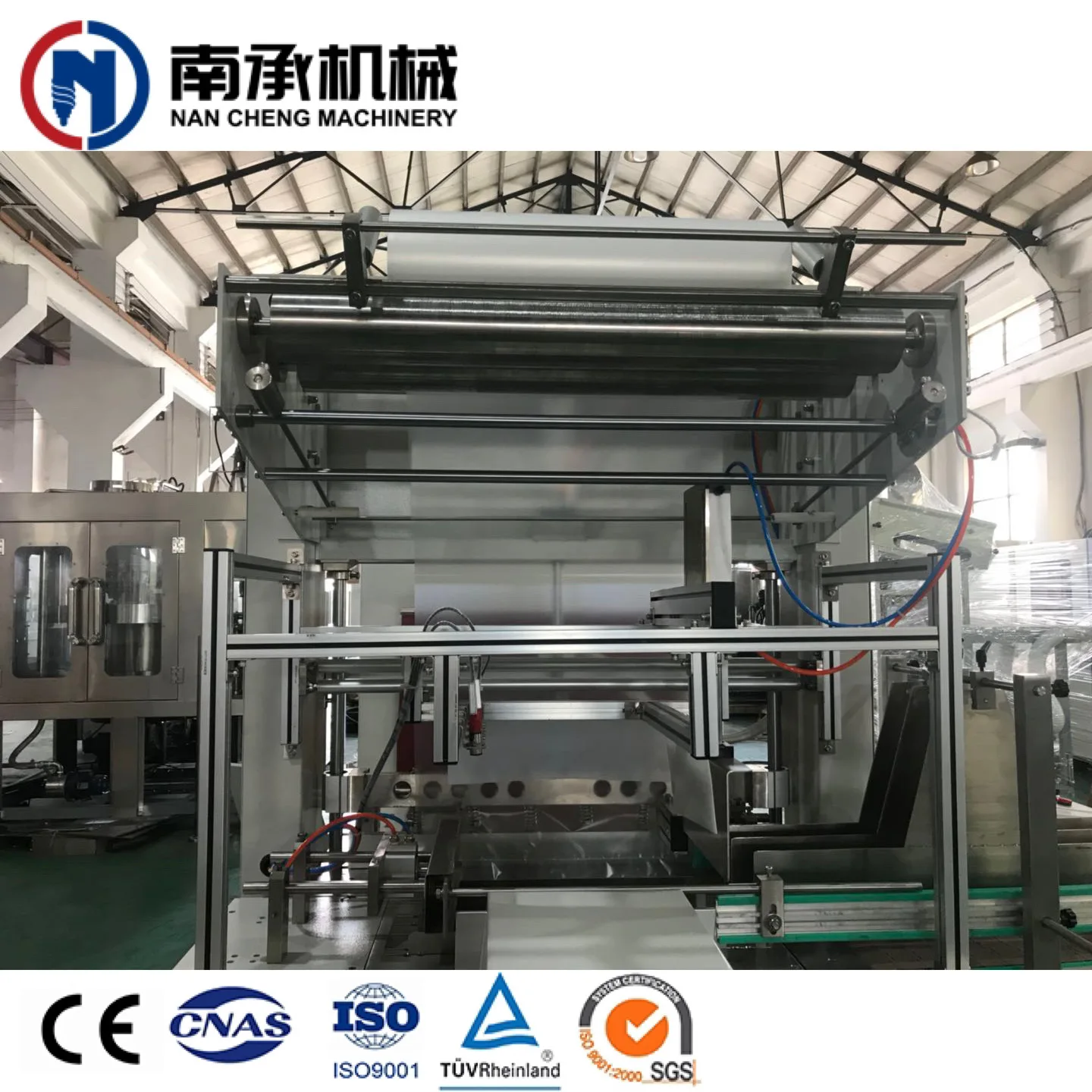

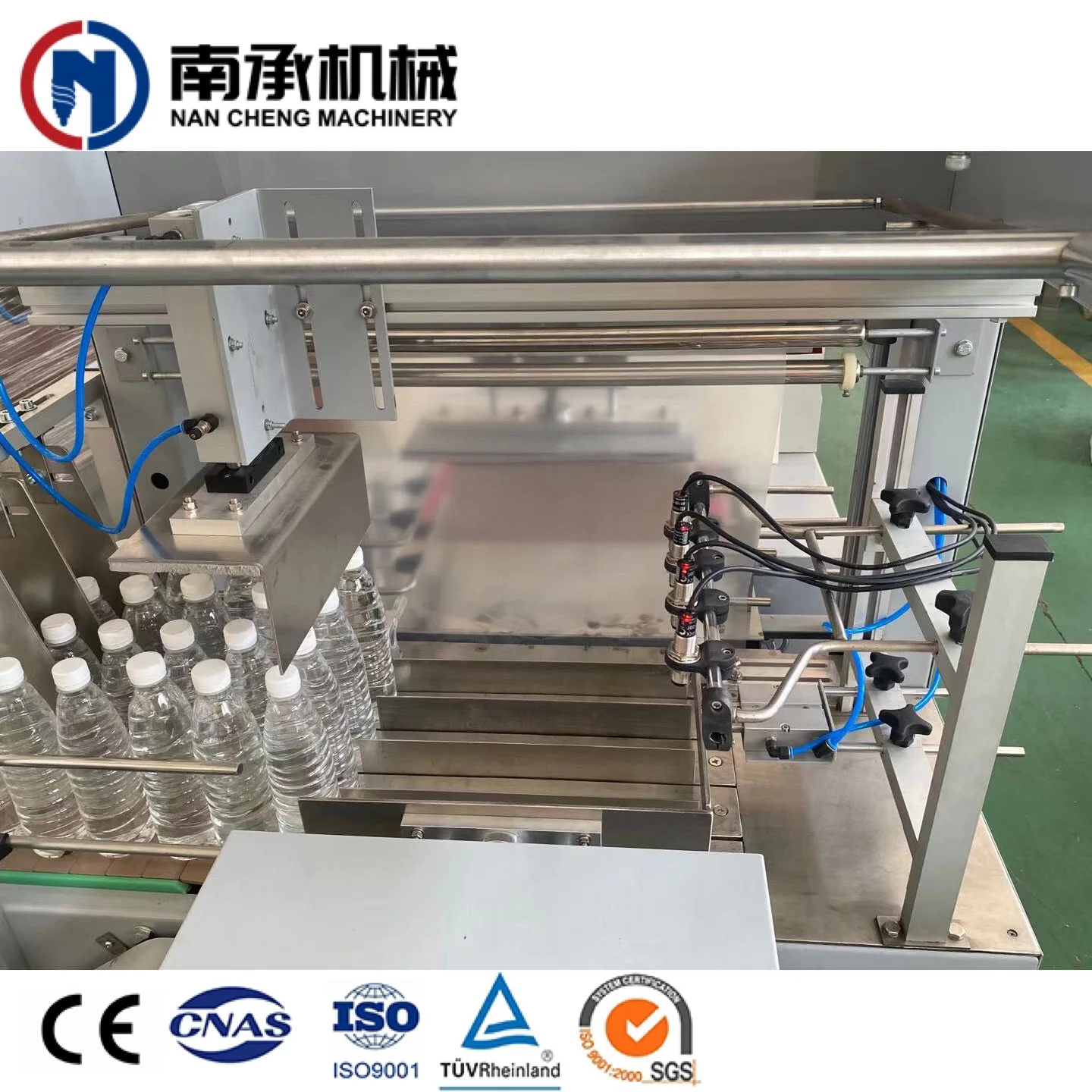

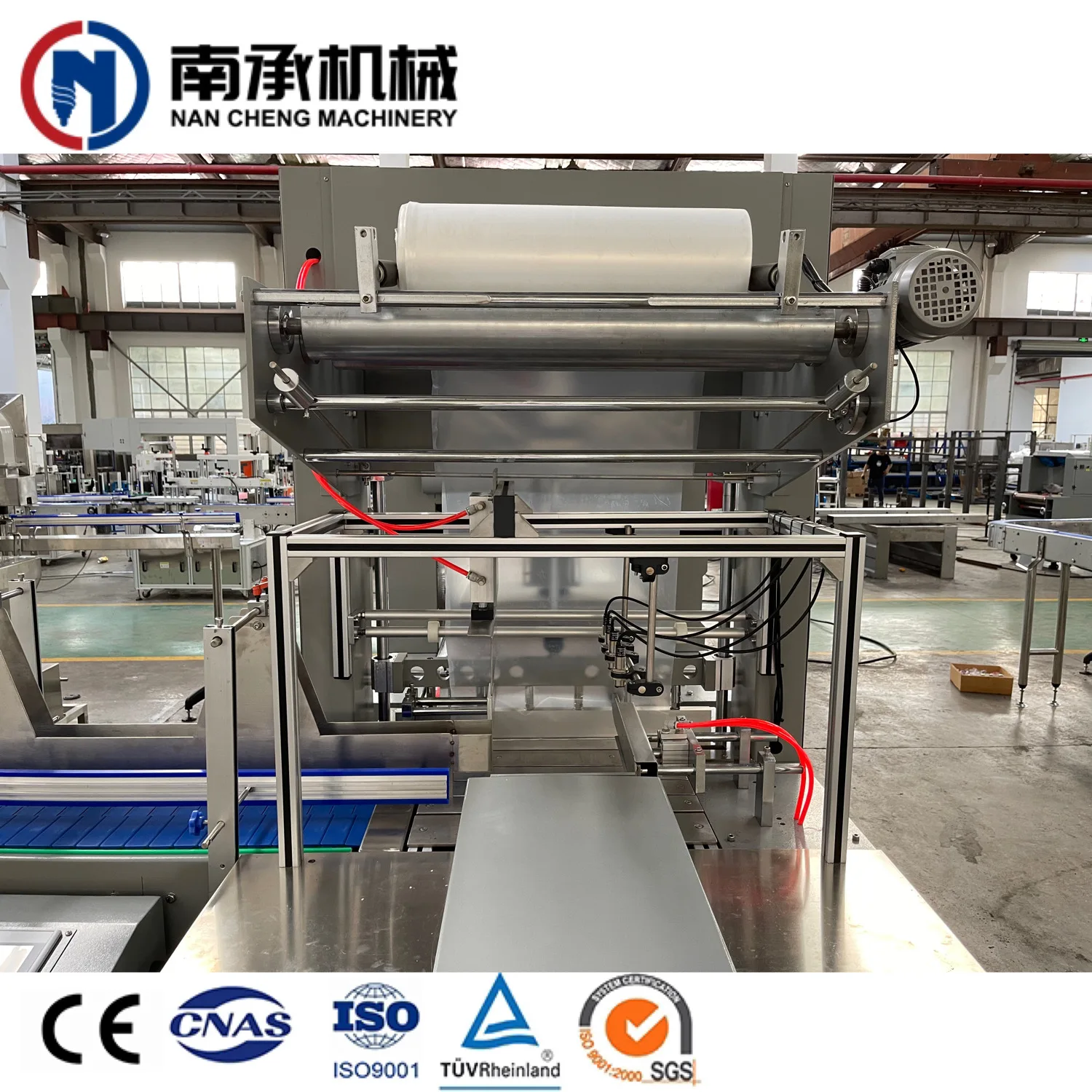

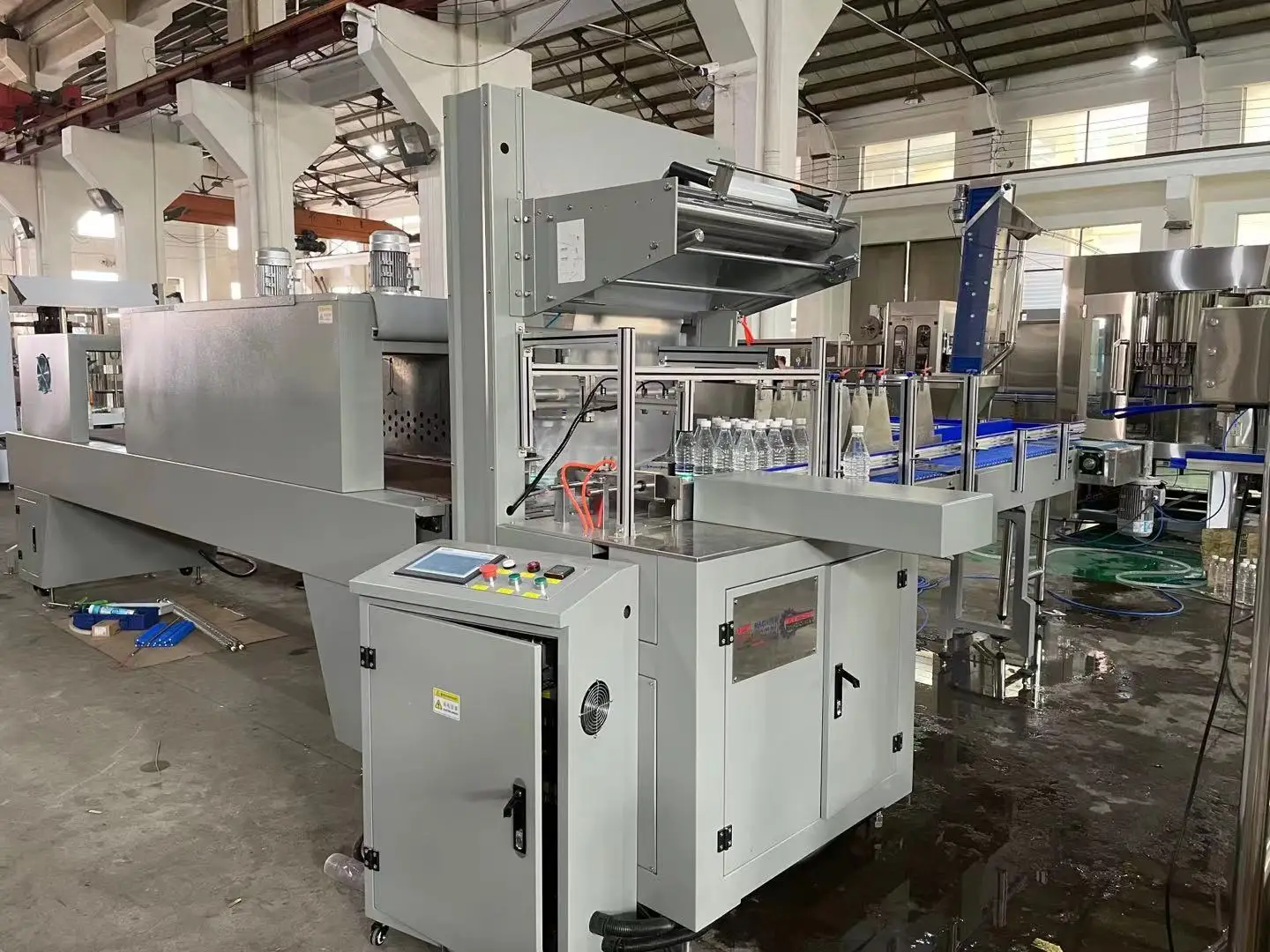

Details Images
-details-
Main Features
1) The temperature can be controlled automatically and changed as required.
2) Isothermal sealing cutter
3) Original guide bar cylinder with steady operation
4) Programmable logic controller (PLC) control
5) Non bottom support packaging, suitable for package with different bottle diameters and different combinations
6) Simple operation and easy repair.
2) Isothermal sealing cutter
3) Original guide bar cylinder with steady operation
4) Programmable logic controller (PLC) control
5) Non bottom support packaging, suitable for package with different bottle diameters and different combinations
6) Simple operation and easy repair.

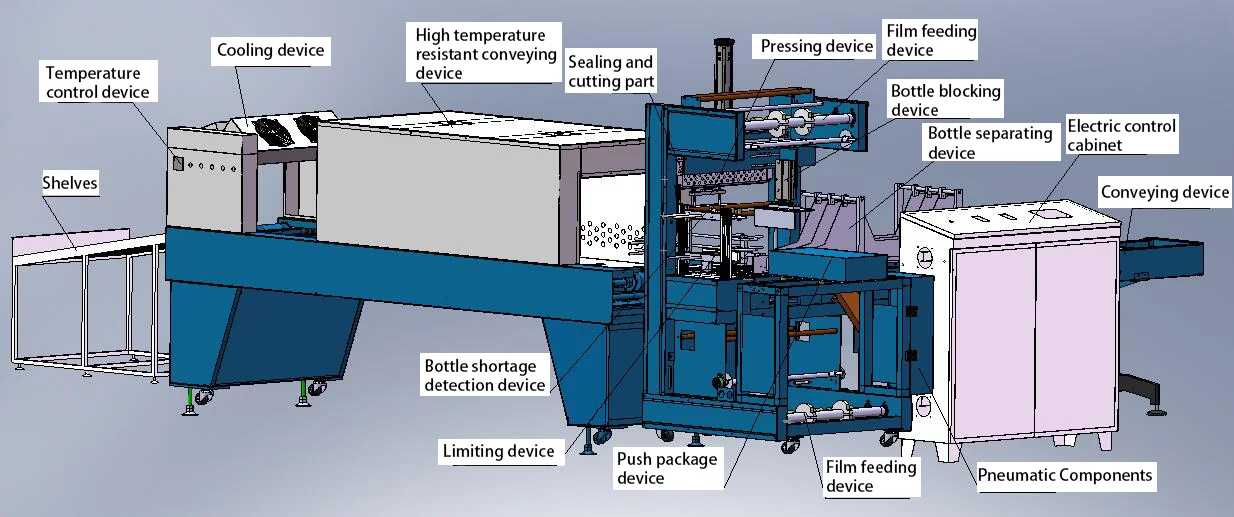

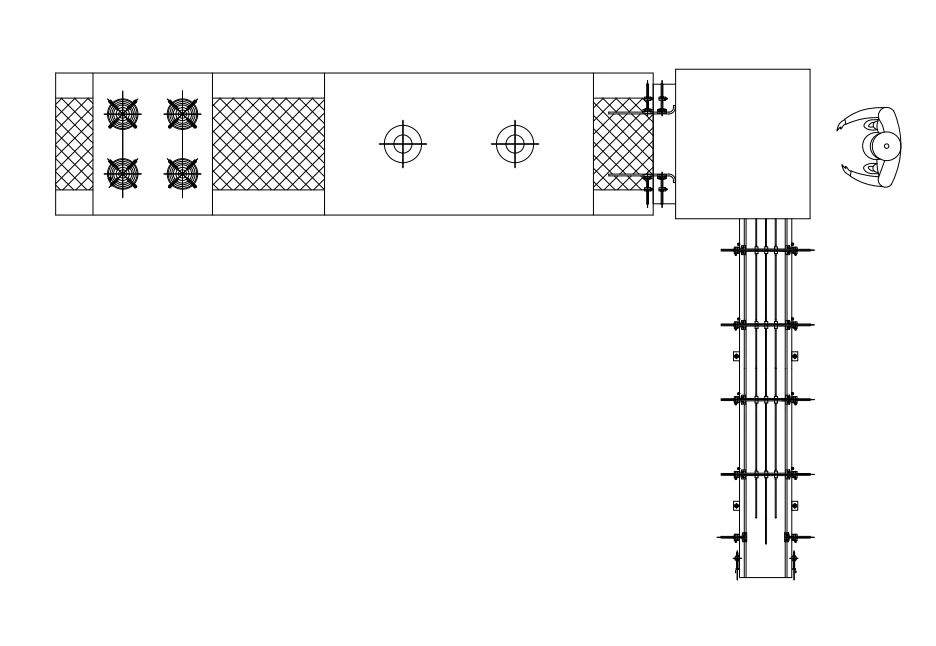

-drawing-
-finished products-
Glass bottles
Suitable : Beer, wine, brandy, vodeka
Bottle Type : Round / Square / Unique
Shrink film : PE, PP, PVC, POF etc..
Bottle Type : Round / Square / Unique
Shrink film : PE, PP, PVC, POF etc..
Plastic bottles
Suitable: Water, juice, soft drink etc Bottle Type : Round / Square / Unique
Shrink film : PE, PP, PVC, POF etc..
Shrink film : PE, PP, PVC, POF etc..
Tins & cans
Suitable : Daily chemical products
Bottle Type : Round / Square / Unique
Shrink film : PE, PP, PVC, POF etc..
Bottle Type : Round / Square / Unique
Shrink film : PE, PP, PVC, POF etc..
-Control System-
Devices | Brand | Origins |
PLC | SIEMENS | Germany |
Frequency Converter | Danfoss | Danmark |
Touch Screen | SIEMENS | Germany |
Low-voltage Apparatus | Schneider | France |
Drive Motor | Panasonic | Janpan |
Pneumatic Components | SMC | Germany |
Photoelectric Sensor | SICK | Germany |
