Competitive Price Automatic K Cup Coffee Capsule Filling Machine
- Category: >>>
- Supplier: Shanghai Boom Packaging Machinery Co. Ltd.
Share on (1600689078657):
Product Overview
Description
PRODUCT DESCRIPTION
Competitive Price Automatic K-Cup Coffee Capsule Filling Machine

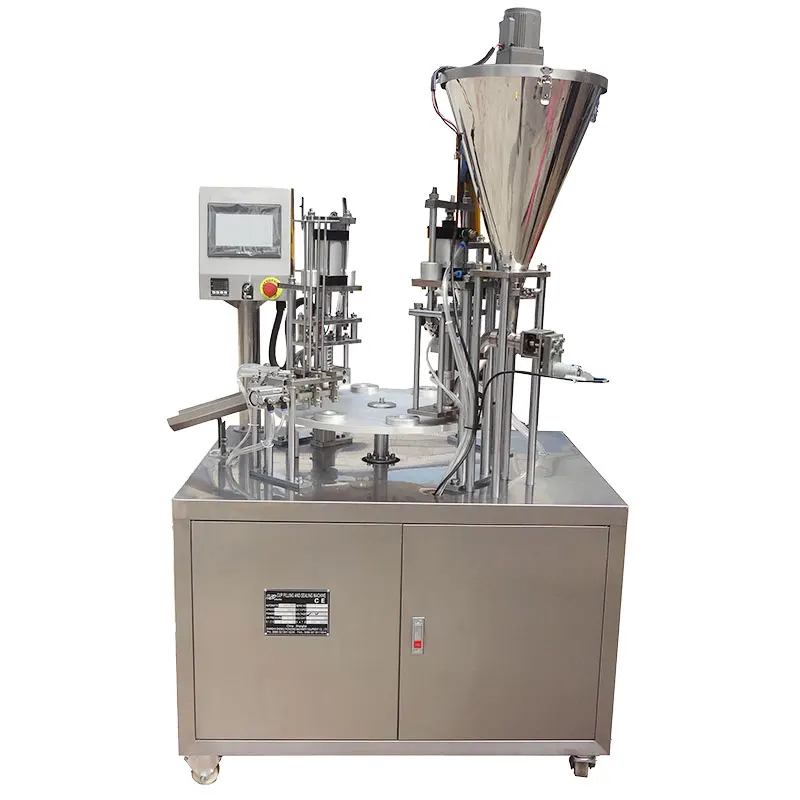

Rotary Coffee Capsule Filling Sealing Machine is specially designed for coffee products (or other kinds of powder products, such as tea powder, cocoa powder, etc.) to be filled and sealed. Our rotary coffee capsule filling sealing machines are applied with world-famous electrical and pneumatic components. All the parts of the machine contact with powder are made of stainless steel. PLC touch screen.

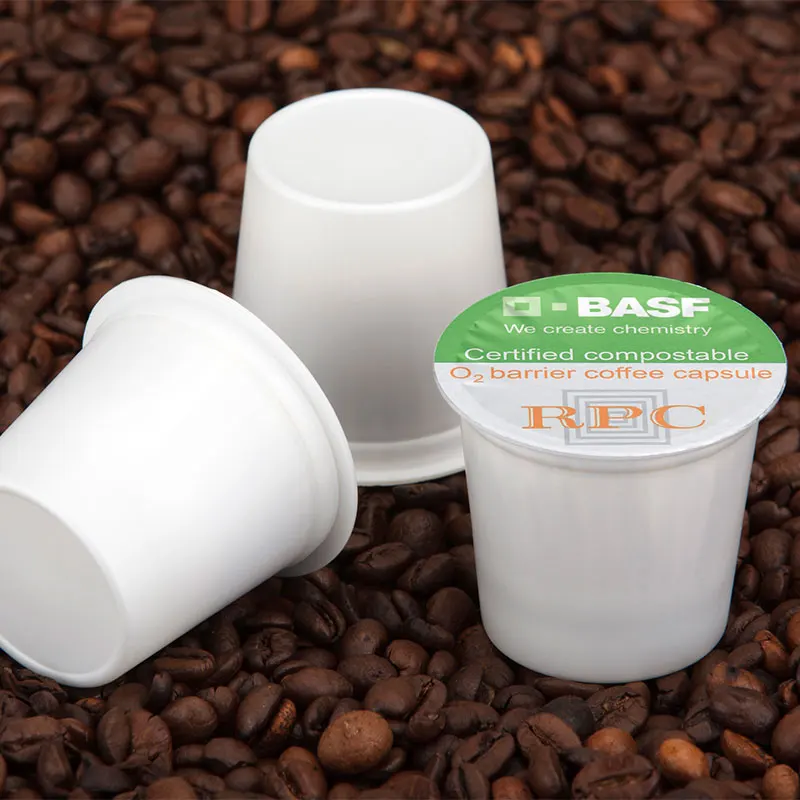

Applicable Capsules: Compatible Nespresso, DolceGusto, Lavazza Blue, Point, POD, K-CUP, Kshot, One Cup
SPECIFICATIONS
Parameters | Number Reference | ||
Model | HT-NC-1, HT-KC-1 | HT-NC-2, HT-KC-2 | |
Productivity | 600-800cups/h | 1200-1600cups/h | |
Filling Head | 1 Head | 2 Heads | |
Cup Diameter | 35-105mm (replace the cup holder) | ||
Filling Volume | 5-50g (replace filling pump) | ||
Filling Accuracy | ±1% | ||
Sealing Film | Plastic Roll Film, Plastic Pre-Cut Film, Aluminum Pre-Cut Film | ||

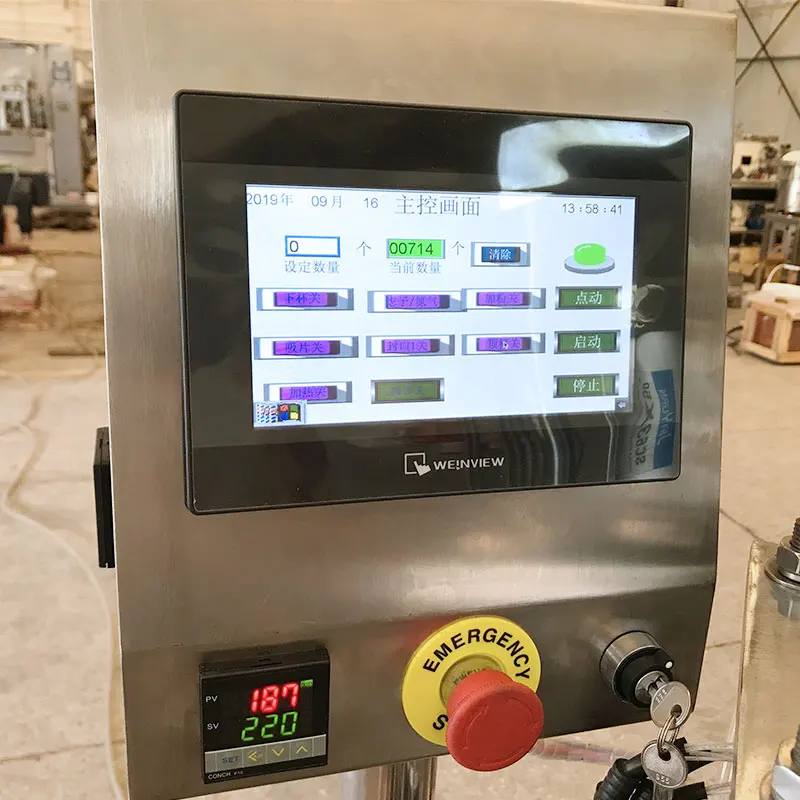

Control System | Touch Screen + PLC Control | ||
Gas Consumption | 0.6m³/min | ||
Power | 1KW | ||
Voltage | AC380V/220V, 50Hz/60Hz | ||
Machine Dimension | 1250*1250*1650mm (L*W*H) | ||
Machine Weight | About 250KG | ||
FEATURES AT A GLANCE
Working Process:
1. Falling Coffee Capsules: Capsules drop down one by one automatically.
2. Tank Mixing: Mixing coffee powder.
3. Filling Coffee: powder Auger filling type.
4. Press Coffee: Press coffee tight.

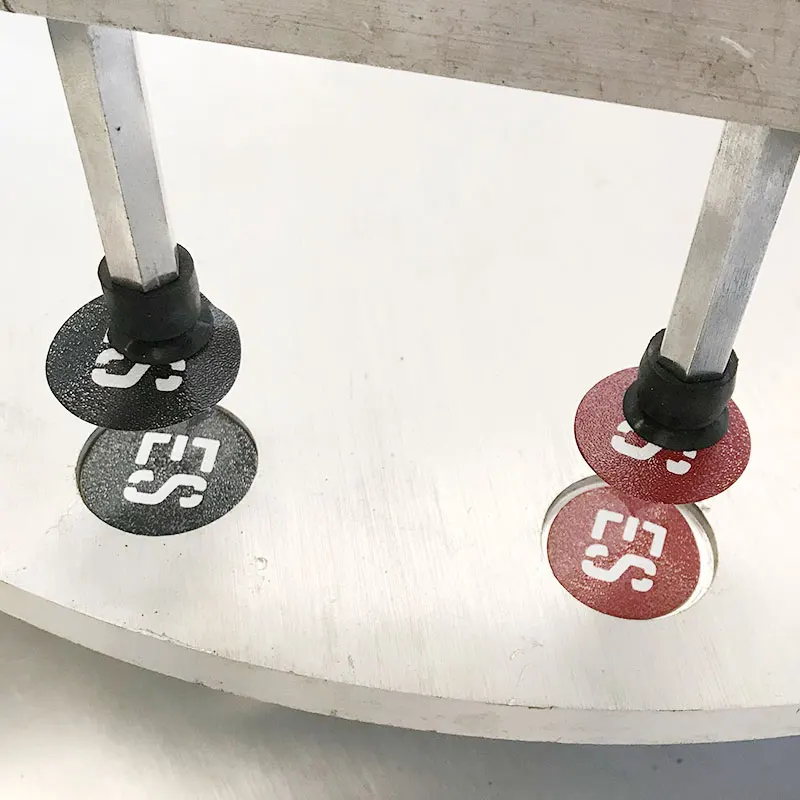

5. Sucking Putting Foils: Vacuum arm suck and put foils.
6. Sealing: 0-300 degrees, can be adjusted.
7. Push-Out Finished Capsules: Push-out finished cups to a platform.
2. Tank Mixing: Mixing coffee powder.
3. Filling Coffee: powder Auger filling type.
4. Press Coffee: Press coffee tight.
5. Sucking Putting Foils: Vacuum arm suck and put foils.
6. Sealing: 0-300 degrees, can be adjusted.
7. Push-Out Finished Capsules: Push-out finished cups to a platform.
