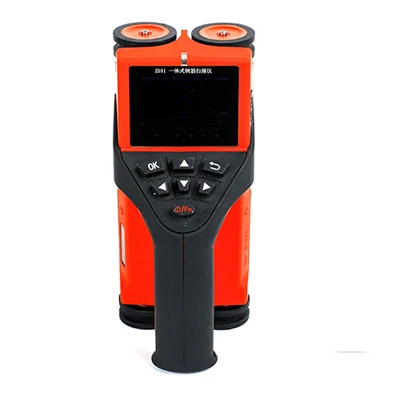

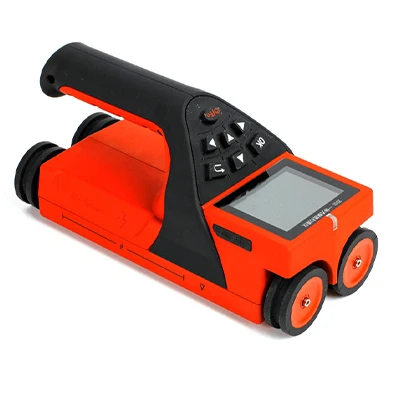

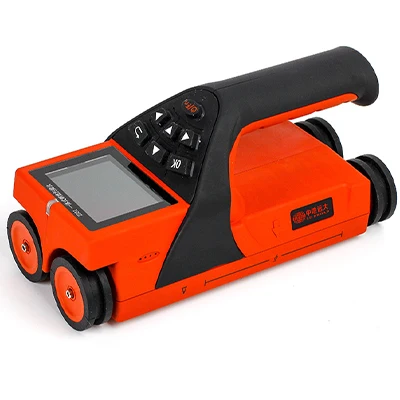

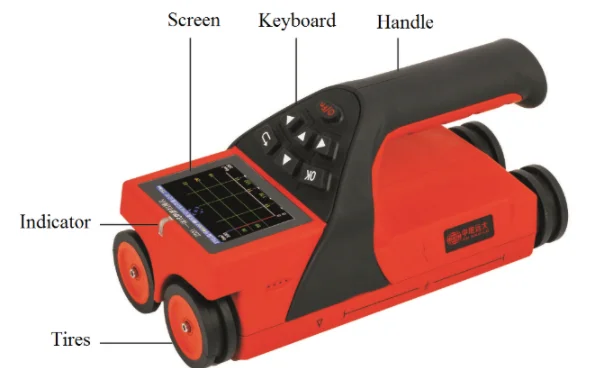

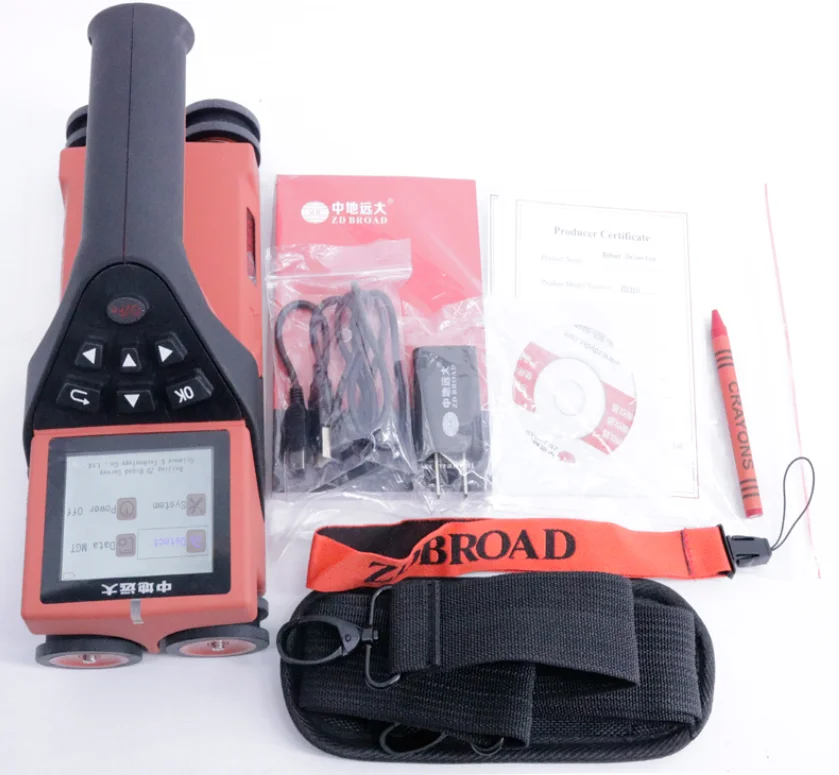

New ZD-31 Rebar Locator Metal Detector Wall Scanner Integrated Concrete Protective Layer Tester
Detailed Images

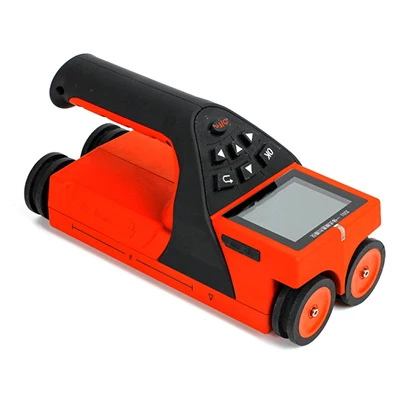

New ZD-31 Rebar Locator Metal Detector Wall Scanner Integrated Concrete Protective Layer Tester
Introduction
ZD31Integrated Rebar Detector are mainly used for detecting the internal reinforcement position, the protective layer thickness,
reinforcement spacing and diameter of rebar. It can accurately draw the distribution map of the whole rebar, to provide test data
with high precision and high speed; the integrated structure of the host and the sensor coil, making it is convenient and quick
when carrying and field operation ; It is characterized in coil structure design, faster speed, higher accuracy, stronger
resolution.
reinforcement spacing and diameter of rebar. It can accurately draw the distribution map of the whole rebar, to provide test data
with high precision and high speed; the integrated structure of the host and the sensor coil, making it is convenient and quick
when carrying and field operation ; It is characterized in coil structure design, faster speed, higher accuracy, stronger
resolution.
Functions
1.2.1 Main Functions
1. Accurately measure the thickness of protective layer of
rebar;
2. Locate the position, trend and distribution of steel bars;
3. Measure the protective layer of steel bar and estimate the
diameter of steel bar;
4. Storage, view and transmission of detection data.
Special Functions

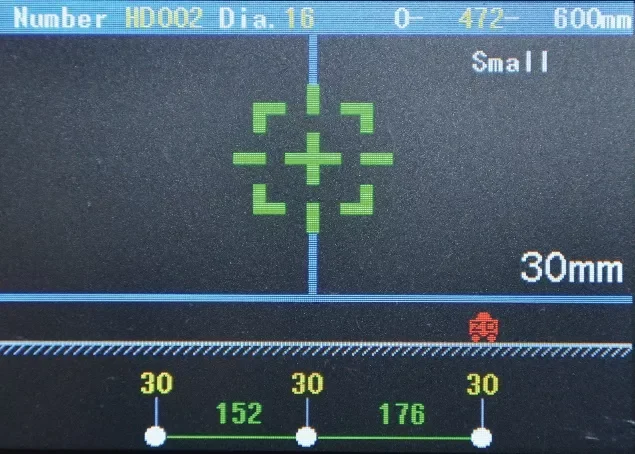

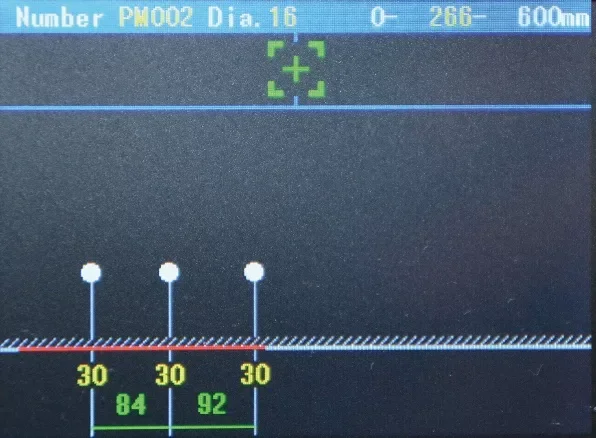

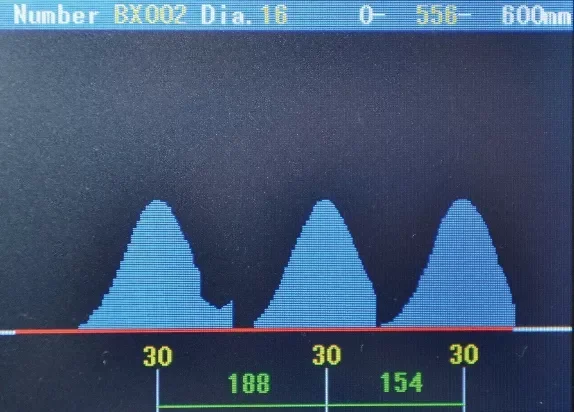

1. The detection mode is intuitive, accurate, accurate display of steel bar position, spacing, protective layer thickness in the same screen;
2.Four kinds of single point measurement, grid detecting, waveform detecting and profile detecting are all implemented the deletion operation of the wrong test data and graphics, which is easy to use in field test;
3. Complete at any time interleaved switching of X axis and Y axis grid scan testing process (i.e. direction coordinate axis)
test, random switching data and steel distribution will automatically continue the information before test, so as to improve the flexibility of the field test;
4. Single handing machine, operation design and four wheel positioning method, equipped with high strength wear-resistant tires, easy to protect the wear and tear of the detector;
5.The automatic storage calibration value is used to realize rapid measurement and reduce the troublesome procedures before each check.
6. Analysis software can produce two-dimensional plan view and 3D three-dimensional view.

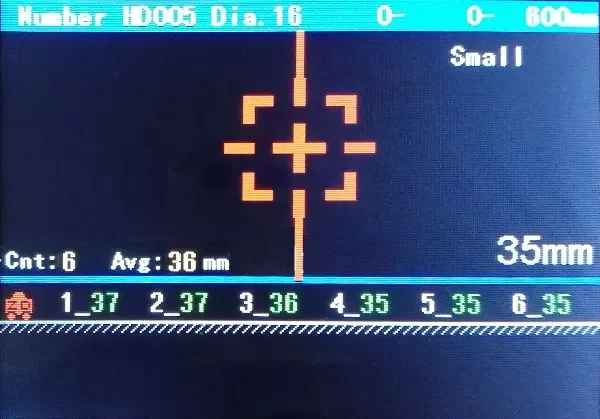

7. JGJ detection mode realizes 1-6 repeated tests of a single steel bar, and automatically calculates the average value;
1. The detection mode is intuitive, accurate, accurate display of steel bar position, spacing, protective layer thickness in the same screen;
2.Four kinds of single point measurement, grid detecting, waveform detecting and profile detecting are all implemented the deletion operation of the wrong test data and graphics, which is easy to use in field test;
3. Complete at any time interleaved switching of X axis and Y axis grid scan testing process (i.e. direction coordinate axis)
test, random switching data and steel distribution will automatically continue the information before test, so as to improve the flexibility of the field test;
4. Single handing machine, operation design and four wheel positioning method, equipped with high strength wear-resistant tires, easy to protect the wear and tear of the detector;
5.The automatic storage calibration value is used to realize rapid measurement and reduce the troublesome procedures before each check.
6. Analysis software can produce two-dimensional plan view and 3D three-dimensional view.
7. JGJ detection mode realizes 1-6 repeated tests of a single steel bar, and automatically calculates the average value;
Product Paramenters
Mode | ZD31 | ||
Applicable range of Rebar(mm) | φ6~φ50 | ||
Protective layer thickness range(mm) | Small range:1~80 Large range:5~185 | ||
Maximum Allowable Error of Protective Layer Thickness(mm) | ±1 | 1~60 | |
±2 | 60~100 | ||
±3 | 101~120 | ||
±5 | 121~160 | ||
±8 | 161~185 | ||
Applicability of Diameter Measurement (mm) | 6~50 | ||
Maximum Error of Diameter Measurement (Specification) | ±1 | ||
Scanning mode | Thickness model, mesh model, profile model and waveform model, JGJ Testing | ||
Scanning range | Borderless | ||
JGJ Testing | Achieve single point 1-6 measurements, automatically calculate the average | ||
Data transmission mode | USB\\ wireless | ||
Screen | 2.8-inch High Resolution Color LCD Screen (320 x 240 pixels | ||
Power supply | Built in high capacity lithium battery | ||
Set shutdown time | 5min,10 min,15 min,30 min,60 min,90 min | ||
Working hours | ≥16h | ||
Screen | 320×240 | ||
Storage | 200K Measuring point of steel bar | ||
Communication | USB interface | ||
With error correction | -3.0~+3.0(±0.5,±1.0,±1.5,±2.0,±2.5,±3.0) | ||
Operation | Silicone keypad | ||
Remote Data Management | Implementing real-time data upload Online | ||
working temperature | -10℃~+42℃ | ||
Size(mm) | 219×92×106 | ||
Weight(Kg) | 0.60(Battery included) | ||
Items | Values |
Applicable range of Rebar(mm) | φ6~φ50 |
Protective layer thickness range(mm) | Small range:1~80 Large range:5~185 |
Screen | 320×240 |
Power supply | Built in high capacity lithium battery |
Working hours | ≥16h |
Communication | USB interface |
Storage | 200K Measuring point of steel bar |
Operation | Silicone keypad |
Size(mm) | 219×92×106 |
Weight(Kg) | 0.60(Battery included) |
Measuring range of different steel bar diameter:
Range BarDiameter | Small(mm) | Large(mm) |
φ6~Φ8 | 1~60 | 5~100 |
Φ10~Φ18 | 1~80 | 5~120 |
Φ20~Φ28 | 1~80 | 5~140 |
Φ32~Φ50 | 1~80 | 5~185 |
Error range of different thickness
Range Error range | Small(mm) | Large(mm) |
±1 | 1~59 | 5~59 |
±2 | 60~80 | 60~79 |
±3 | …… | 80~99 |
±4 | 100~185 |

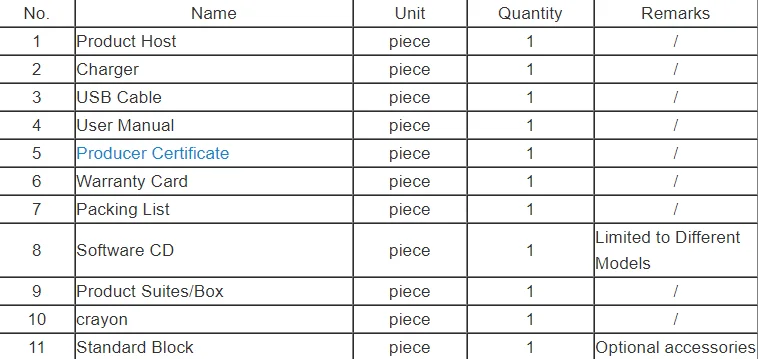

Main Features
ZD31 Digital Integrated Rebar Detector Steel bar positions Scanner Rebar Protective layer thickness Tester
1. 2.8 inch high resolution color LCD screen (320 x 240 pixels), whether in indoor or outdoor, any situation can be clearly
visible detection data;
2. Multi-coil structure design, faster, higher precision, stronger resolution;
3. Using USB mode data transmission and charging, you can quickly upload the stored data to the computer through the USB.
4. With built-in high-capacity lithium battery, the power consumption is low, in the case of battery is full the standby time is
about 16 hours;
5. Data management mode in the data storage, view, delete and other functions, can store about two hundred thousand rebar
measuring point data;
6. The problem of reinforcing steel bar leakage is solved by using super dense tendon resolving power;

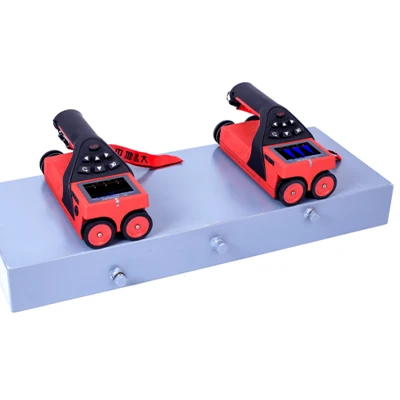

7. Standard test block which can be configured with special and unique design;
8. Using the host and sensor coil integrated design, compact size, light weight, easy to carry;

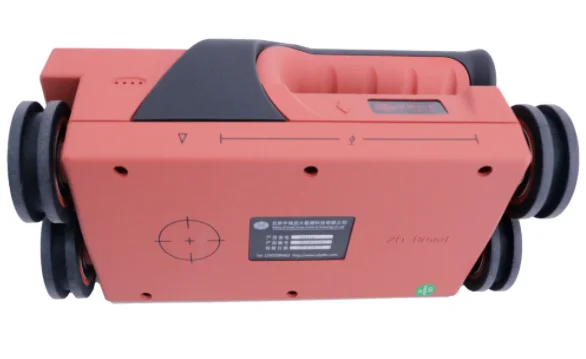

9. Adjacent steel bar intermediate position real-time judgment, indicating light prompt, can avoid around the steel bar, easy
drilling coring;

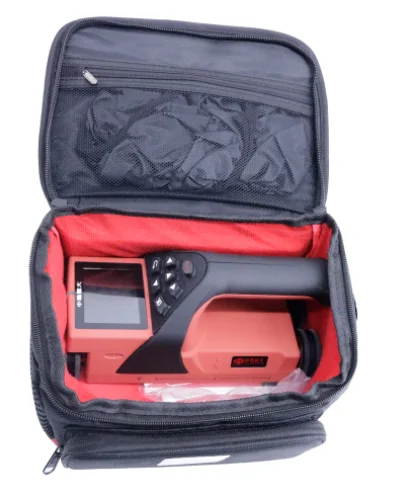

10. The detector box protection lining adopts the domestic ladder and cylindrical diversion trough, easy to put in the detector;
11. Equipped with medium and large steel bar detection software, it is convenient for professional data analysis, data processing
and generating complete report in PC.
ZD31 Digital Integrated Rebar Detector Steel bar positions Scanner Rebar Protective layer thickness Tester
ZD31 Digital Integrated Rebar Detector Steel bar positions Scanner Rebar Protective layer thickness Tester
1. 2.8 inch high resolution color LCD screen (320 x 240 pixels), whether in indoor or outdoor, any situation can be clearly
visible detection data;
2. Multi-coil structure design, faster, higher precision, stronger resolution;
3. Using USB mode data transmission and charging, you can quickly upload the stored data to the computer through the USB.
4. With built-in high-capacity lithium battery, the power consumption is low, in the case of battery is full the standby time is
about 16 hours;
5. Data management mode in the data storage, view, delete and other functions, can store about two hundred thousand rebar
measuring point data;
6. The problem of reinforcing steel bar leakage is solved by using super dense tendon resolving power;
7. Standard test block which can be configured with special and unique design;
8. Using the host and sensor coil integrated design, compact size, light weight, easy to carry;
9. Adjacent steel bar intermediate position real-time judgment, indicating light prompt, can avoid around the steel bar, easy
drilling coring;
10. The detector box protection lining adopts the domestic ladder and cylindrical diversion trough, easy to put in the detector;
11. Equipped with medium and large steel bar detection software, it is convenient for professional data analysis, data processing
and generating complete report in PC.
ZD31 Digital Integrated Rebar Detector Steel bar positions Scanner Rebar Protective layer thickness Tester
