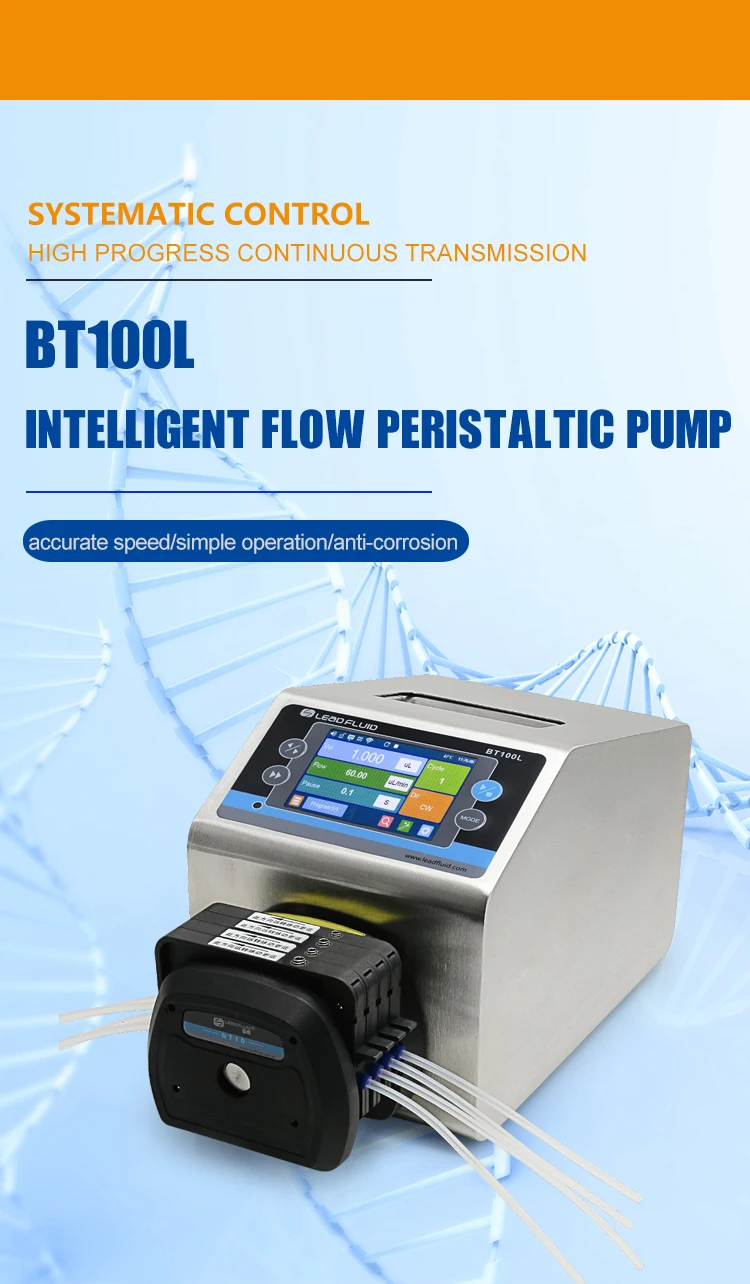

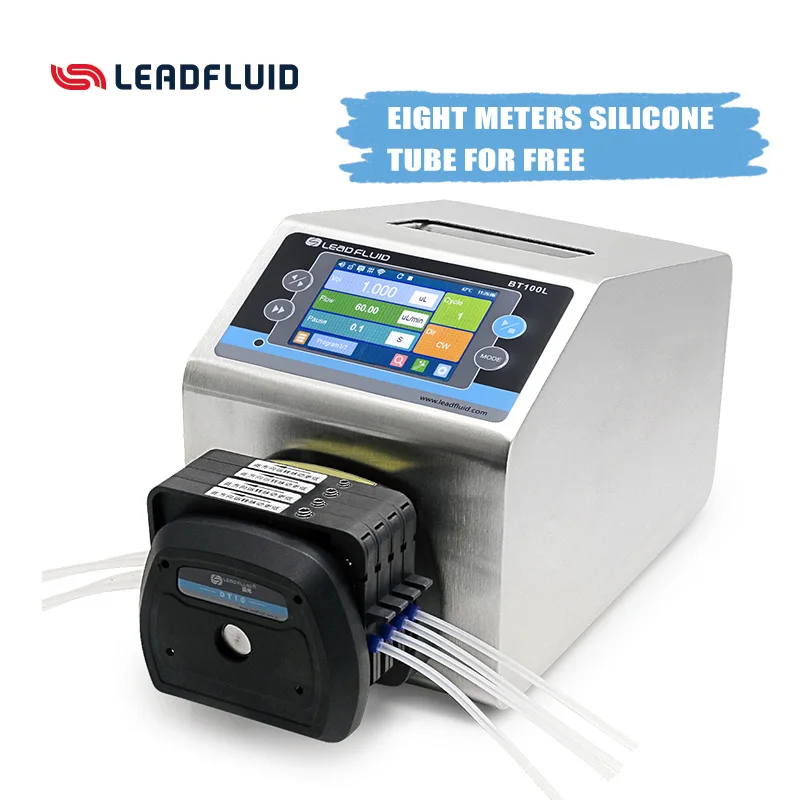

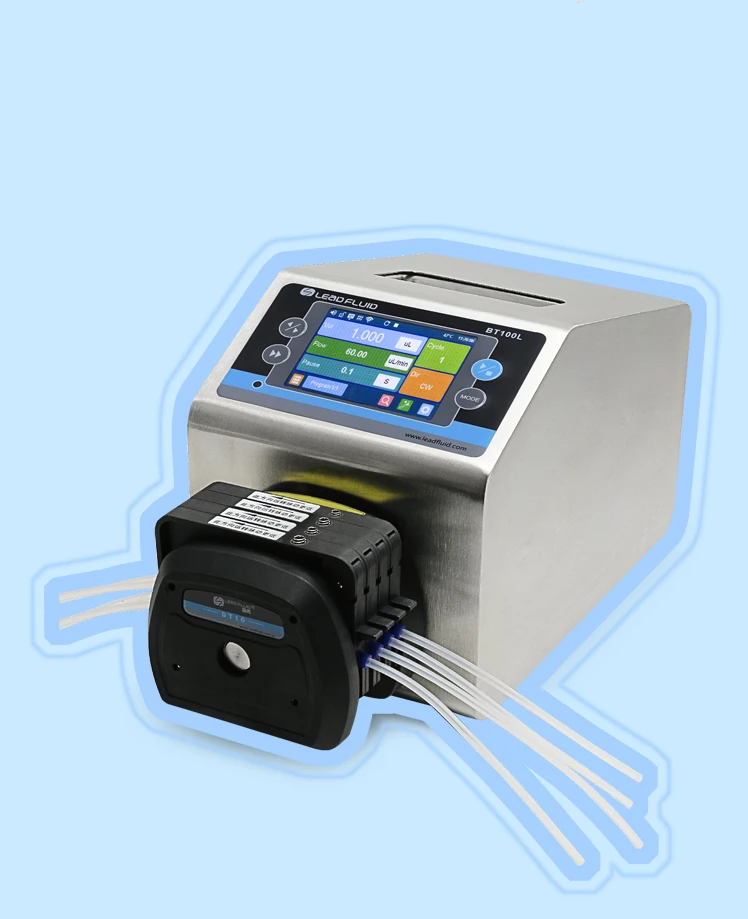

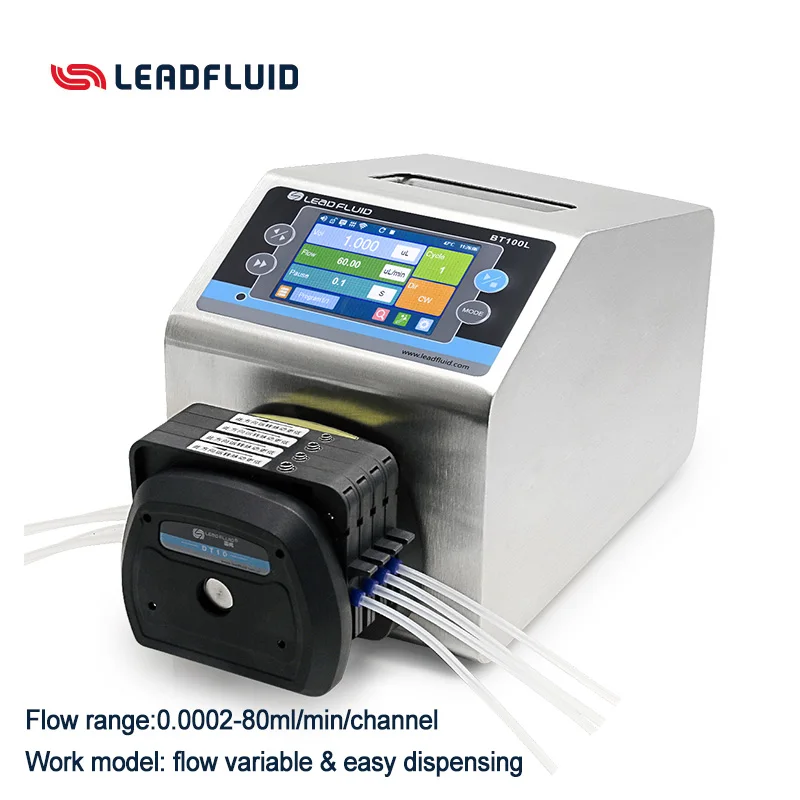

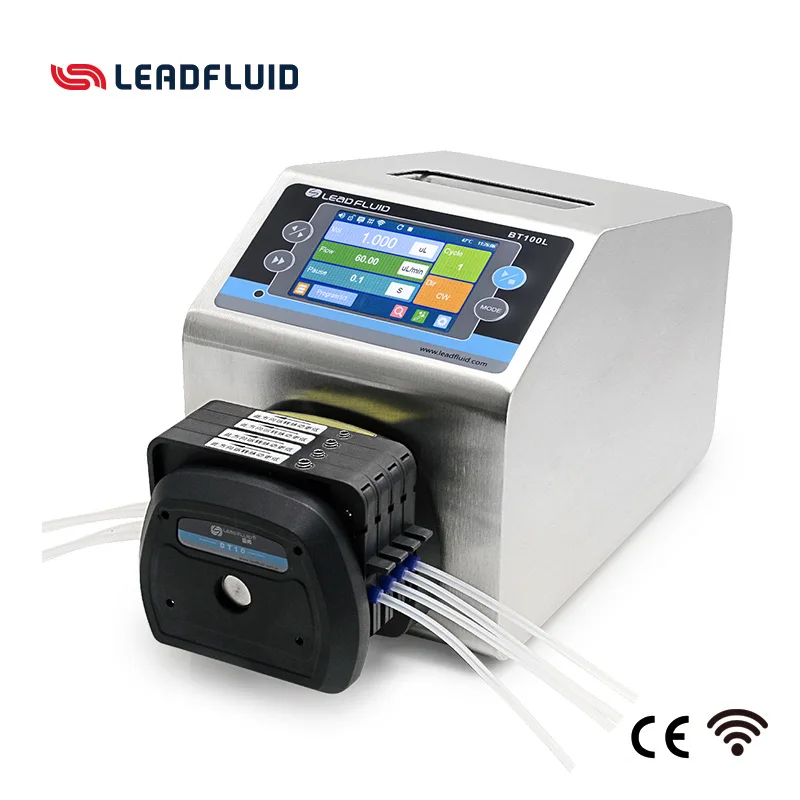

Multi Channel Peristaltic Pump With Stepper Motor Chemical Dosing Pump
- Category: >>>
- Supplier: Baoding Lead Fluid Technology Co. Ltd.
Share on (1600689336563):
Product Overview
Description
Product Description
Functions and Features

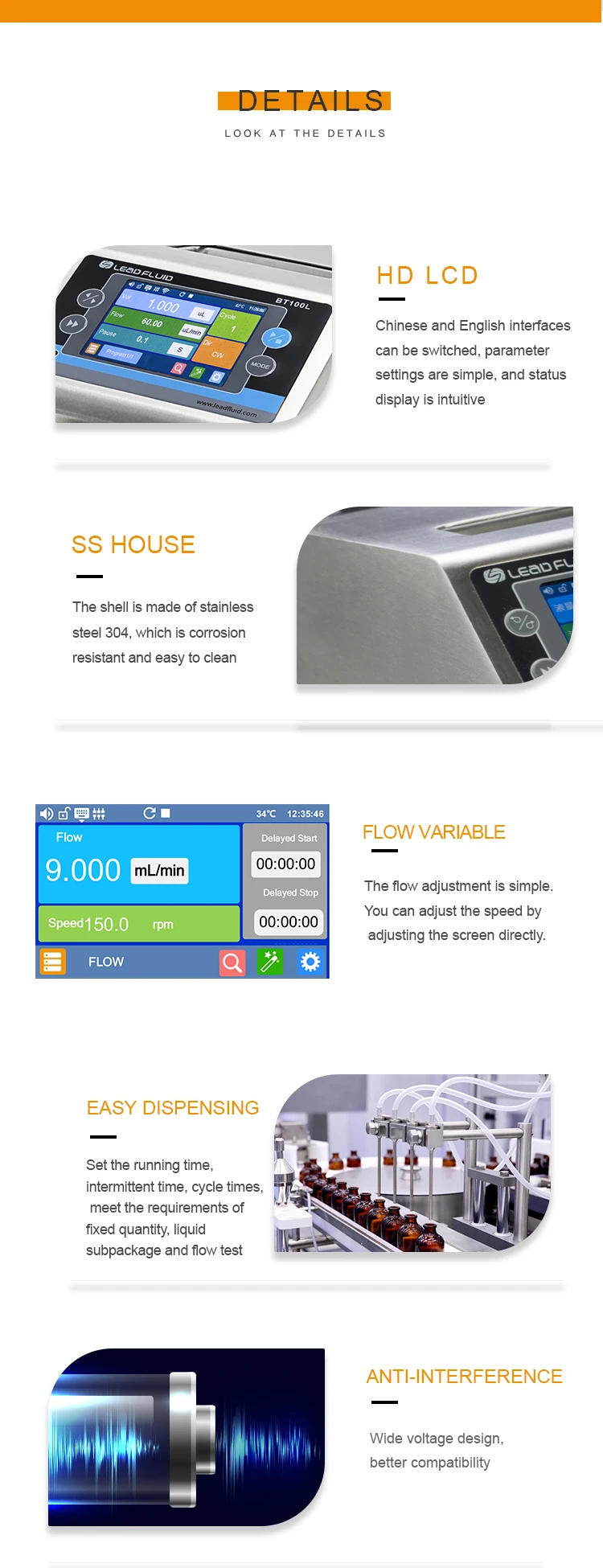

• 4.3 inch color LCD display, visual.
• Touch screen cooperates with keypads operation, bring good user experience.
• LF-Touch-OS software system, efficient and stable, has a good human-computer interaction mode. convenient product customization and upgrading.
• With the standard function such as start/stop, reversible direction,full speed, back suction, state memory, Can directly input flow or speed parameters .
• With the flow and time working mode.
• Precise flow control and display, micro-step algorithm to ensure the dispensing accuracy of different settings.
• Wizard-type flow calibration function, simple and easy to use.
• Delay start and delay stop function.
• Unique back suction function to effectively prevent liquid dripping.
• Reserved five-group dispensing parameters for time dispensing.
• Intelligent temperature control function, automatically adjust heat dissipation according to the environment, so that the equipment is always in the best state.
• WIFI control function, remote operation can be realized through the Lead Fluid APP software, and has monitoring functions such as shutdown alarm and reminding to replace the pump tube.
• External analog speed regulation, external control signal control start-stop, reversible direction, dispensing, external control signal ,physical isolation.
• RS485 communication, the MODBUS protocol, supporting up to 80 programming instructions, convenient connect with various control devices.
• Open multiple control parameters for OEM customized applications.
• The circuit board is sprayed with three anti paint processes to achieve dust and moisture-proof effect.
• Super Anti-interference characteristics, wide voltage design, suitable for complex power supply environment.
• Touch screen cooperates with keypads operation, bring good user experience.
• LF-Touch-OS software system, efficient and stable, has a good human-computer interaction mode. convenient product customization and upgrading.
• With the standard function such as start/stop, reversible direction,full speed, back suction, state memory, Can directly input flow or speed parameters .
• With the flow and time working mode.
• Precise flow control and display, micro-step algorithm to ensure the dispensing accuracy of different settings.
• Wizard-type flow calibration function, simple and easy to use.
• Delay start and delay stop function.
• Unique back suction function to effectively prevent liquid dripping.
• Reserved five-group dispensing parameters for time dispensing.
• Intelligent temperature control function, automatically adjust heat dissipation according to the environment, so that the equipment is always in the best state.
• WIFI control function, remote operation can be realized through the Lead Fluid APP software, and has monitoring functions such as shutdown alarm and reminding to replace the pump tube.
• External analog speed regulation, external control signal control start-stop, reversible direction, dispensing, external control signal ,physical isolation.
• RS485 communication, the MODBUS protocol, supporting up to 80 programming instructions, convenient connect with various control devices.
• Open multiple control parameters for OEM customized applications.
• The circuit board is sprayed with three anti paint processes to achieve dust and moisture-proof effect.
• Super Anti-interference characteristics, wide voltage design, suitable for complex power supply environment.
Brand Name | LEAD FLUID |
Model Number | BT100L |
Flow range | 0.0002～82ml/min/channel |
Speed range | 0.1～150 rpm |
Speed resolution | 0.1rpm |
Speed accuracy | ＜±0.2% |
Delayed startup time | 1S～999 H |
Delay stop time | 1S～999 H |
Dispensing time | 0.1~99.9 S |
Dispensing number | 1~999, 0 Infinite cycle |
Dispensing interval | 0.1~999 S/Min/H |
Back suction degree | 0～720° |
Pump Head | YZ15, YT25, DT10, DT15 |
Power supply | AC100～240V, 50Hz/60Hz |
Power consumption | ＜40W |
External control interface | external control input level 5V-24V, external control analog 0-5V, 0-10V, 4-20mA can set |
Communication interface | RS485 communication, support MODBUS protocol |
Working environment | Temperature 0 ～ 40℃, relative humidity＜80% |
IP grade | IP31 |
Dimension(L×W×H） | 269X160X183mm |
Weight | 4.7kg |
Packing & Delivery

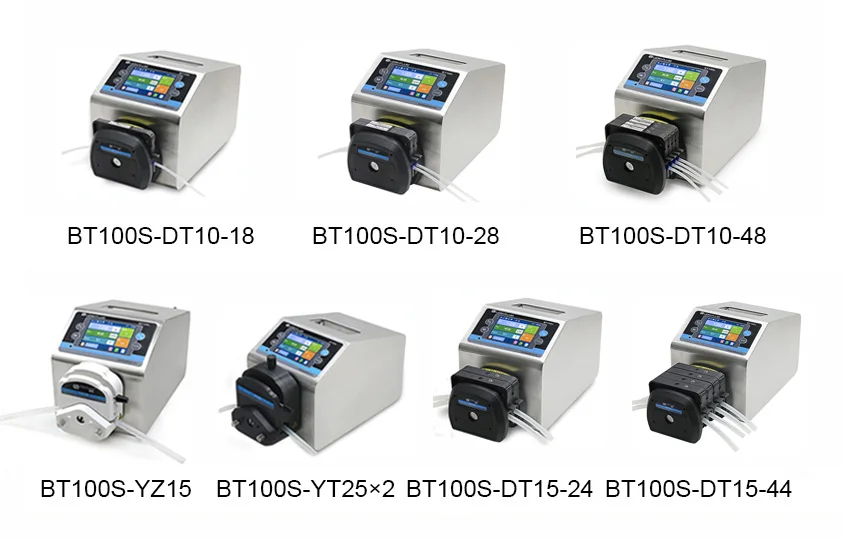

Related Products
Drive type | Pump Head | Channel | Tube（mm） | Flow Rate Per Channel （mL/Min） |
BT100L | DT10-18 | 1 | Wall 0.8～1, ID≤3.17 | 0.0002～82 |
DT10-28 | 2 | Wall 0.8～1, ID≤3.17 | 0.0002～82 | |
DT10-48 | 4 | Wall 0.8～1, ID≤3.17 | 0.0002～82 | |
YZ15 | 1 | 13#14#19#16#25#17#18# | 0.006～570 | |
2xYZ15 | 2 | 13#14#19#16#25#17#18# | 0.006～570 | |
YT25 | 1 | 15#24#35#36# | 0.16～720 | |
2xYT25 | 2 | 15#24#35#36# | 0.16～720 | |
DT15-24 | 2 | 19#16#25#17# | 0.07～560 | |
BT100L | DT15-44 | 4 | 19#16#25# | 0.07～330 |

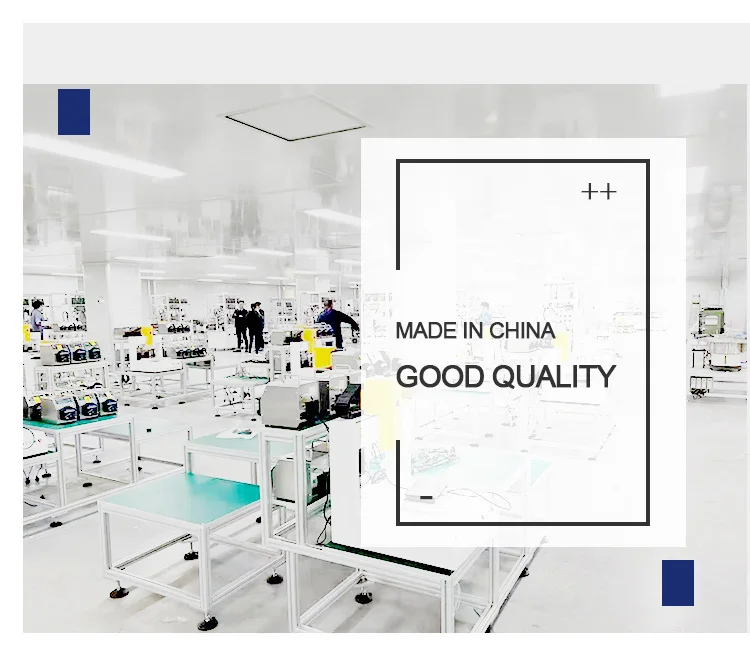

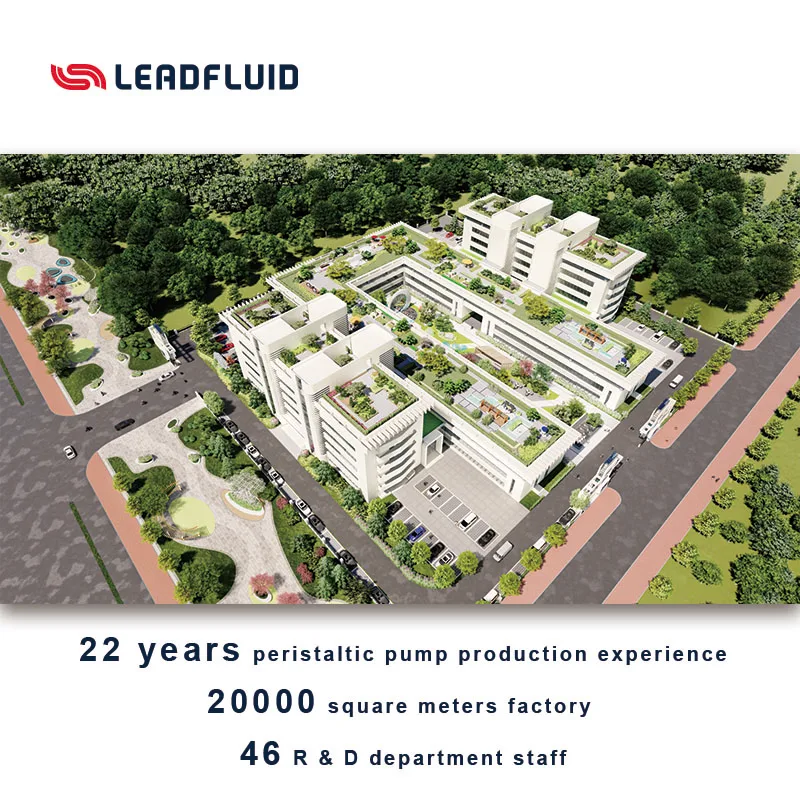

Company Profile
Baoding Lead Fluid Technology Co., Ltd. was founded in October 1999. It mainly engaged in R&D, production and the sale of peristaltic pumps, laboratory syringe pumps, micro syringe pumps, precision gear pumps and related accessories, and is committed to continuously providing users with competitive micro Fluid transmission solutions and services.
● 20000㎡ factory with 175 workers.
● 1000 ㎡ testing lab and perfect testing system ensure reliable design and stable batch production.
● 40 R & D workers ensure continuous technological innovation and provide you with perfect fluid solutions
● Strong anti-interference design, working in complex industrial environment, more reliable quality.
● Strict ISO9000 quality management system + 6S management.

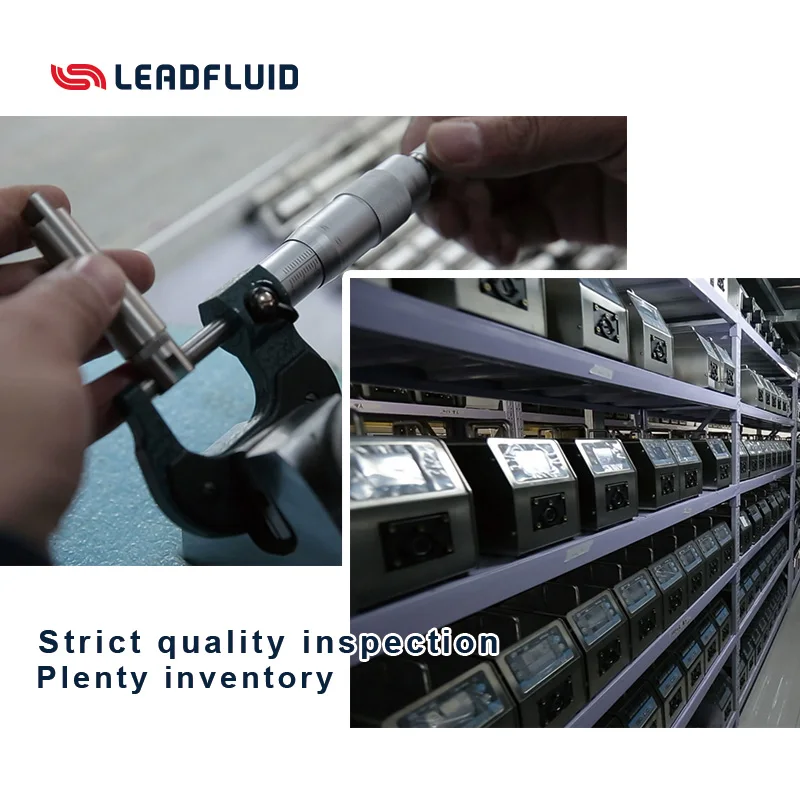

● Automatic testing equipment to ensure product consistency.
● Important accessories are purchased directly by large international manufacturers to ensure quality.
● The whole product process can be traced, including raw materials, assembly, inspection and logistics.
● Lead Fluid pumps has passed the CE certification of RoHS, reach, EMC, LVD and other directives, and the hose meets the GMP standard.
How About The Advantage About Lead Fluid Company?
● 23 years experience for peristaltic pump, syringe pump ,gear pump ,ODM pump production.● 20000㎡ factory with 175 workers.
● 1000 ㎡ testing lab and perfect testing system ensure reliable design and stable batch production.
● 40 R & D workers ensure continuous technological innovation and provide you with perfect fluid solutions
● Strong anti-interference design, working in complex industrial environment, more reliable quality.
● Strict ISO9000 quality management system + 6S management.
● Automatic testing equipment to ensure product consistency.
● Important accessories are purchased directly by large international manufacturers to ensure quality.
● The whole product process can be traced, including raw materials, assembly, inspection and logistics.
● Lead Fluid pumps has passed the CE certification of RoHS, reach, EMC, LVD and other directives, and the hose meets the GMP standard.
